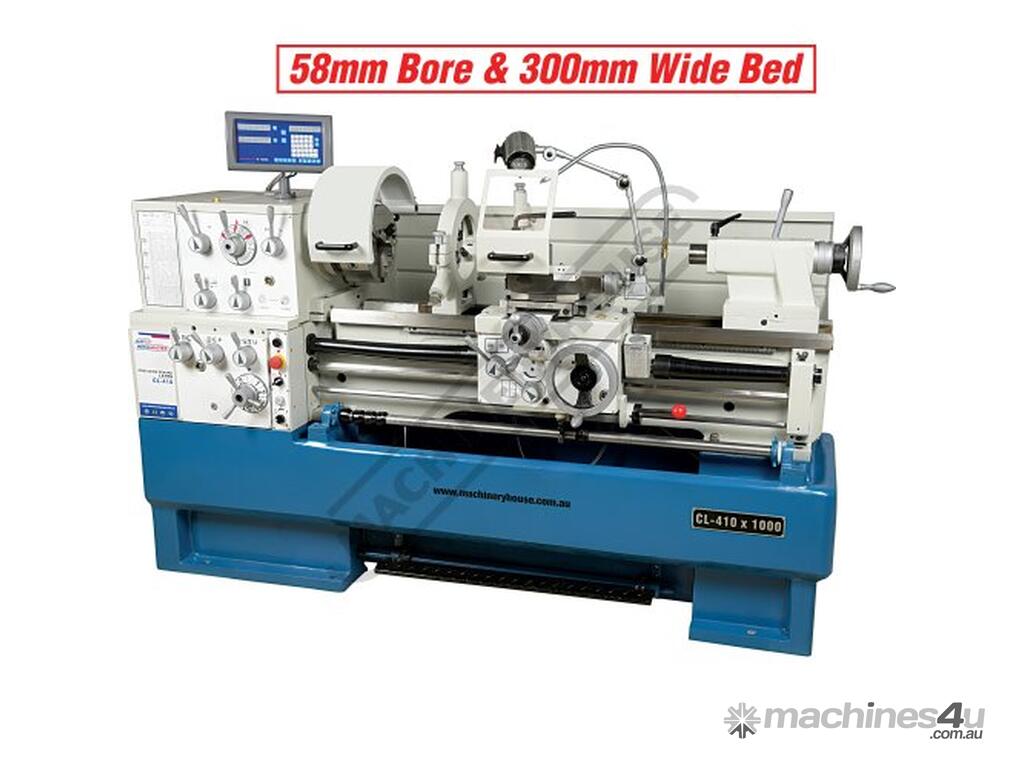

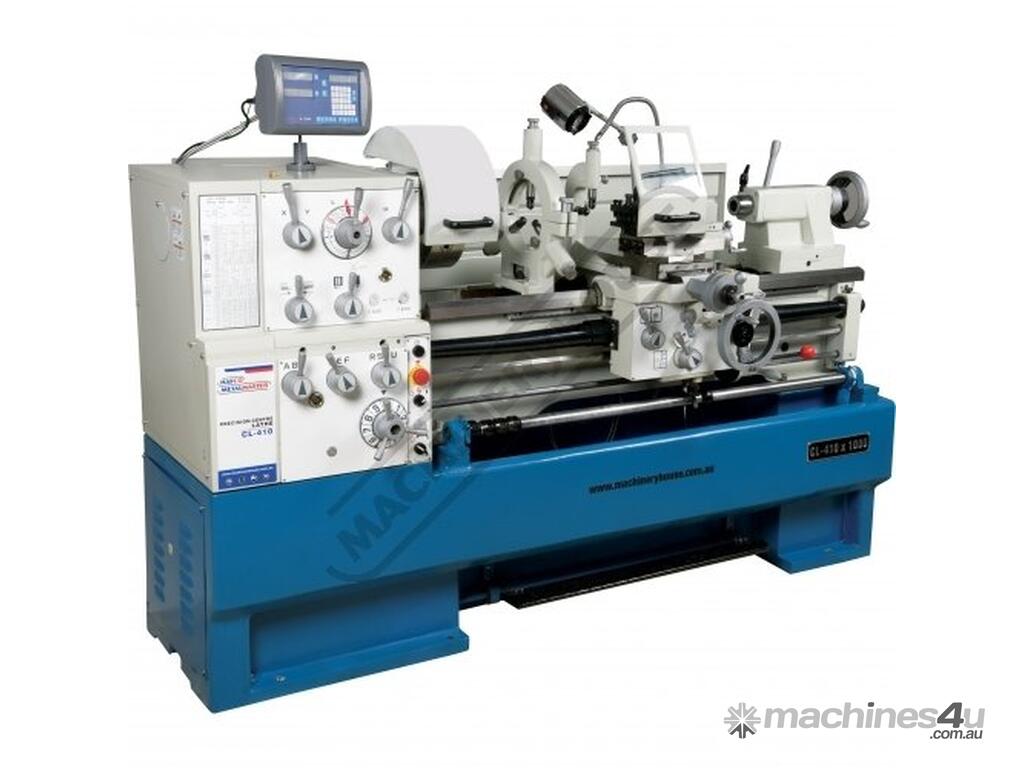

CL-410 Centre Lathe Ø410 x 1000mm Turning Capacity - Ø58mm Spindle Bore Includes Digital Readout Sys

HAFCO-METALMASTER CL-410 Centre Lathe Ø410 x 1000mm Turning Capacity - Ø58mm Spindle Bore Includes Digital Readout System & Quick Change Toolpost
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L600D

Features:

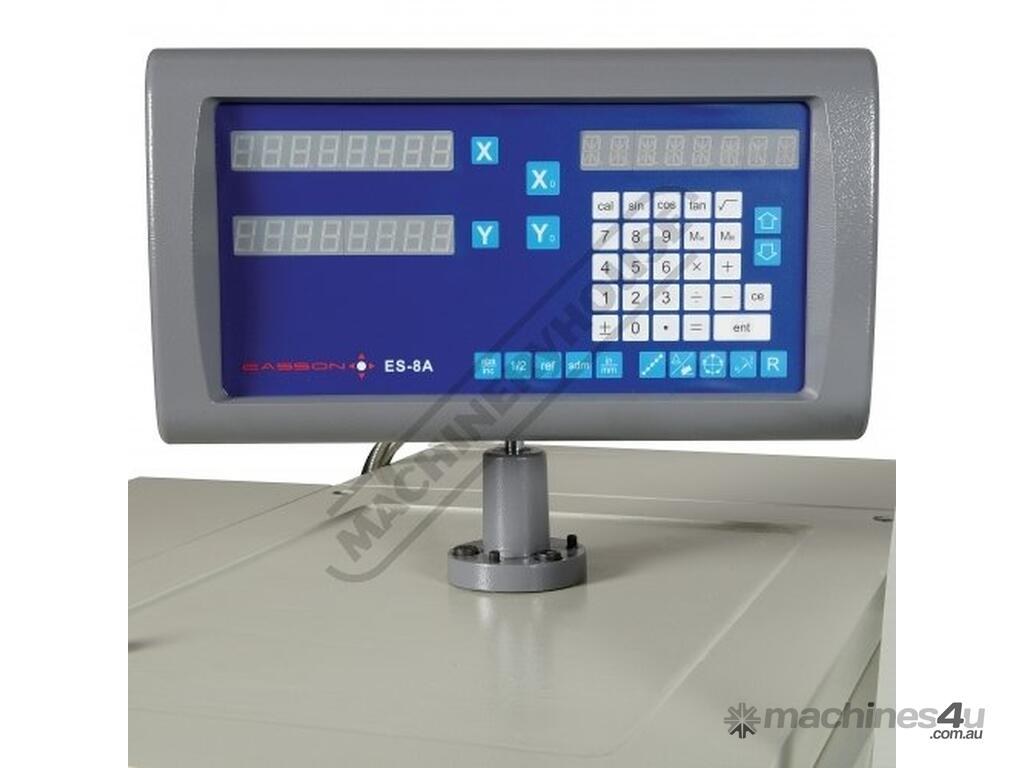

2 axis digital readout system

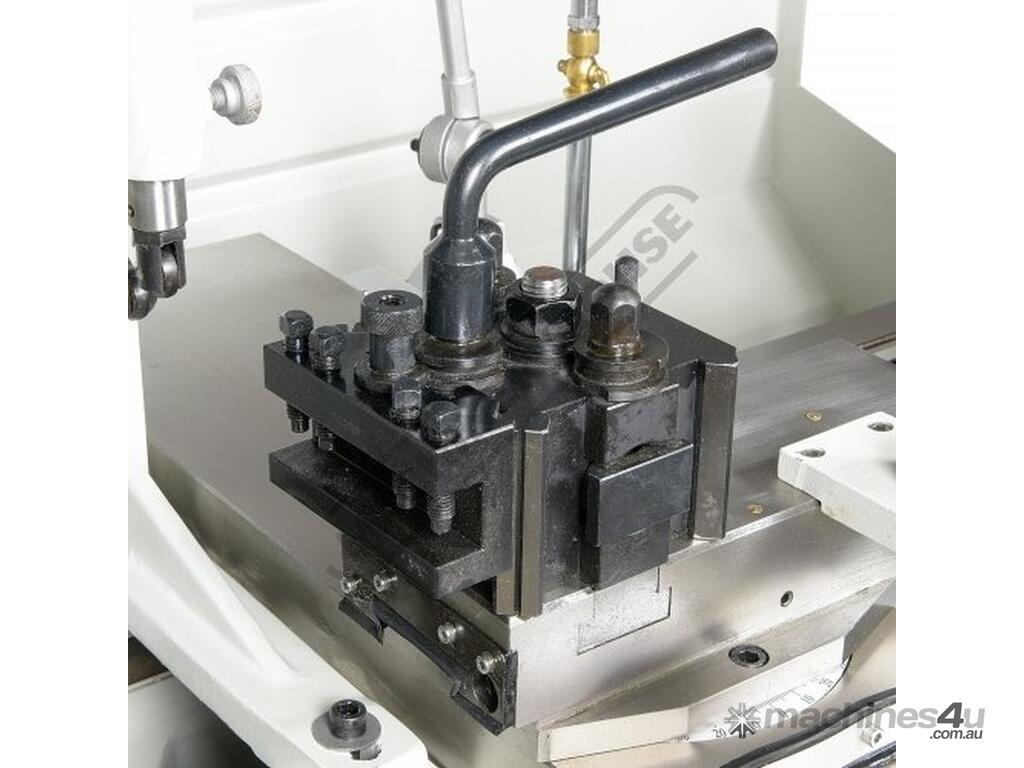

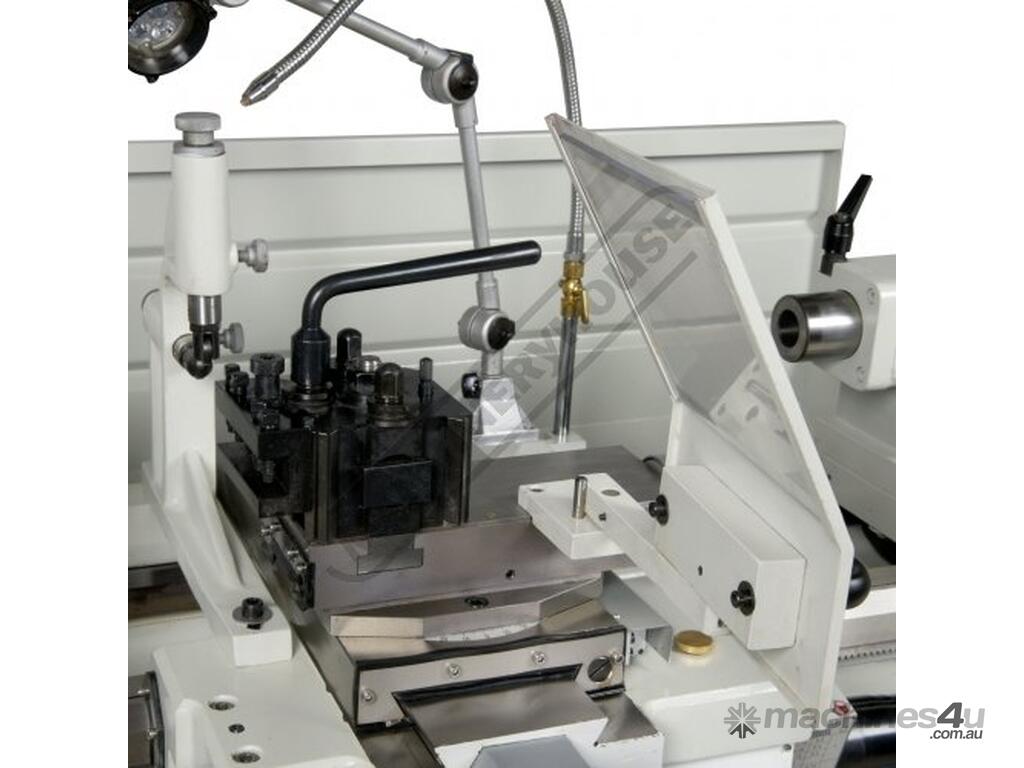

Quick change toolpost
Triple bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground

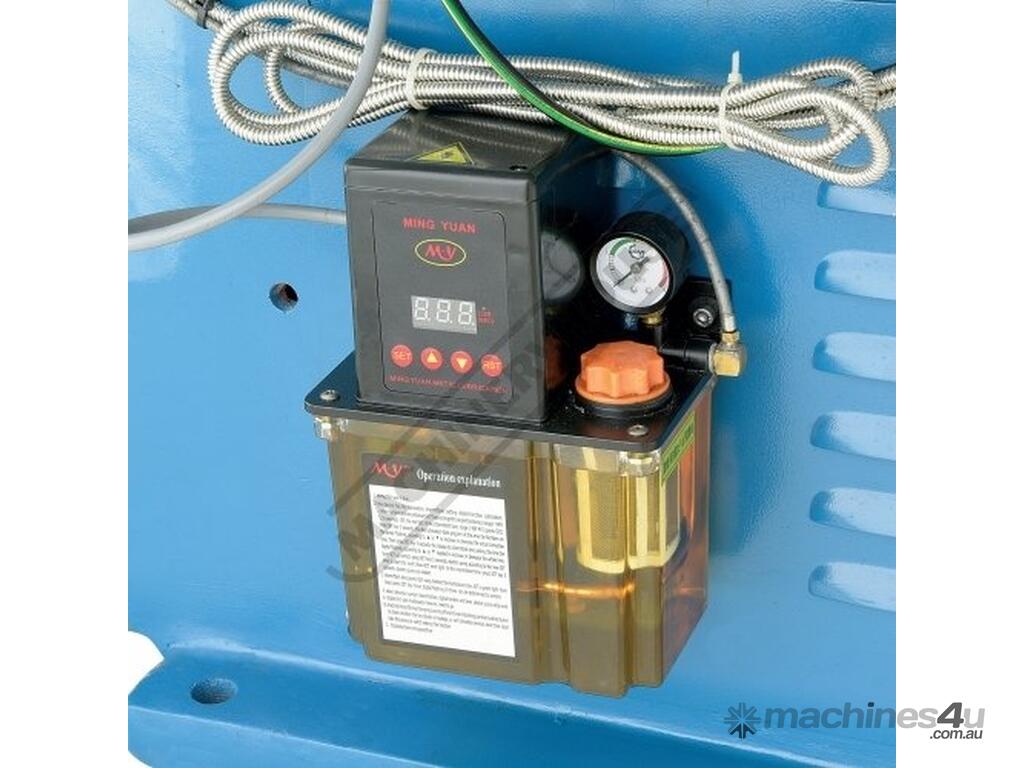

Automatic lubrication pump for saddle & cross slides
One piece cast iron base increases rigidity
Overload protection on drive motor and coolant system

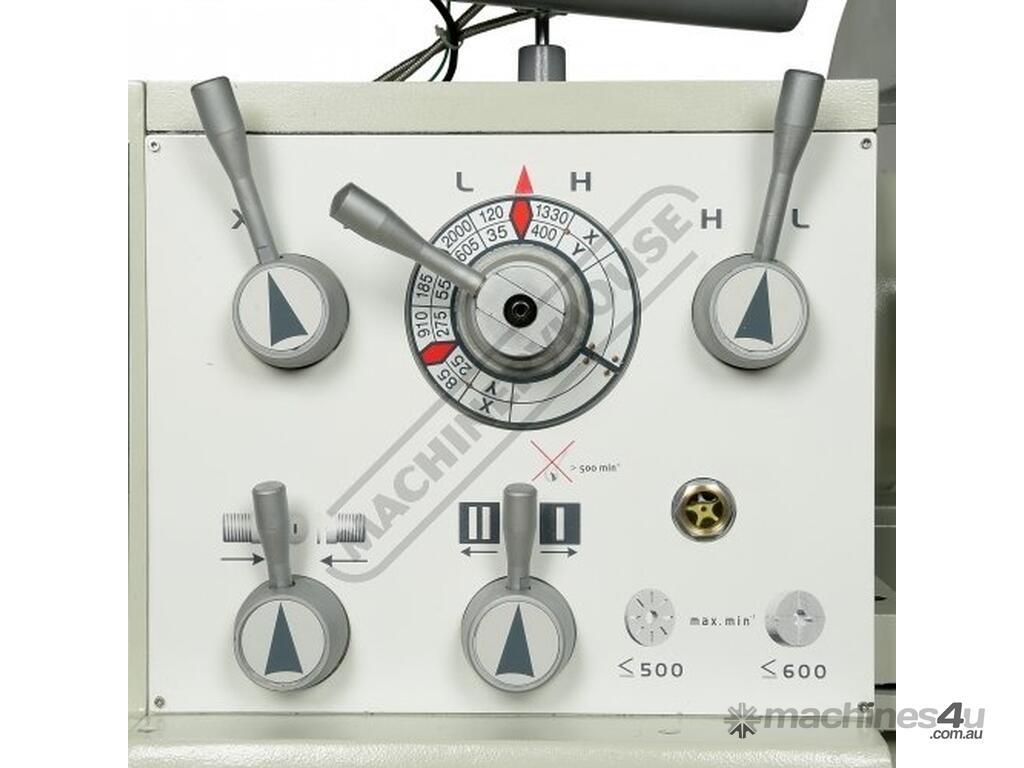

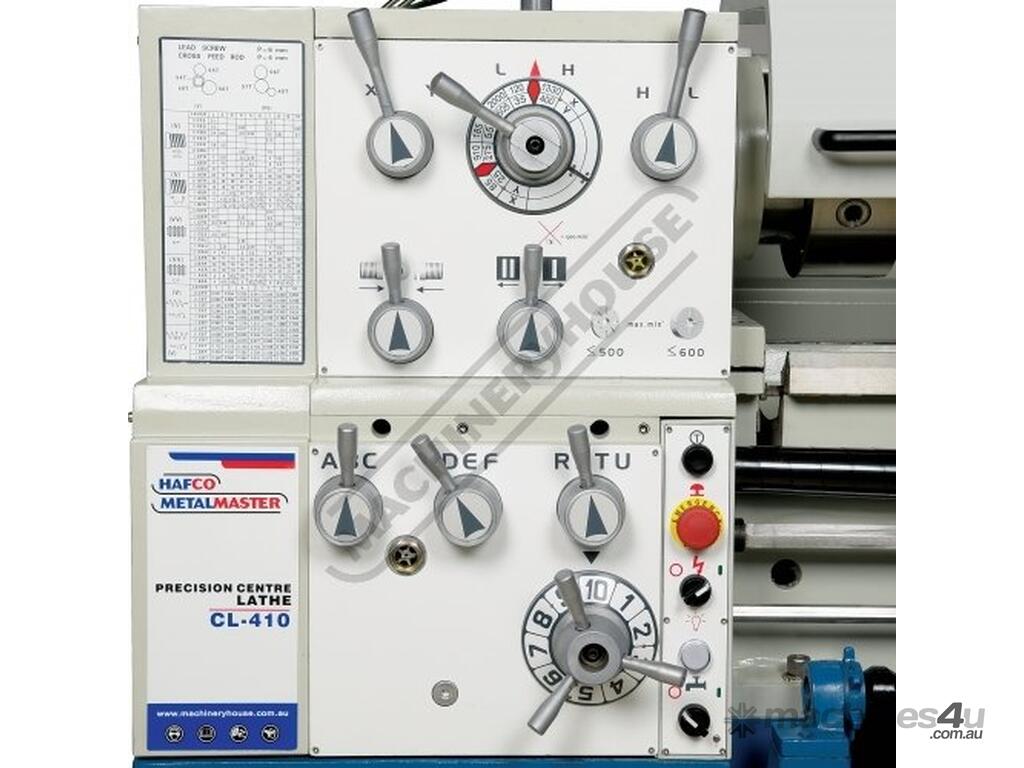

Universal enclosed gearbox incorporating metric & imperial thread capabilities

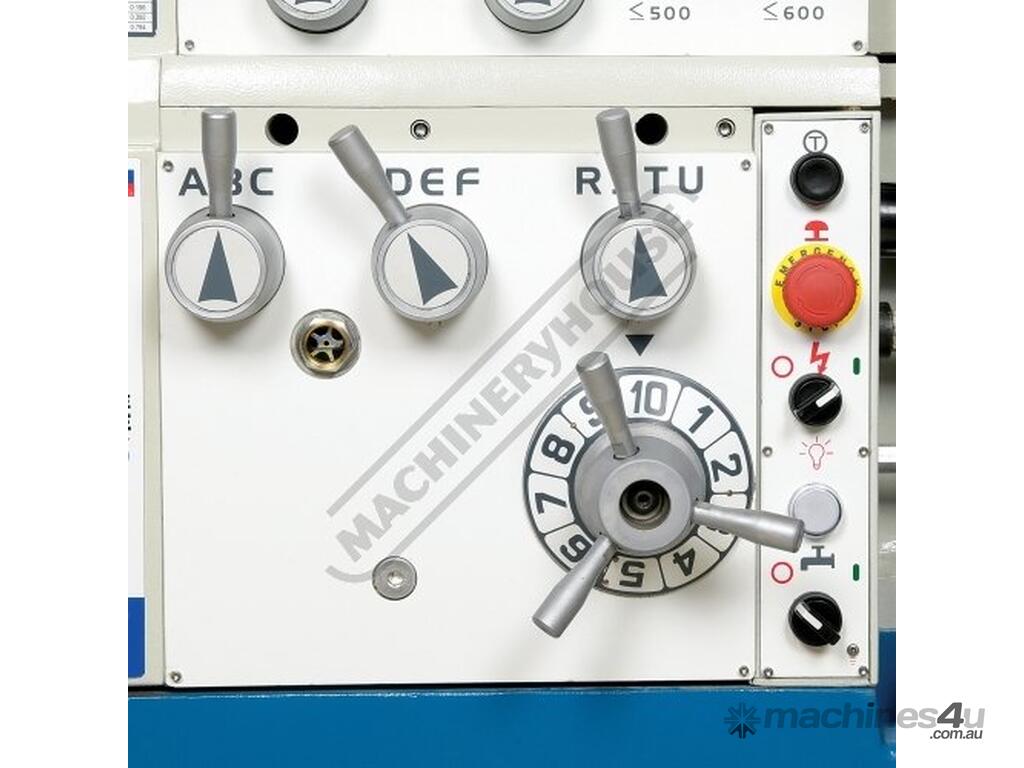

Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
300mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 640mm

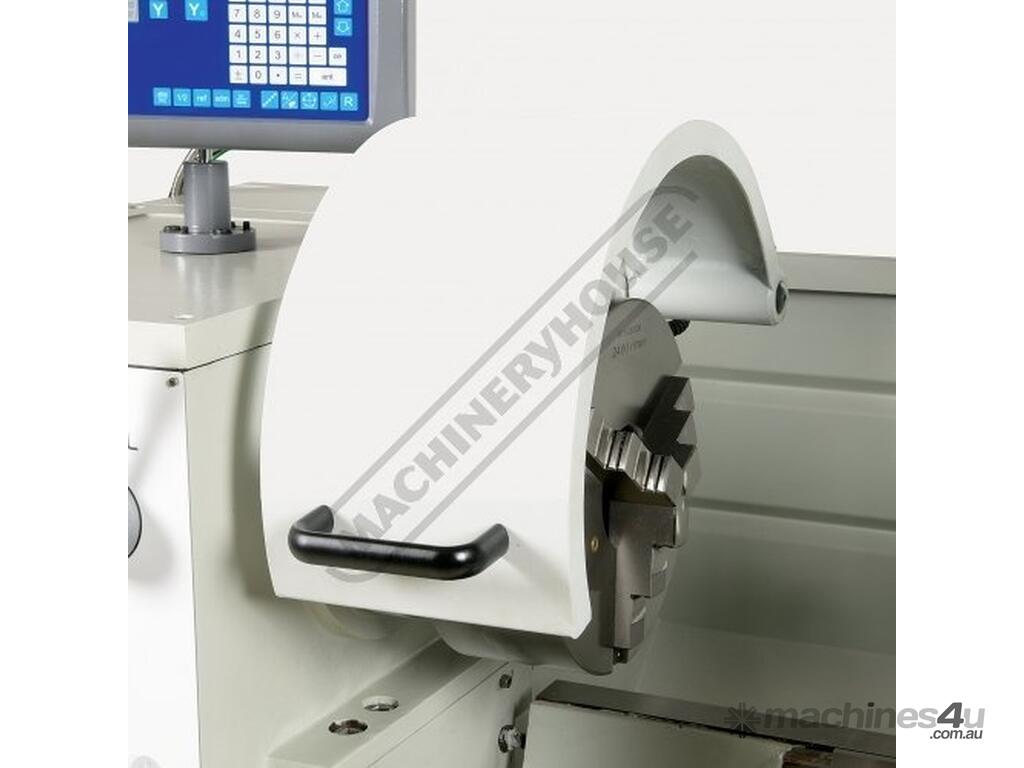

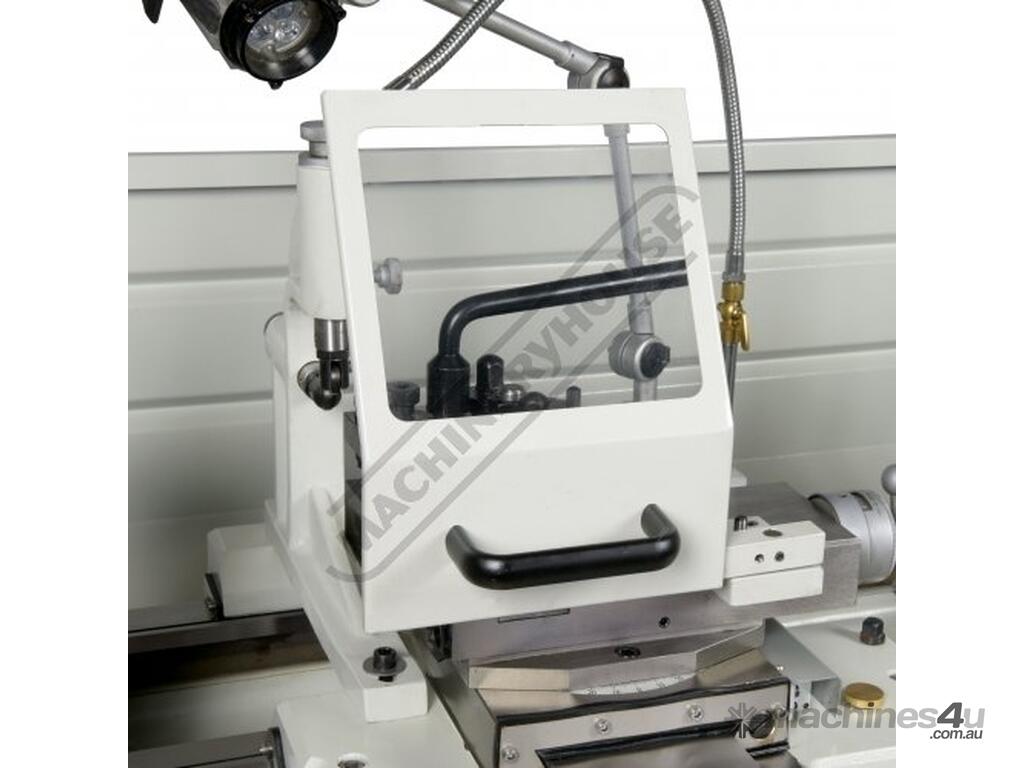

Chuck guard fitted with safety micro switch

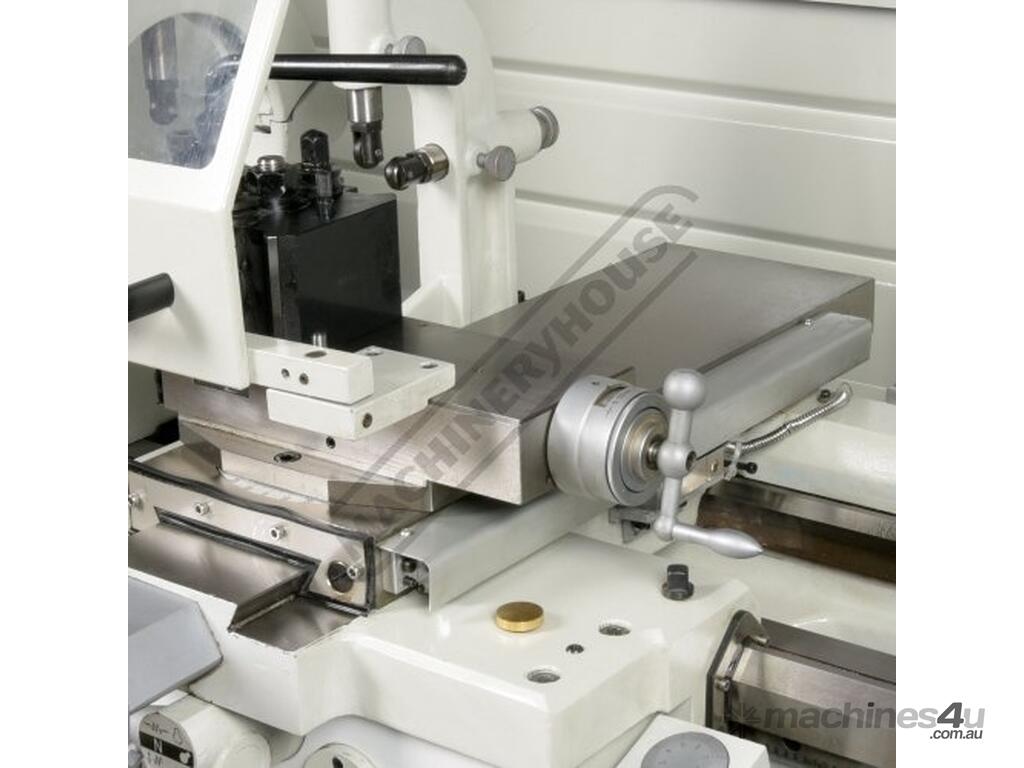

Powered longitudinal and cross feeds

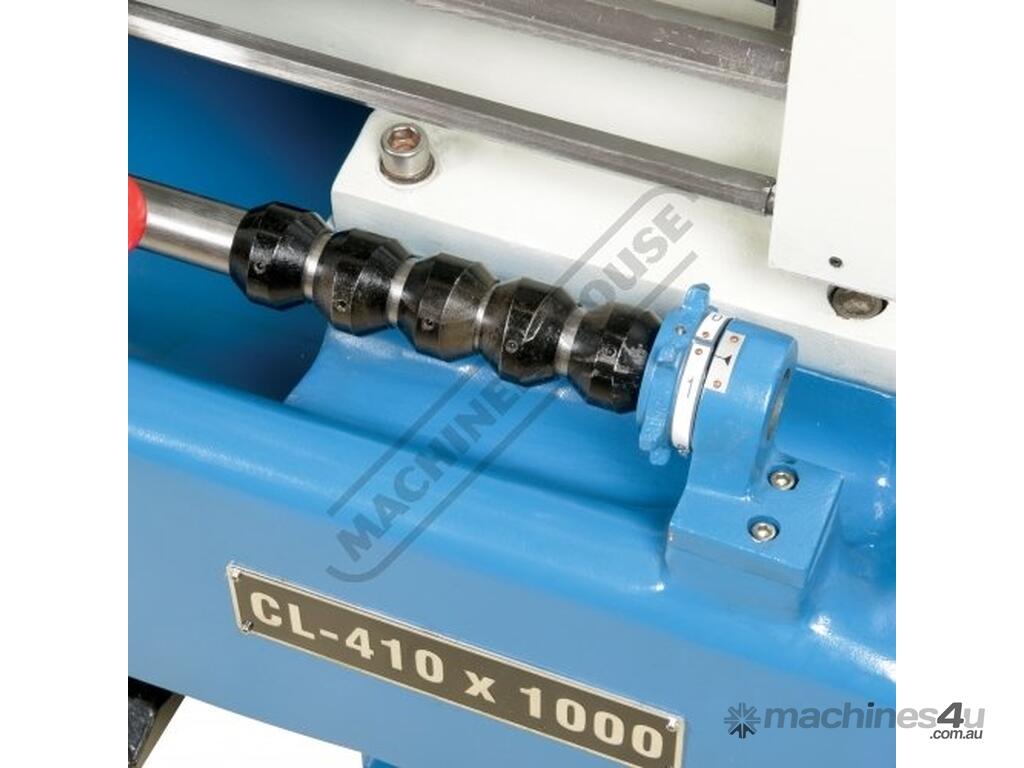

Adjustable 5 position length-stop mechanism for accurate repetitive operation

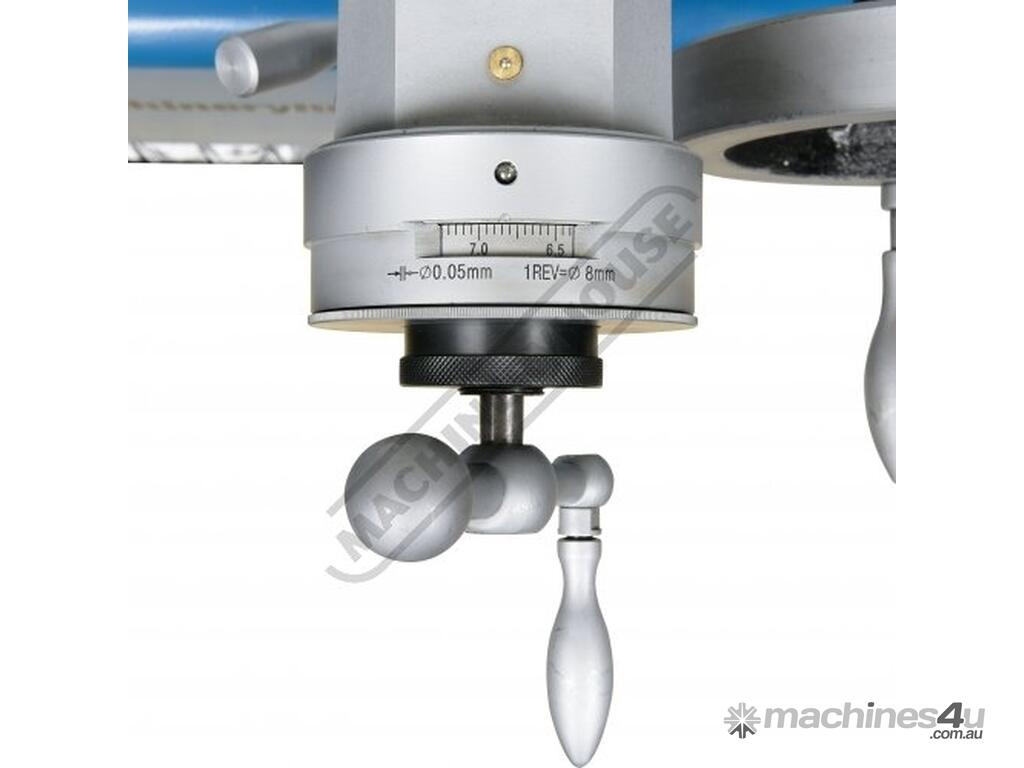

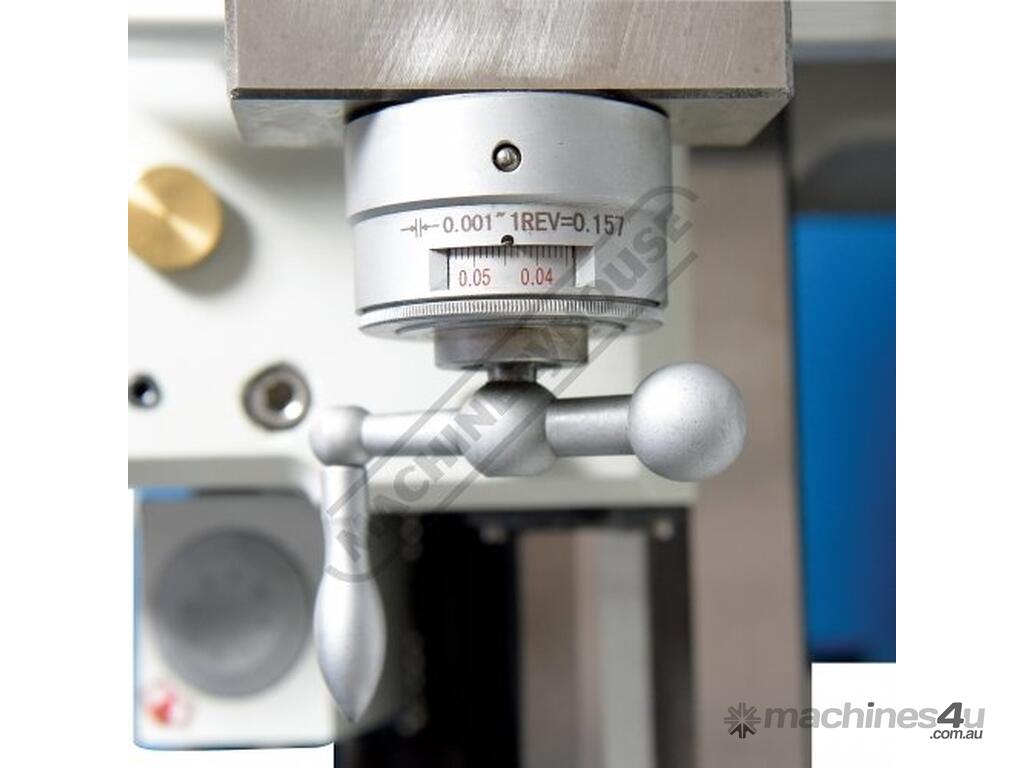

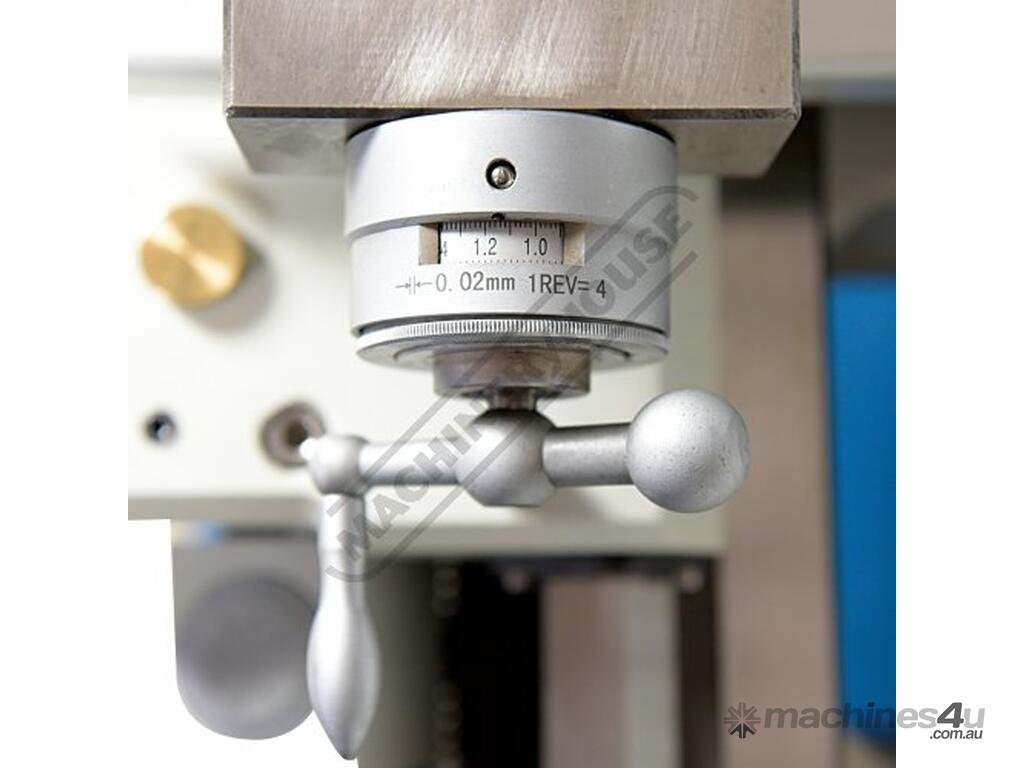

Dual calibrated dials incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil sight glass for head stock and gearbox
Low voltage halogen work light
D1-6 camlock spindle for quick chuck removal
12 spindle speeds from 25-2000rpm
Large 58mm spindle bore
5.5kW / 7.5HP 415V main motor

Includes:
- 2 axis digital readout system
- Quick change toolpost
- 250mm 3-jaw chuck with reverse jaws
- 250mm 4-jaw chuck
- Fixed Steady with roller bearings
- Travelling steady with brass guides

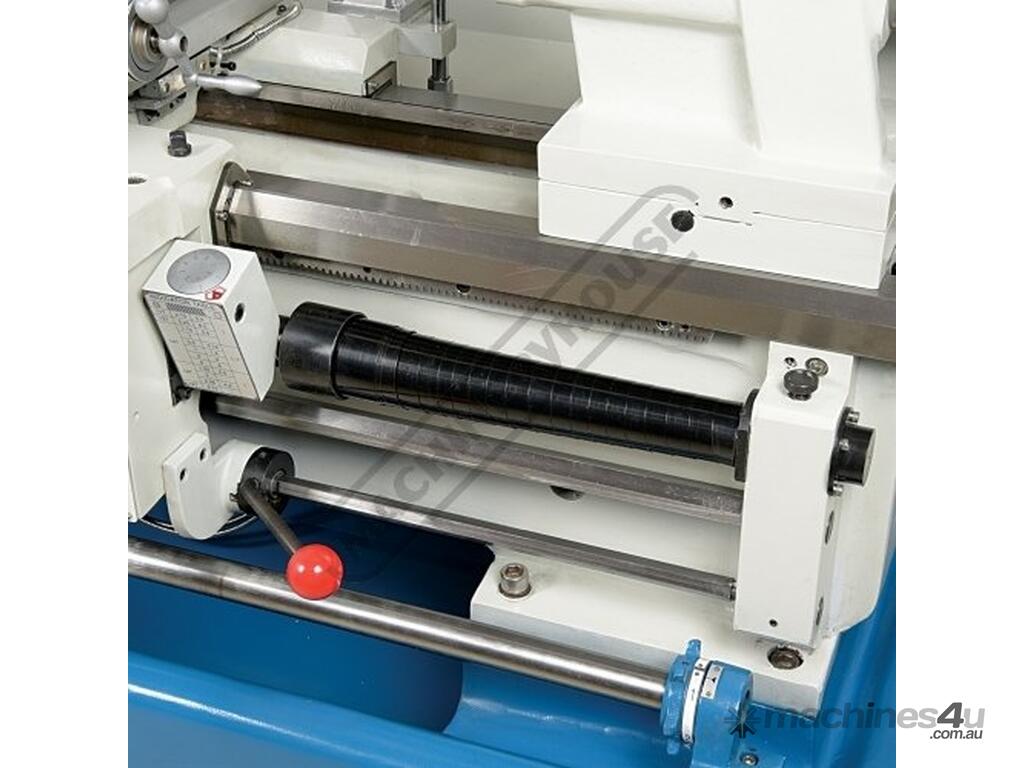

- Concertina leadscrew covers
- Faceplate
- Dead centres

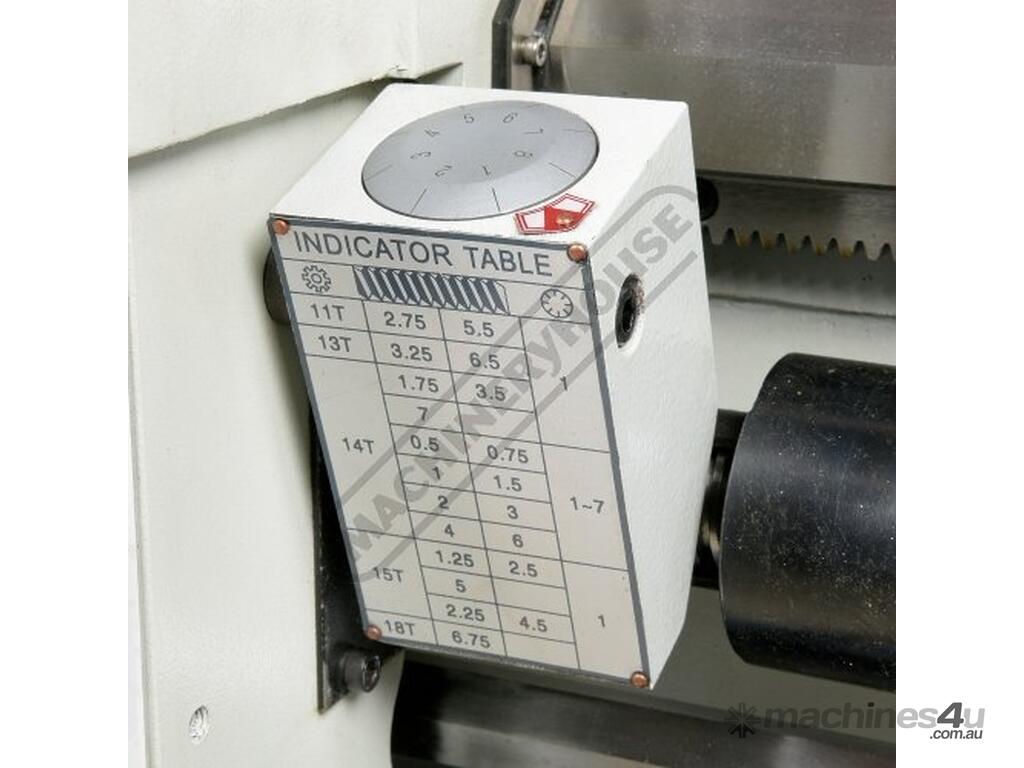

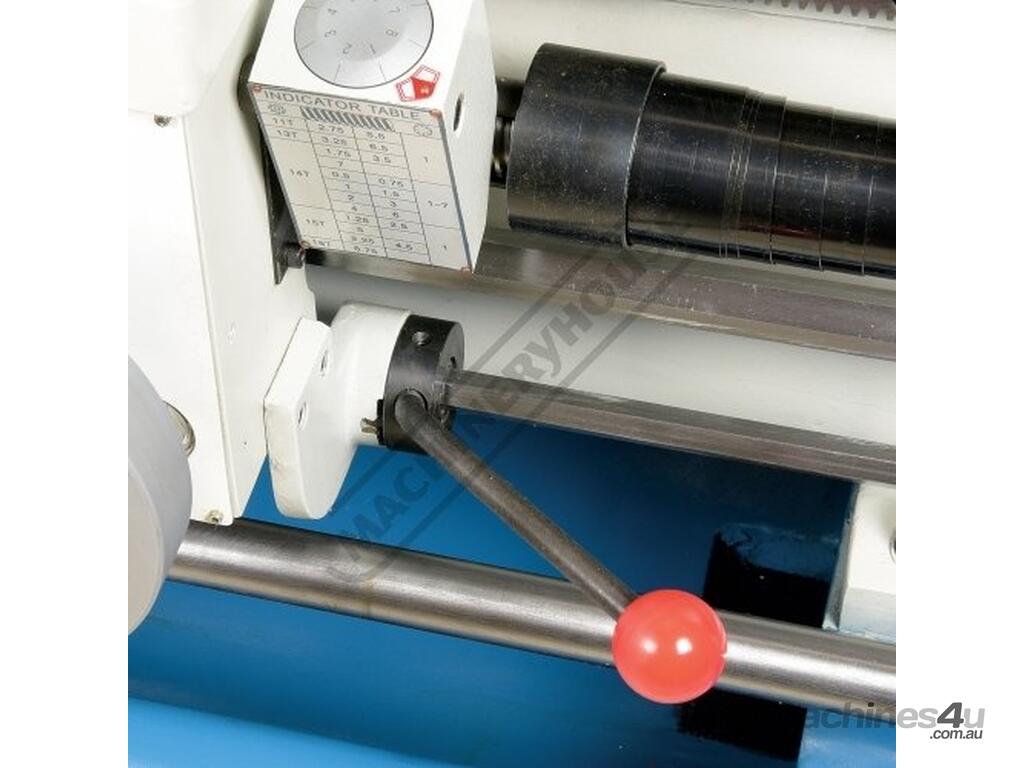

- Thread chasing dial
- Foot brake
- Coolant system
- Work light
- Rear splash guard
- Spindle reducing bush



Specifications:
ORDER CODE: L600D
MODEL: CL-410
Swing Over Bed (mm): 410
Distance Between Centres (mm): 1000
Spindle Bore (mm): 58
Swing In Gap (mm): 640
Swing Over Cross-slide (mm): 224
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Yes
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: ~
Coolant System: Yes
Tool Height To Suit (mm): 25
Centre Height (mm): 205
Spindle Nose Size or Type: D1-6 Camlock
Bed Width (mm): 300
Headstock Spindle Taper (MT): 6
Tailstock Taper (MT): 4
Cross Slide Travel (mm): 290
Compound Slide Travel (mm): 128
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.014 - 0.784
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.031 - 1.70
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~

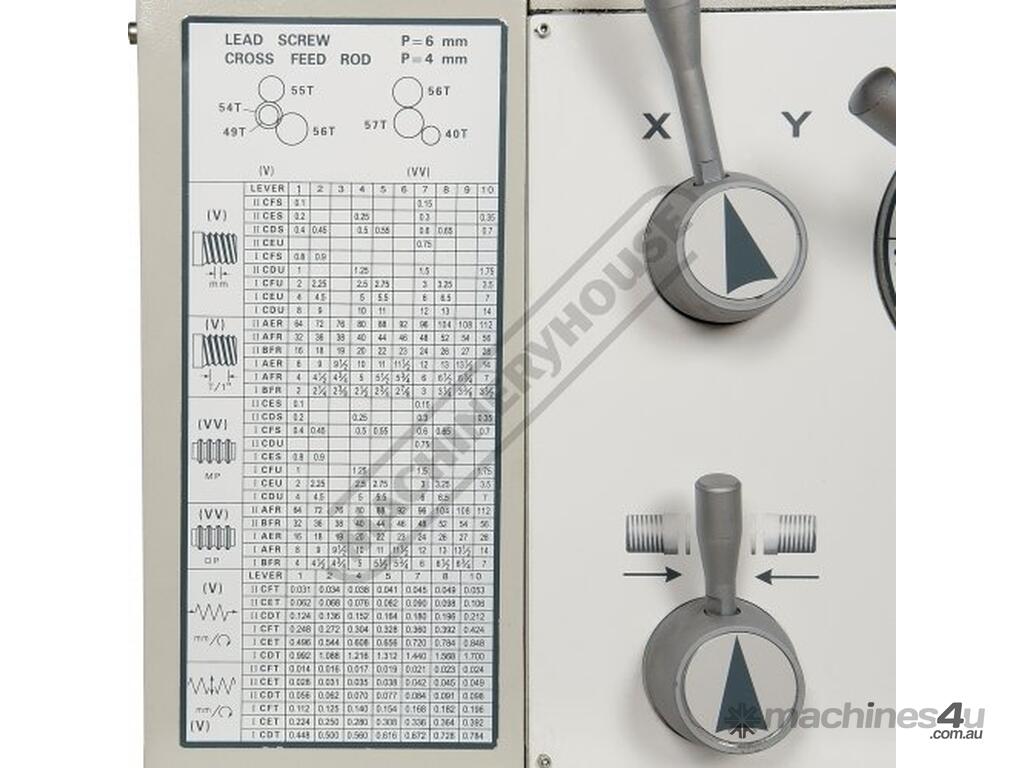

Metric Thread Steps & Pitch (No. / mm): 41 (0.1 - 14)
Imperial Thread Steps & TPI (No. / TPI): 60 (2 - 112)
3 Jaw Chuck Diameter (mm): 250
4 Jaw Chuck Diameter (mm): 250
Spindle Steps / Speeds (No. / rpm): 12 (25 - 2000)
Motor Power (kW / hp): 5.5 / 7.5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 1850
