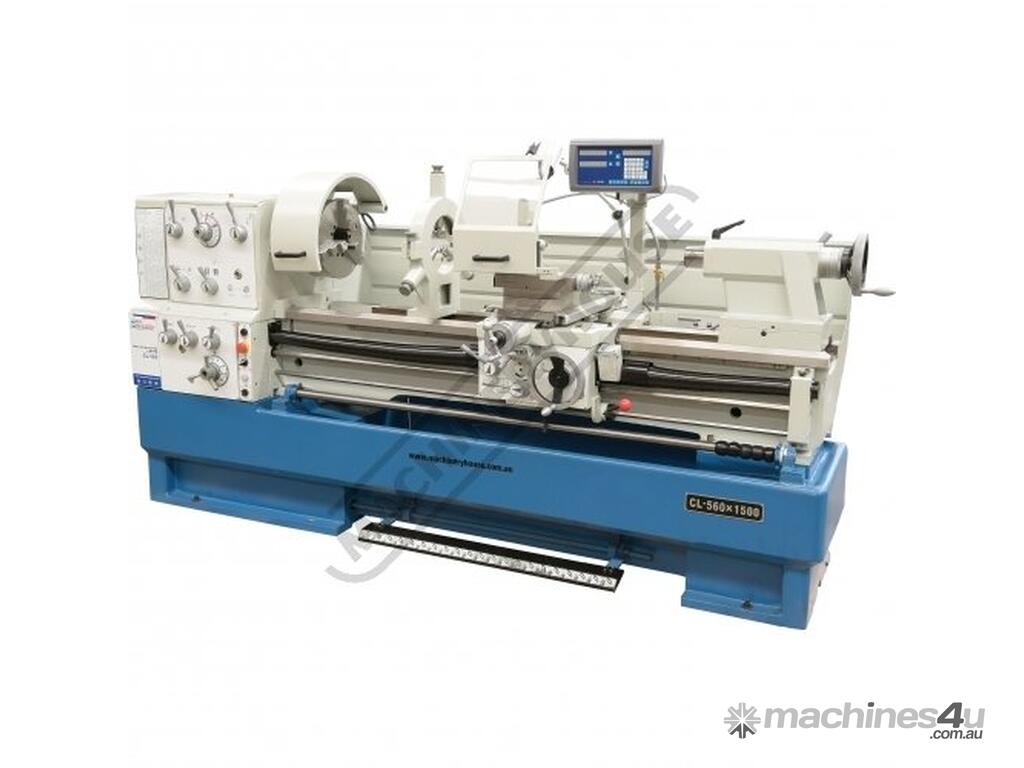

CL-560 Centre Lathe Ø560 x 1500mm Turning Capacity - Ø105mm Spindle Bore Includes Digital Readout Sy

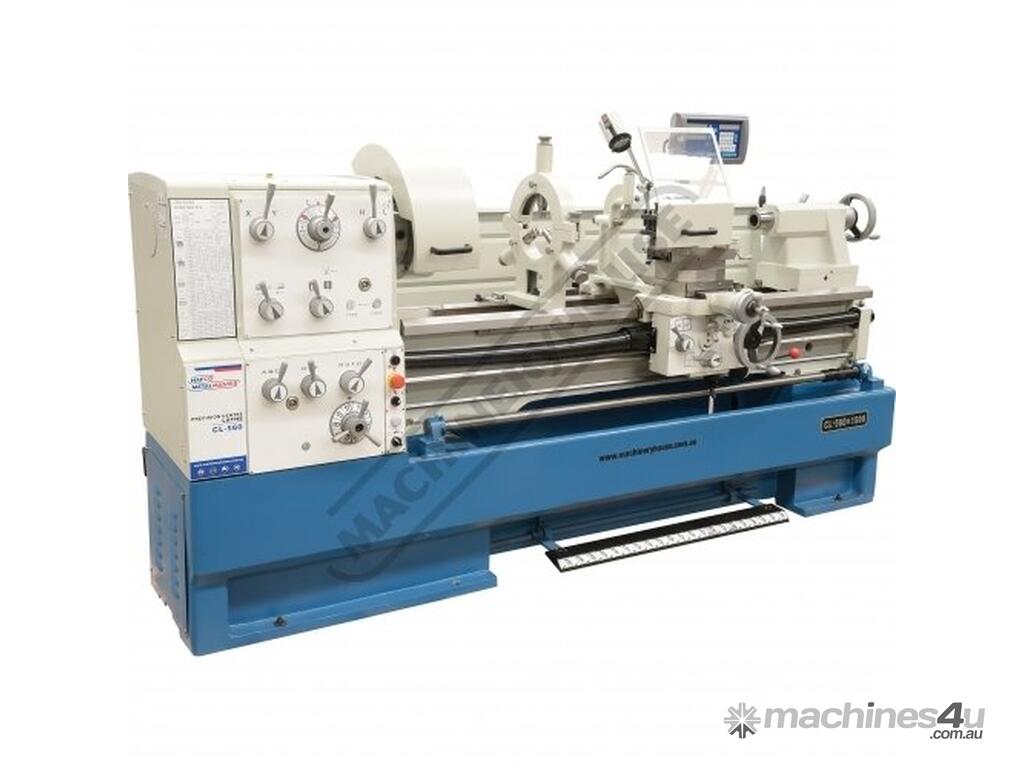

HAFCO-METALMASTER CL-560 Centre Lathe Ø560 x 1500mm Turning Capacity - Ø105mm Spindle Bore Includes Digital Readout System, Quick Change Toolpost, Taper Turning Attachment & Auto Slide-way Lubrication
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L610D

Features:

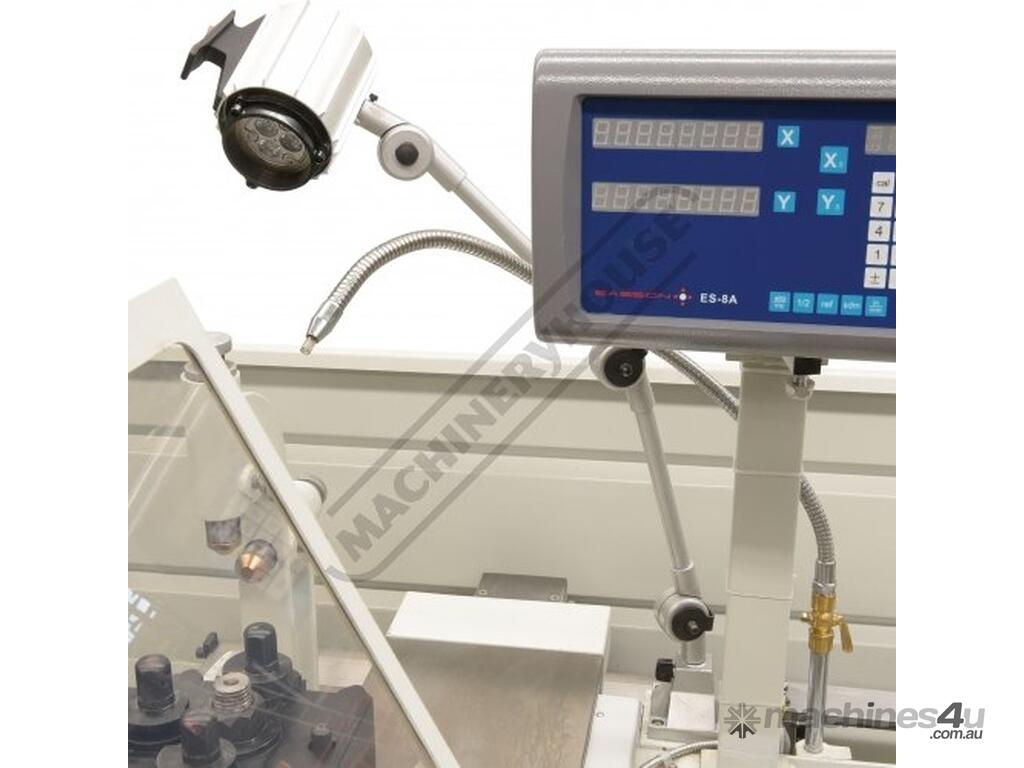

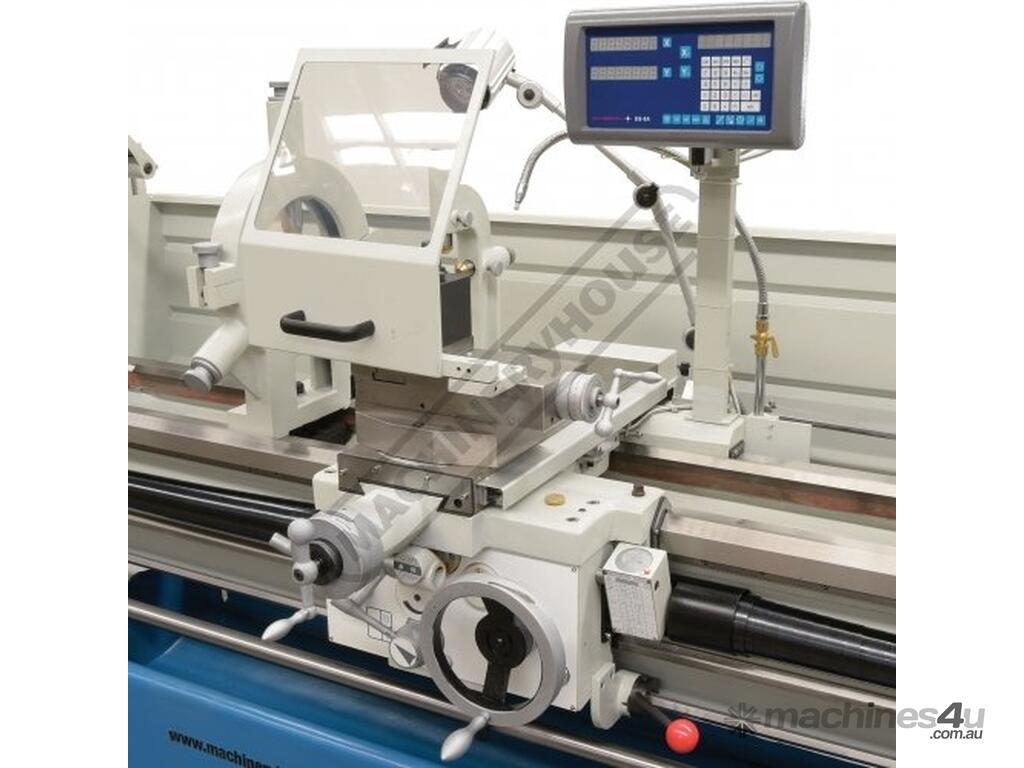

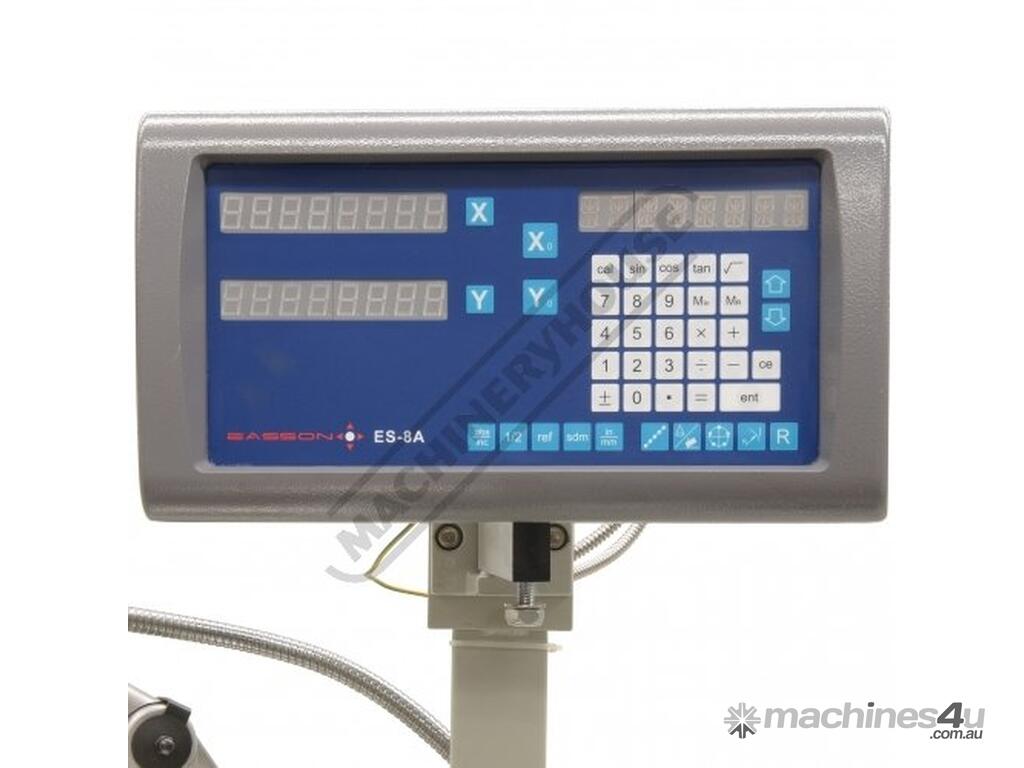

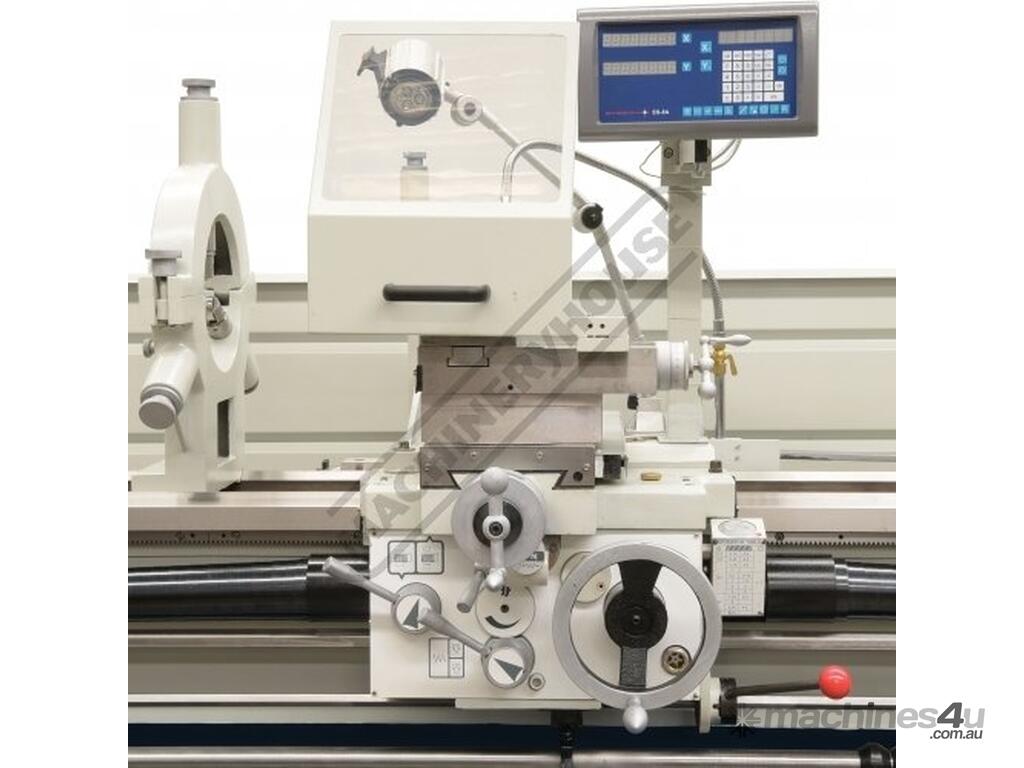

2 axis digital readout system
Quick change toolpost

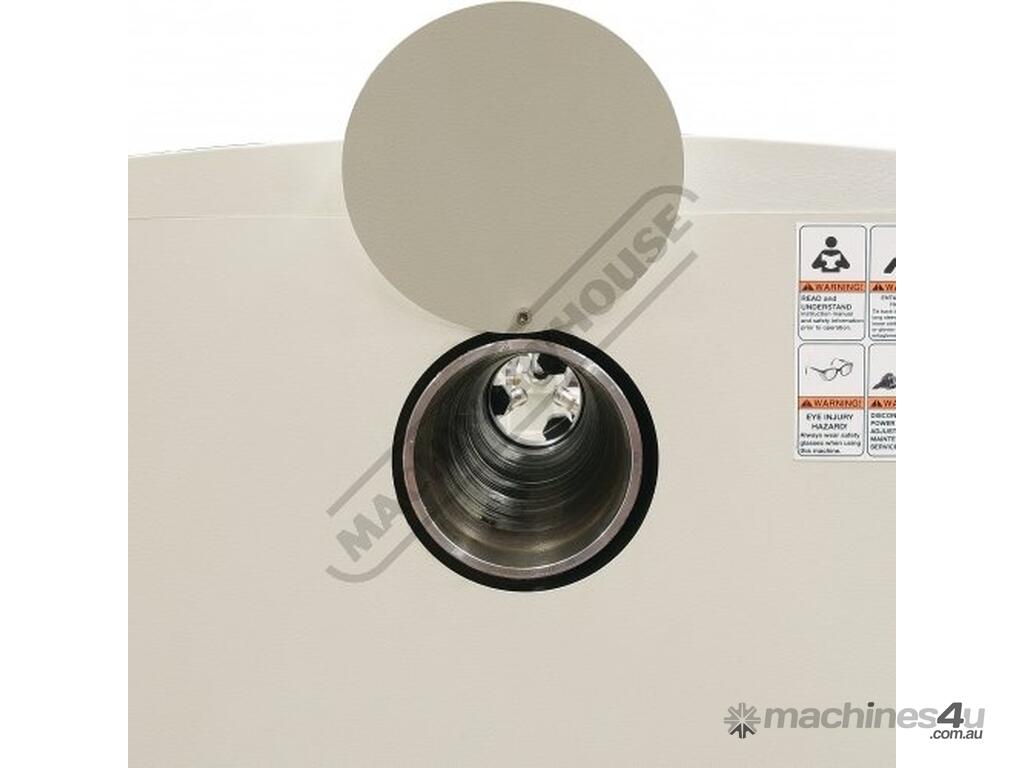

Large 105mm spindle bore

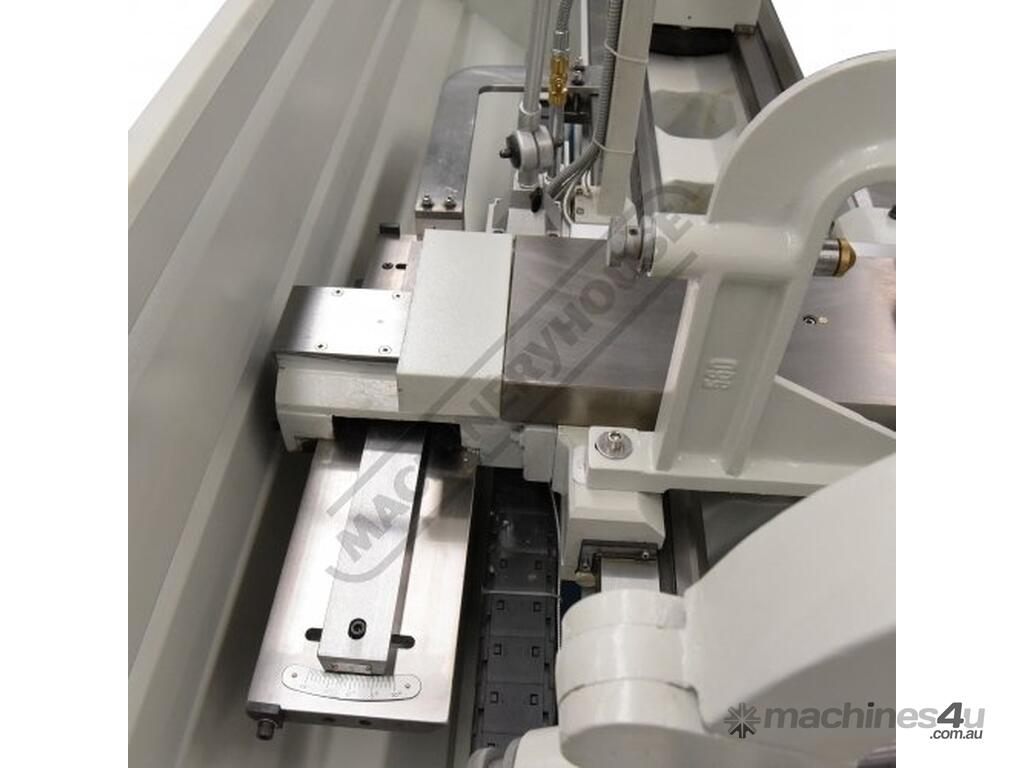

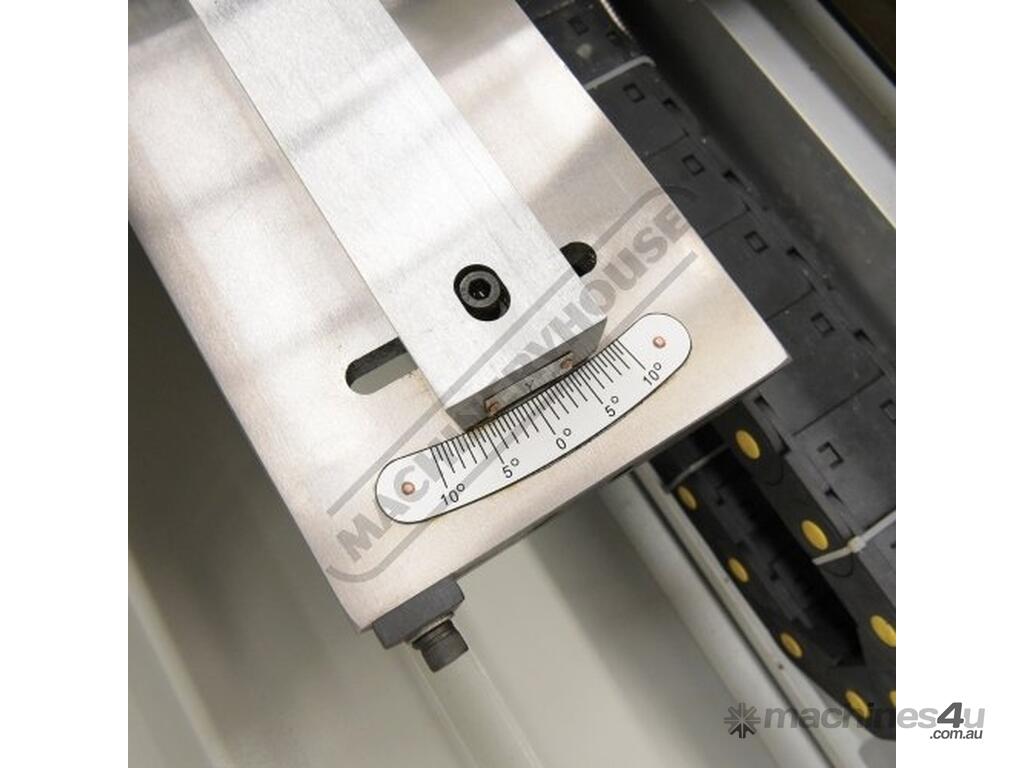

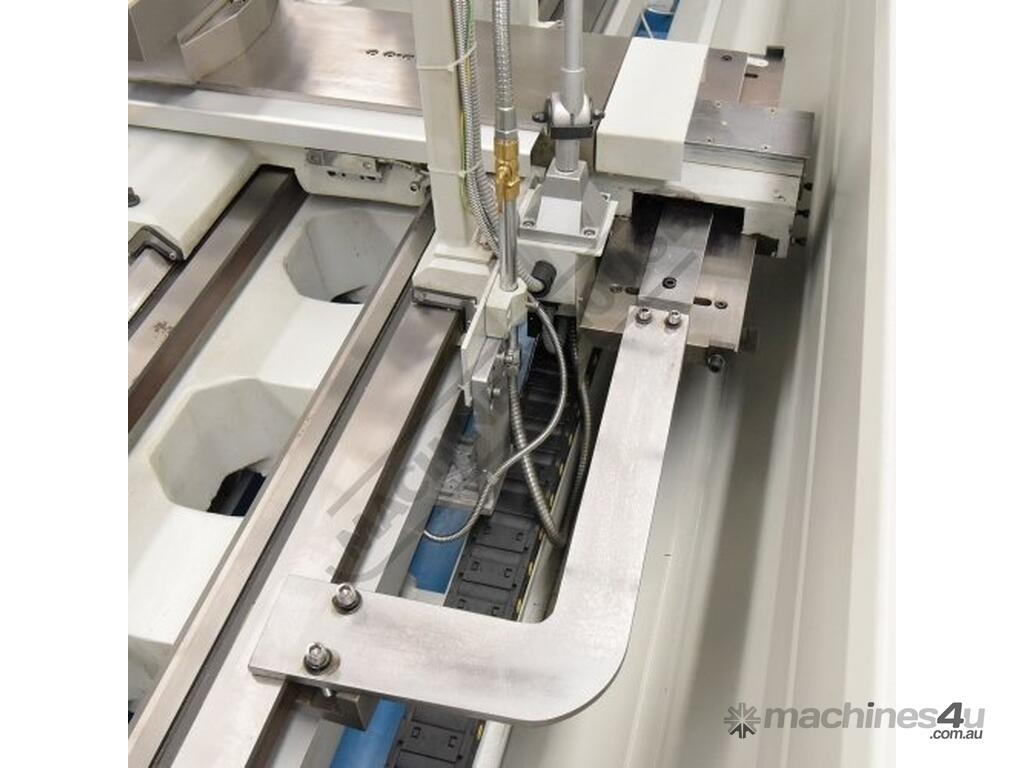

Taper turning attachment fitted to saddle

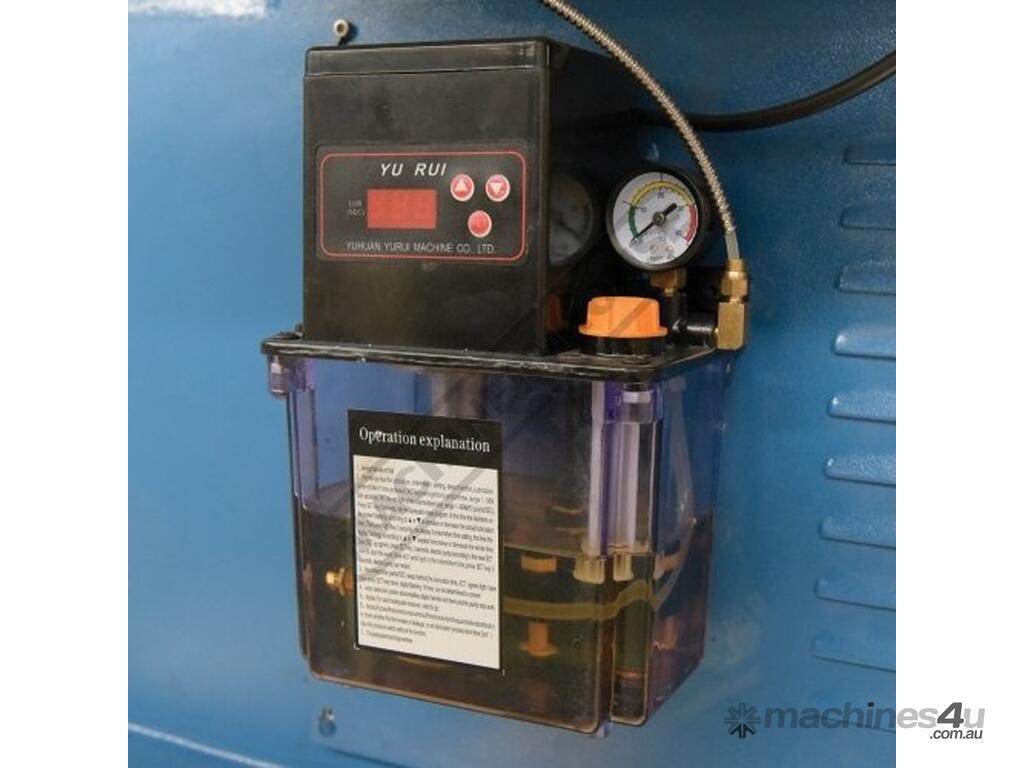

Automatic lubrication pump oiling slides
Triple bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy

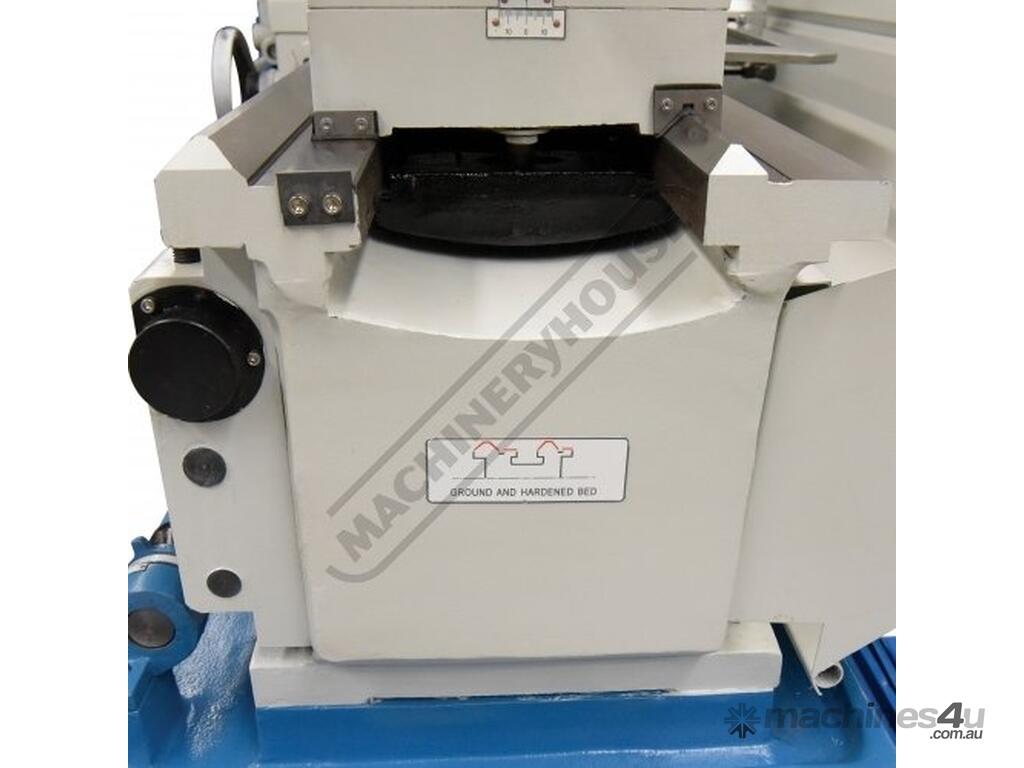

Precision 'V'-beds & headstock gears are all hardened & ground
One piece cast iron base increases rigidity
Overload protection on drive motor and coolant system

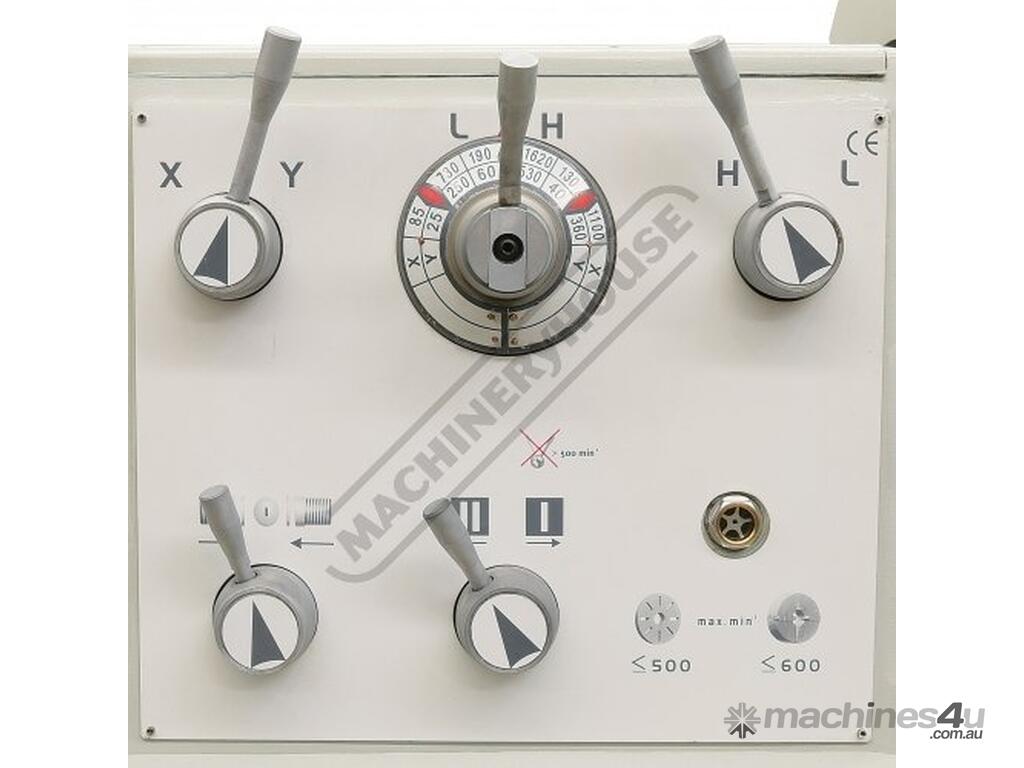

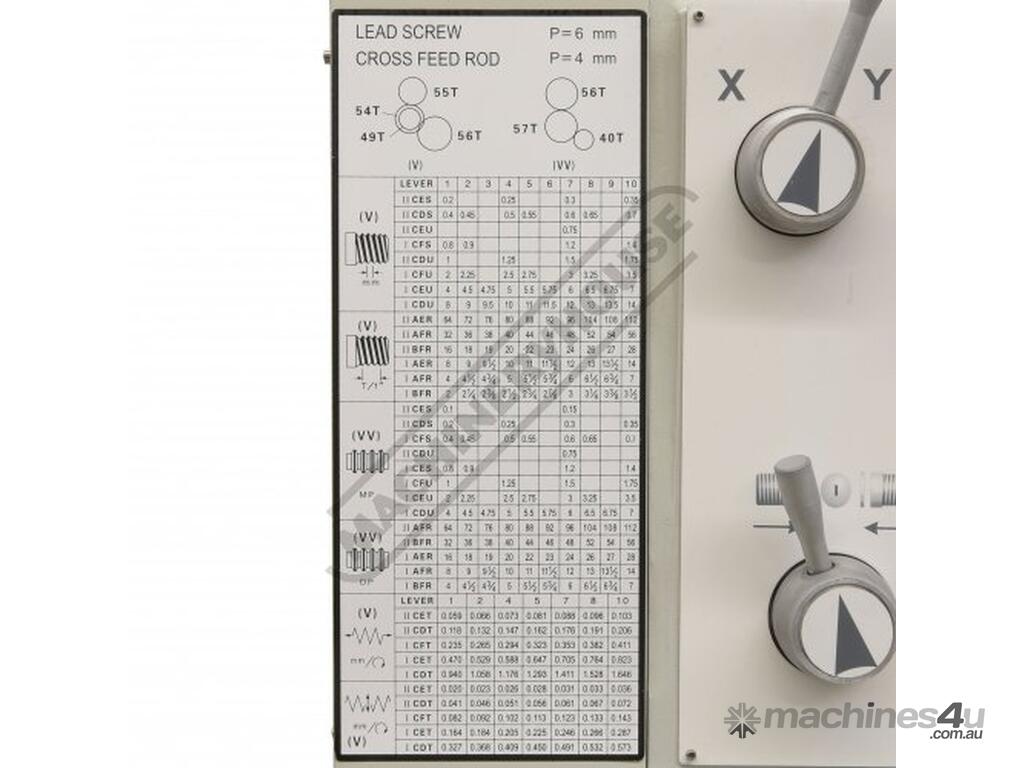

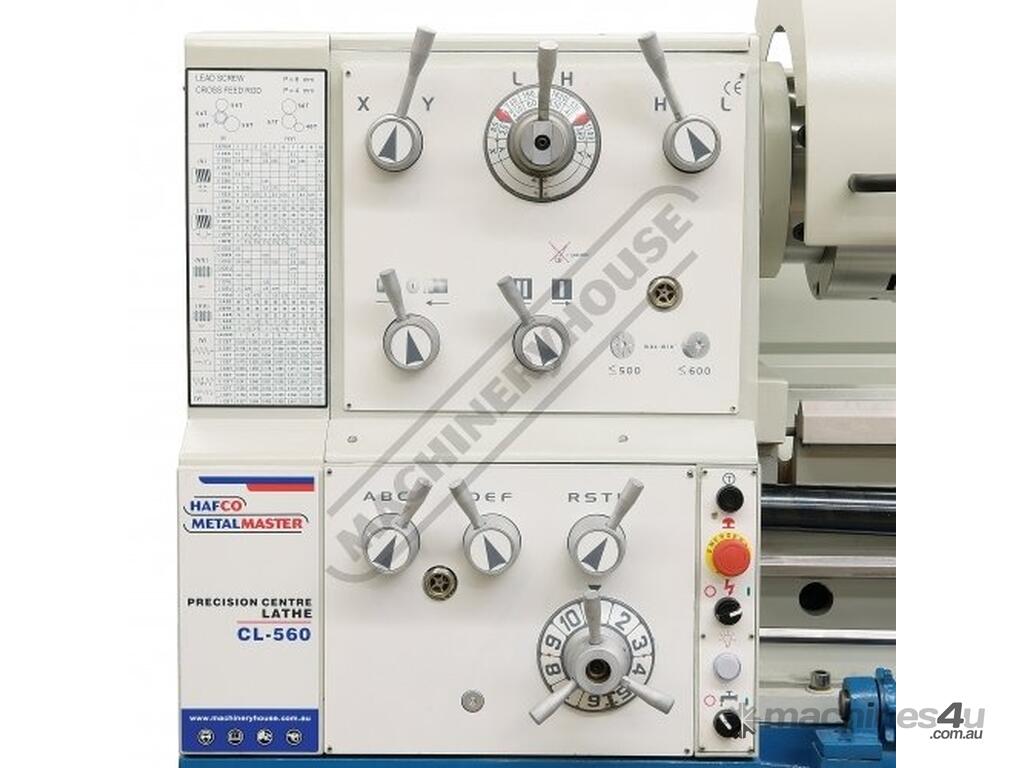

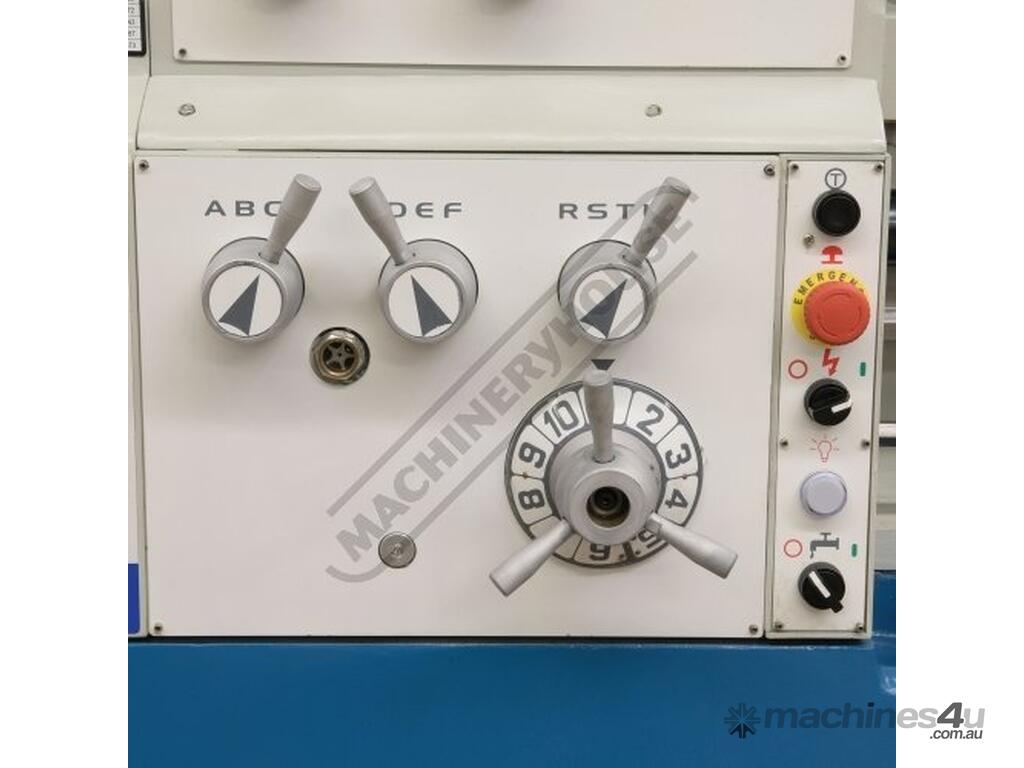

Universal enclosed gearbox incorporating metric & imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch

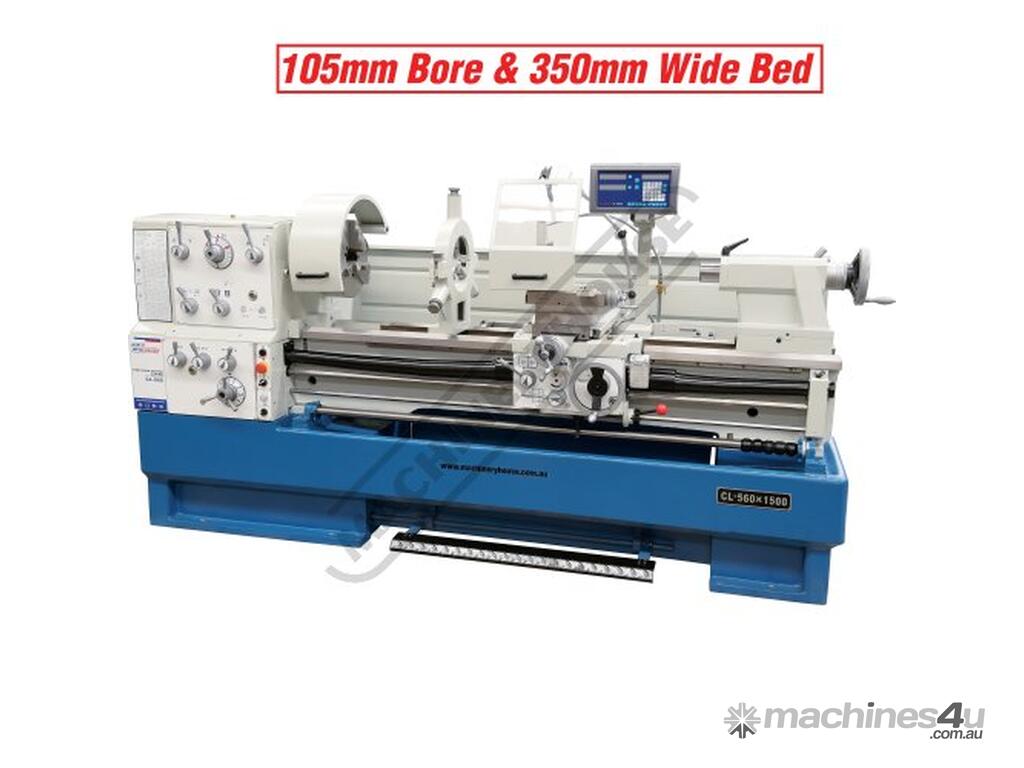

350mm wide induction hardened heavy duty cast iron bed

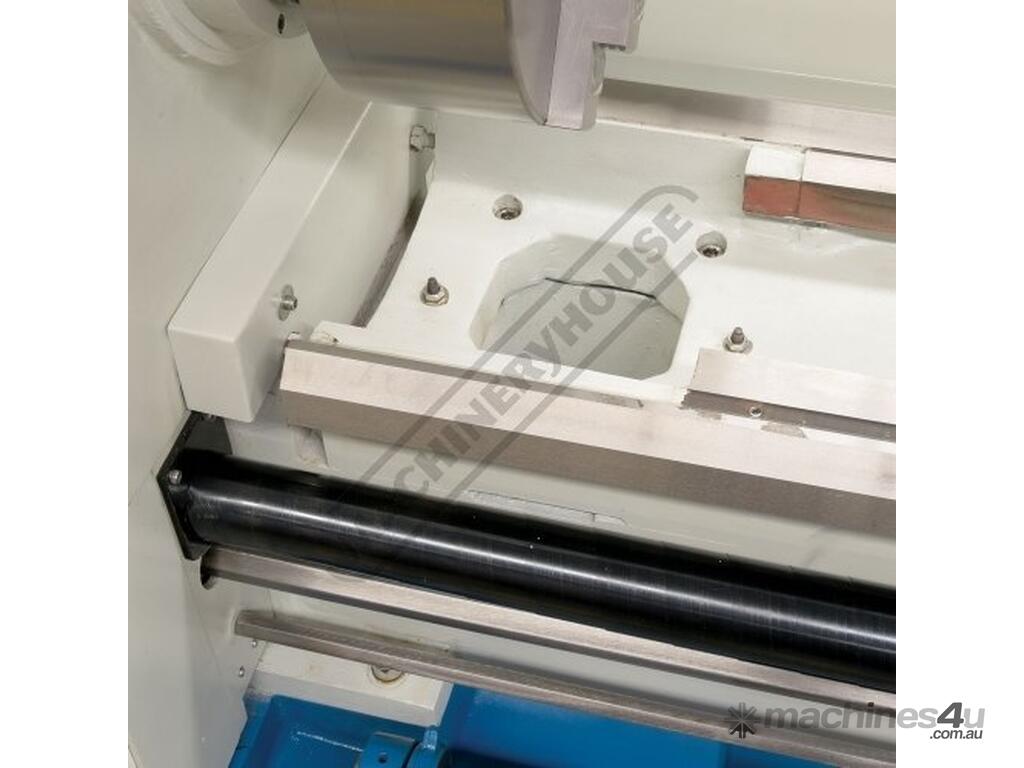

Removable gap bed allowing workpiece to swing up to 785mm

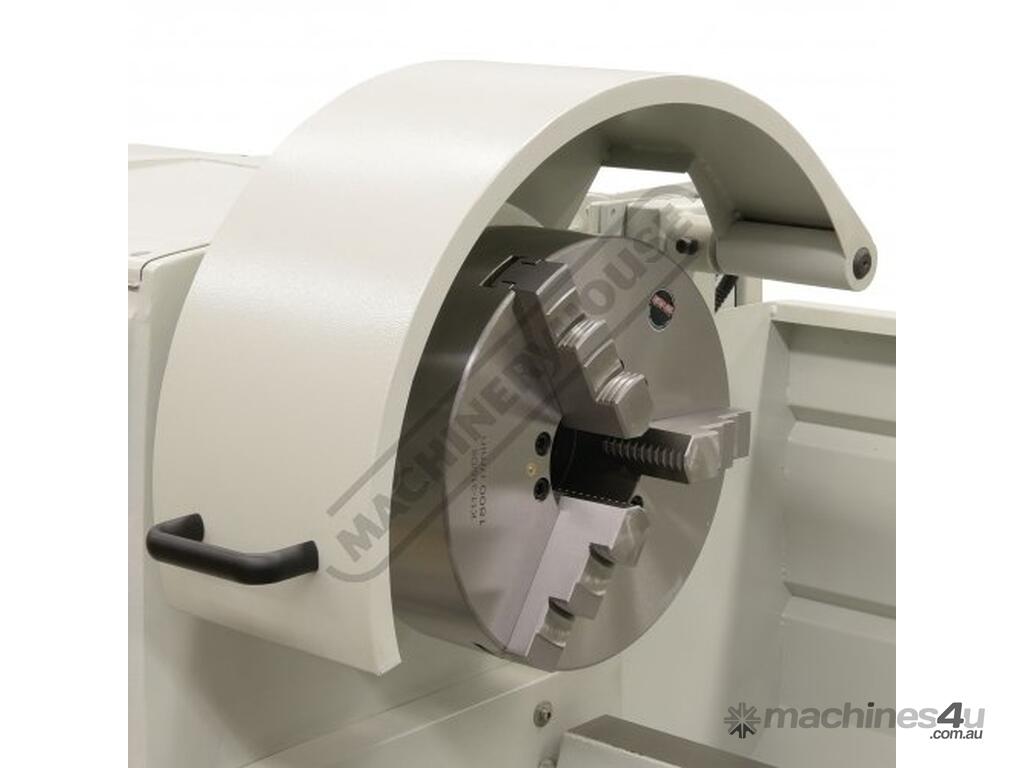

Chuck guard fitted with safety micro switch
Powered longitudinal and cross feeds
Adjustable 5 position length-stop mechanism for accurate repetitive operation
Micro adjustable saddle stop
Dual calibrated cross feed dial incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil level sight glass for headstock and gearbox
Low voltage halogen work light
D1-8 camlock spindle for quick chuck removal
12 spindle speeds from 20-1600rpm
7.5kW / 10HP 415V main motor

Includes:
- 2 axis digital readout system
- Taper turning attachment
- Quick change toolpost
- Auto lubrication pump for slides
- Concertina leadscrew covers
- 320mm 3-jaw chuck with reverse jaws
- 400mm 4-jaw chuck
- 450m face plate
- Fixed steady with roller bearings
- Travelling steady with brass guides
- Dead centres
- Thread chasing dial
- Foot brake
- Coolant system

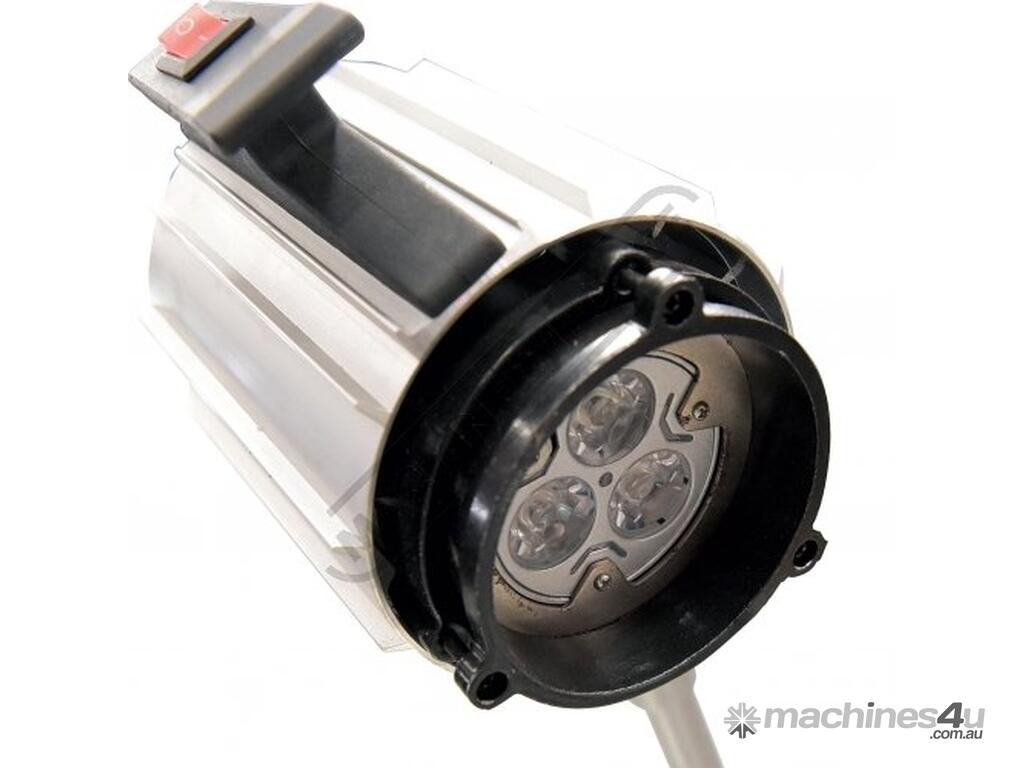

- LED Work light
- Rear splash guard
- Spindle reducing bush



Specifications:
ORDER CODE: L610D
MODEL: CL-560
Swing Over Bed (mm): 560
Distance Between Centres (mm): 1500
Spindle Bore (mm): 105
Swing In Gap (mm): 785
Swing Over Cross-slide (mm): 355
Digital Readout System Fitted: Yes
Quick Change Toolpost Fitted: Yes
Leadscrew Covers Fitted: Yes
Taper Turning Attachment: Yes
Coolant System: Yes
Tool Height To Suit (mm): 25
Centre Height (mm): 280
Spindle Nose Size or Type: D1-8 Camlock
Bed Width (mm): 350
Headstock Spindle Taper (MT): 7
Tailstock Taper (MT): 5
Cross Slide Travel (mm): 316
Compound Slide Travel (mm): 130
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): 0.020-0.573
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.059-1.646
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 47 (0.2 - 14)
Imperial Thread Steps & TPI (No. / TPI): 60 (2 - 112)
3 Jaw Chuck Diameter (mm): 320
4 Jaw Chuck Diameter (mm): 400
Spindle Steps / Speeds (No. / rpm): 12 (20 - 1600)
Motor Power (kW / hp): 7.5 / 10
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 2700
