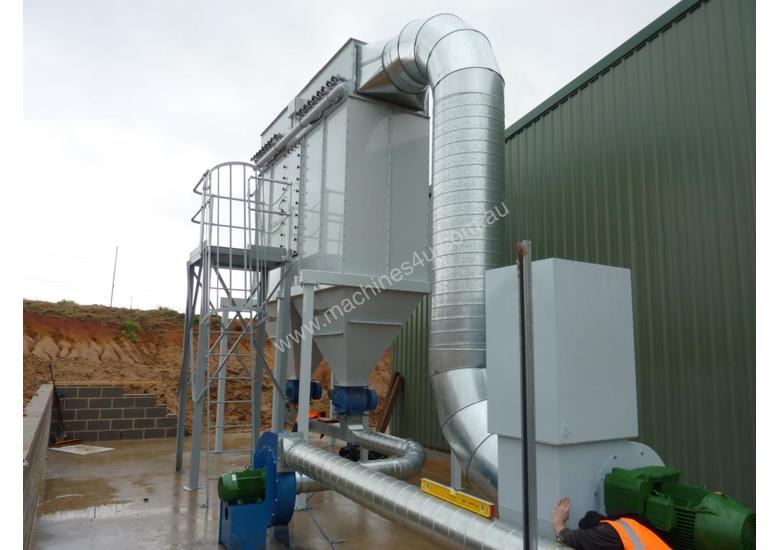

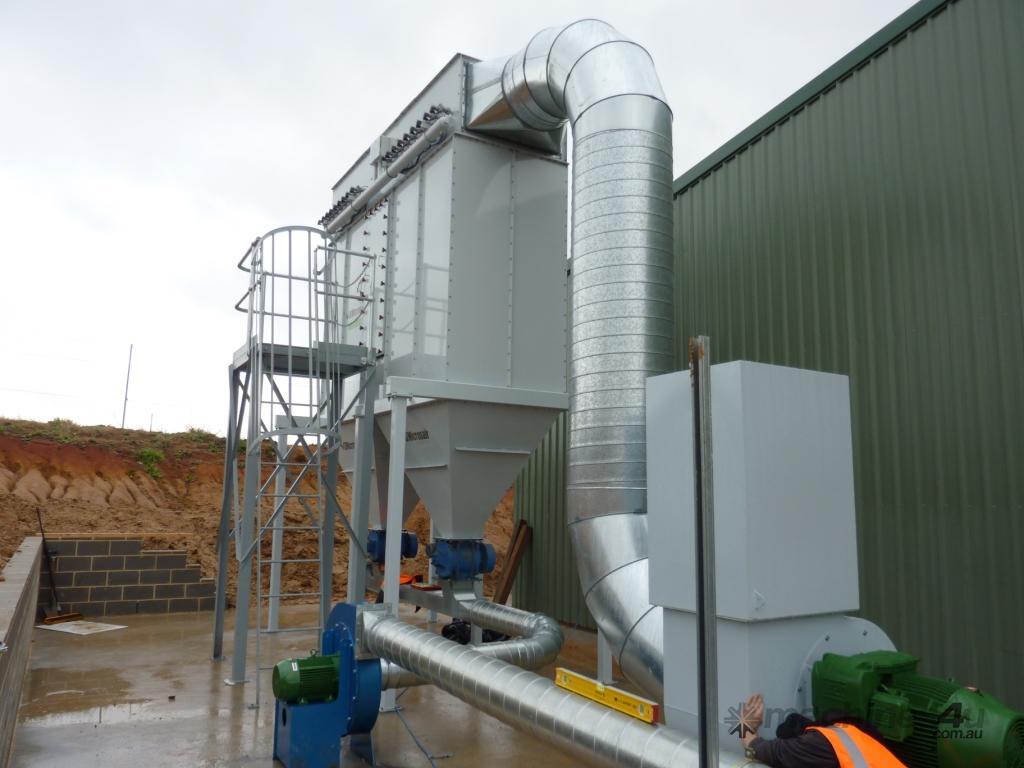

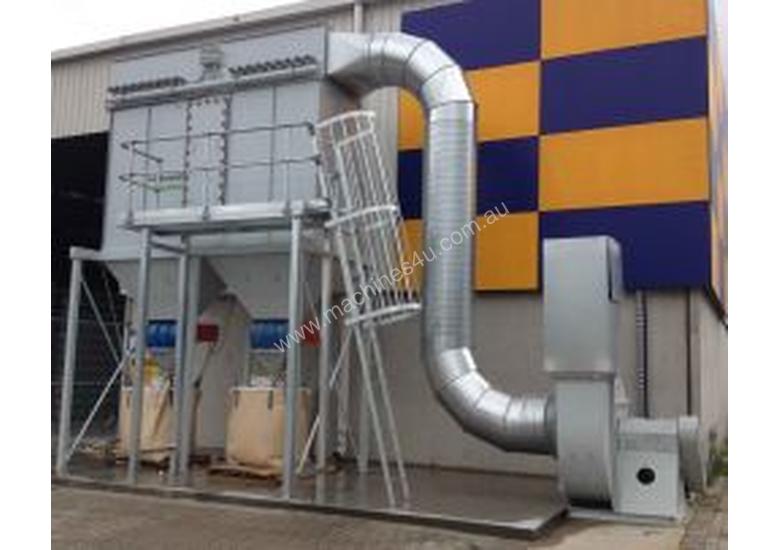

The CF126 and CF252 are Micronairs ultimate range of reverse pulse dust extractors for businesses that need high volume dust extraction for critical applications. The CLEAN-FLOW range is designed to improve machine efficiency and operator safety in a continuous operating / cleaning critical in a high dust loading environment.

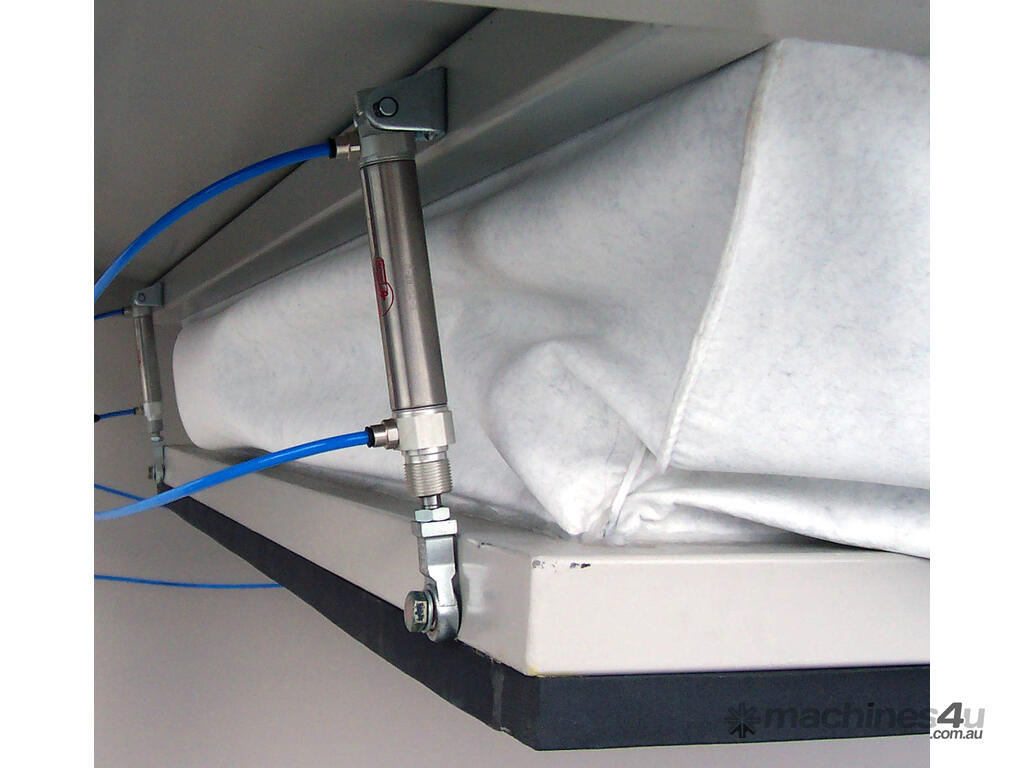

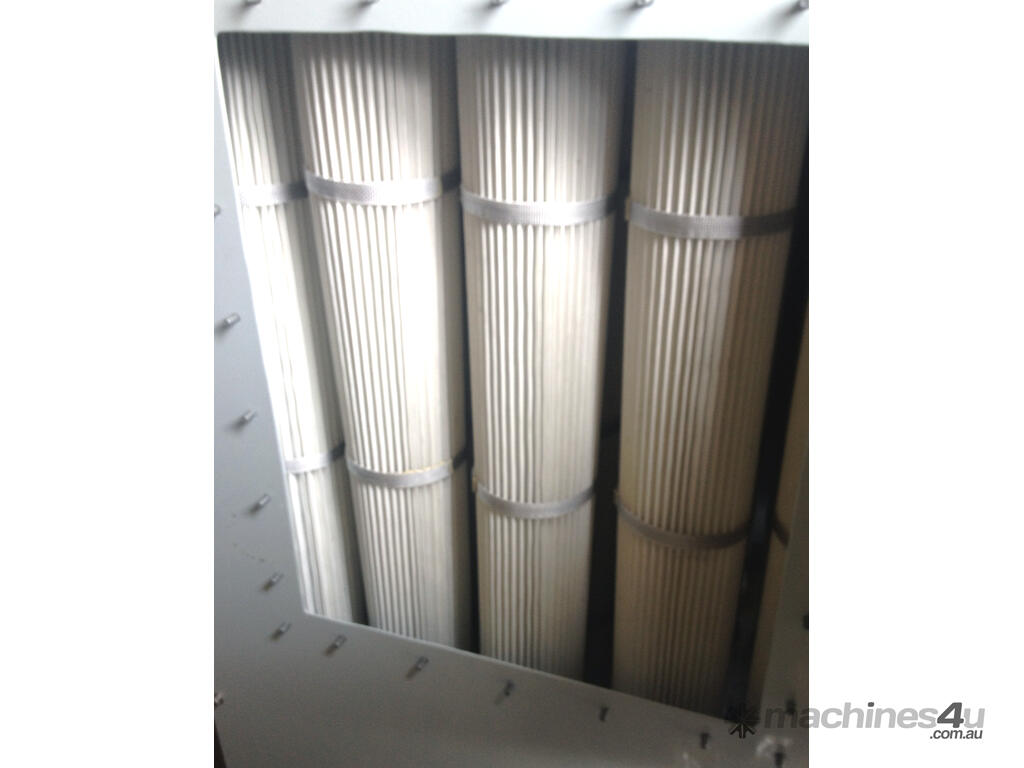

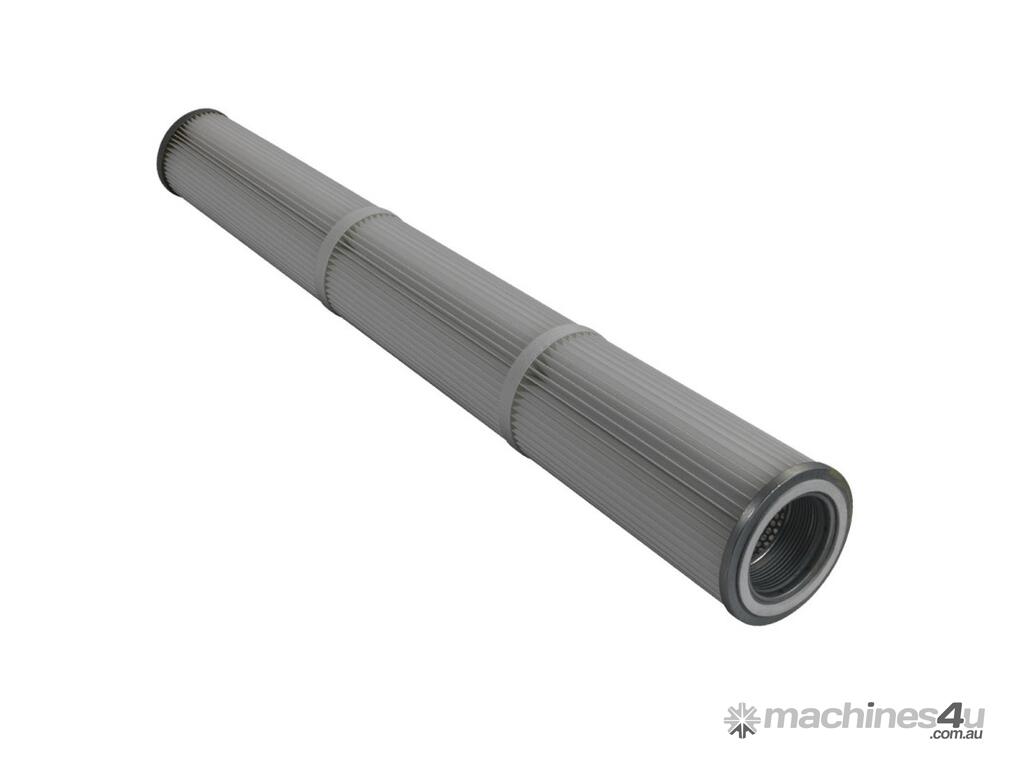

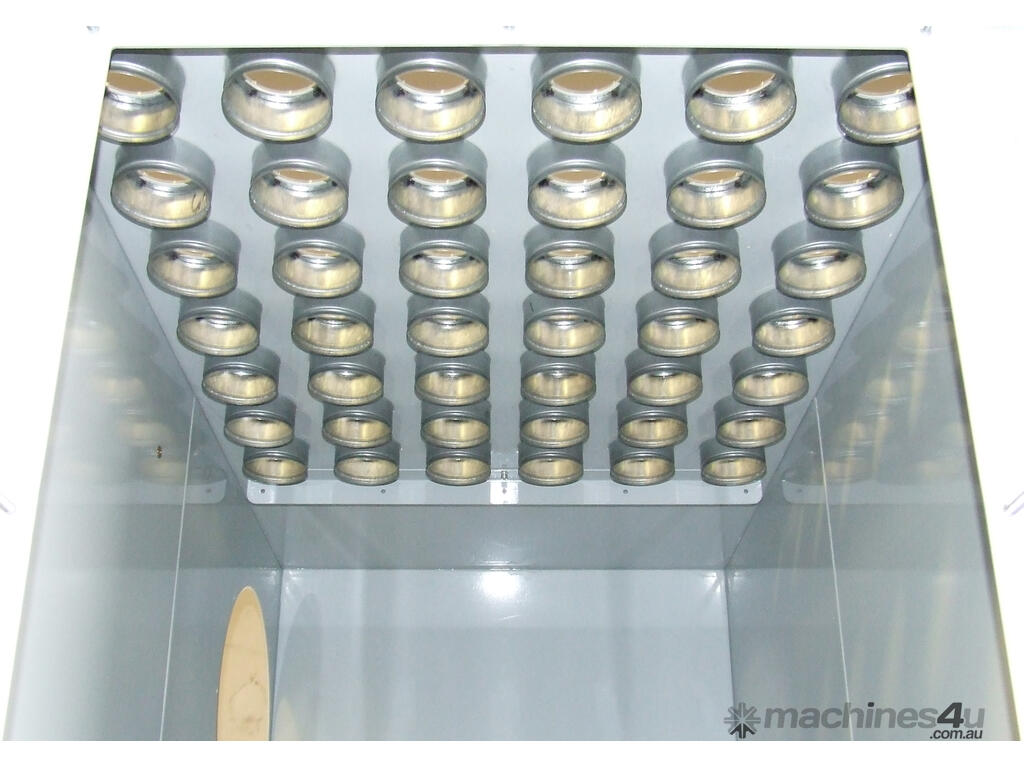

Supplied with compact tapered pleated filters ( 378 sq m - 756 sq m) OR smooth wall sock filters
Waste discharge can be in to dump bins under the unit , bags via rotary valves - or to remote storage bins via blower or conveyor transport.
Our CF126 model can be specified up to 100,000 cubic metres per hour of airflow. A typical specification would 55 to 75kw motor and airflow range to 70,000 cube and PA pressure range up to 4500pa
CLEAN-FLOW models are all 'negative pressure' and 'clean air fan' designs. No dirty air passes through our fans and the extraction unit and collection bins are operating at lower pressure than the external pressure- so no dust can escape from the units or connection to the bins.
The CLEAN-FLOW design has combined the high capacity reverse pulse technology with a choice of high efficiency fans, providing excellent waste material removal at the same time reducing power consumption.
With filtration capability below 1 micron ( 1/1000th of a millimetre) the CLEAN-FLOW dust extractor is perfect if you have to recirculate the air back into your factory. External venting options are also available.

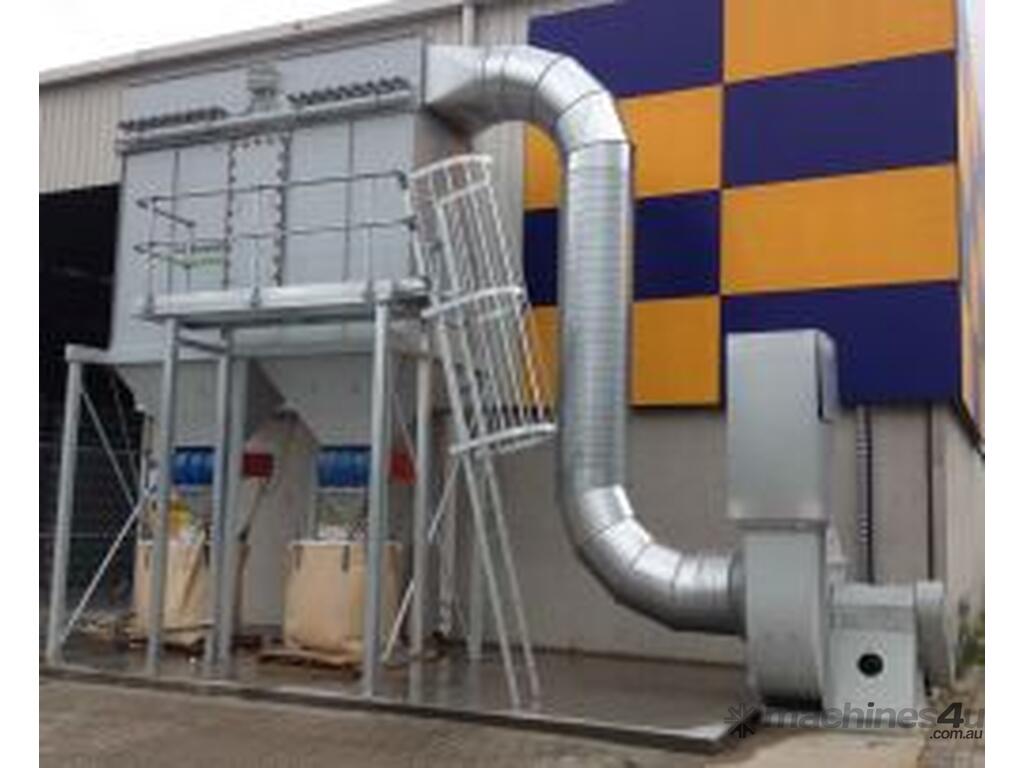

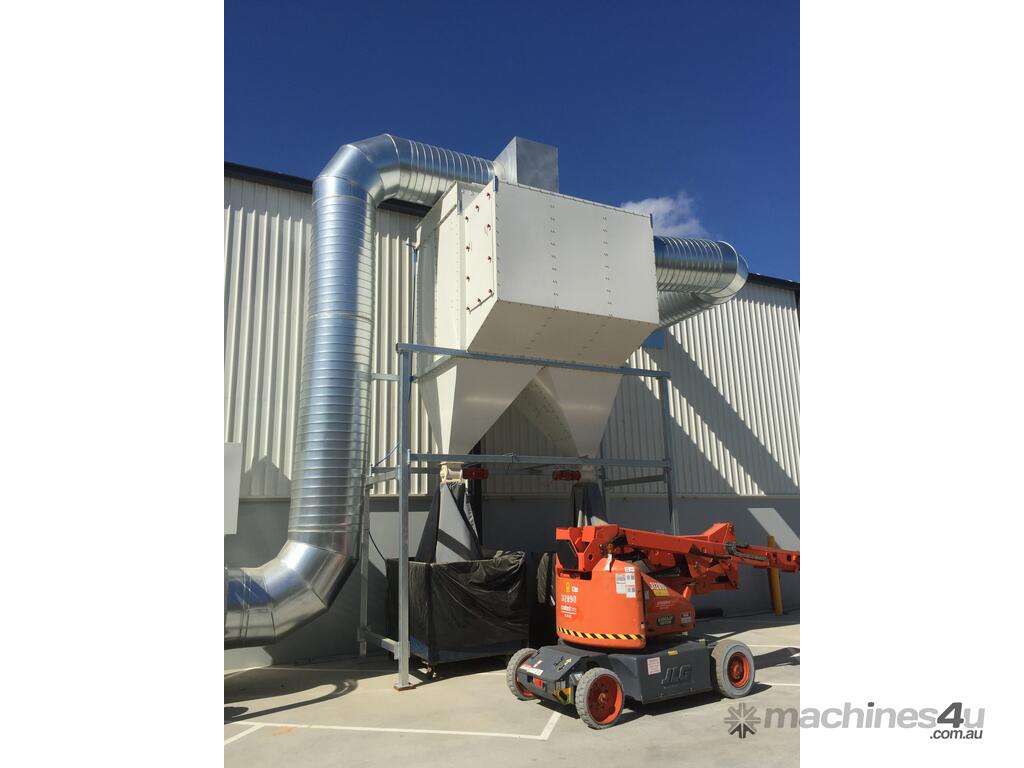

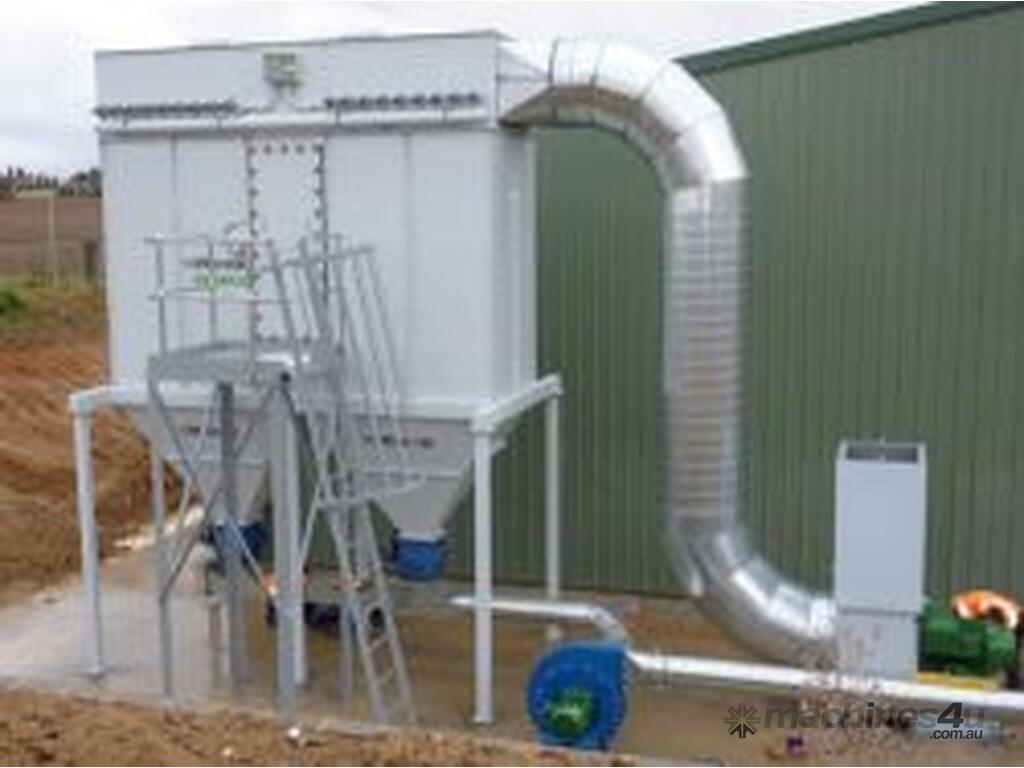

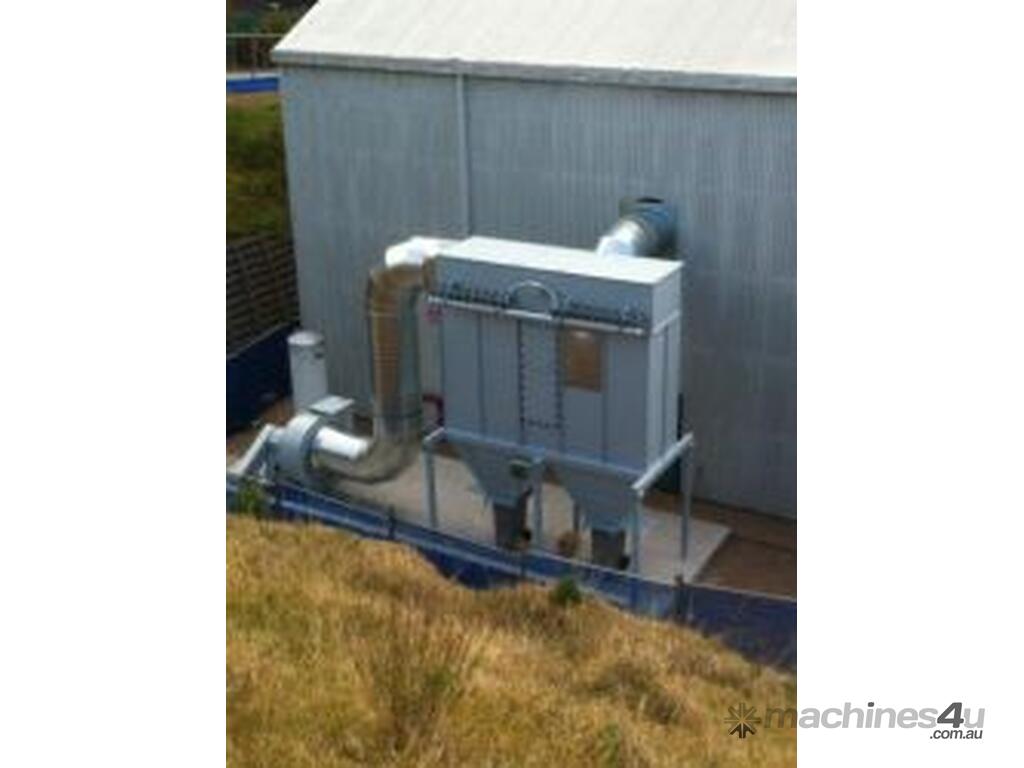

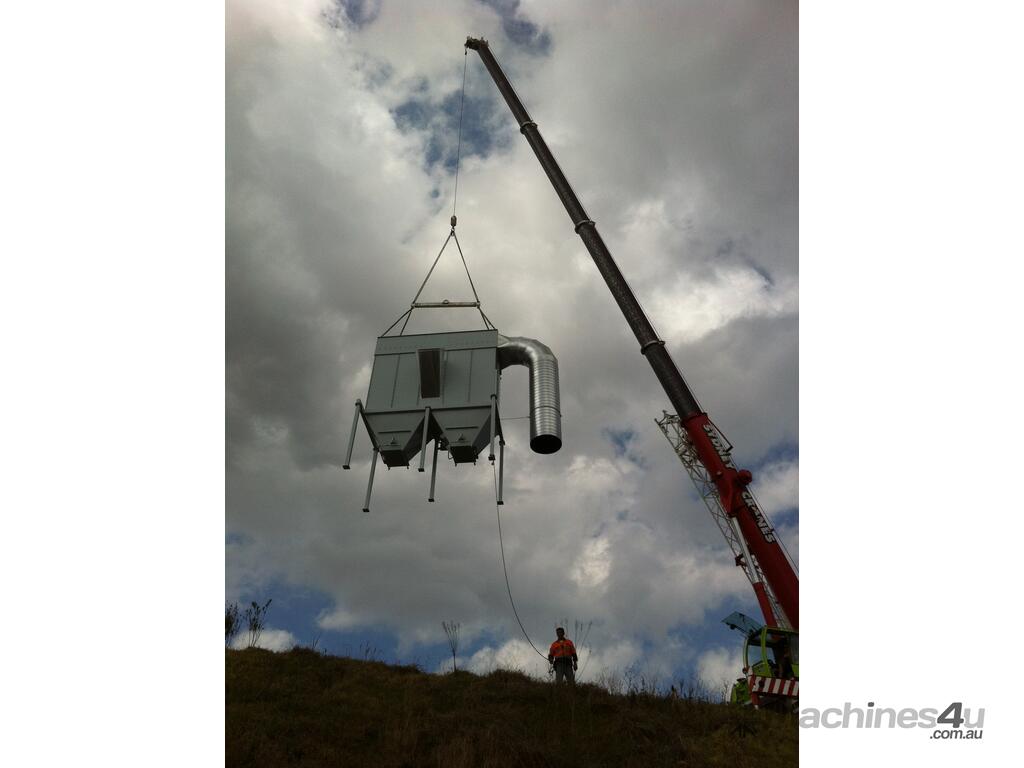

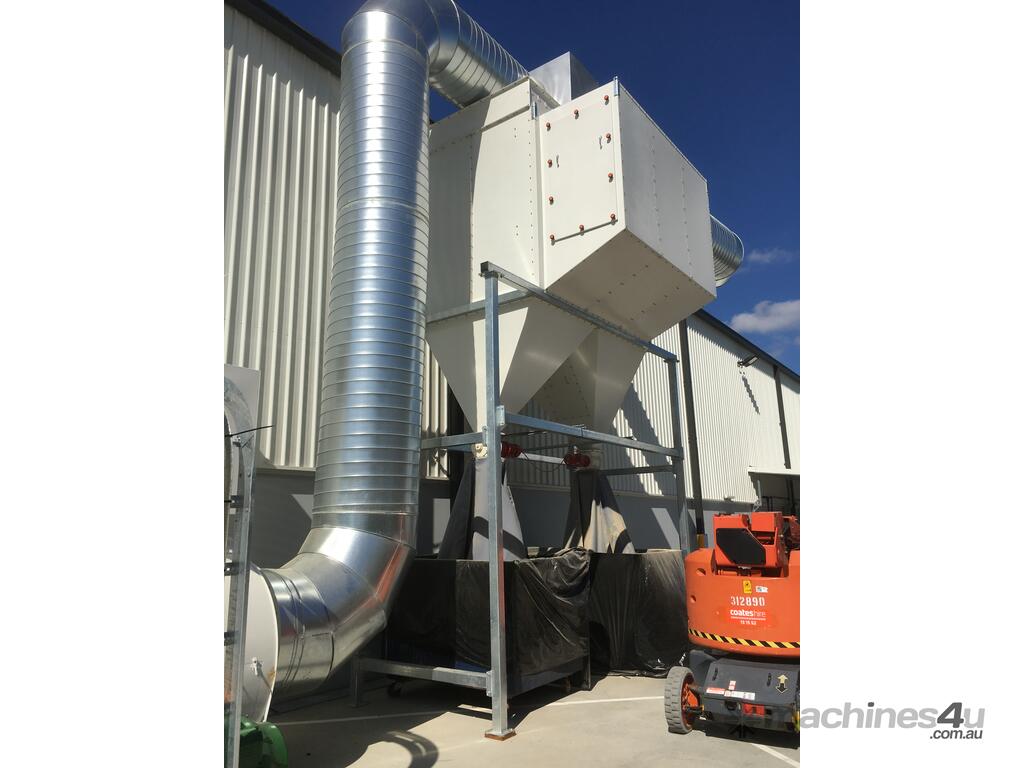

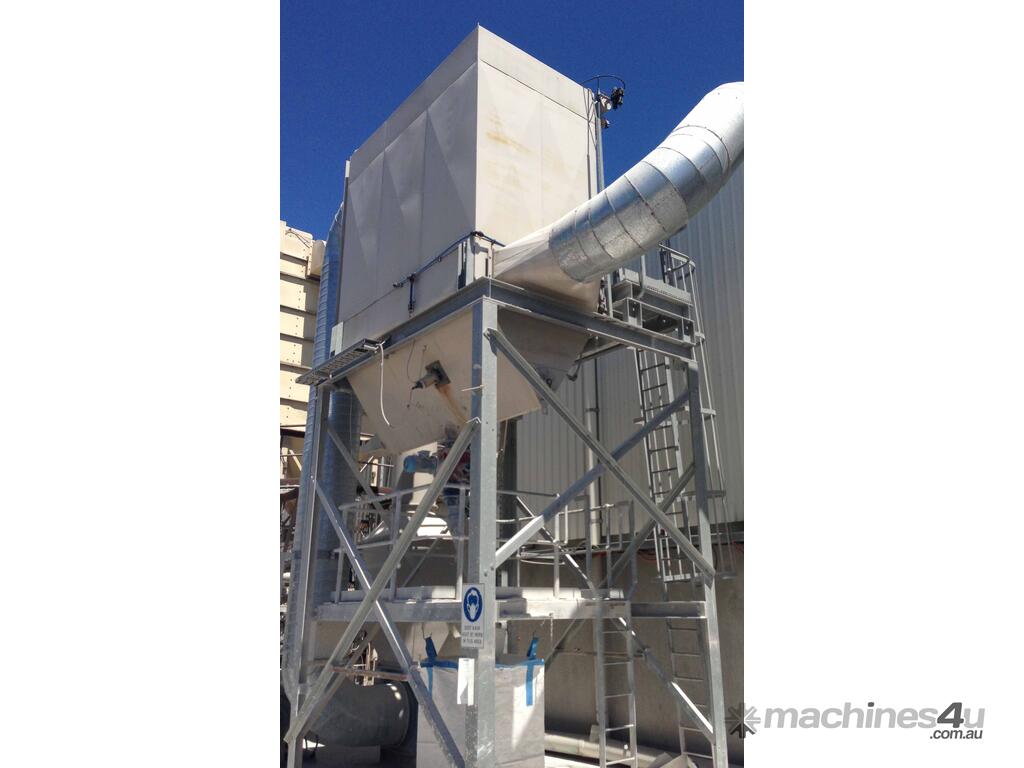

CLEAN-FLOW is Australian built complete with stainless steel fittings to enable the units to be installed either inside the factory or outside where its fully sealed design makes it weather proof.
Micronair custom match the extraction unit with a wide range of Fan and Motor options to exactly suit your specific needs for an optimim result. Pricing is very competitive and performance unmatched.
All our CLEAN-FLOW range are built around our unique 'ULTRA-FLOW' technology which sets them apart and above other Reverse Pulse extractors.
