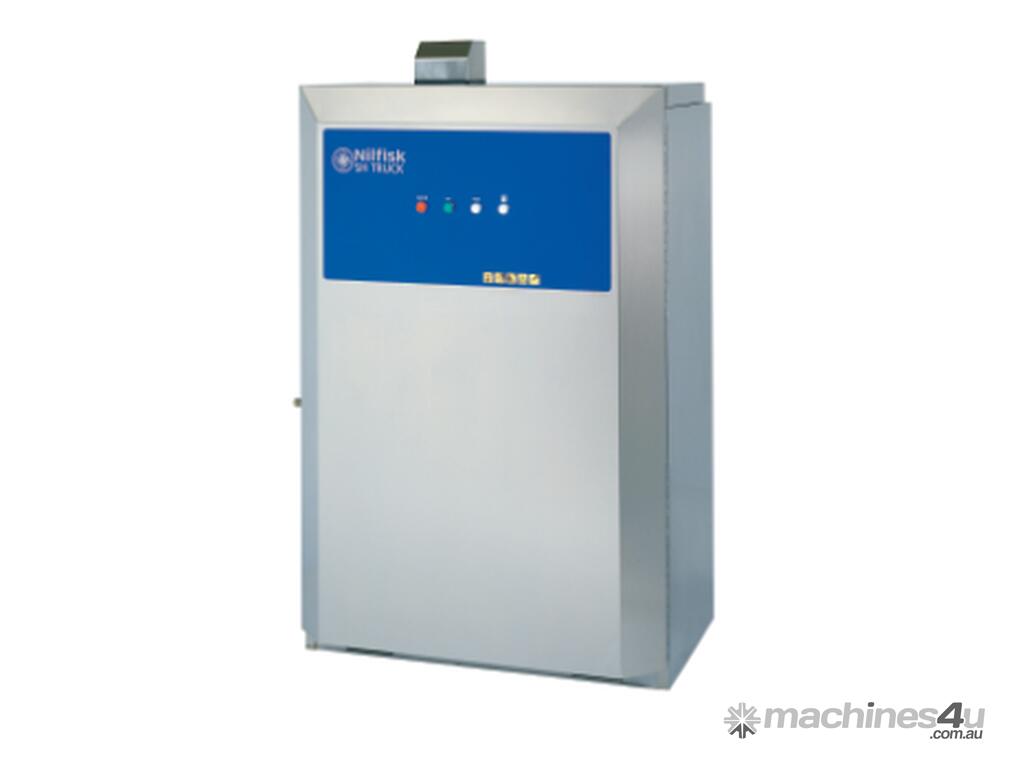

The SH TRUCK is a simple robust and corrosion proof stationary unit for permanent outdoor placement. Enabling constant cleaning of trucks, vans, commercial and construction vehicles, the SH TRUCK is frost protected for use even in winter.

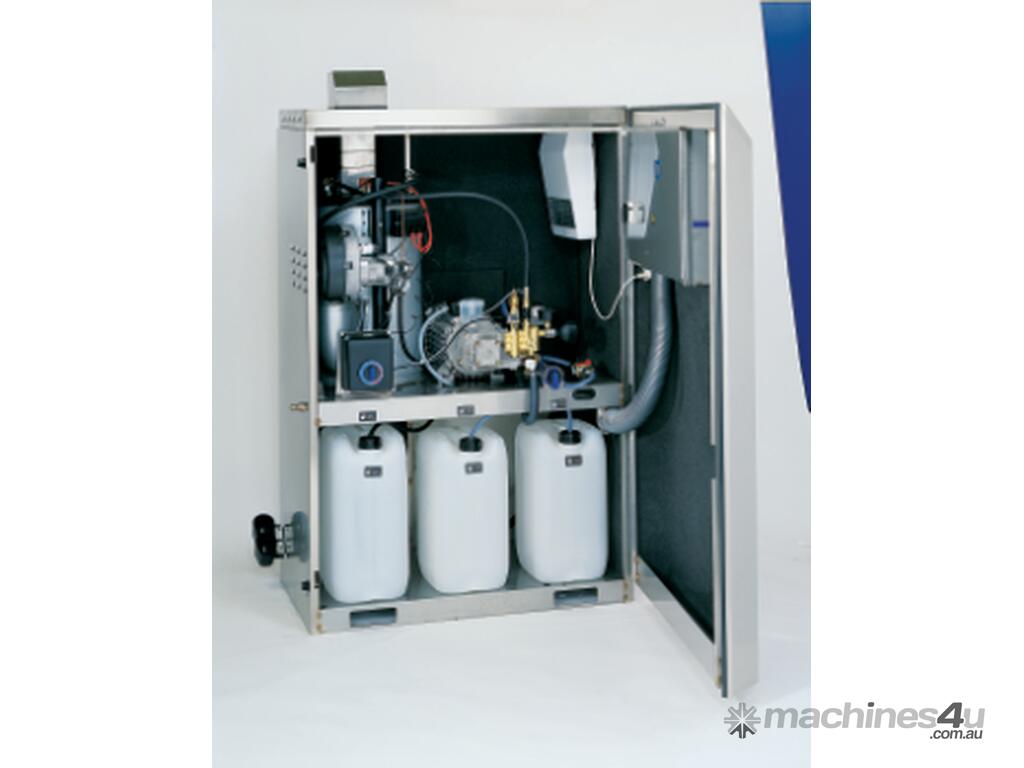

Placed in a parking area or forecourt, the SH TRUCK contains all settings and adjustments inside the lockable cabinet. The unit is then easily operational for multiple users with 4 push button function to select on-off, hot water, detergent without needing to adjust each time. The SH TRUCK is equipped with the high efficiency EcoPower boiler offering reduced fuel consumption and costs. The unit is also equipped with cabinet insulation and electrical powered heater fan for frost protection and all year round cleaning.
Stainless steel robust design against corrosion
EcoPower boiler for reduced fuel consumption costs
Silent Power, low noise level with 1450 rpm motor pump units
Simple control panel with only 4 buttons
ERGO 3000 accessories for added user friendliness
Internal frost protection down to minus 20°C
Compact design
Available in both single phase and three phase formats
Technical Specifications
Pump Pressure bar/psi 175/2540
Cleaning Impact kg/force 6.3
Water Flow QMAX/QIEC L/min 21/19.5
Maximum Inlet Temperature Degrees Celcius 30
Water Temperature Degrees Celcius (Water/Steam) 90/150
Pump RPM 1450
Dimensions mm (LxWxH) 1025x715x1610
Weight kg 262
Power Consumption kW 8.2
Input V/~/Hz/A 415/3/50/16
Fuel Tank L 33
Detergent Tank L 2 x 25
Pistons Quantity 4 Ceramic
Sound Level dB(A) 92
Nozzle Size in .0680
SH TRUCK 7P 175/2540 (Truck Booster)
Includes:
Ergo Coupling Kit
61369 Hose Nozzle 20R3 /4
6101766 10 Metre DN10, 2 Wire Hose 3/8 x 3/8``
ERGO 2000 Standard Gun with Hose Swivel
Tornado Plus 1120 Lance without nozzle
Tornado Nozzle 0680 Indication Ring Grey
