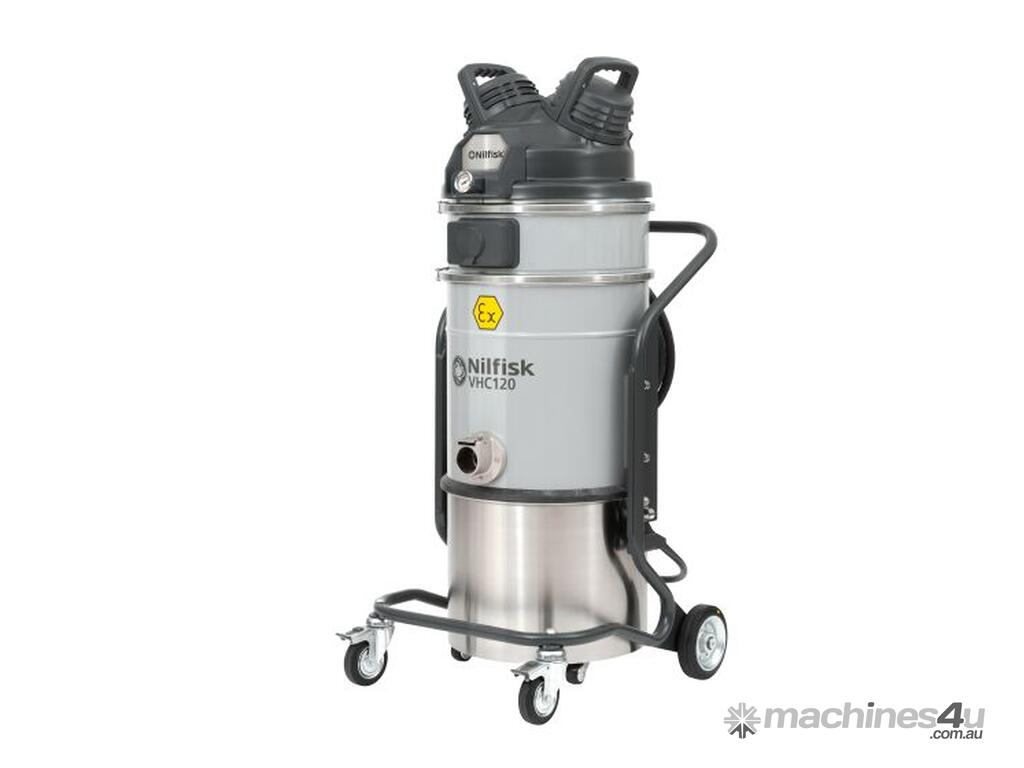

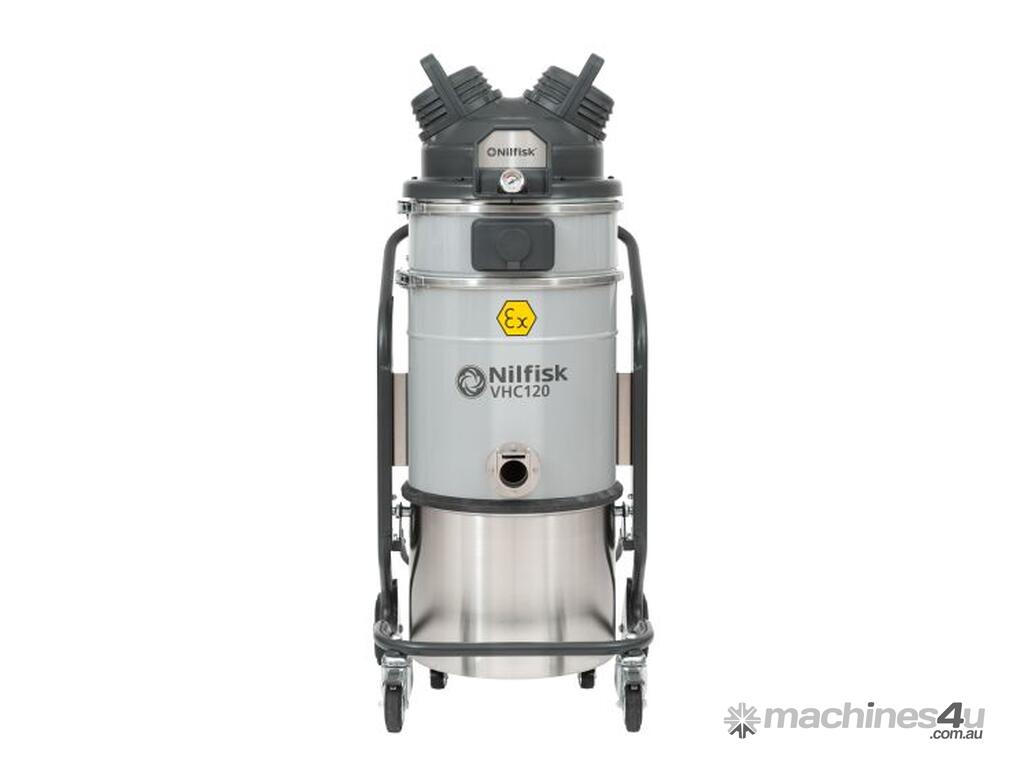

CLEANQUIP-Niflisk Compressed air / Pneumatic VHC120 Vacuum

VHC120 is an easy to use compressed air industrial vacuum. Conceived to be used where electricity is unavailable or forbidden, it is equipped with a new technology of multistage vacuum generator system.

The compressed air vacuums grant respect for the environment and the most safety level for the operators. Thanks to the new generation multistage vacuum system, it guarantees the best performance, as far as air flow rate is concerned, together with very efficient compressed air consumption. Compact and light VHC120 is equipped with a 37 l container. This unit can be delivered painted or stainless steel. Filtration is provided by an L class star filter with a total filtering surface of 16.000 cm².
The VHC120 is always equipped with a pressure gauge. VHC120 is the ideal industrial vacuum for shipyards, metalworking companies, oil refineries, chemical industries, spray-painting facilities, rifle ranges applications, as well as in the food industry, whenever in presence of static electricity (working with sugar or flour), on building sites, and during surface treatment operations.

Compact dimensions

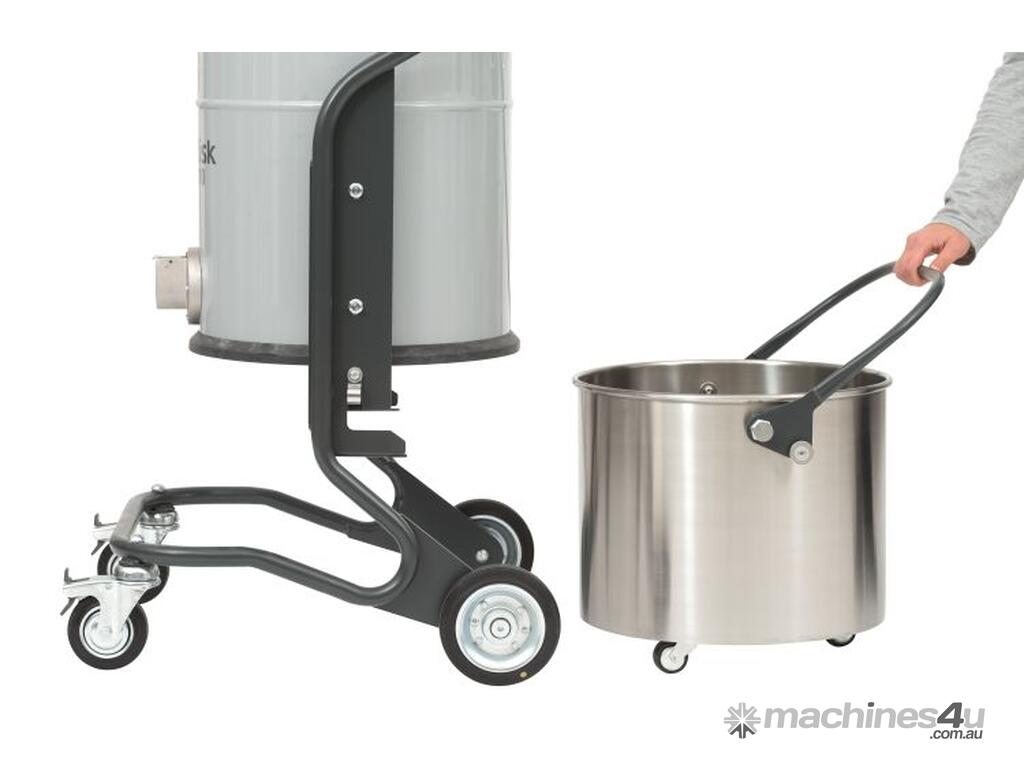

High container capacity
Energy saving
Very efficient compressed air consumption
Quick return on investment
Less shutdowns on ordinary mantainance
Flameproof ATEX version (for zones Gas 1-2 and Dust 21-22) available
Standard manual filter shaker
Larger star filter 16,000 cm2
Clapet as a standard on the Atex/Exp versions
M antistatic filter as a standard on Atex/Exp versions
Pressure gauge
Stainless steel version available
Upstream and Downstream HEPA filter available on the Atex/Exp versions

Technical specifications

Model No
Accessories kit not included

Air consumption (nl/min., at 6 bar of pressure)1260
Required pressure (bar)4/7
Sound pressure level (dB(A))72
Airflow without hose (l/sec. at 6 bar of pressure)56
Vacuum max (kPa at 6 bar of pressure)32.5
Container capacity (l)37
Main filter typeL class Polyester Star filter
Main filter area (cm²)16000
Upstream HEPA H14 filter (cm²)16000
Inlet (mm)50
Length x width x height (mm)570x560x1010
Weight (kg)37.5

Please contact us for the full range of models and pricing
