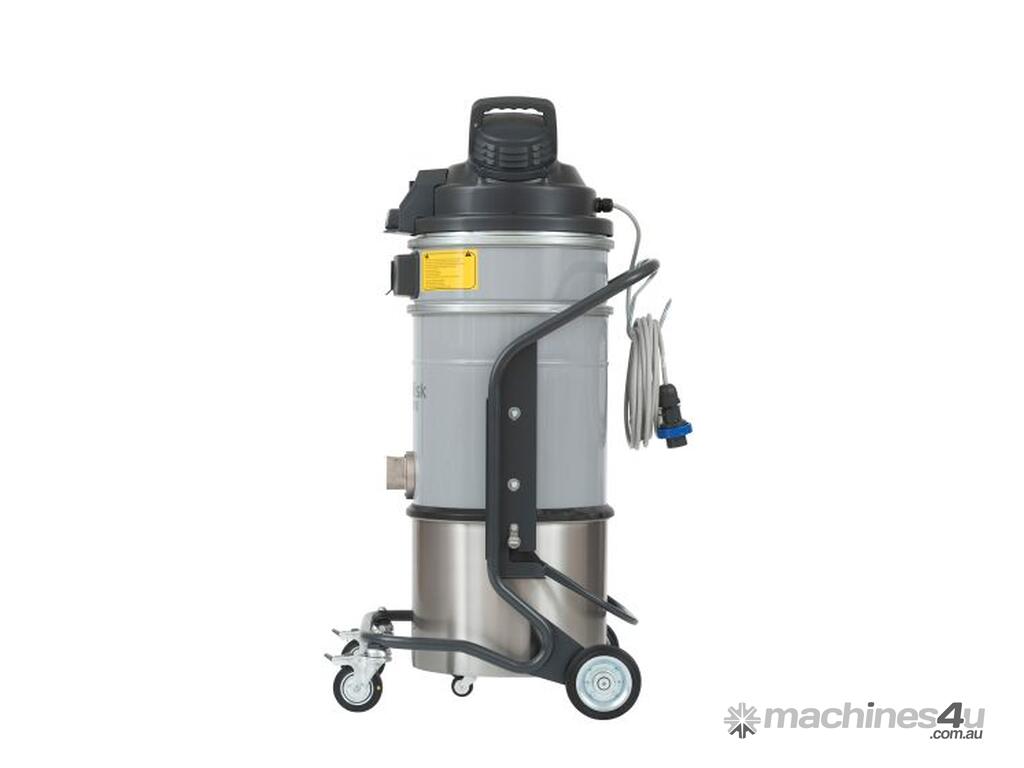

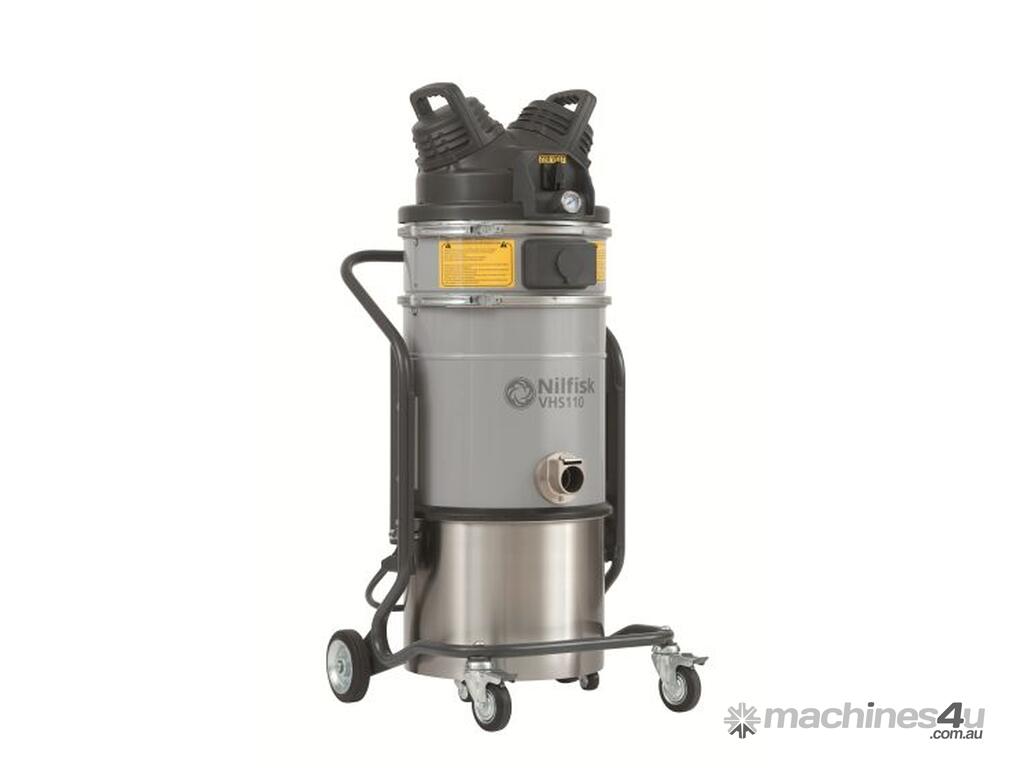

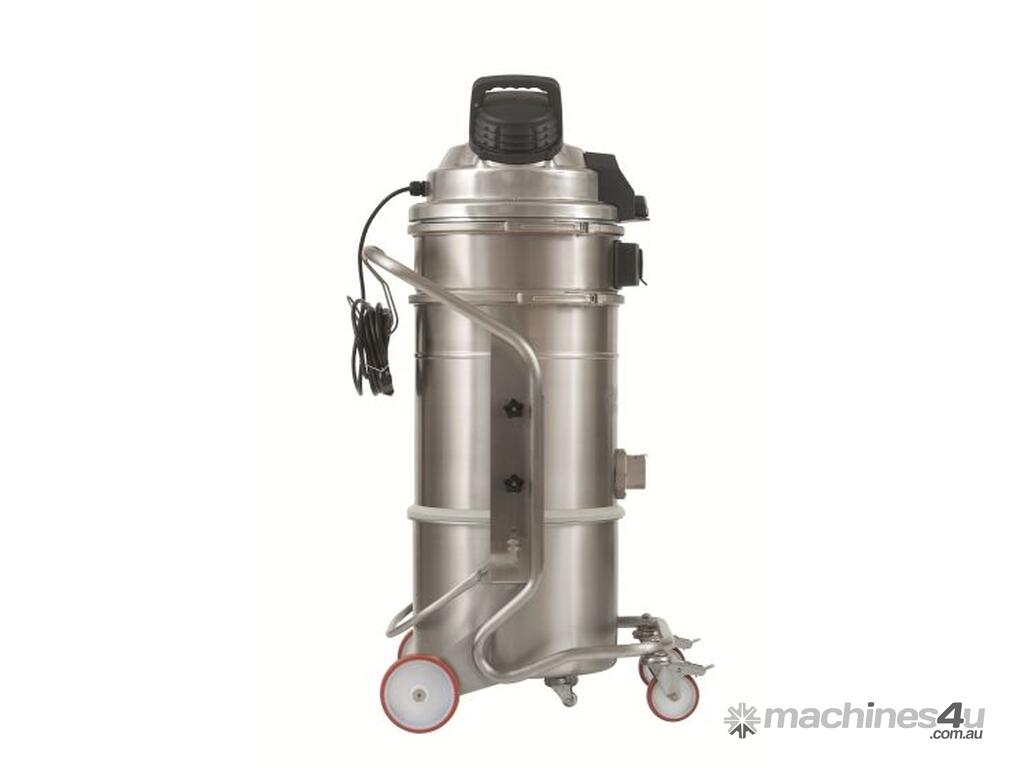

CLEANQUIP-Nilfisk Hazardous Dust Vacuum VHS110 CR

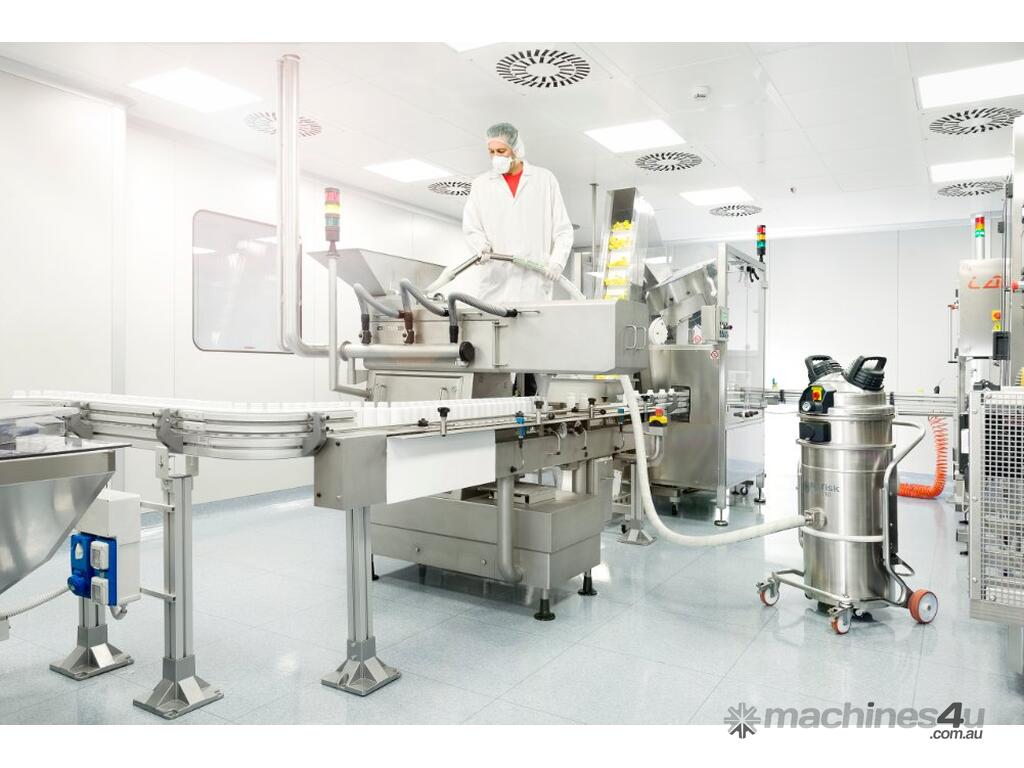

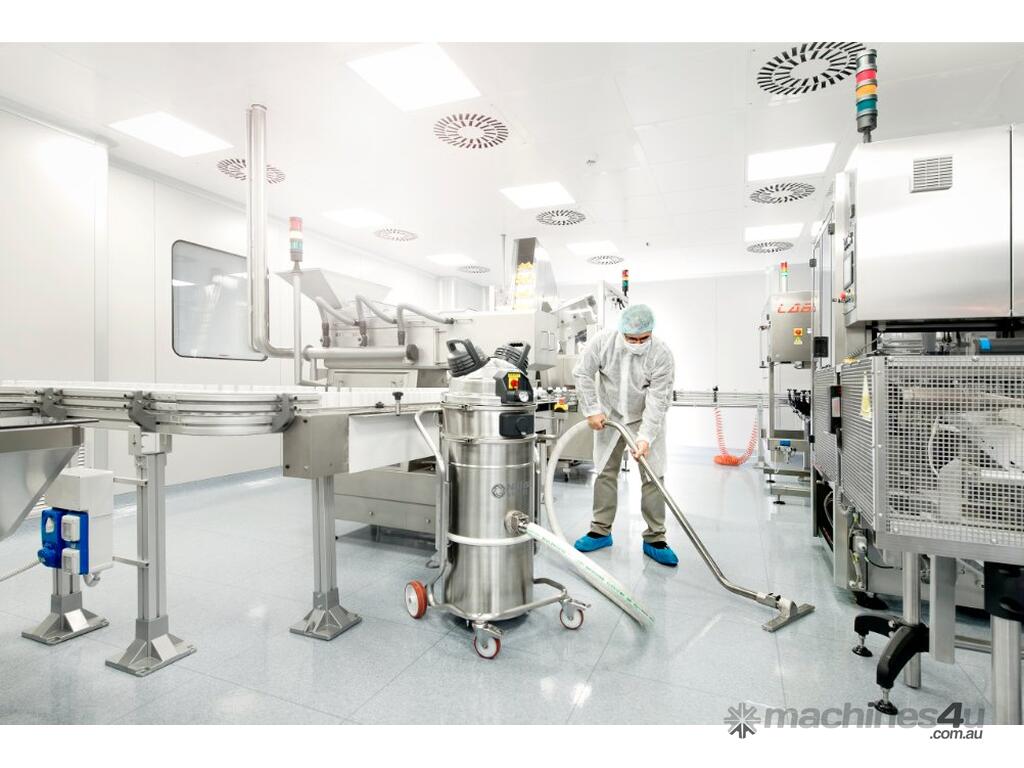

The single phase industrial vacuum cleaner for wet & dry cleanroom applications

The VHS110 CR is an innovative wet and dry single phase vacuum cleaner for use in cleanrooms. A GMP design and stainless steel construction make it extremely easy to clean and sanitise. A ULPA15 downstream filter is installed on all CR machines avoiding contamination in the cleanroom area by the unit, as well an optional upstream HEPA14 or ULPA15 filter to ensure the highest filtration efficiency for very fine dust. The innovative PullClean system allows cleaning of the M Class star filter while the vacuum is operational, without the need to stop working. The unit can be easily upgraded with an optional mechanical floater to stop vacuuming once the maximum level of liquid is reached in the 37 litre capacity container.

GMP design
Stainless steel AISI304 execution
Downstream ULPA15 filter
Upstream HEPA14/ULPA15 filter for fine dust

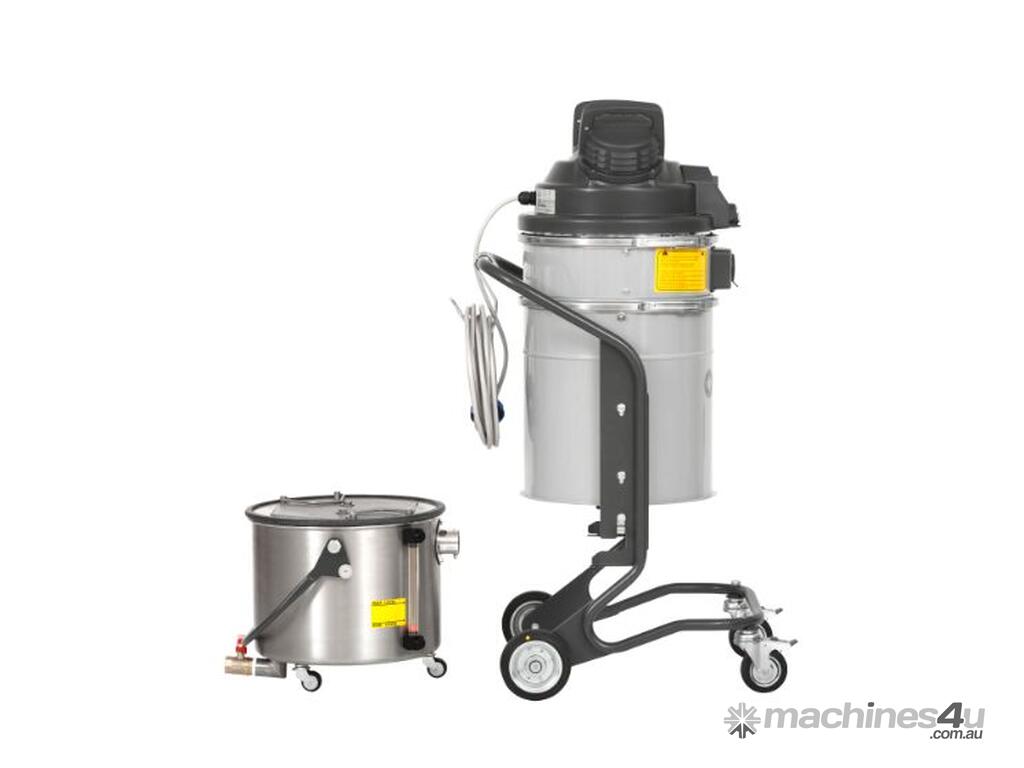

37L stainless steel removable container
Mechanical floater for liquids
Optional Stainless steel AISI316L execution for the container and the filter chamber
Compact dimensions

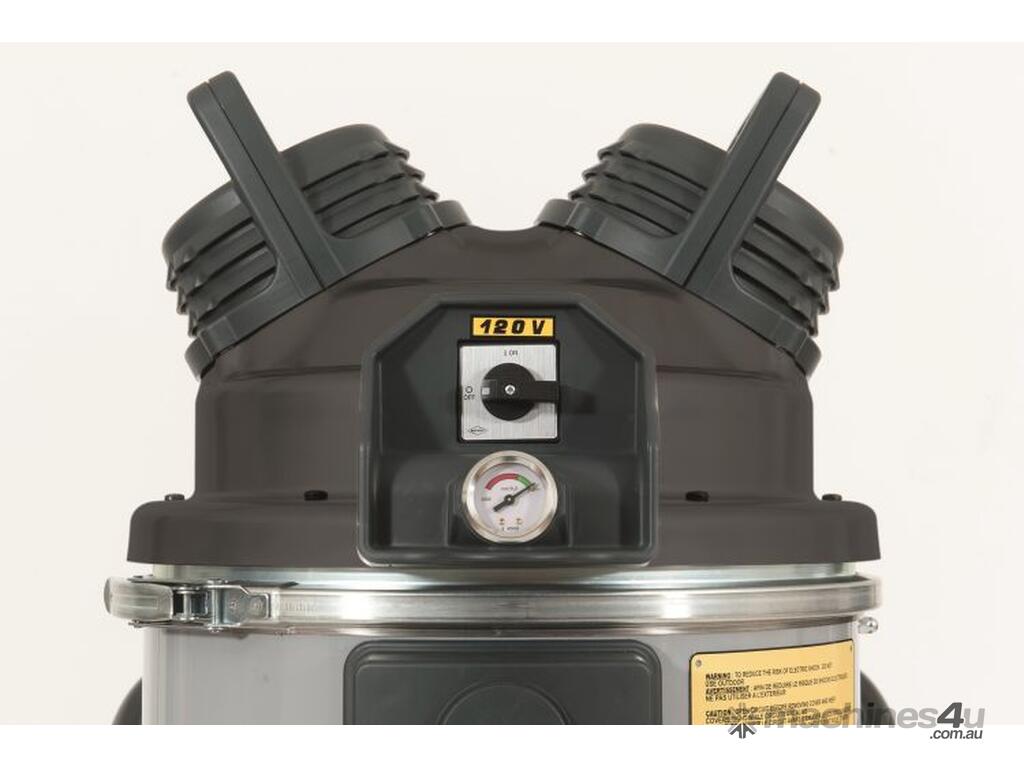

Vacuum meter to detect status of the filters
Easy to use

VHS110CR - ANZ configured, Product no. P
Accessories kit not included

TECHNICAL SPECIFICATIONS VHS110 CR
Voltage Volts 240
Frequency Hz 50
Protection class IP 54
Insulation class Class I
Rated power kW 1
Airflow without hose m3/h 162
Vacuum max mbar 220
Sound pressure level dB(A) 76
Container capacity l 37
Main filter area cm2 10000
Upstream HEPA H14 filter area cm2 11000
Inlet mm 50
Length x Width x Height mm 560x570x1240
Weight kg 39
