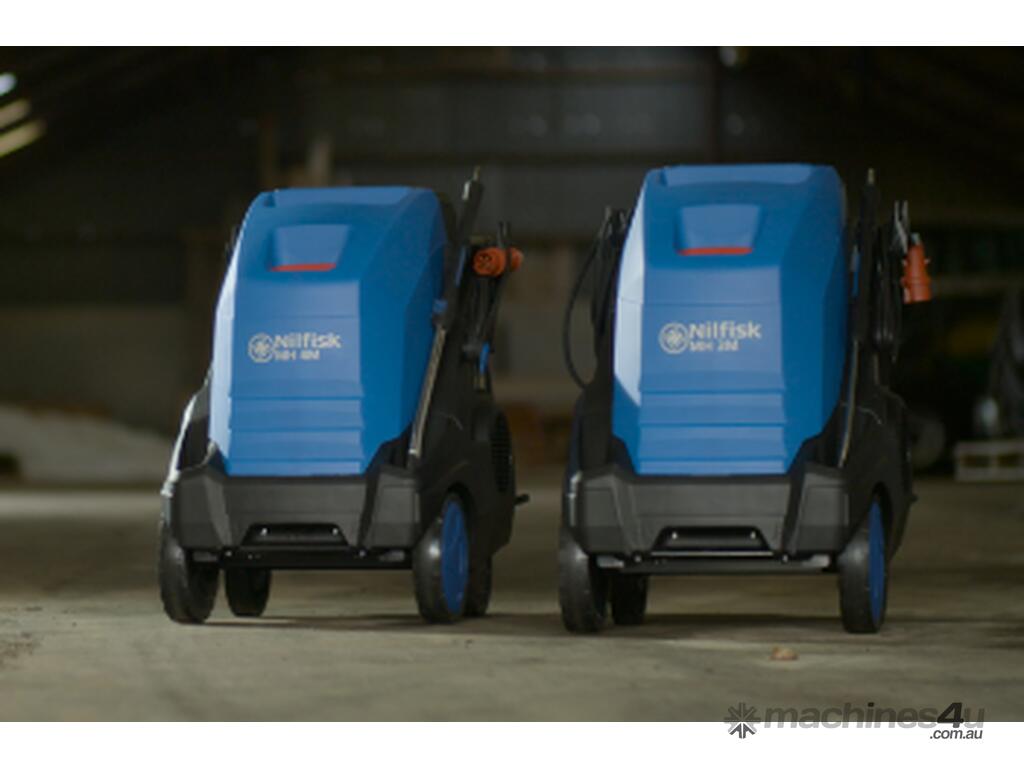

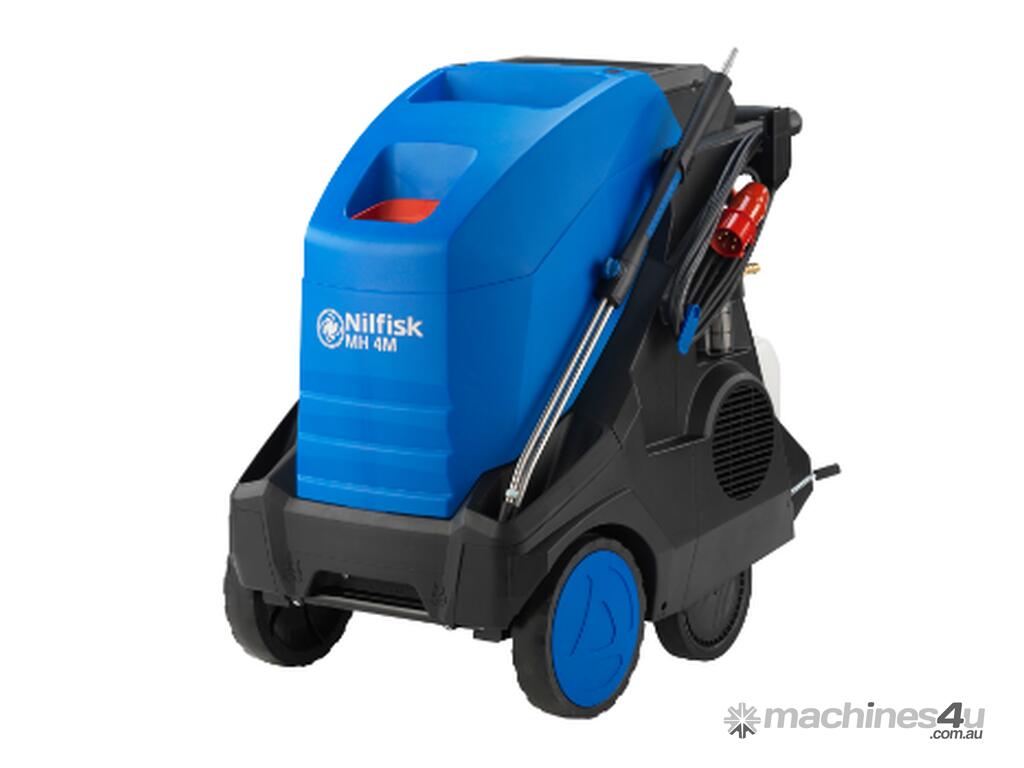

CLEANQUIP-Nilfisk Hot Water Pressure Cleaner MH4M 200/960

The MH 4M series takes mid-range hot water high pressure washers to a new level, meeting the latest productivity demands in the market.

The MH 4M is equipped with our industrial NA5 pump with 3 ceramic pistons and a high efficiency 4 pole motor. And the flow activated control system improves user comfort and handling as well as overall machine reliability.

The MH 4M is suited for all hot water slightly heavier cleaning applications up to 4-6 hours use per day and due to the improved fuel saving EcoPower boiler system it offers very high efficiency and quick cleaning.

Service and maintenance can be carried out quickly, as all vital parts are easy to inspect and reach. Also, the diagnostics function of the 4M will give maintenance warnings to minimise any downtime.

The MH 4M concept ensures the most optimal transport concept across a wide variety of surface types with the 4 large wheels and great balance. Optimal accessory storage facilities with double lance holders, turnable hook for easy removal or winding of electrical cable, innovative spray gun holder and easy storage of detergent tanks. Together with the quick service access to all vital parts, this series will provide remarkable cleaning results, saved time and reduced costs.

High efficiency 4 pole motors
EcoPower boiler with EcoMode function
Brass pump head
3 ceramic pistons
Pressure activated unloader system
Innovative design with 4 big wheels
Easy to transport, can even be pushed/pulled across uneven surfaces
Flow activated unloader system
Oil tank and oil sight
Low pump oil warning system
Low fuel warning system
Onboard diagnostics function

• EcoPower boiler with >92% efficiency and reduced fuel costs
• Robust steel frame and chassis

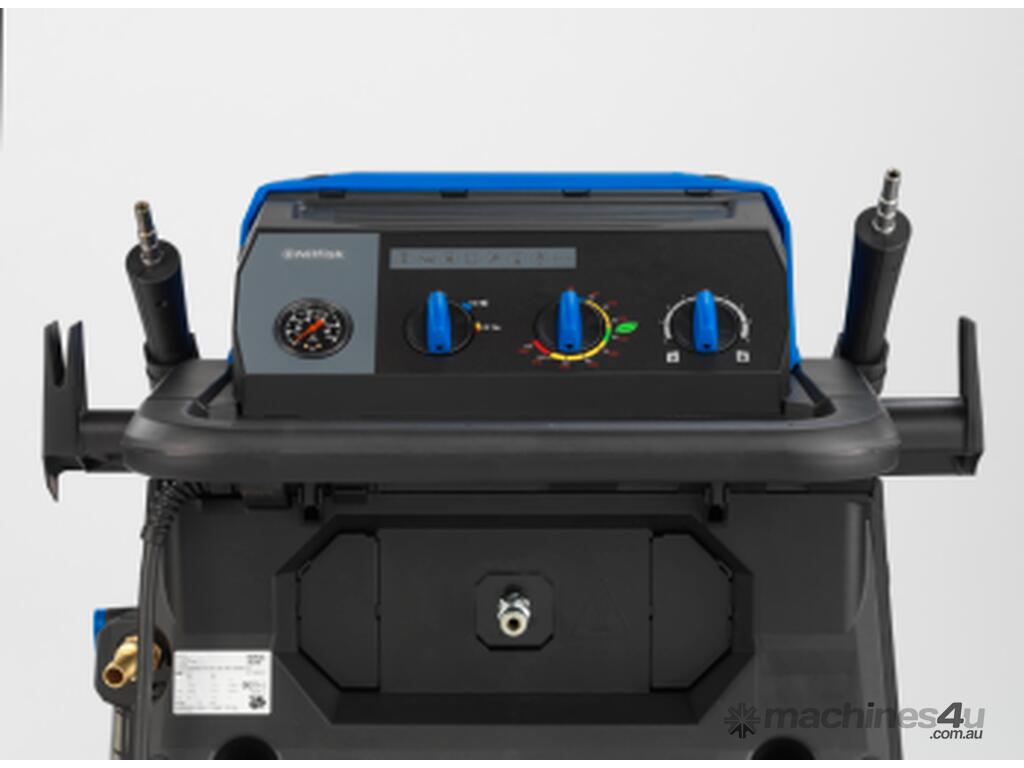

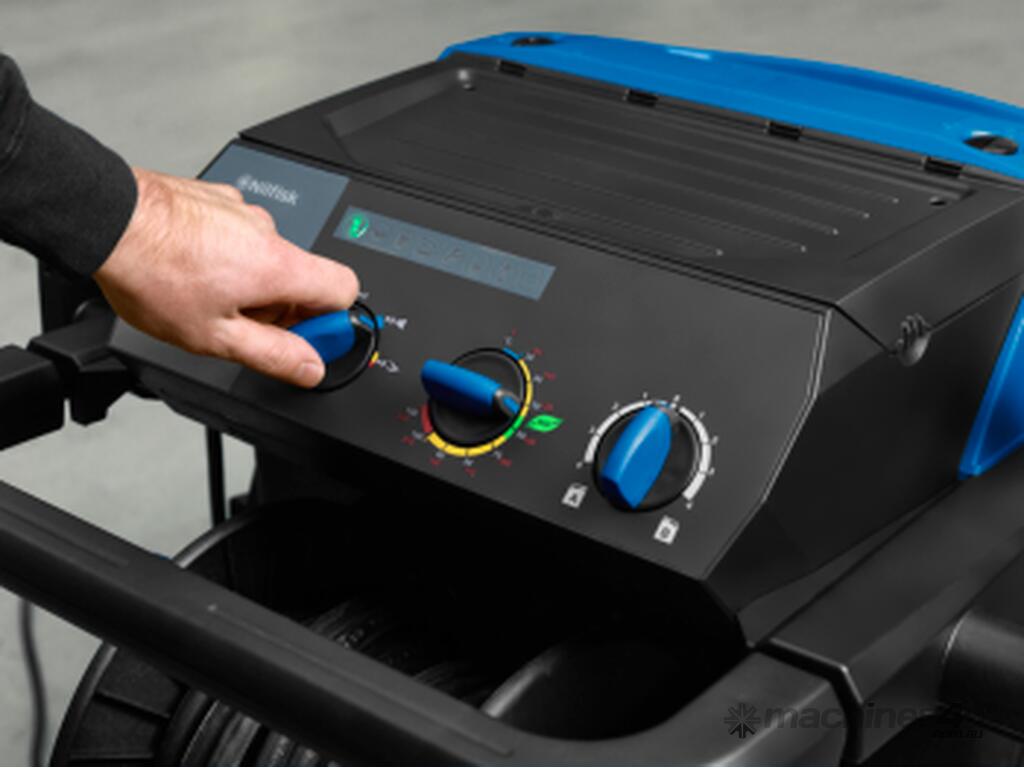

• Easy to use control panel, all controls are in one place
• Machine protection through low fuel safety, exhaust gas sensor and flame sensor
• High pressure detergent with removable detergent tank
• Service indicator
• Brass cylinder head
• Automatic delayed start/stop
• Flow activated control system for enhanced comfort during use
• Stainless Steel boiler coil
• One year commercial warranty

Technical Specifications
Pump Pressure bar/psi 200/2900
Cleaning Impact kg/force 5
Water Flow QMAX/QIEC L/min 16/15
Pump RPM 1450
Water Temperature Degrees Celcius (Water/Steam) 90/150
Maximum Inlet Temperature Degrees Celcius 40
Fuel Consumption kg/h 4
Fuel Tank L 15
Dimensions mm (LxWxH) 1053x685x760
Weight kg 150
Power Consumption kW 6.1
Input V/~/Hz/A 415/3/50/12.3
Pistons Quantity 3 Ceramic
Power Cable Length m 5
Nozzle Size in .0500

MH 4M 200/960
Includes:
Ergo Coupling Kit
Coupling Male/Female 3/4 inch
15 Metre DN8, 2 wire hose with Ergo
Female coupling
Ergo2000 Standard Gun with Hose
Swivel
Tornado Plus 1120 Lance without nozzle
Tornado Nozzle 0500 Indication Ring
Yellow
