CLEANQUIP-Nilfisk IVS T22 L100 3 Phase Industrial Vacuum

TAILORED FOR METAL PRODUCTION. The new standard in heavy industry, this range is suitable for wet & dry materials* and is equipped with motors from 2.2 to 7.5 kW. Each model is designed with different needs in mind. The 4 kW model is available with double stage side-channel blower connected in series for a greater vacuum (model T40) or connected in parallel for higher
airflow (T40W). Ideal for the cleaning and maintaining industrial plants and facilities.
*Requires additional accessories for use on wet applications.

Model T22 is a three phase industrial vacuum for wet and dry material.

Thanks to the high performance, the Nilfisk model T22 is the three phase industrial vacuum ideal for the metal companies. It can collect wet and dry material and can work continuously (24/7). T22 is equipped with a L class filter, but is also available with M class filter or with HEPA absolute filter for the collection of very fine or hazardous dust. Equipped with a manual filter shaker, the accessories box, the cable holder and the vacuometer that indicates to the operator when the filter has to be cleaned in order to grant a constant top filtering efficiency.

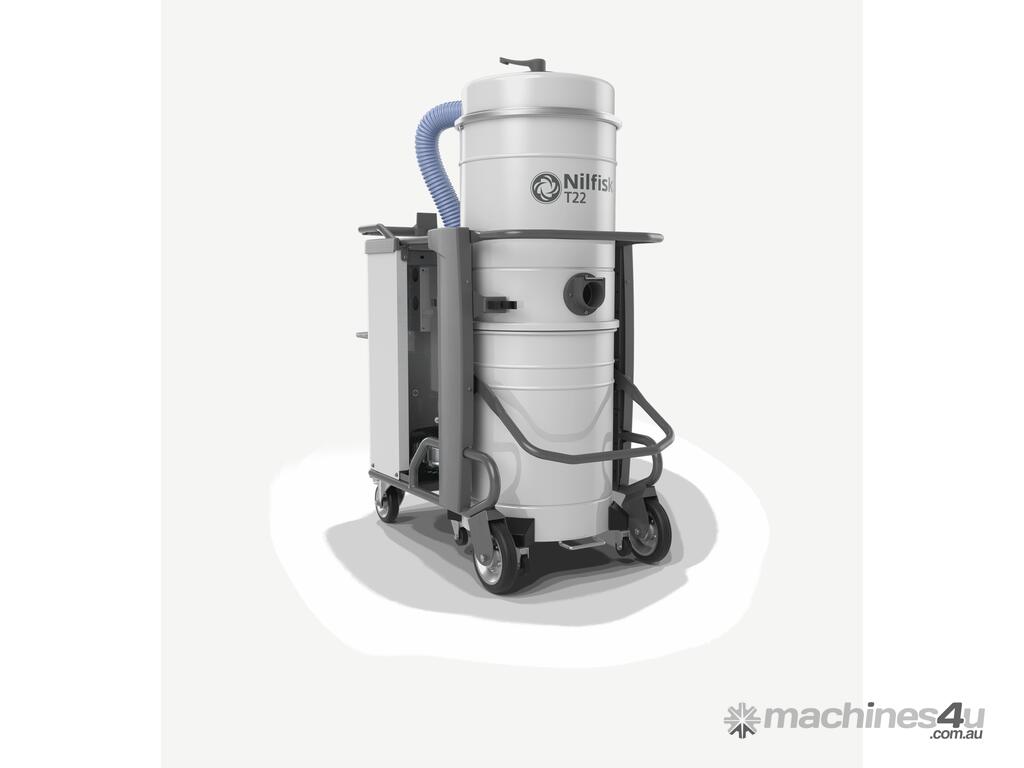

Nilfisk T22 L100
Product code: N

2,2 kW side channel blower placed on the chassis
50 or 100 liters container
Gravity unload system with paper bag or Longopac (``endless`` bag)
Silent Manual filter shaker L or M class filter
Vacuometer Plug with inverter
Container with castors and handle
Accessory box, cable-holder and support for pipes

TECHNICAL SPECIFICATIONS T22
Voltage Volts 415
Frequency Hz 50
Protection class IP 55
Insulation class Class I
Rated power kW 2.2
Airflow without hose m3/h 315
Vacuum max mbar 300
Sound pressure level dB(A) 68
Container capacity l 100
Main filter area cm2 19500
Inlet mm 70
Length x Width x Height mm 1130x600x1530
Weight kg 114

(Accessories kit not included)

Options
Z7 24151 Accessories Kit 50mm

(HIGH VACUUM IDEAL FOR LIFTING HEAVY PRODUCT)
