The MH 5M series offers high cleaning efficiency and low running costs via optimal cleaning and heating performance. It is the ideal hot water unit for segments such as automotive and transport, agriculture and industry.
The versatile MH 5M combines low running costs, high performance, ease of use, best in class mobility and great cleaning efficiency. The innovative design makes it easy to move over all types of surfaces. The flow-activated control system contributes to even more comfortable use of the machine and assures durability and reliability.

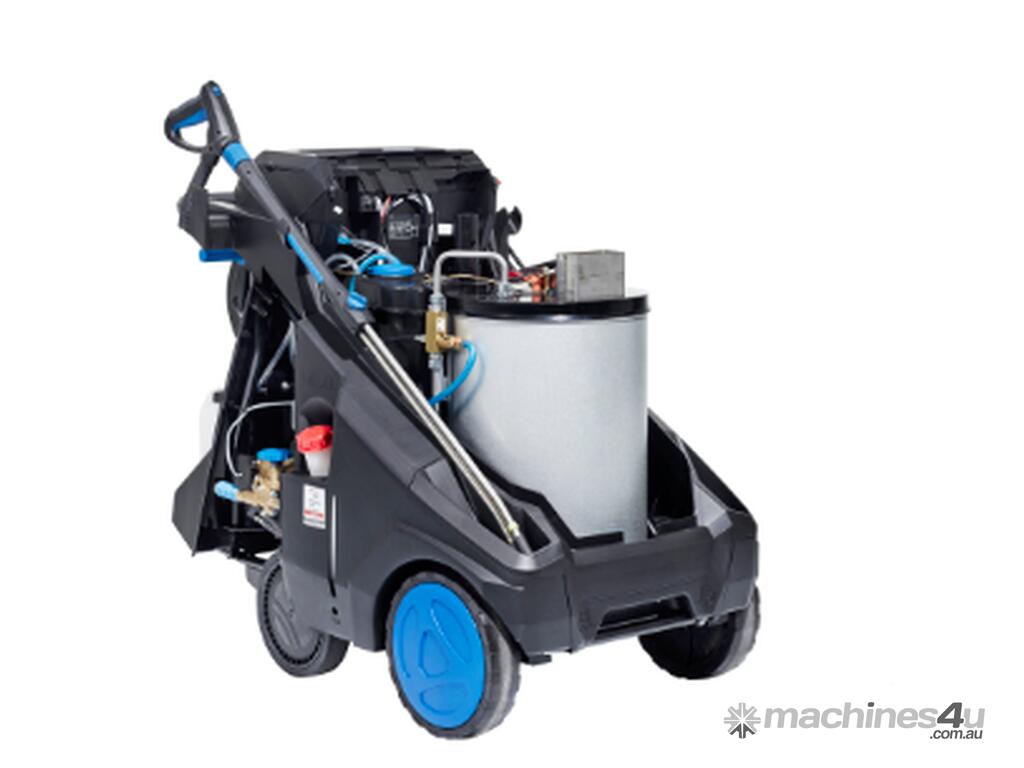

Service and maintenance can be carried out quickly, as all vital parts are easy to inspect and reach. Also, the diagnostics function showed in the panel will give maintenance warnings to minimise any downtime.The EcoPower boiler system offers > 92% efficiency for significantly reduced fuel consumption and lower running costs.
EcoPower boiler with EcoMode function
EcoPower boiler >92% efficiency giving reduced fuel costs
Brass pump head 3 ceramic pistons
Flow or Pressure activated unloader system Innovative design with 4 big wheels
Easy to transport, can even be pushed/pulled across uneven surfaces
Oil tank and oil sight
Low pump oil warning system
Low fuel warning system

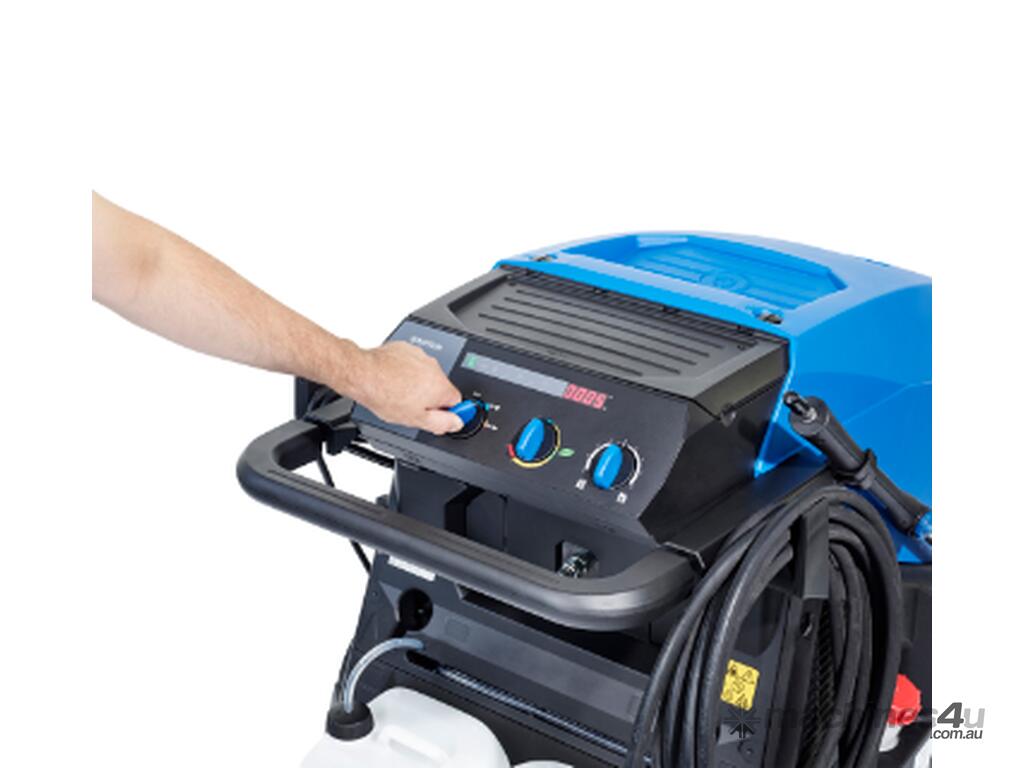

Onboard diagnostics function
Electric Three Phase Premium Hot Water
-
MH 5M 210/1110 FA (Neptune 5-61FAX)
Includes:
Ergo Coupling Kit
61369 Hose Nozzle 20R 3/4
20 Metre DN8, 2 Wire Hose with Ergo Female coupling
Ergo2000 Spray Gun with Hose Swivel
Tornado Plus 1120 Bend Lance
Tornado Nozzle 0550 Indication RingNeon Green
Technical Data:
Pressure: 210/3045 bar/psi
Water Flow QMAX/QIEC: 1110/1050 l/h
Max inlet temp: 40C
Power Consumption: 7.6 kW
Power: 415/3/50/15 V/~/Hz/A
Pump: 1450 RPM
Water Temp. (Water/Steam): 80/140 °C
Fuel Consumption: 5.8 Change T 45°
Detergent Tank: 15+10L
Fuel Tank: 35L
Weight: 193 kg
Dimensions LxWxH: 1190x702x987 mm
HP hose: 20 DN8 m
