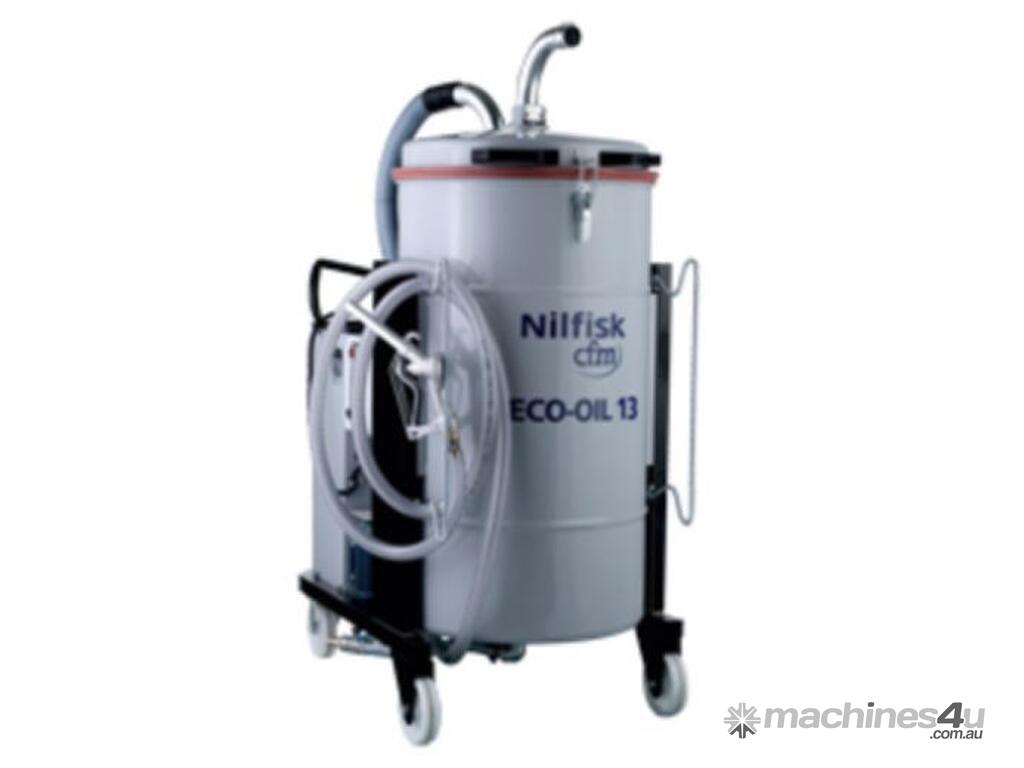

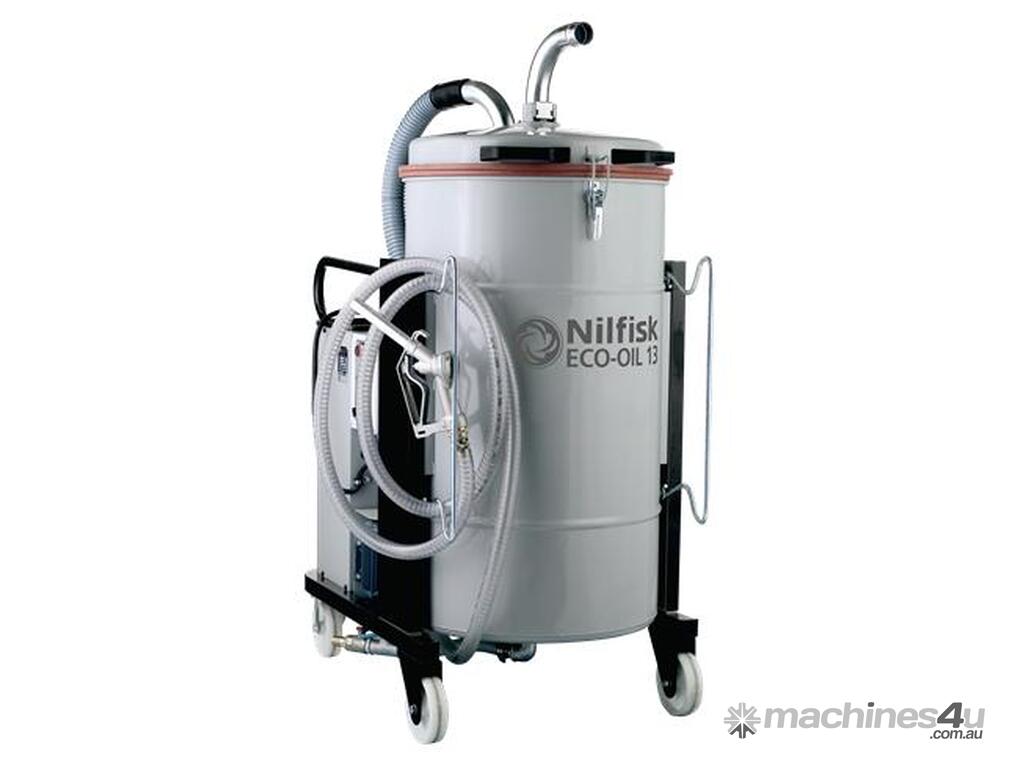

CLEANQUIP-Nilfisk Industrial Vacuum Cleaner IVS ECO OIL 13

The most effective method to save money in the metalwork industry
The OIL series is indispensable in the engineering industry where machine tools are used. Their main function is to separate the lubricant/oil/coolant from the metal swarf and recover the liquid.

In a CNC machine tool many litres of coolant/oil are used in order to cool the cutting tool during the process. This ``liquid`` is expensive and has to be re-used. Thanks to the OIL series, this job can be done in a very short time. The swarf is retained into a basket and just the ``liquids`` fall down into the main tank where an electrical liquid cut-out will stop the motor when the maximum level is reached. Then thanks to the gun the coolant is re-ejected into the machine tool for re-using. This operation can be done while sucking the material and has a great advantage in terms of money as the oil/coolant keeps its property assuring perfect workmanship.

Re-use of emulsions
Reducing machine downtime
Prolongs the lifetime of the machine tool
Oil Vacuum to save oil with 1.3 kW singlephase power. Collect cutting oil or coolant mixed with metal chips or other swarfs, separate liquids from solids and re-use the filtered liquid!

Regular use of the Oil industrial vacuums not only performs maintenance of the machine tools but also means great economic savings. Faster cleaning of the CNC machines, reuse of the emulsions or coolants avoiding any waste. The functioning is easy: the solid chips are collected into a basket while liquids are collected into the main container and then re-introduced into the machine tool thanks to the dedicated gun.

Re-use of emulsions
Reducing machine downtime
Prolongs the lifetime of the machine tools

Technical specifications
TECHNICAL SPECIFICATIONS ECO-OIL 13
Voltage Volts 240
Frequency Hz 50
Protection class IP 43
Insulation class Class B
Rated power kW 1.3
Airflow without hose m3/h 161
Vacuum max mbar 320
Sound pressure level dB(A) 70
Container capacity (Swarfs/Oil) l 30/180
Inlet mm 50
Length x Width x Height mm 670x1050x1500
Weight kg 120

Product no
Accessories kit not included
