CLEANQUIP-Nilfisk Industrial Vacuum IVS R104 V

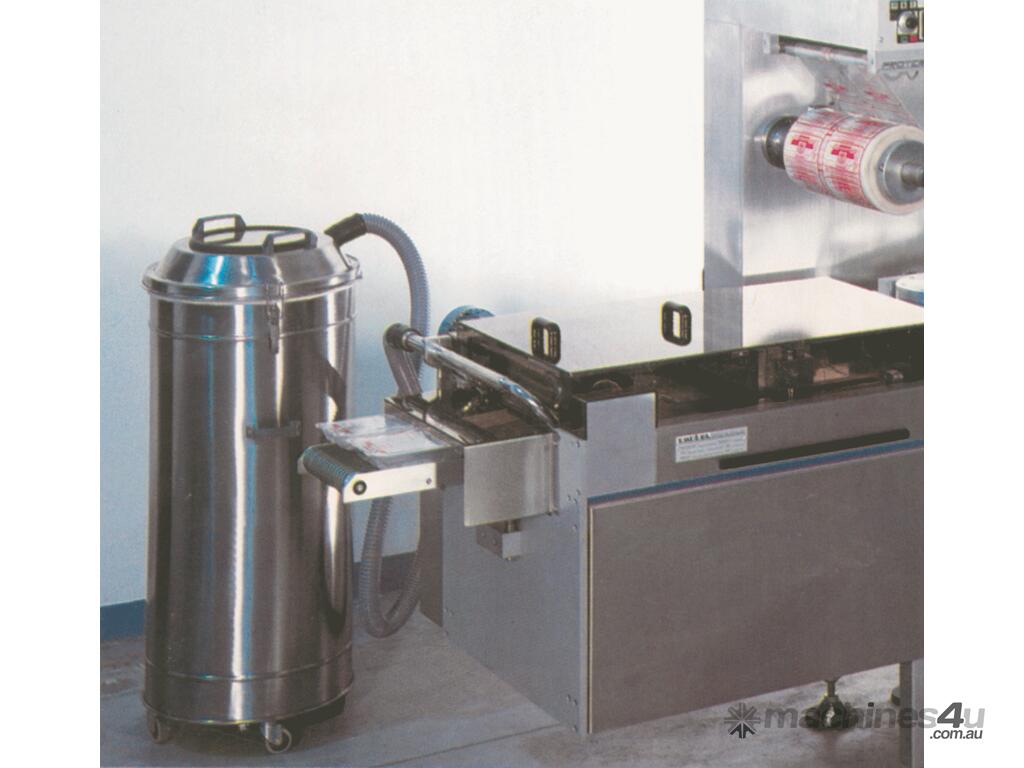

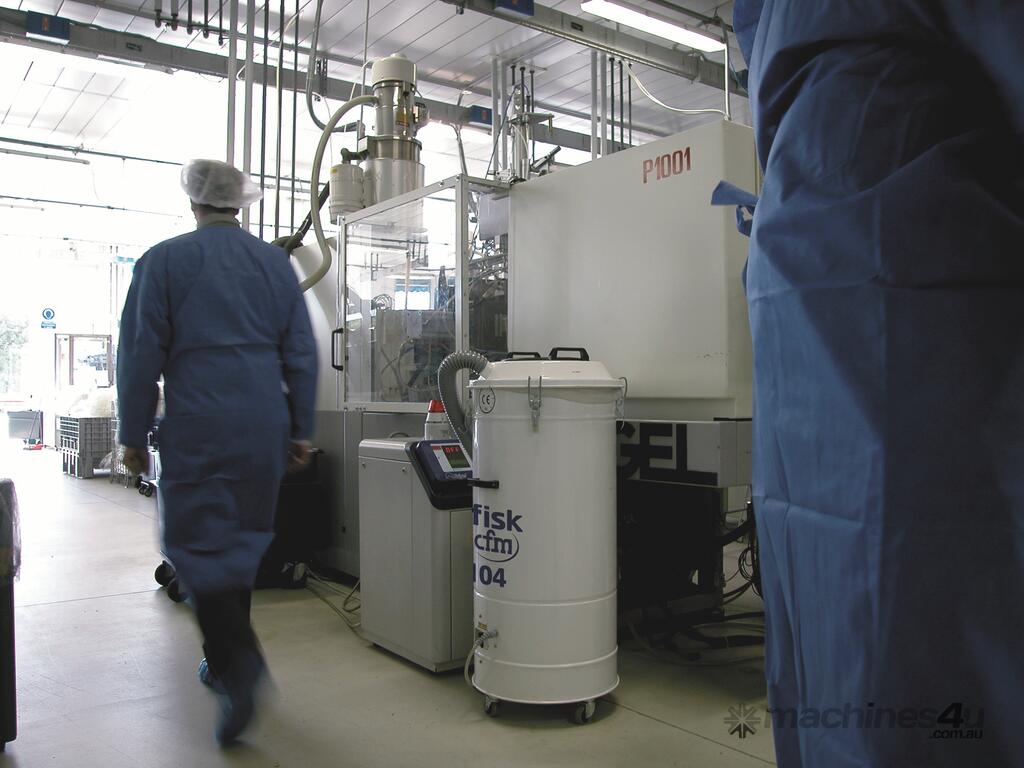

Industrial vacuum for the collection of plastic, paper or textile trims. Its suction power, its features and its size make it the right vacuum to operate in packaging areas.

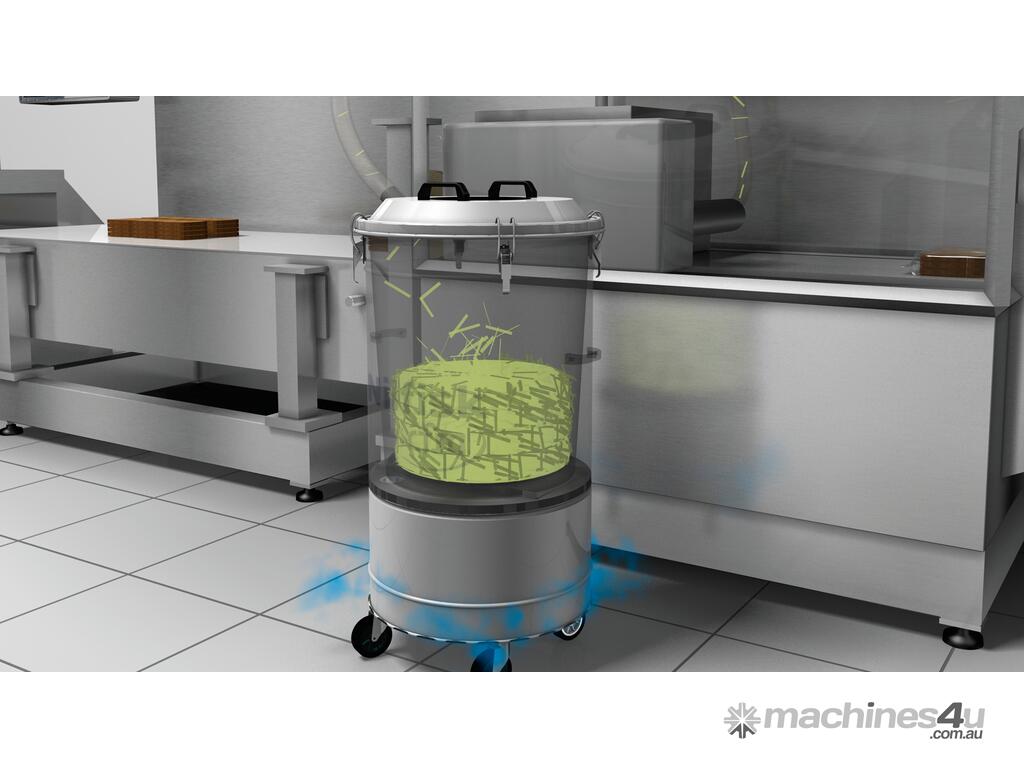

Model R 104 is equipped with a 0,85 kW threephase motor and a 114L container. It mounts a nylon filter, however specific filters for dust extraction are available. The threephase suction unit is placed under the container, the liner is spread out and completely open and all product vacuumed in is neatly compacted on the bottom, optimizing the container capacity.

Small
No maintenance needed
Silent
Easy and quick disposal of waste material
High container capacity

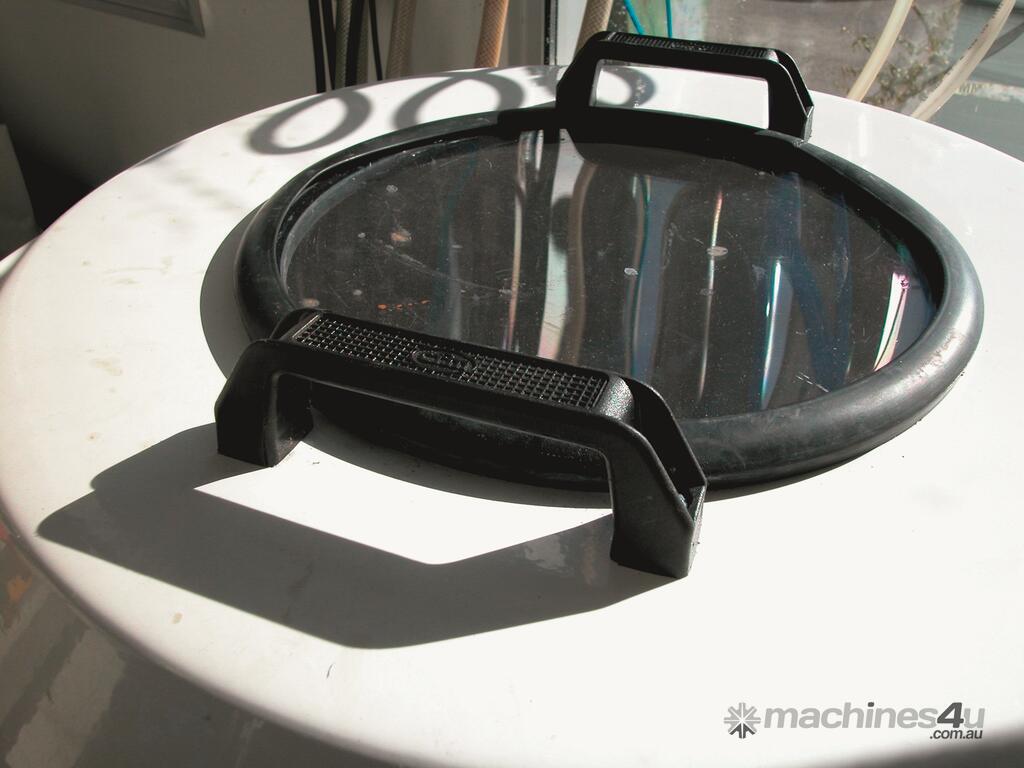

Quick visual level control: plexiglass hole in the lid
Specific liner filter for fine dust available
Stainless steel version

Voltage (V)400
Weight (kg)38
Container capacity (L)114
Main filter area (cm²)11500
Frequency (Hz)50
Insulation classF
Inlet (mm)50
IP protection class55
Main filter typeNYLON MOD. R460
Max. vacuum (kPa - mbar)23 - 230
Max. airflow (m³/h - l/min.)156 - 2600
Rated power (kW)0.9
Sound pressure level (dB(A))68
Length x width x height (mm)560x560x1200


(Accessories Kit not included)

Nilfisk R104 V
Product code: N
