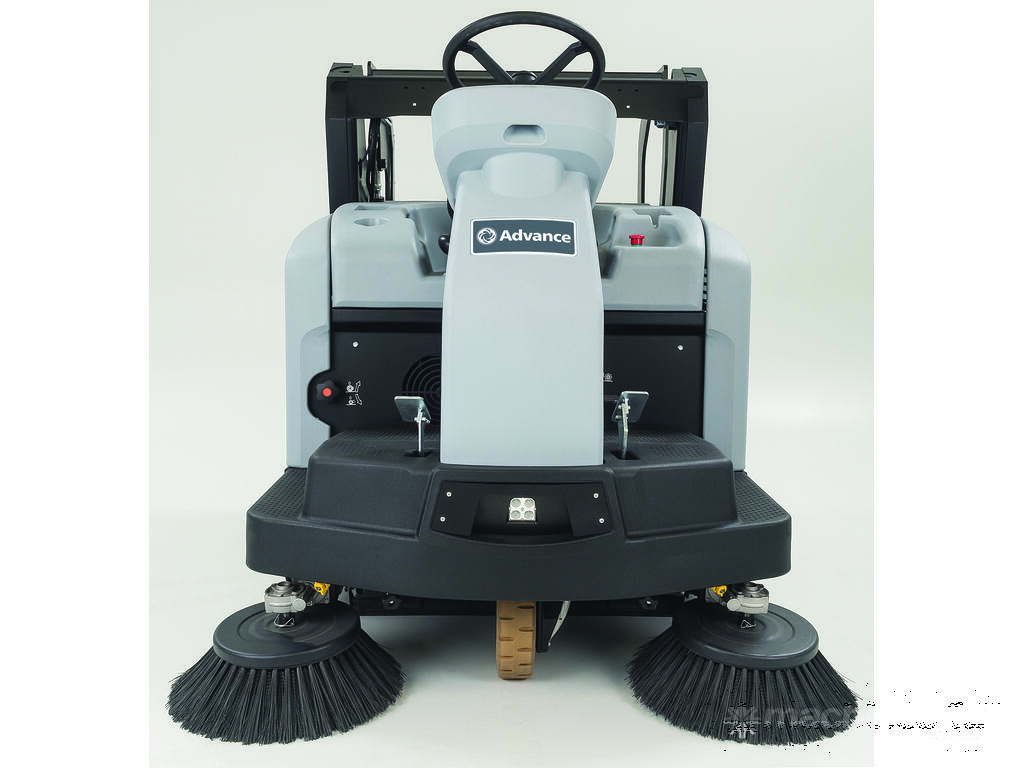

CLEANQUIP-Nilfisk SW5500 Diesel Ride On Sweeper

The SW5500 offers a highly productive, comfortable and cost-effective way to sweep large floors and outdoor areas of dust and debris. A ride-on sweeper with the size and capacity to speed up your cleaning.

Daily benefits like creating a safer environment and lowering the total costs of ownership make this machine an attractive choice for contract cleaners, industrial sites and factories, warehouses, distribution centers, sports arenas, parking lots of large retail stores or shopping malls, multi-store car parks, etc.

At the same time, SW5500 provides more sustainability with the optional hybrid technology reducing emission and the level of noise.

What SW5500 does best for you: 1. Increases productivity at your fingertips 2. Lowers the total cost of ownership 3. Creates a safer and cleaner environment

25–30% increased sweeping performance with a worn main broom versus traditional sweeping system
30% increased hopper filling gives higher productivity as less time is spend dumping the debris
The first real hybrid industrial sweeper on the market: flexible cleaning, low emissions and low noise
Main broom adjustment easy to check by pushing a button

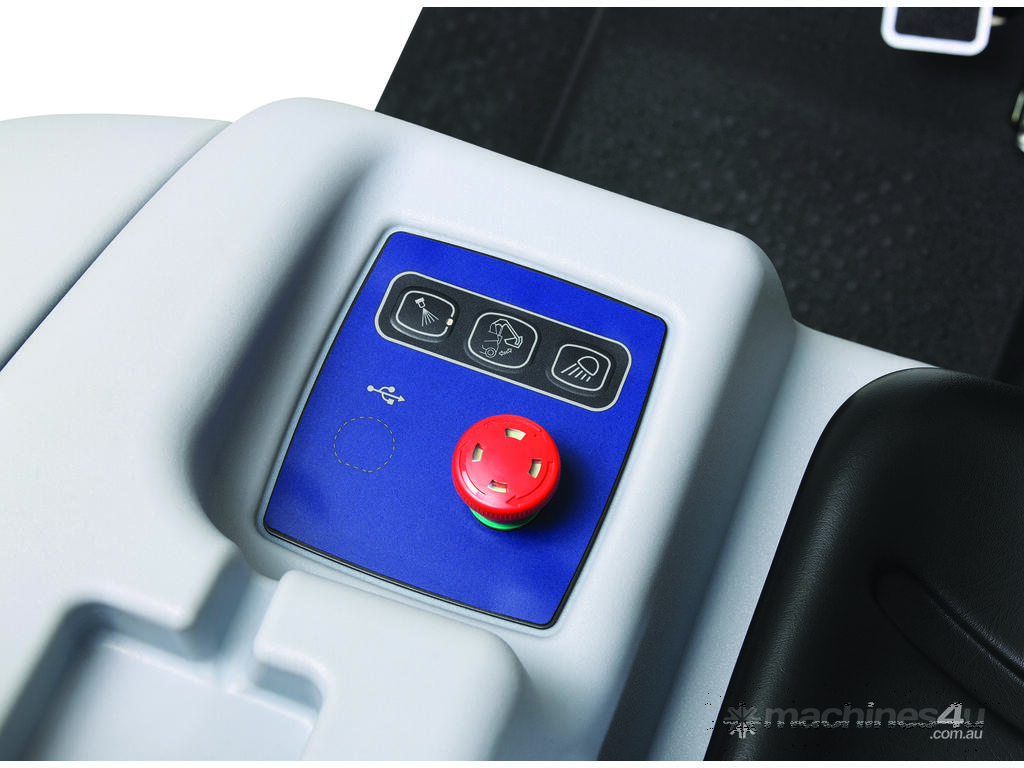

All sweeping functions activated by OneTouch™ button and pressing the drive pedal
All functions automatically stop when not driving to reduce consumptions
High quality components and assembly
Automatic speed reduction in tight curves and operating the hopper
Warning alarm and reduced hopper lifting speed on slopes
DustGuard™ system to reduce dust created by the side brooms
Parallelogram concept on side broom for better and consistent sweeping performance
Climb 20% on ramp/slopes while sweeping

Technical specifications for SWEEPER SW5500 D
Model No
Motor power source Diesel, Yanmar 4.1 kW
Max. speed (km/h) 10
Sound pressure level (dB(A)) 85
Productivity main broom theoretical/actual (m²/h) 8500/5950
Productivity 1 side broom theoretical/actual (m²/h) 11750/8225
Productivity 2 side brooms theoretical/actual (m²/h) 15000/10500
Working width (mm) 850
Working width with right side broom (mm) 1175
Working width with 2 side brooms (mm )1500
Max. climbing rate (%) 20
Hopper volume (l) 150
Max. dumping height (cm) 165
Filter cleaning system Timed multi-frequency
Filter area (m²) 7
Side broom speed (RPM) 40 - 155
Side broom diameter (mm) 500
Length x width x height (mm) 1875x1200x1565
Net weight (kg) 757
Operating weight (kg) 838
Flap lifting device Included
Paper panel filter Included
Hour Meter Included
Amber safety beaco Included
Back up warning alarm Included
Fuel indicator and gauge Included
Service indicator Included
Key switch Included
Parking brake Included
Variable high dump system Included
Diesel version Included
Non marking traction wheels Included
Horn Included
Wet sweep by-pass Included
Variable speed control Included
Automatic speed reduction Included
Adjustable side broom speed Included
Adjustable seat Included
Multi-frequency filter shaker Included
Electric start Included
Speed indicator Included
Overheat indicator Included
One-Touch™ Button Included
No tool broom adjustment Included
Foam filled rear wheels Included
Main broom worn alarm Included
Timed multi-frequency filter shaker Included




AVAILABLE IN DIESEL AND BATTERY MODELS. Please contact us for pricing and specifications
