CM-1310S 3-in-1 Pressbrake, Guillotine & Rolls 1310 x 1mm Mild Steel Capacity

HAFCO-METALMASTER CM-1310S 3-in-1 Pressbrake, Guillotine & Rolls 1310 x 1mm Mild Steel Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S654S

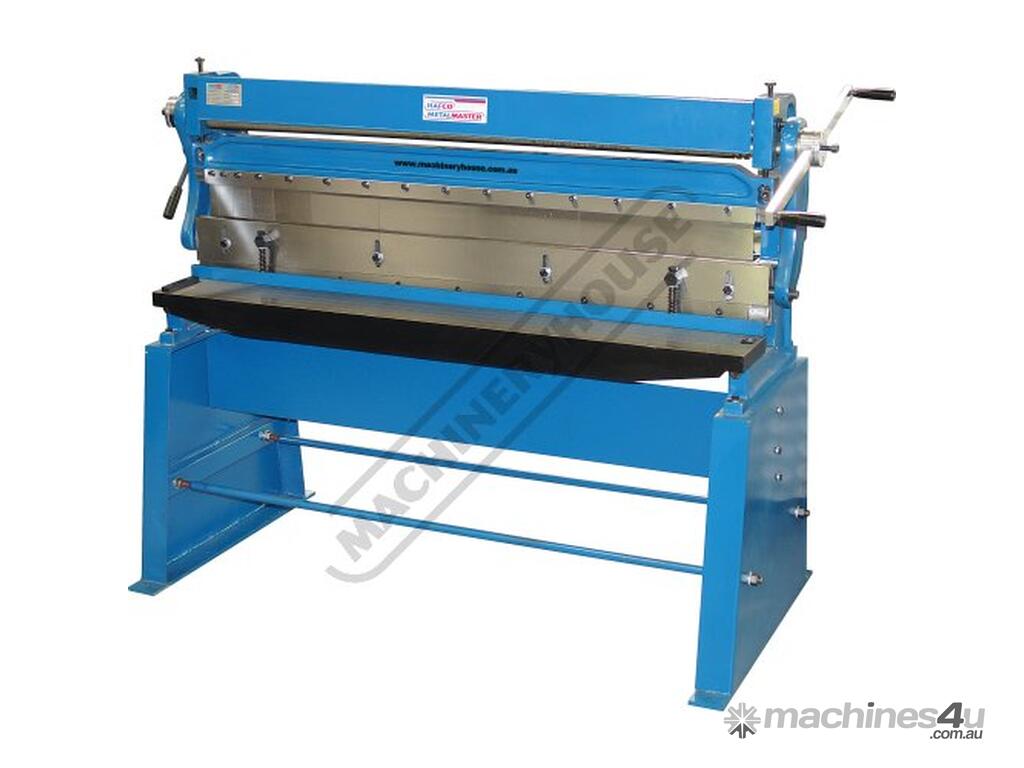

A compact three-function sheet metal working machine which will shear, roll and bend thin sheet material up to a maximum width of 1320mm. The handle operates all three functions at the same time, but only one function can be used at one time - the rolls incorporates wiring grooves and are rotated whilst the bending and shearing functions operate via an eccentric cam. The pressbrake bending dies can be removed in sections to allow for partial bends to be formed and the top roll can be removed completely when forming closed cylinders. The maximum thickness capacity of 1mm for mild steel & 1.5mm for soft grade aluminium, This compact machine is perfect on small jobs and low production runs for the home engineer's workshop.

Features:
Ideal for light sheet metal work
Cast iron construction
One handle operates all three functions

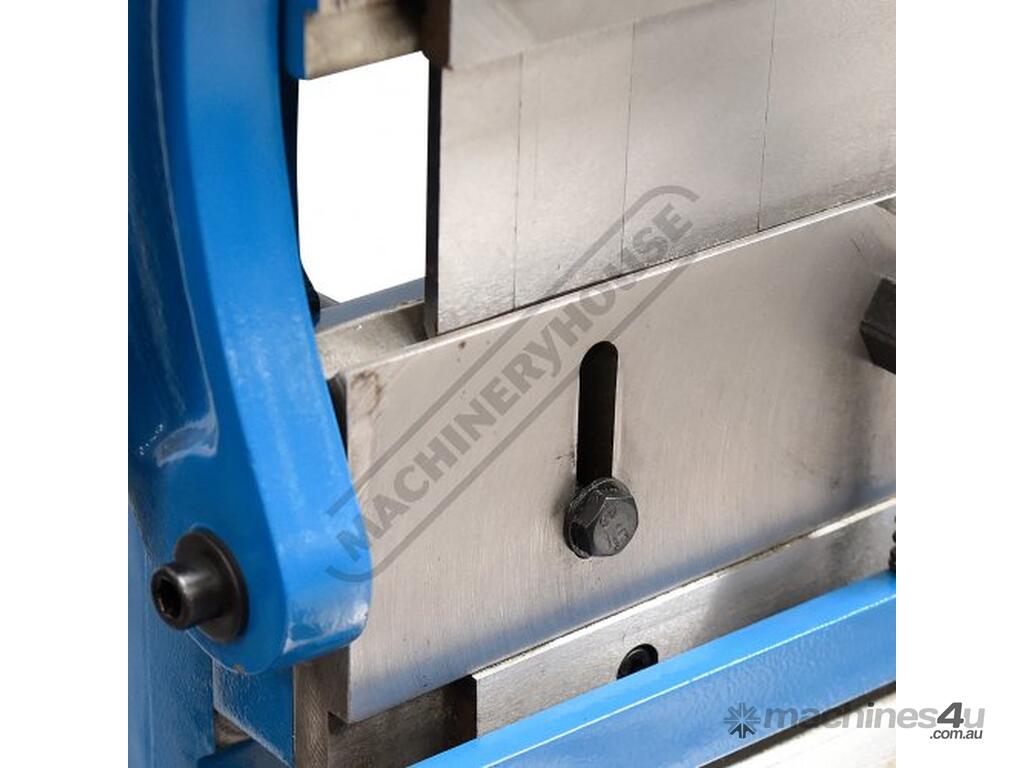

Segmented pressbrake top blade

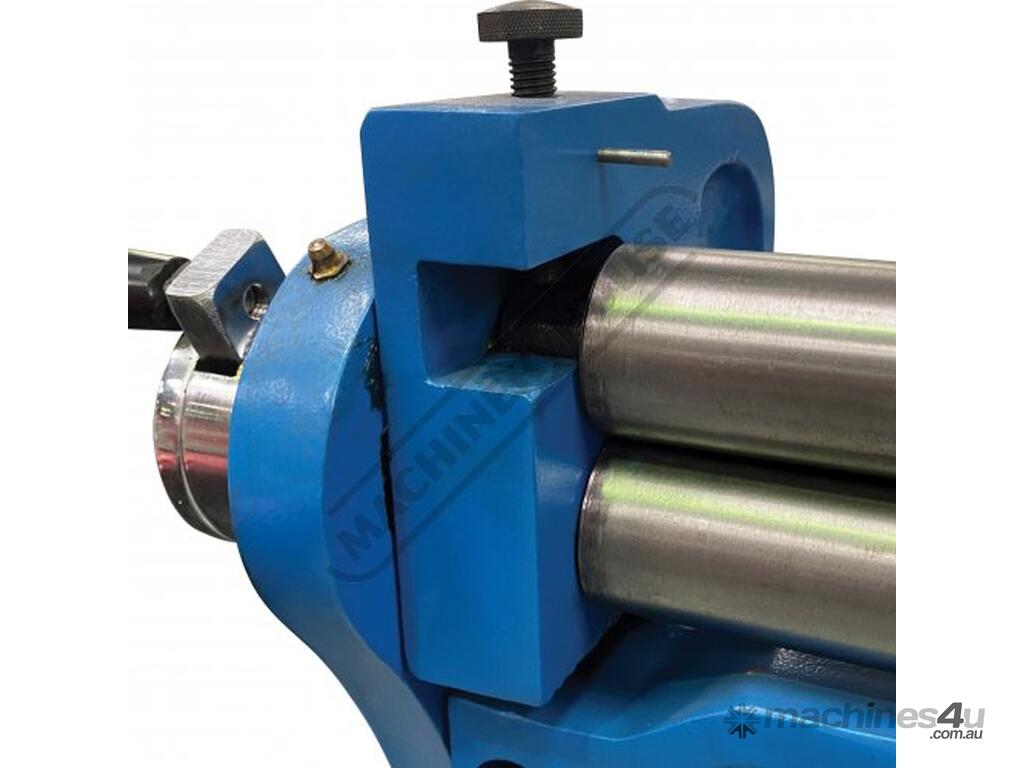

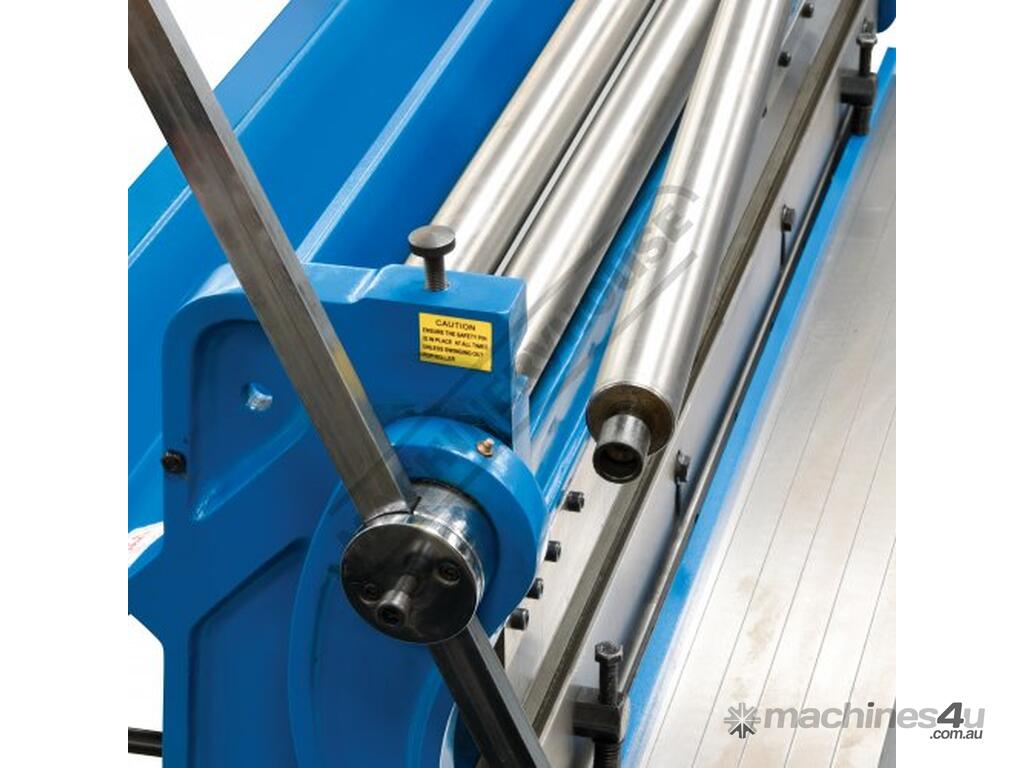

Top roller opens for job removal

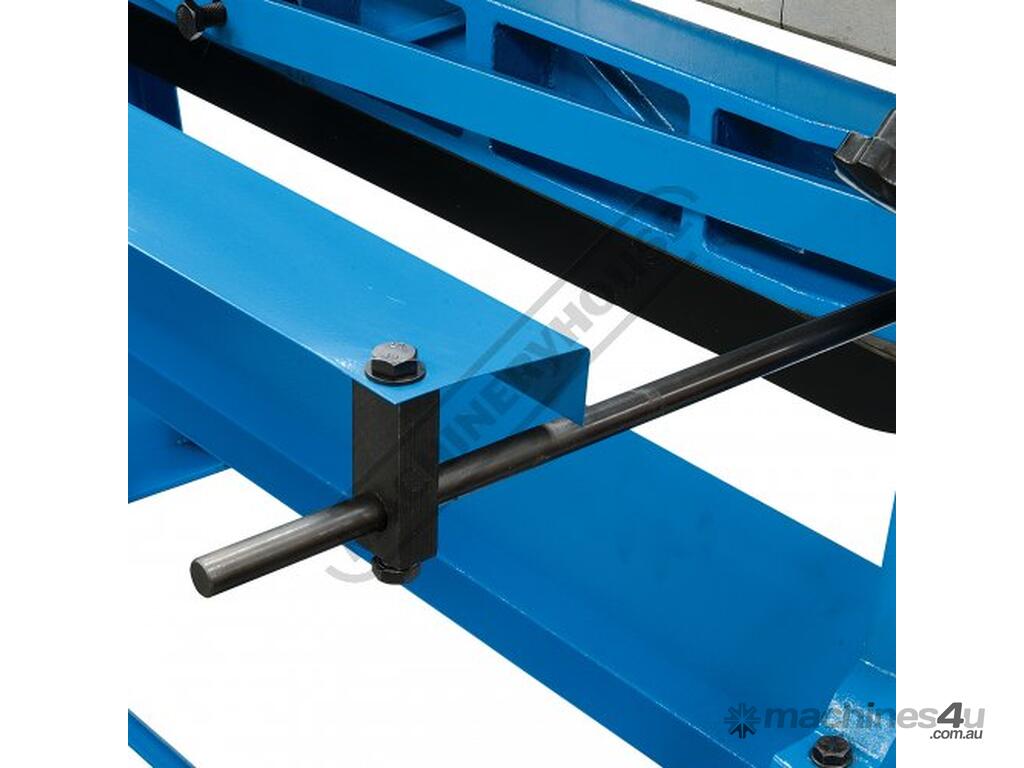

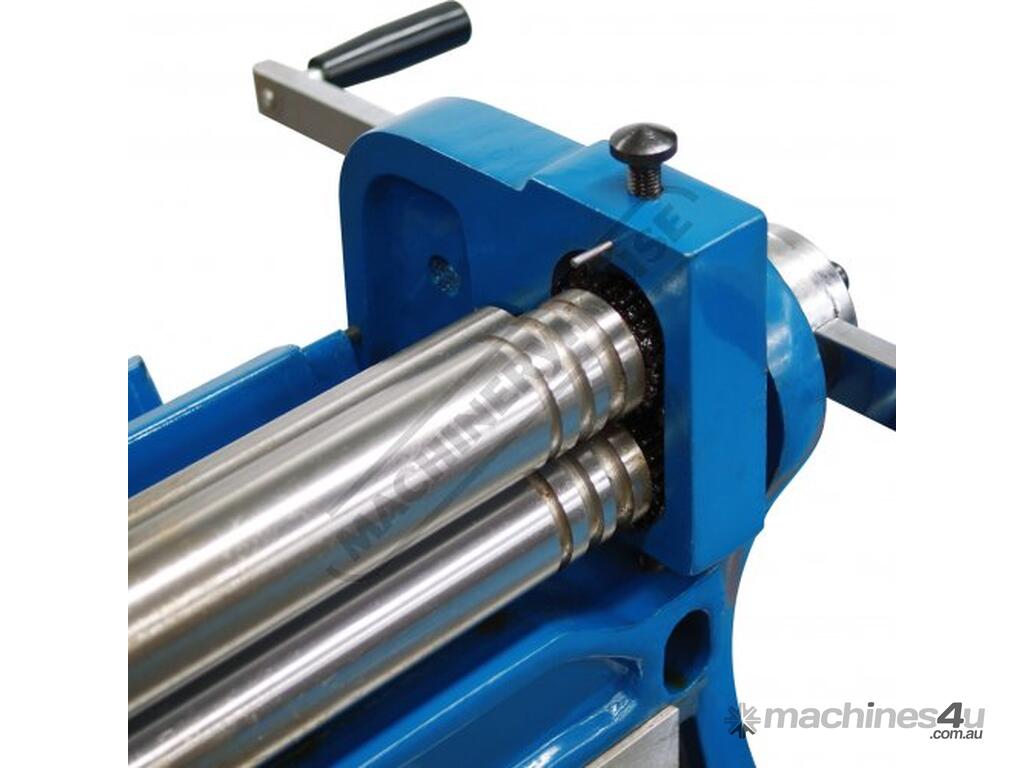

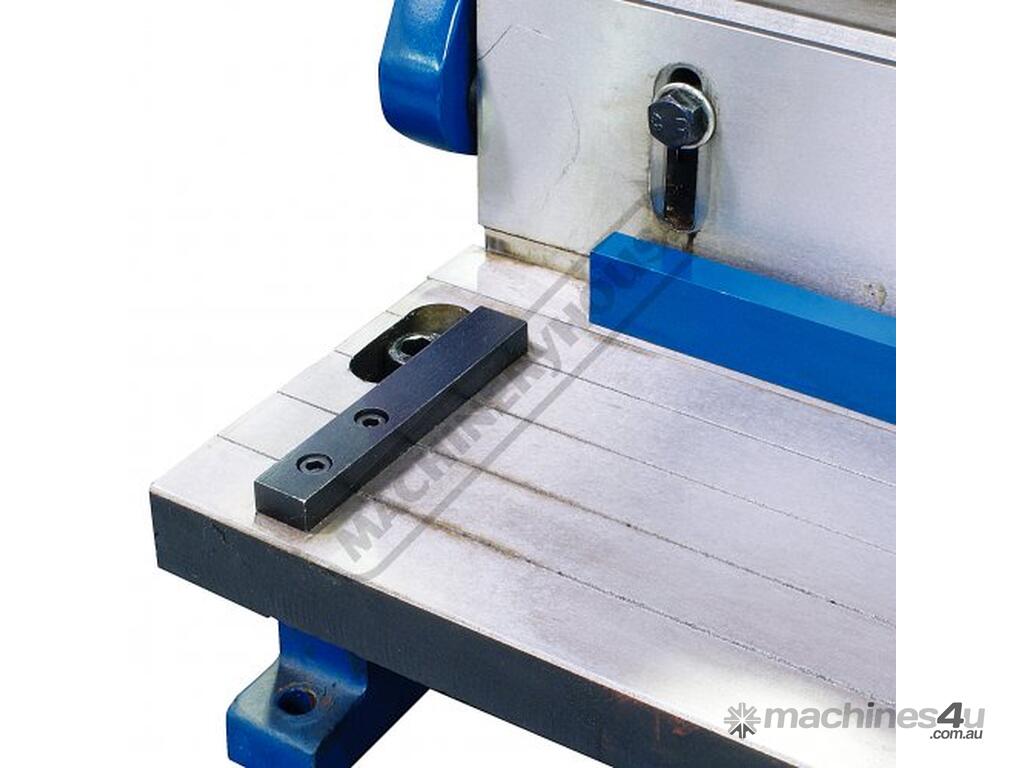

Includes stand wiring grooves in rolls and backgauge
Mild steel capacity is rated on hot rolled material with 250MPA


Specifications:
ORDER CODE: S654S
MODEL: CM-1310S
Length Capacity (mm): 1310
Material Thickness Capacity - Mild Steel (mm): 1
Rolls Diameter (mm): 50
Nett Weight (kg): 378


To Purchase Online Please Visit The Machineryhouse & Search For 'S654S'
