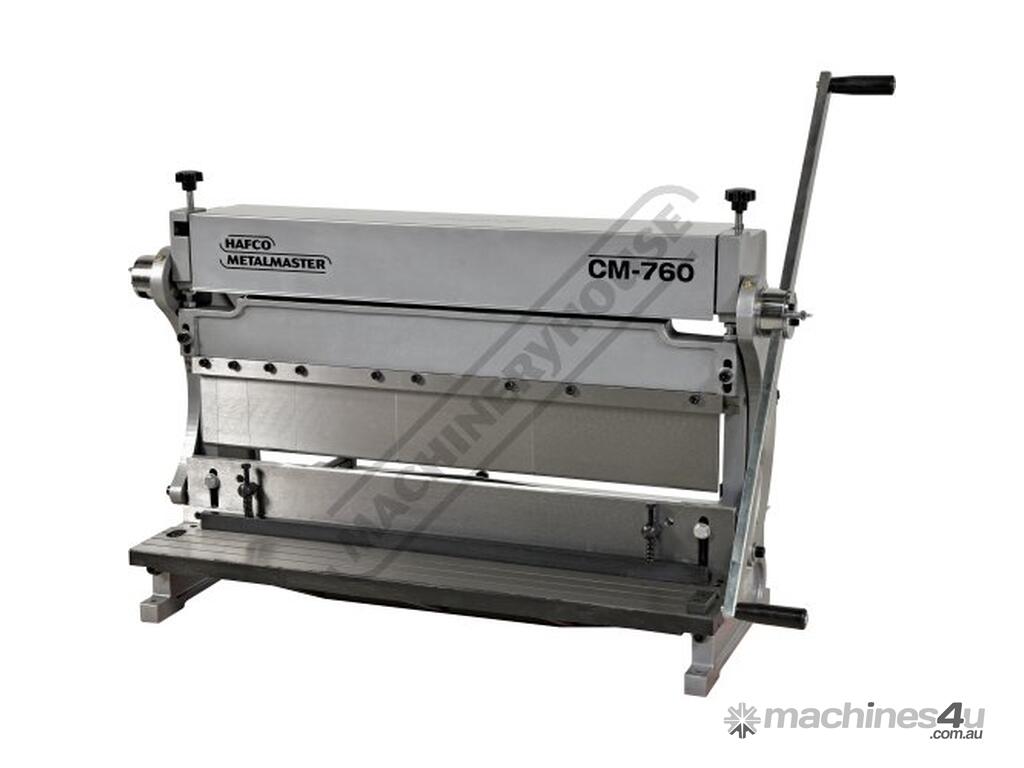

CM-760 3-in-1 Pressbrake, Guillotine & Rolls 760 x 1mm Mild Steel Capacity

HAFCO-METALMASTER CM-760 3-in-1 Pressbrake, Guillotine & Rolls 760 x 1mm Mild Steel Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S650

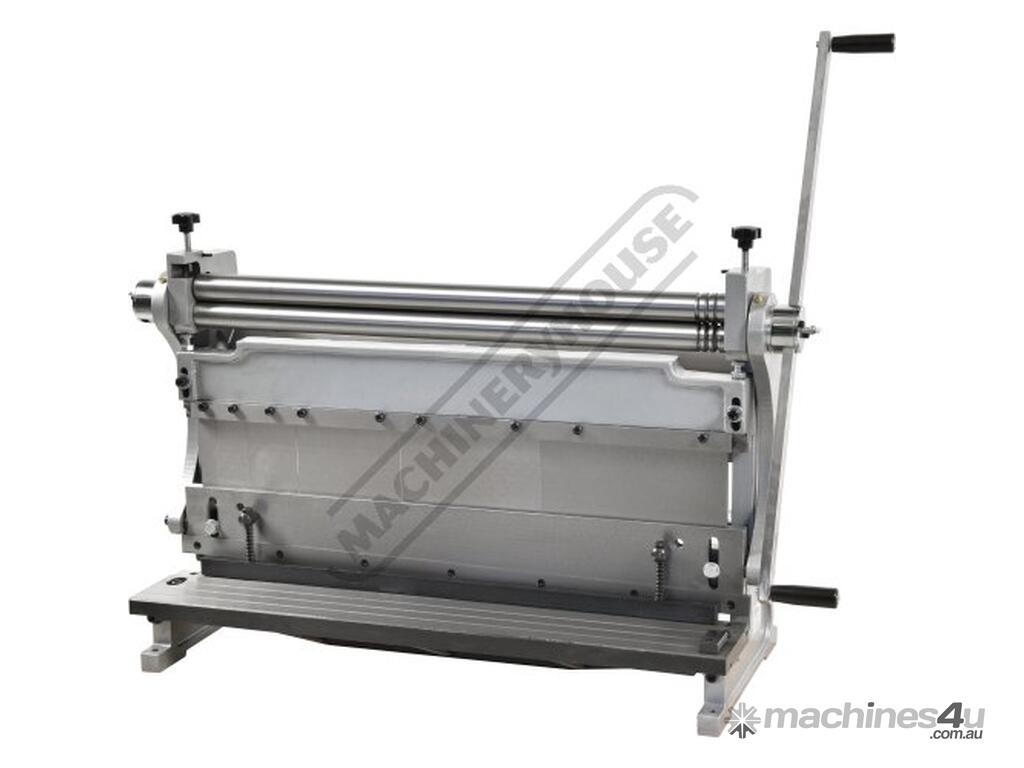

A compact three-function sheet metal working machine which will shear, roll and bend thin sheet material up to a maximum width of 760mm. The handle operates all three functions at the same time, but only one function can be used at one time - the rolls incorporates wiring grooves and are rotated whilst the bending and shearing functions operate via an eccentric cam. The pressbrake bending dies can be removed in sections to allow for partial bends to be formed and the top roll can be removed completely when forming closed cylinders. The maximum thickness capacity of 1mm for mild steel & 1.5mm for soft grade aluminium. This compact machine is perfect on small jobs and low production runs for the home engineer's workshop.

Features:
Ideal for light sheet metal work
Cast iron construction

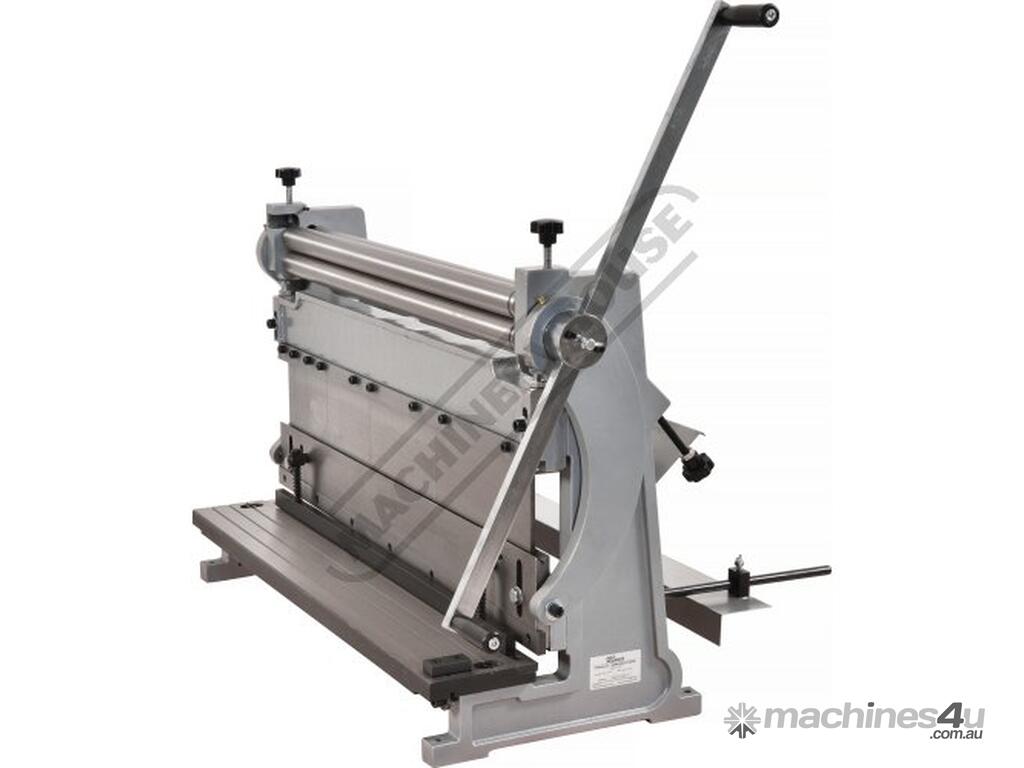

One handle operates all three functions

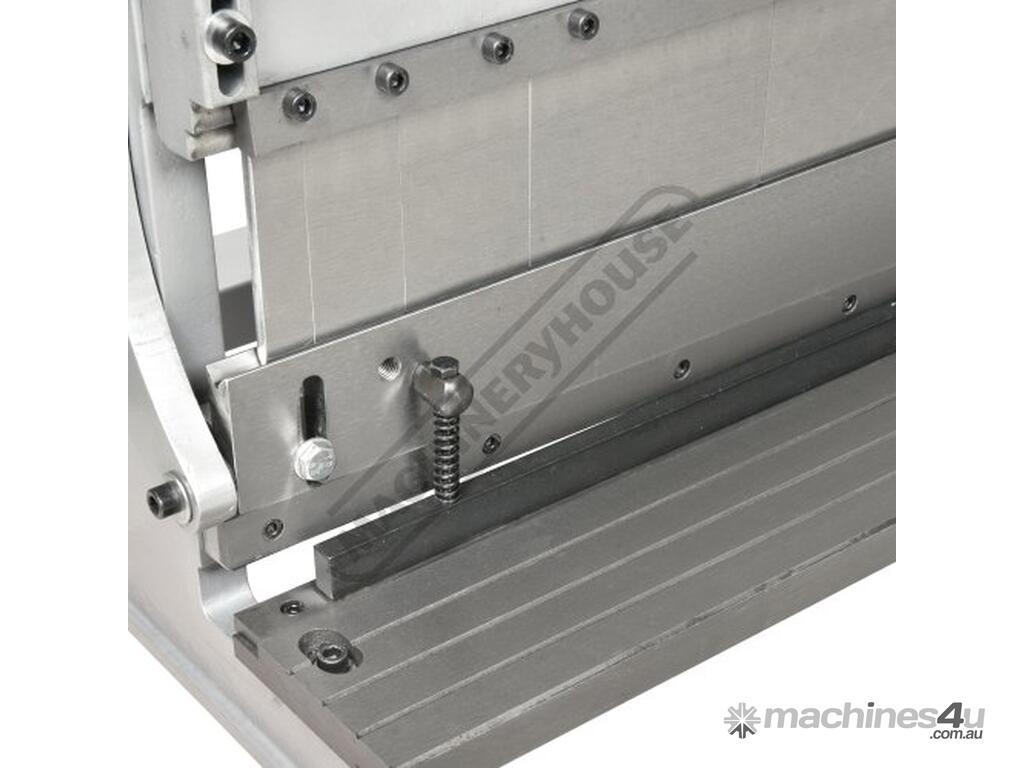

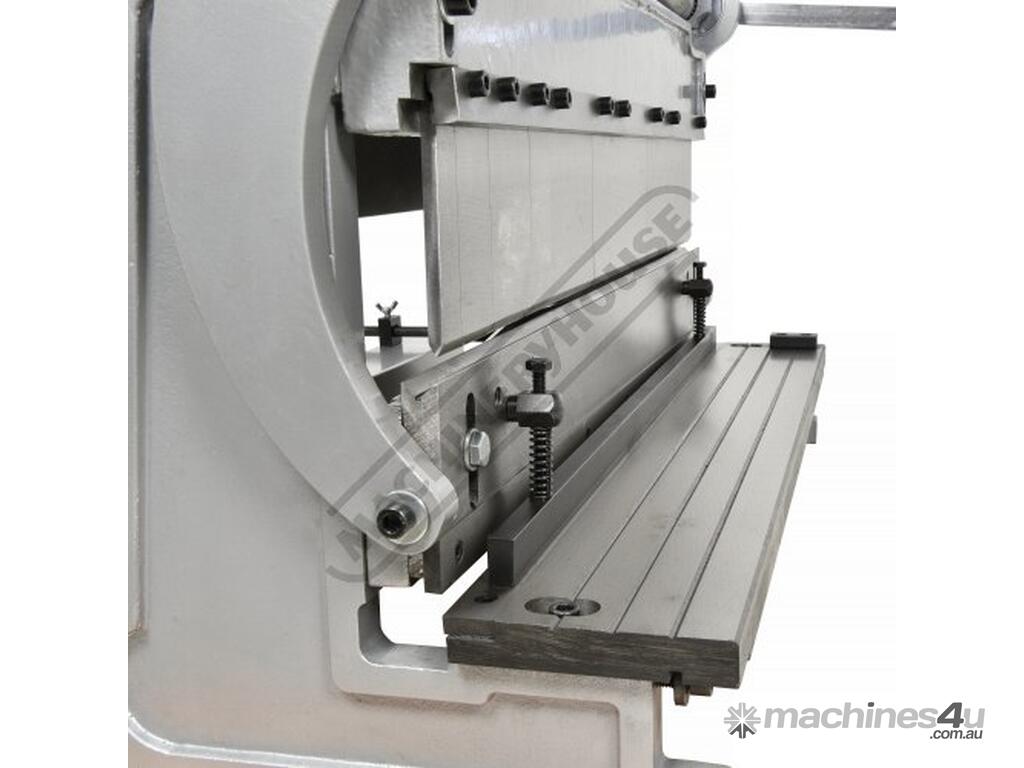

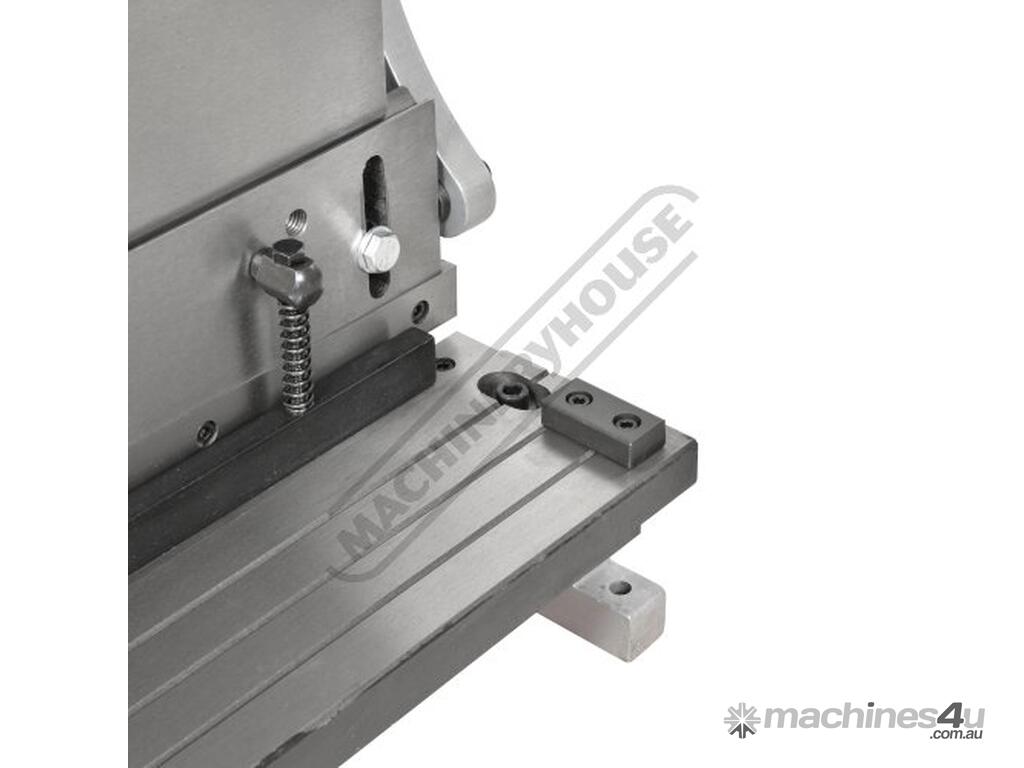

Segmented pressbrake top blade

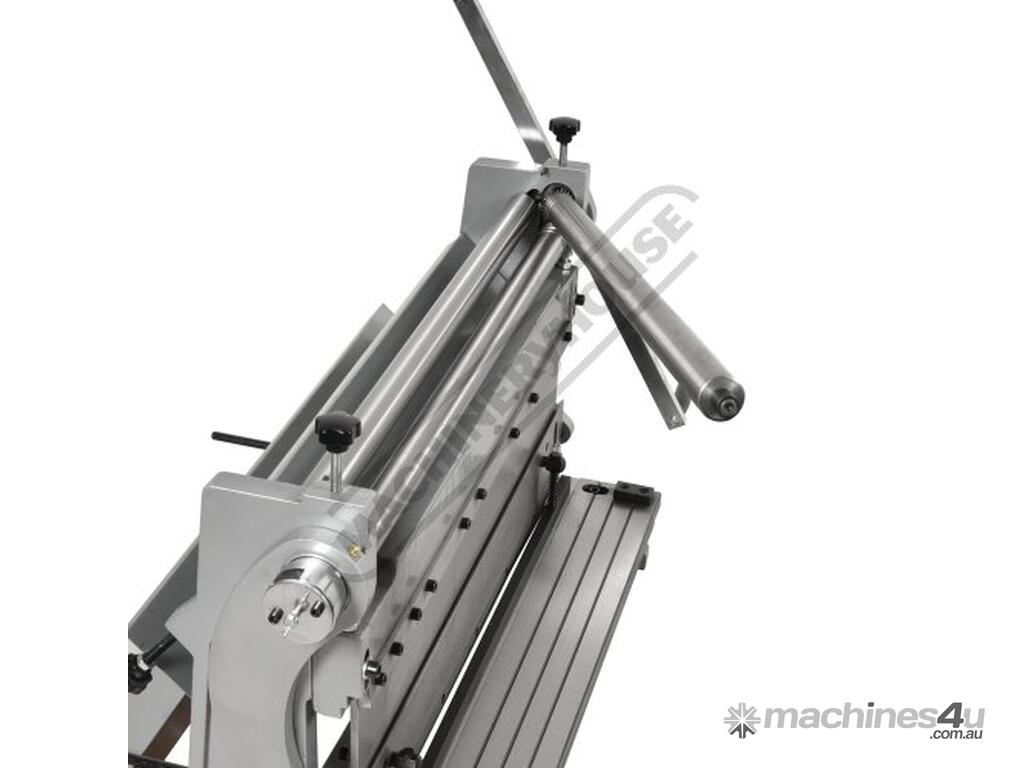

Top roller opens for job removal

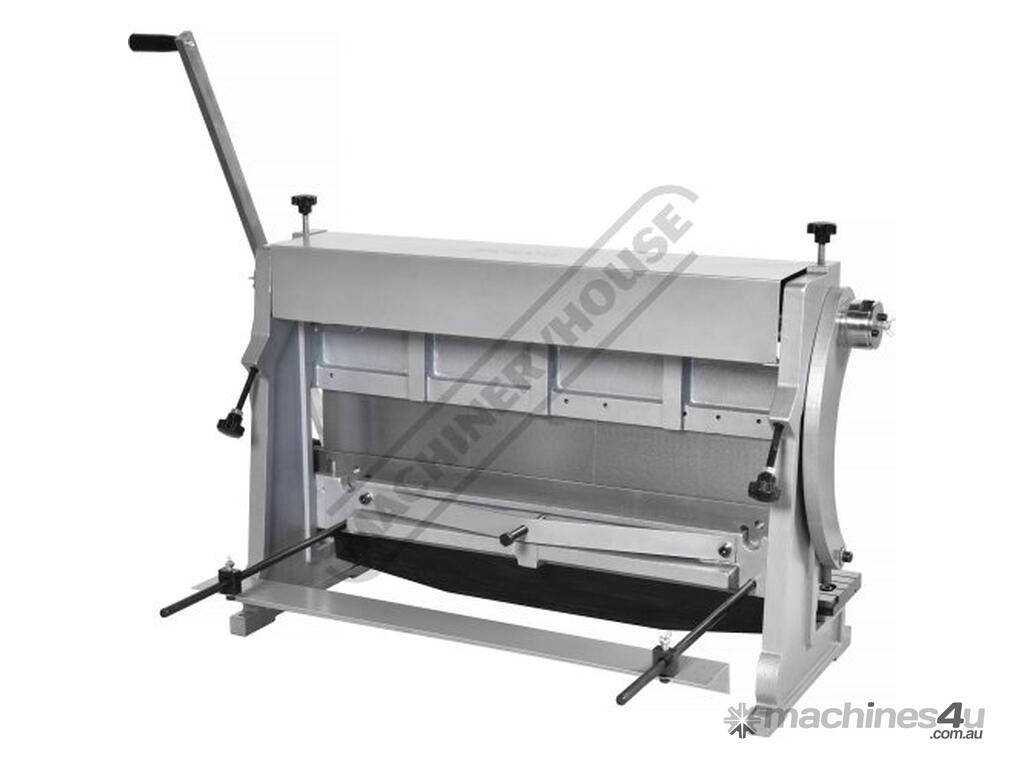

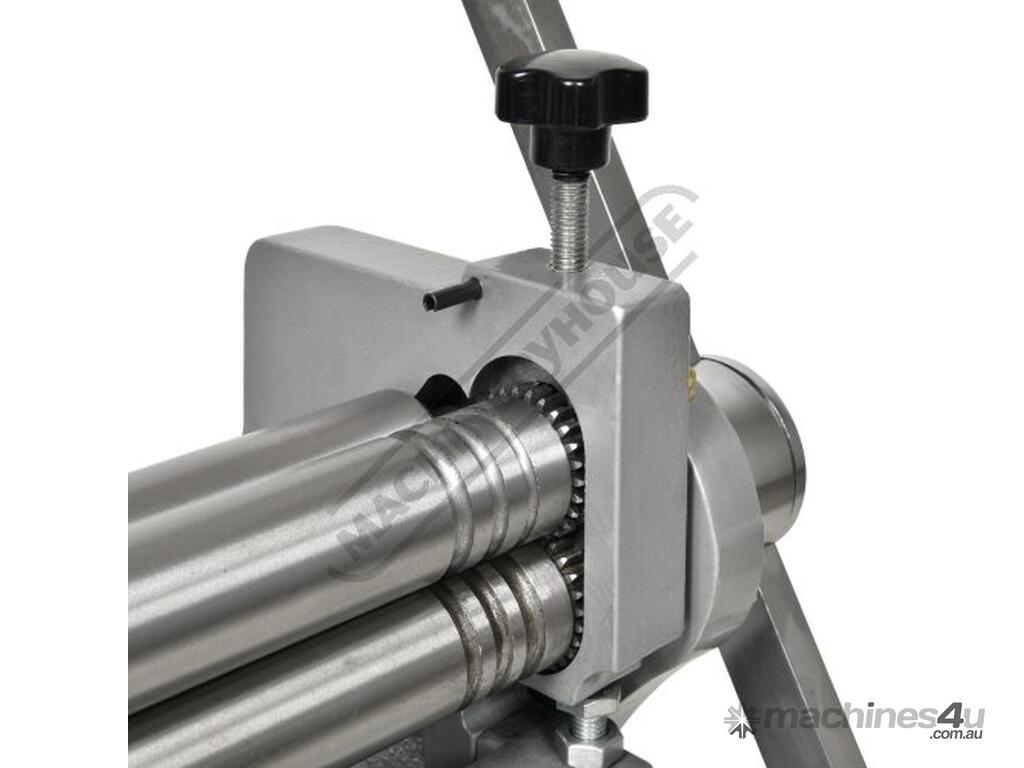

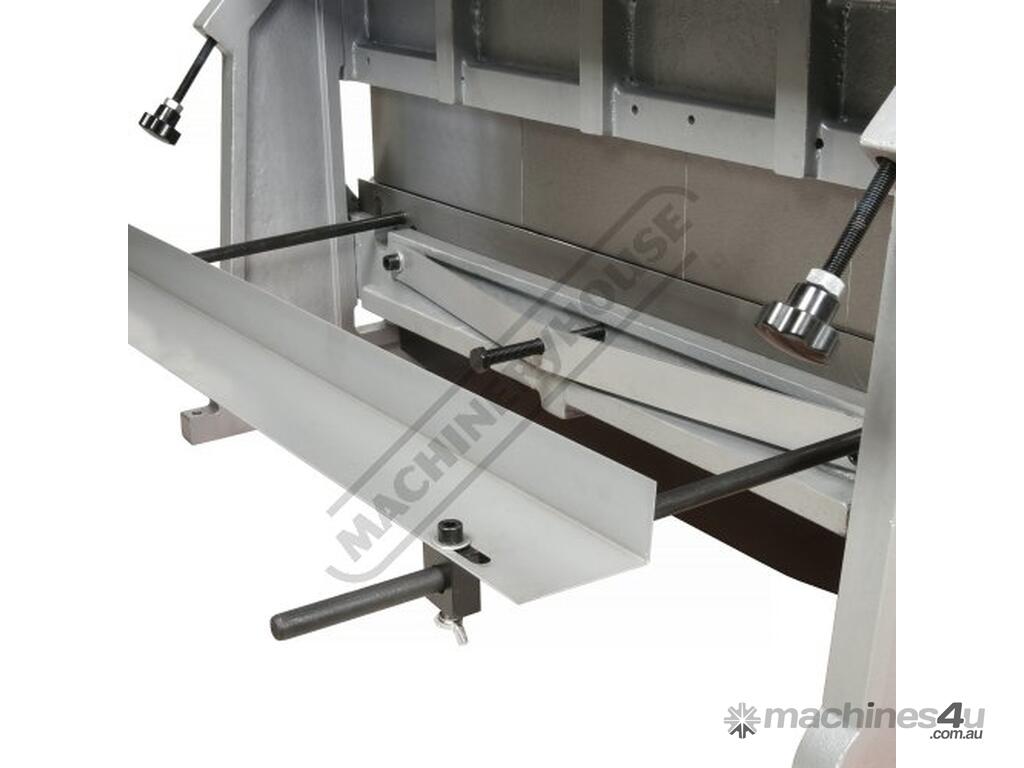

Includes wiring grooves in rolls and backgauge
Mild steel capacity is rated on hot rolled material with 250MPA


Specifications:
ORDER CODE: S650
MODEL: CM-760
Length Capacity (mm): 760
Material Thickness Capacity - Mild Steel (mm): 1
Rolls Diameter (mm): 42
Nett Weight (kg): 153
