CMC S15 - Narrow Access 15m Spider Lift

CMC S15 - 15 Metre Narrow Access Spider Lift

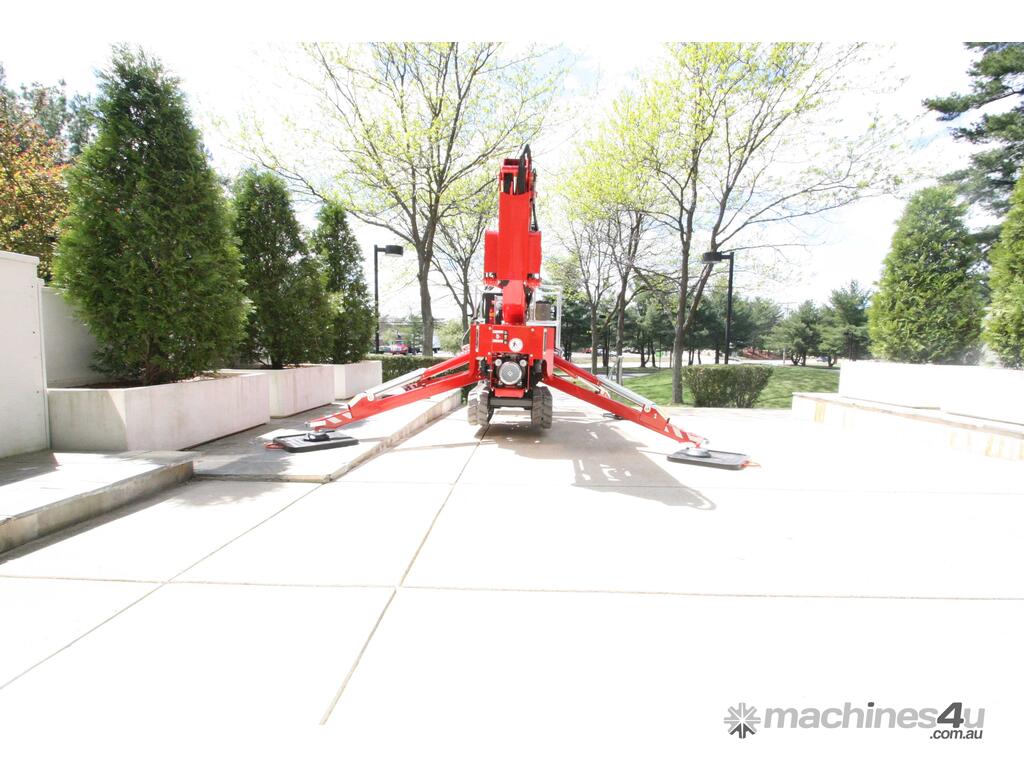

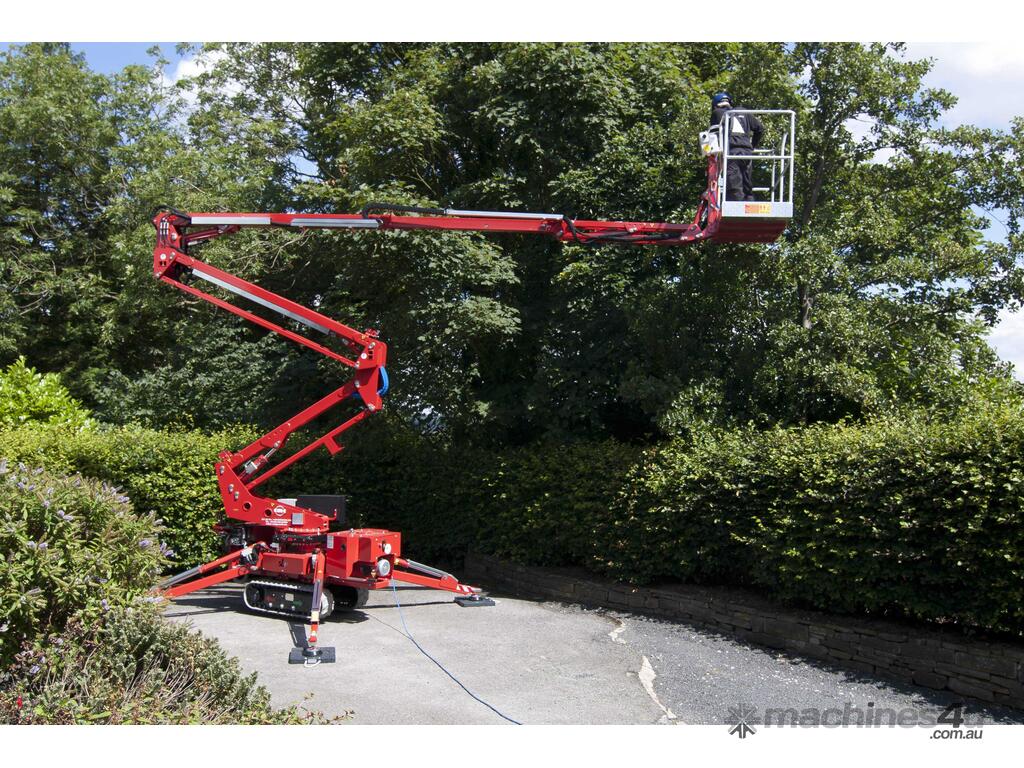

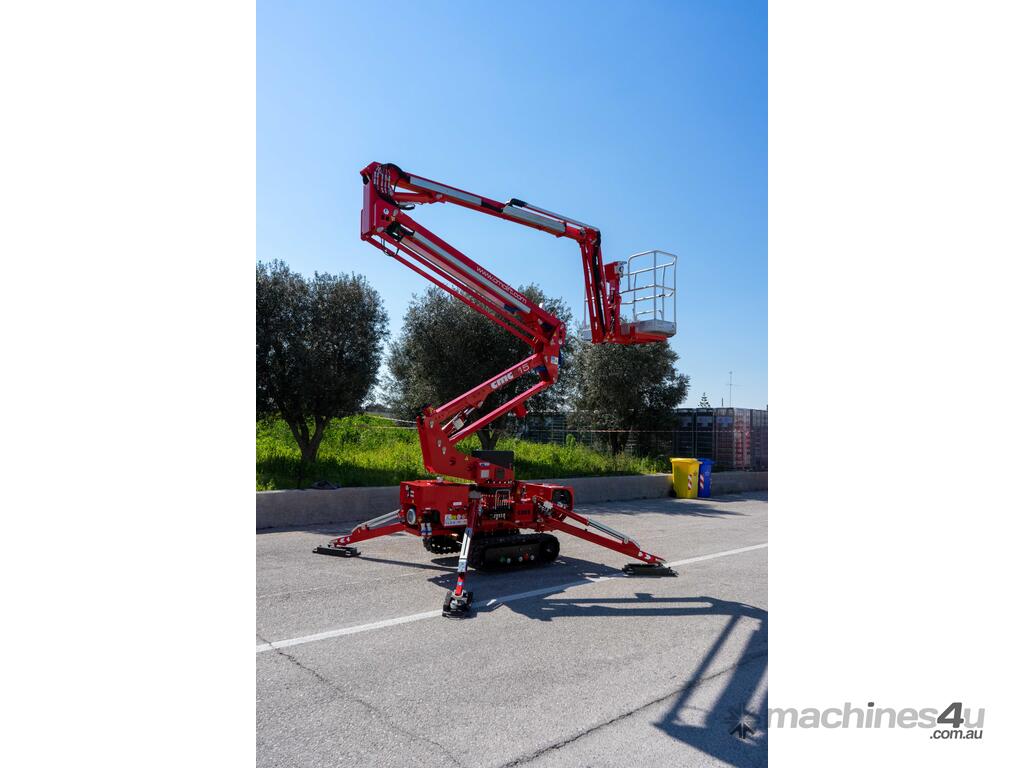

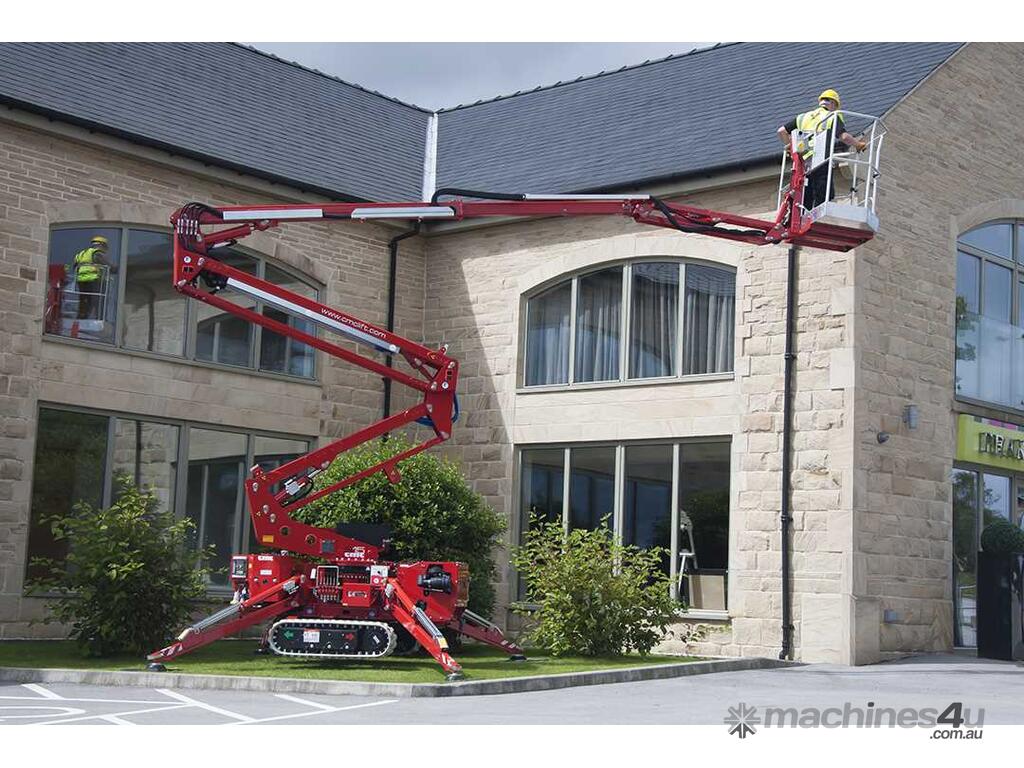

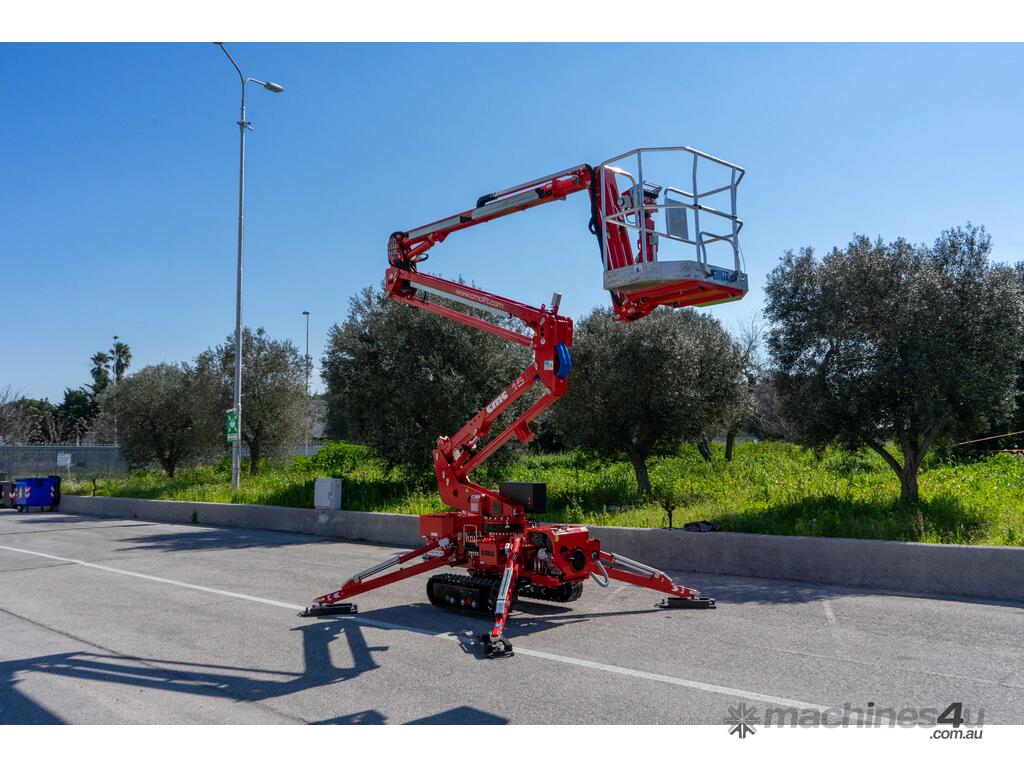

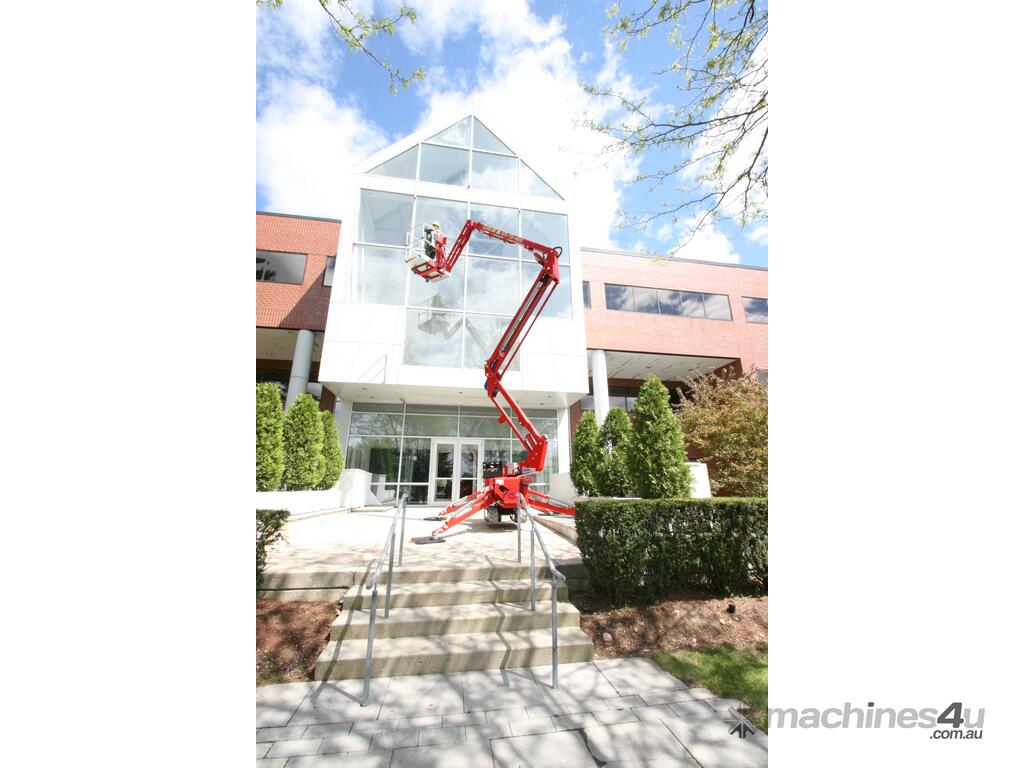

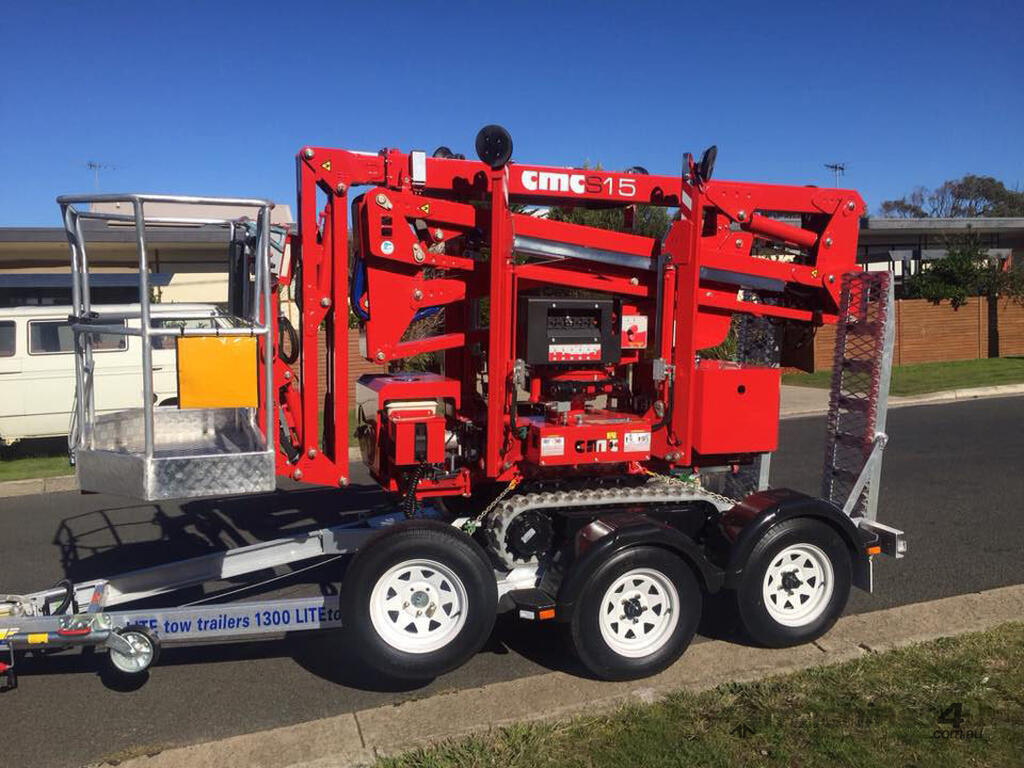

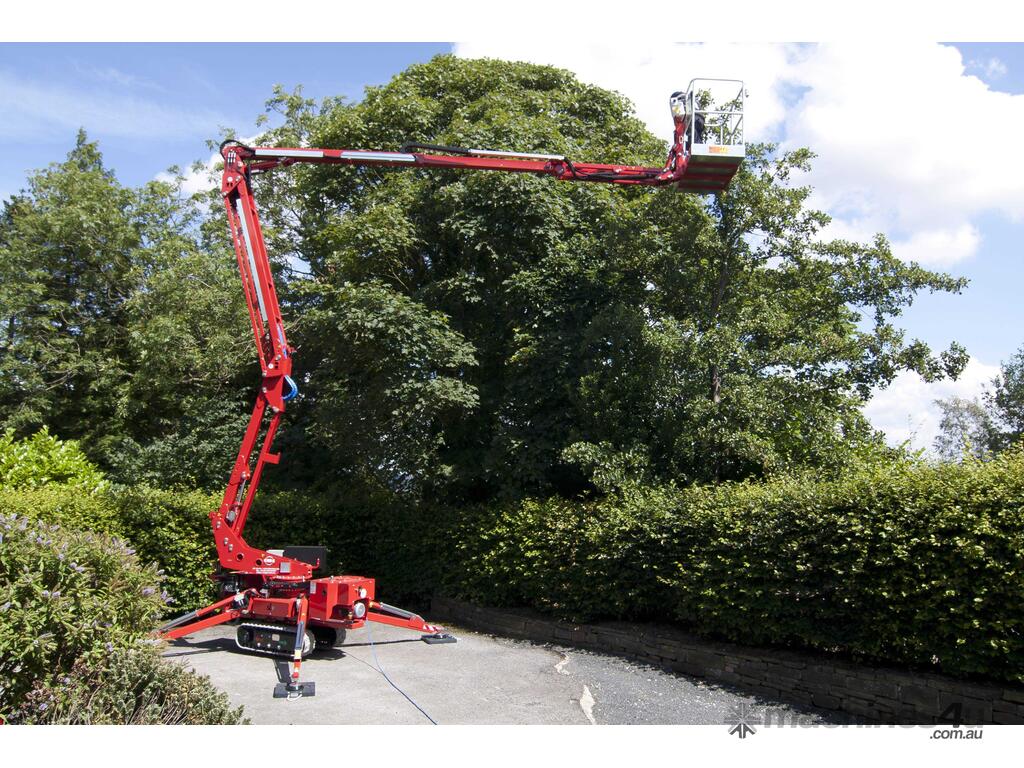

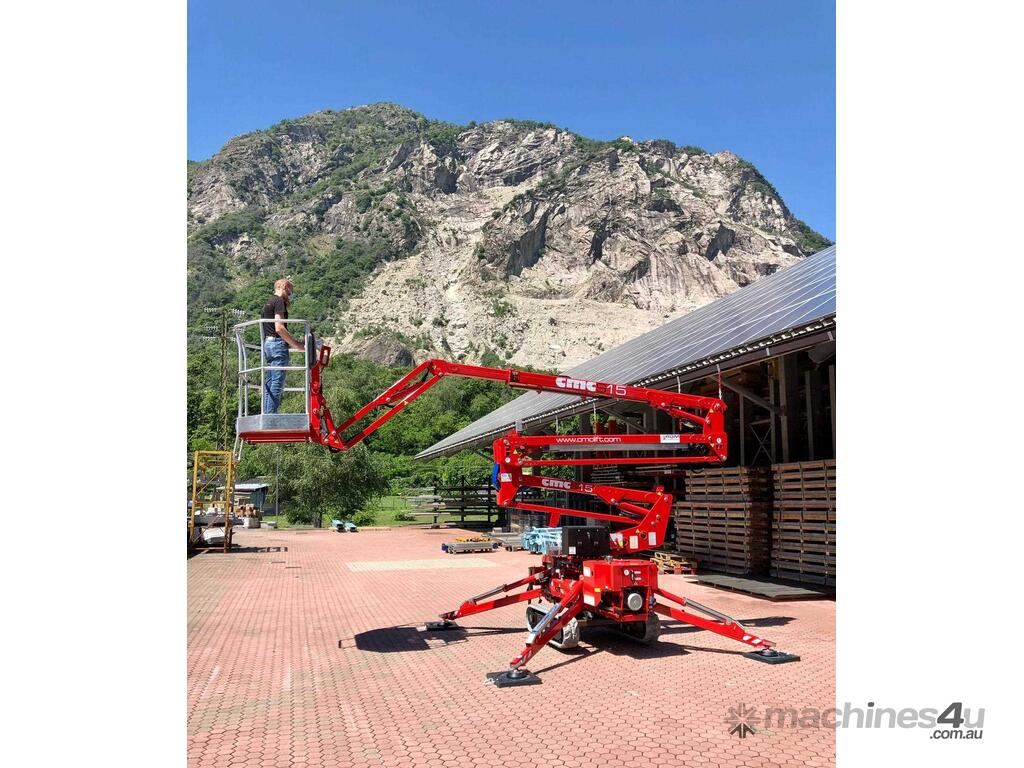

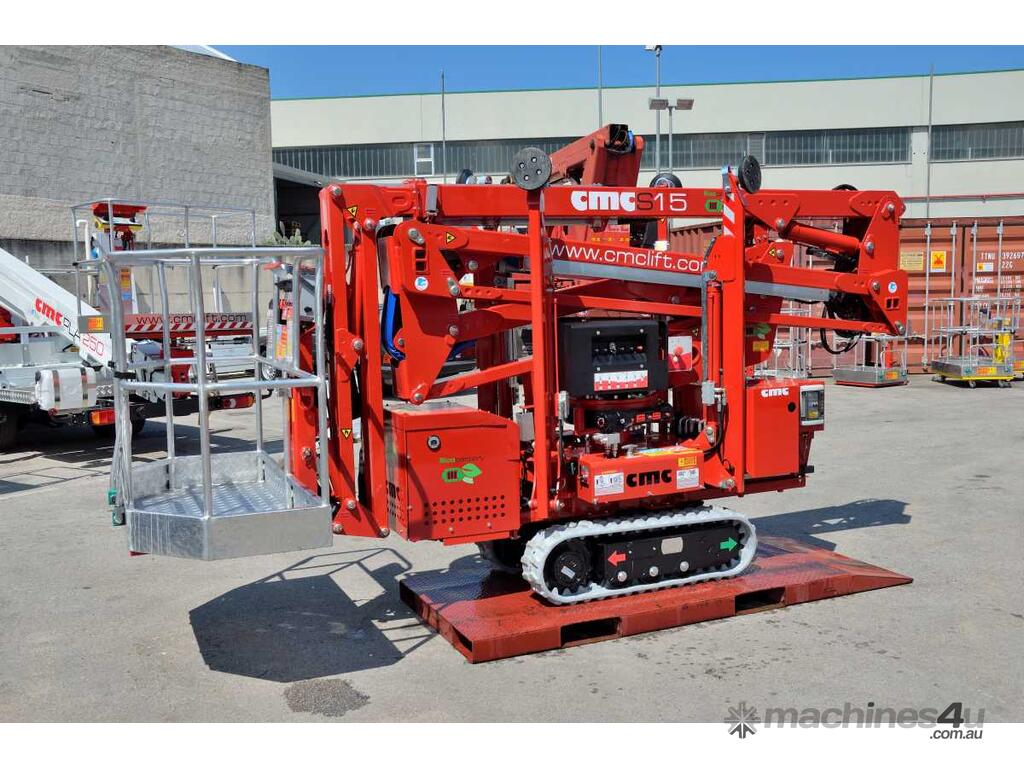

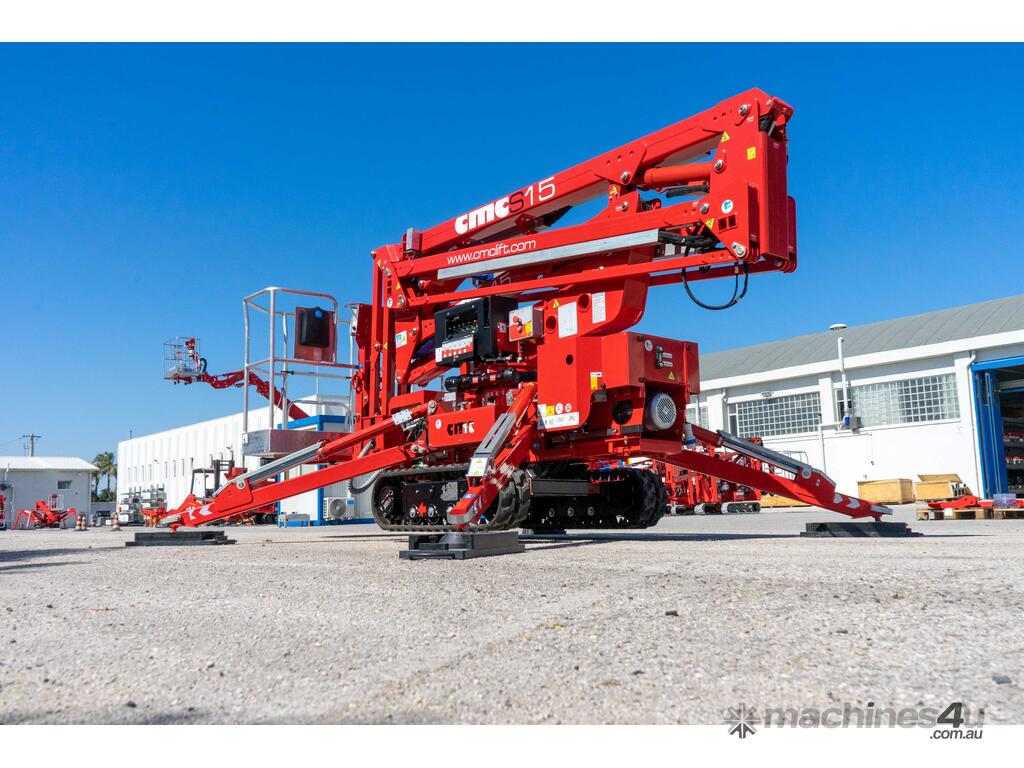

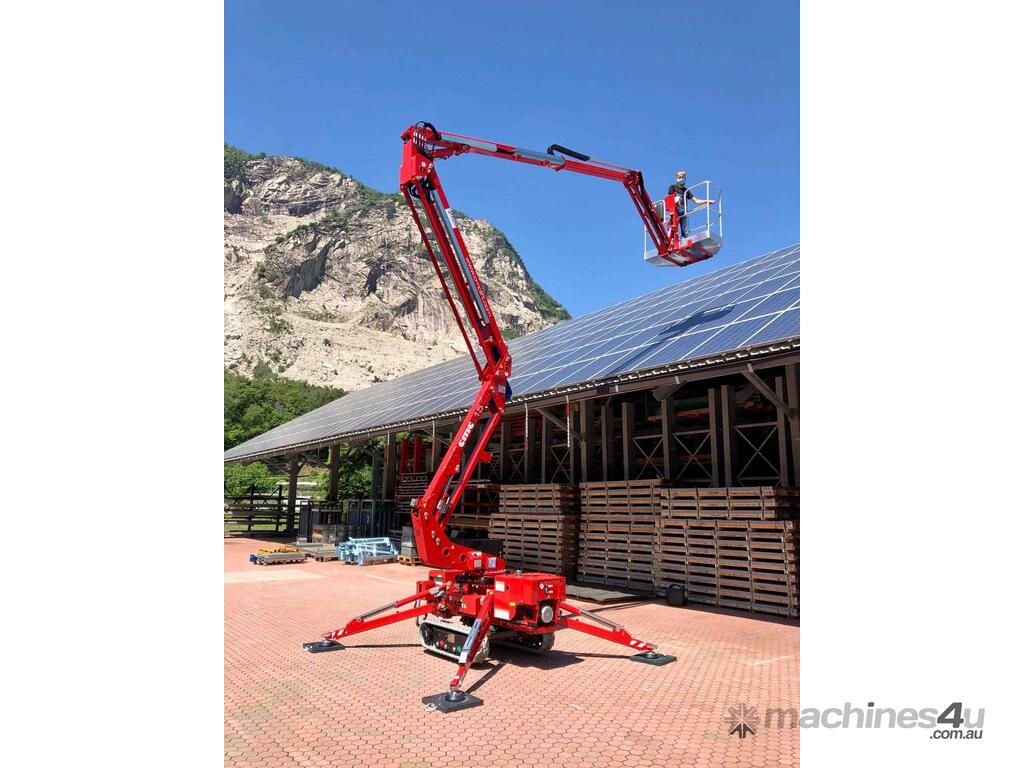

With compact dimensions of 78cm width, 1.97m height, 3.5m length and 1,960kgs weight, the S15 is the most compact and lightest tracked aerial platform in this size. While extremely small, compact and ultra light, the S15 lift is a mini giant when it comes to load, reach and stability, outperforming competitive lifts with an impressive 14.9 metre working height and 6.9 metre outreach, in a very compact stabilisation area of only 2.7m x 2.7m. Built with a double pantograph lower boom, articulated upper boom with one telescopic boom extension, plus an articulating jib. Proportional electro hydraulic controls in the basket allow for a smooth, comfortable and safe ride for the operator. For ground travel, proportional controls on a cabled remote control allow for easy travel and safer loading and unloading operation. Equipped standard with a quick connect, triple safety basket lock, the uniquely shaped “corner less” basket means better work versatility in difficult work locations. Quiet Honda engine/240v electric hydraulic power pack is standard. Also available with hybrid power source.

GENERAL SPECIFICATIONS:

• Max working height 14.9m
• Max working outreach 6.9m
• Max basket capacity 200kg
• Jib movement 90°
• Turret rotation 356°
• Max slope to stabilise 7° / 12%
• Tracks extension/retraction 0.30m
• Max angle approach 13° / 23%
• Max travel slope 17° / 30%
• Max travel speed 1.5km/h
• Total weight (Honda engine) 1,960kg
• Total weight (Kubota engine) 2,060kg
• Engine 11.7hp Honda GX390 Petrol
• Electric motor 240v 15amp 2.2kw

Click the ``View Brochure`` button to view detailed specifications. CMC Lifts were introduced into the Australian market by Global Machinery Sales, contact us about the S15 today!
