CMC S19E - 18.7m Spider Lift

CMC S19E Spider Lift - 19 Metre Narrow Access Spider Lift Built for the Tree Professional.

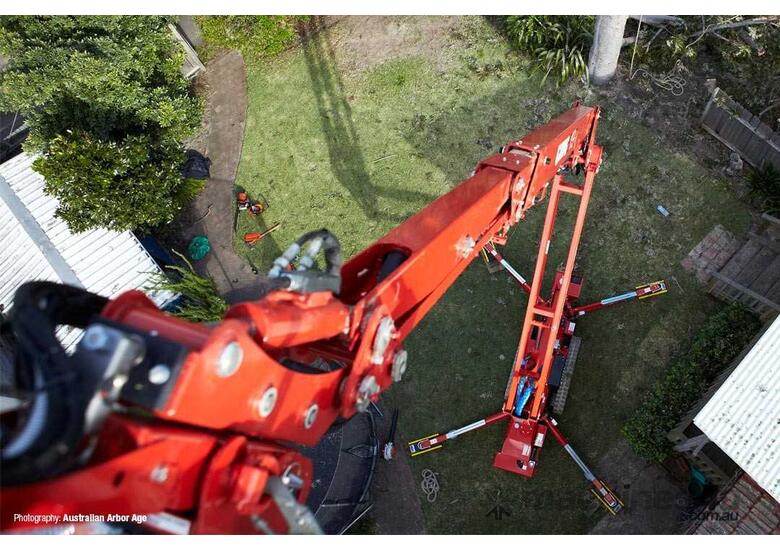

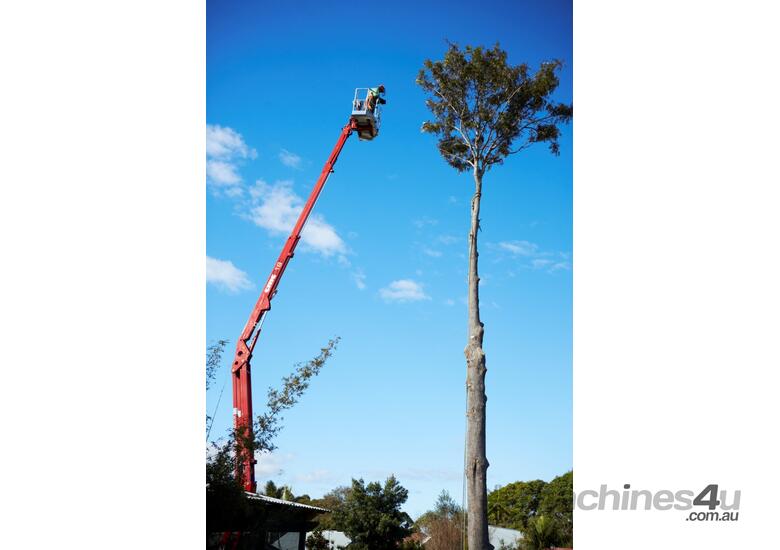

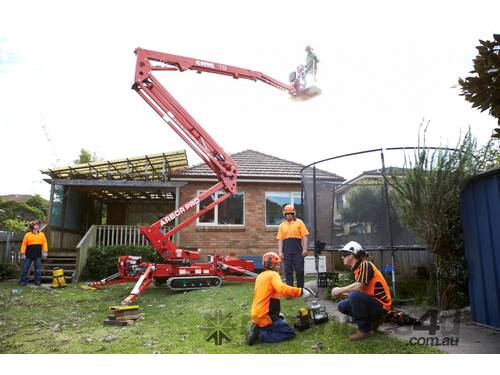

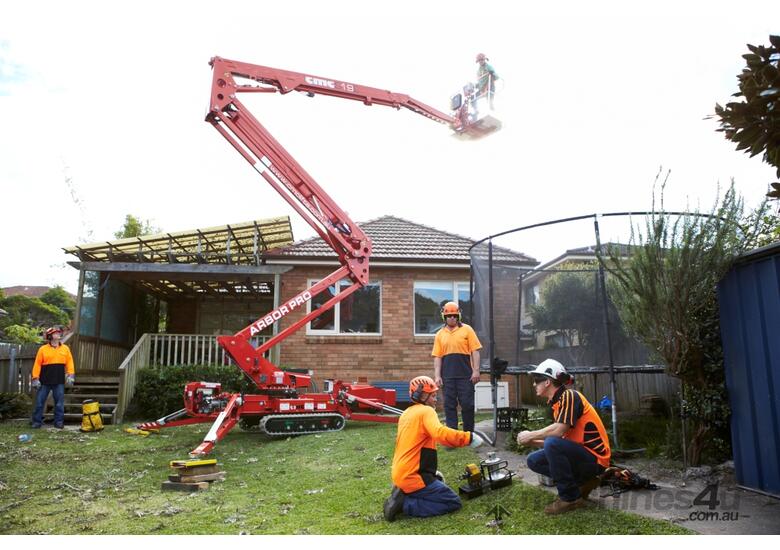

The CMC S19E Arbor Pro Spider Lift – “E” for EASY – is easy to operate, easy to maintain and is perfect for hire! Only one work area with 200 kg unrestricted! The CMC S19E Arbor Pro (now available with safer, non-slip outrigger pads and a new arborist saw holder) is a narrow tracked boom lift built for one of the toughest industries on this planet – the tree industry. It is ultra-compact and user friendly, with intuitive controls and no fuss. The S19E Arbor Pro can pass through a single gateway and can operate in the tightest of space. The S19E Arbor Pro has an impressive height and outreach with a maximum basket capacity of 200kg.

Versatile:
Articulated boom with telescopic and jib, plus innovative basket design offers unrivalled performance.

Simple to Use:
User-friendly, with intuitive 4-step operation from start to working at height.

Compact:
The most compact dimensions of any Spider Lift in this height range, including a very small stabiliser footprint.

Powerful:
11.7hp Honda GX390 Petrol engine with 240v 15amp 2.2kw AC motor.

Towable:
Low weight and very compact, so suitable to tow on a trailer behind mid-size vans and 4x4s.

GENERAL SPECIFICATIONS:

Performance:
• Max working height: 18.7m
• Max working outreach (with 80kg or 200kg): 9.2m
• Max outreach, edge of the basket (with 80kg or 200kg): 8.3m
• Max basket capacity: 200kg
• Jib movement: 90°
• Turret rotation: 356°
• Max slope to stabilise: 5° / 9%
• Tracks extension/retraction: 0.30m
• Max angle approach: 13° / 23%
• Max travel slope: 14° / 25%
• Max travel speed: 1.06km/h

Dimensions:
• Basket height: 1.10m
• Basket width: 0.70m
• Basket length: 1.40m
• Total length: 5.22m
• Total length without basket: 4.58m
• Height in driving position: 1.97m
• Total width (without basket): 0.78m
• Free height from the ground: 0.22m
• Tracks (LxW): 1.44 x 0.18m
• Maximum longitudinal stabilisation: 3.90m
• Maximum cross stabilisation: 3.25m
• Stabilisers plate: 0.18m

Weights:
• Total weight (Honda engine): 2,690kg
• Total weight (Kubota engine): 2,690kg
• Max pressure on the foot: 6.3kg/cm²
• Max pressure on the track: 0.87kg/cm²
• Max pressure in travel: 313kg/m²
• Max pressure in work: 205kg/m²

Power:
• Engine: 11.7hp Honda GX390 Petrol
• Electric motor: 240v 15amp 2.2kw

Click the ``View Brochure`` button to view detailed specifications. CMC Lifts were introduced into the Australian market by Global Machinery Sales, contact us about the S19E Arbor Pro today!
