CMC S23 - 23m Spider Lift
Small in size, but a beast when it come to performance.

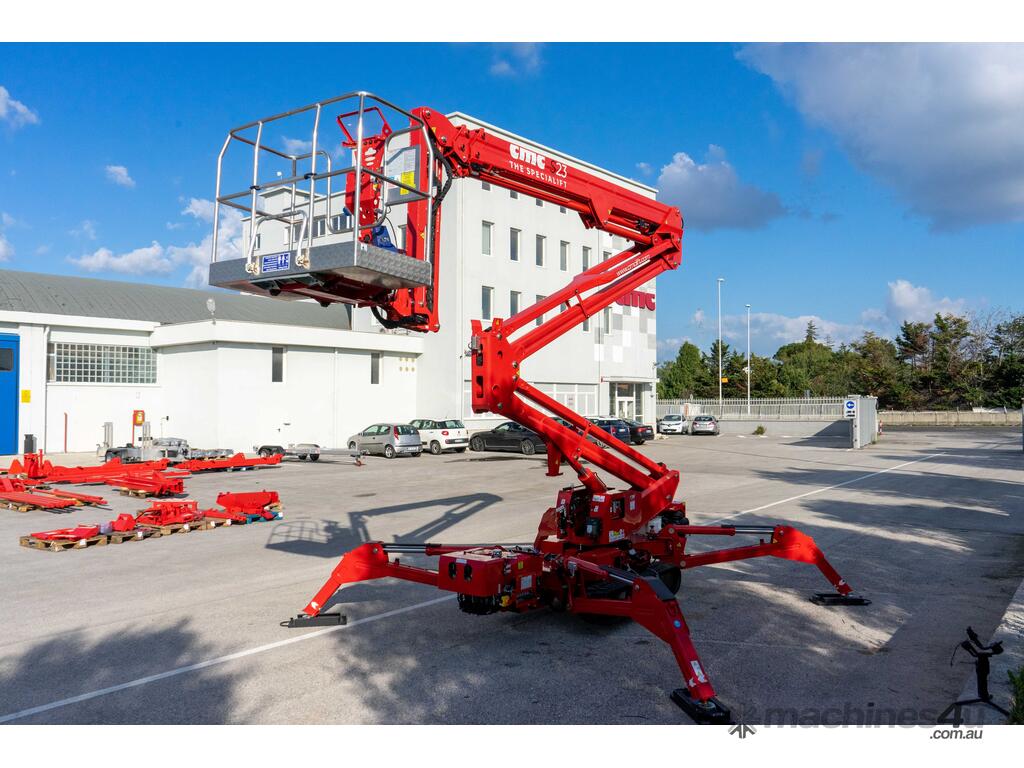

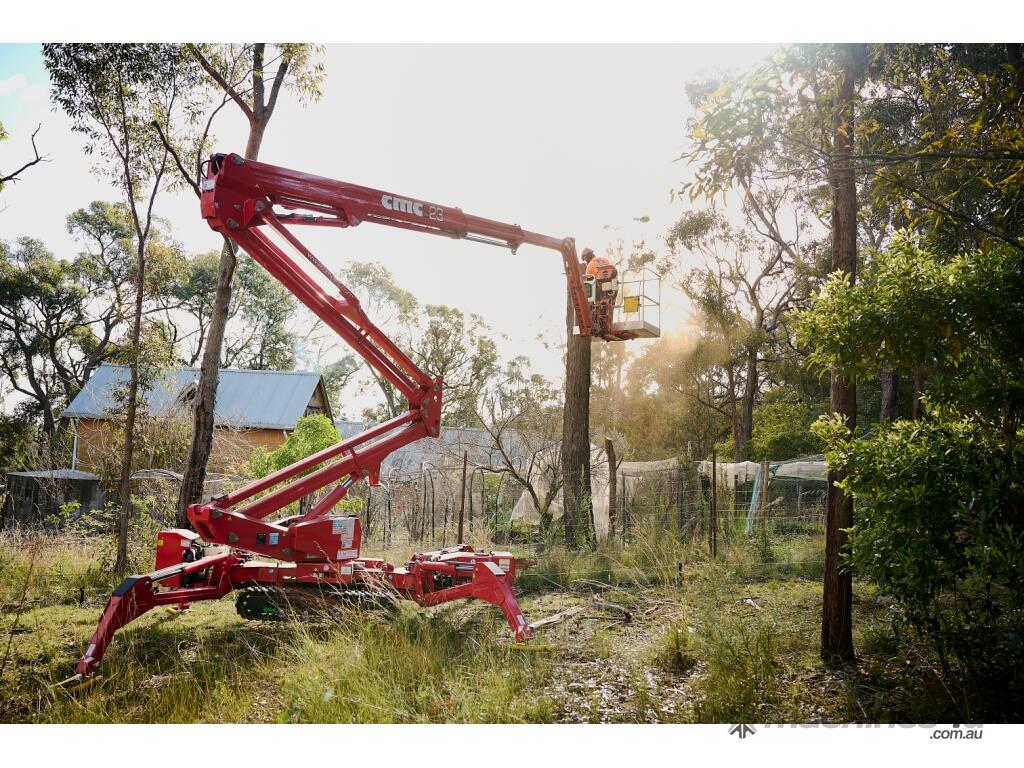

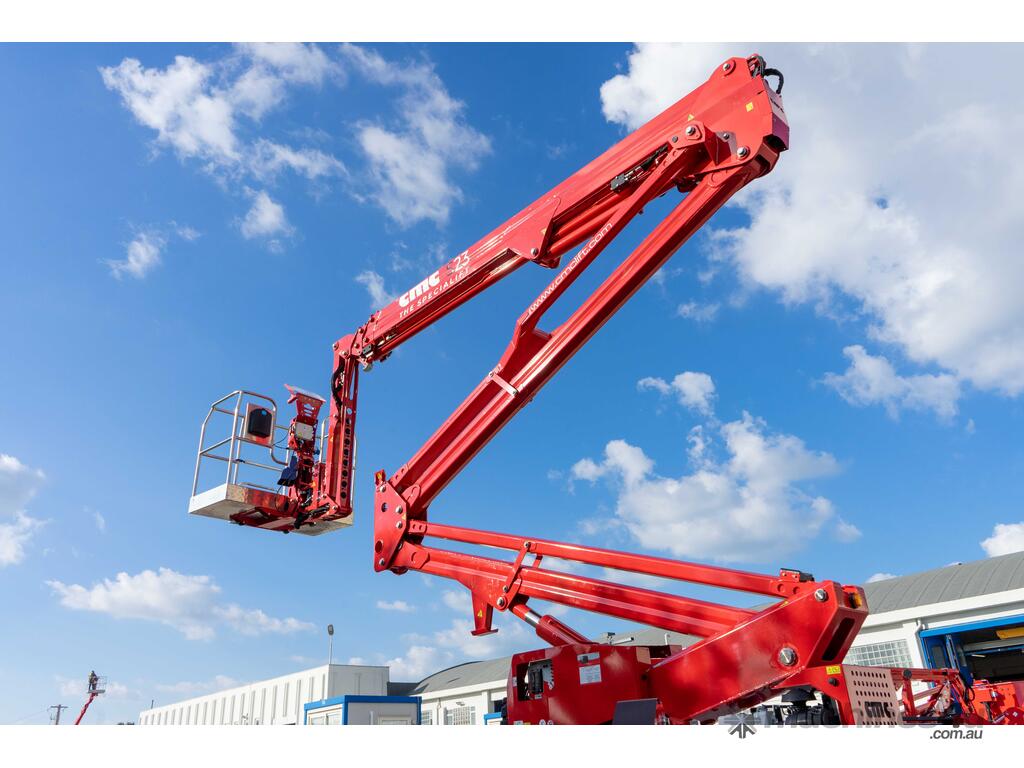

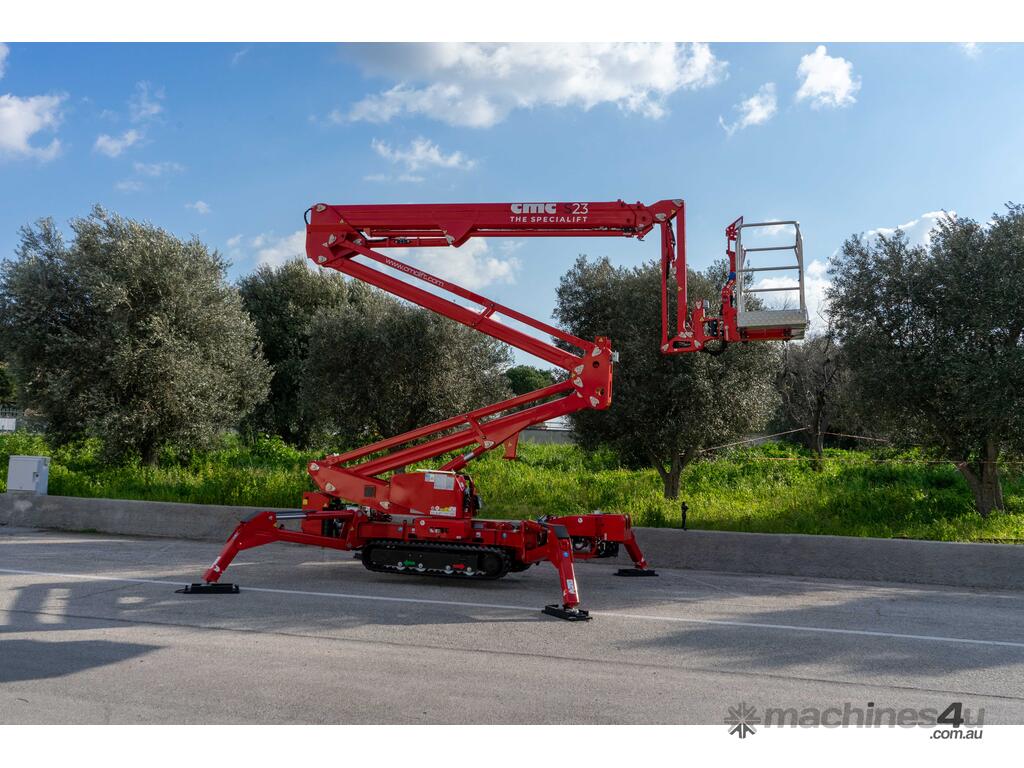

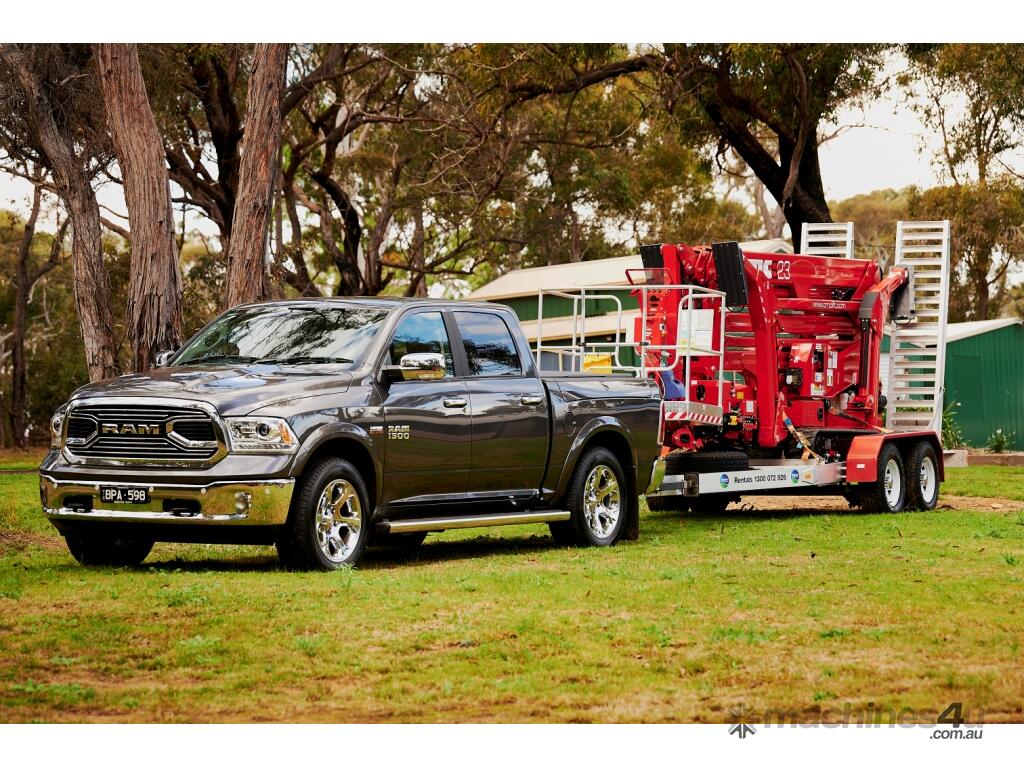

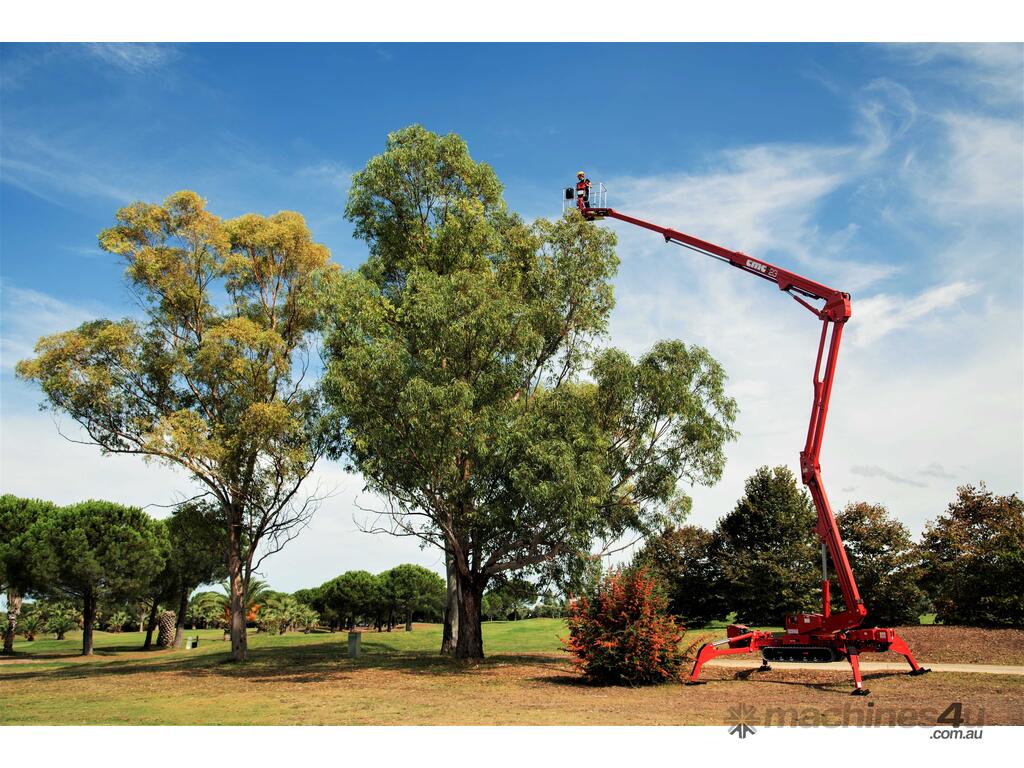

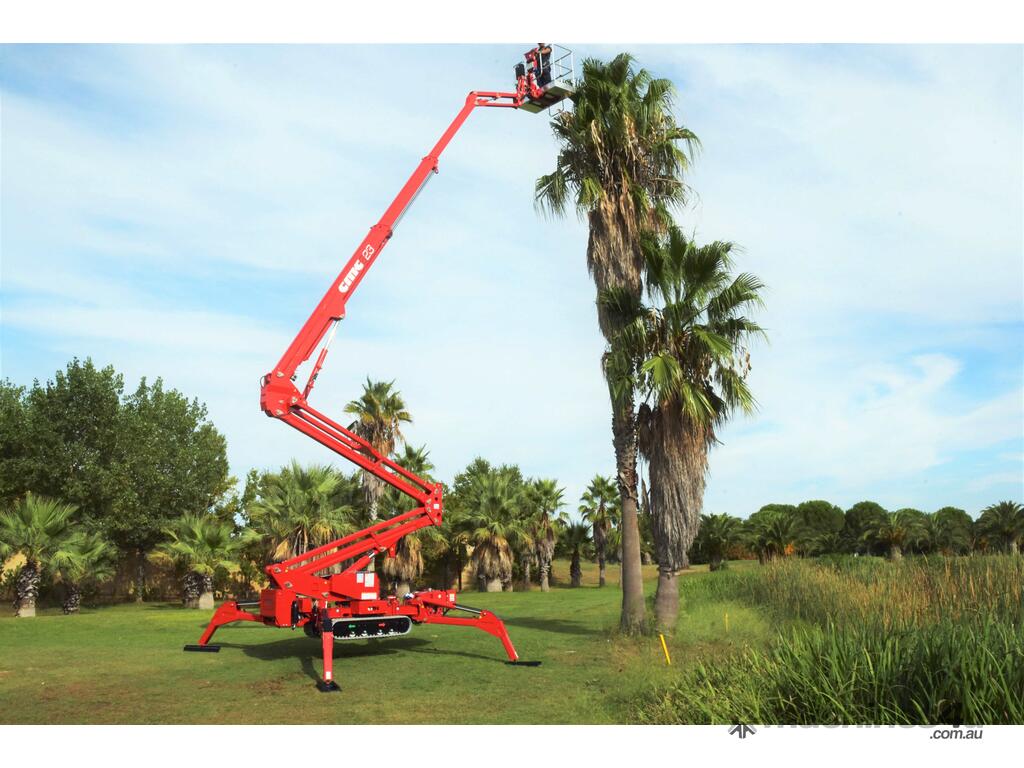

With a double pantograph boom configuration, articulated arms, fly-jib and platform rotation, this machine provides you with all the features to help make pruning and lopping trees a breeze. Characterized by absolutely unparalleled performance with an outstanding up & over reach and yet this machine can still be towed on a 4.5T GVM Plant Trailer.
Not only is the boom configuration a magnificent win with this machine, but it also has an auto home button, meaning all you have to do is hold a button and the machine will fully stow the boom to the correct position and centre the boom to the boom stowing locations without you have to calculate this by eye.
Thanks to the years of industry knowledge Monitor has and the quality of the CMC Spider Lift range, the support you have
behind you will allow you to buy the S23 Spider Lift with confidence.
Specifications:

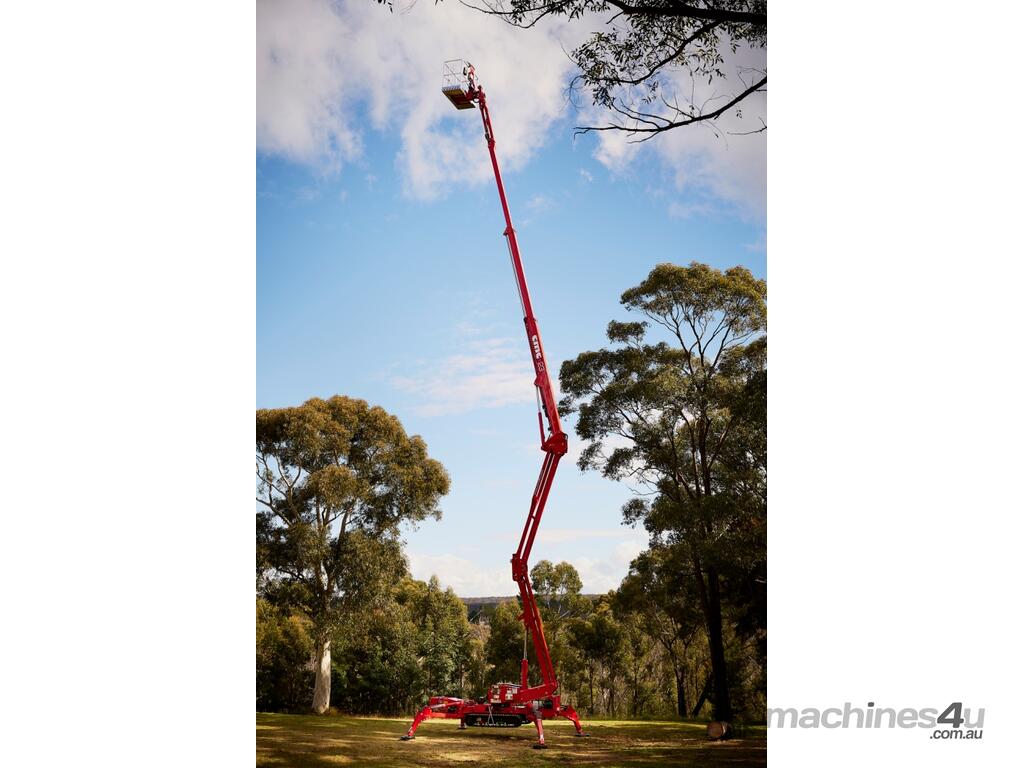

Max. working height 23 m

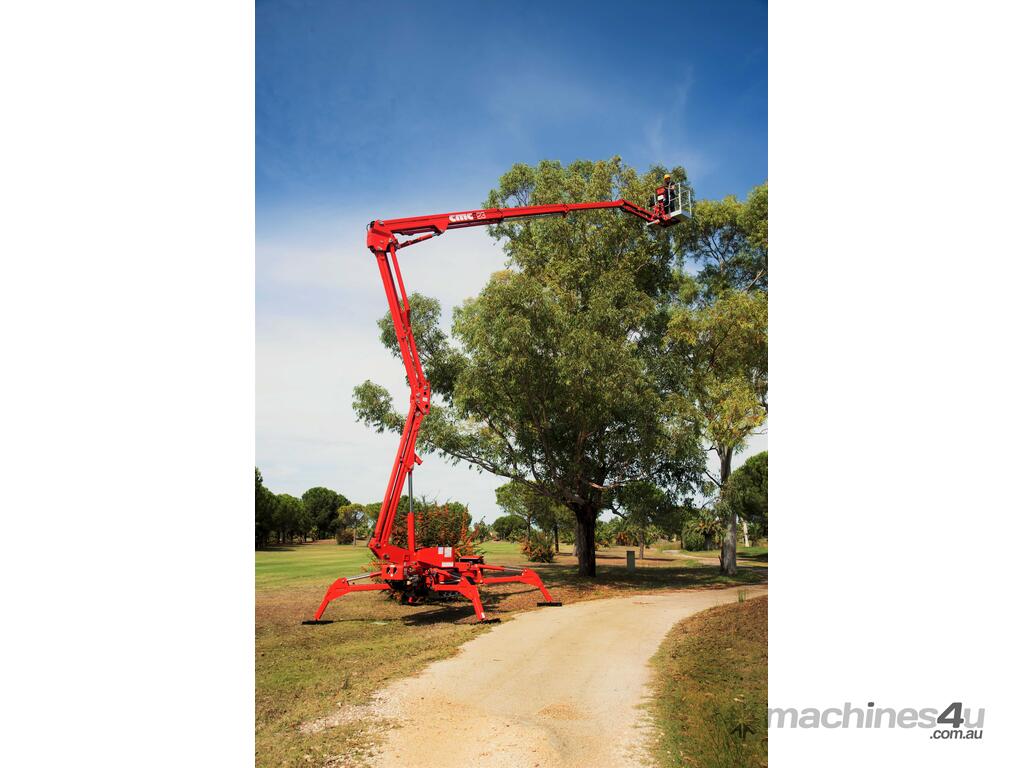

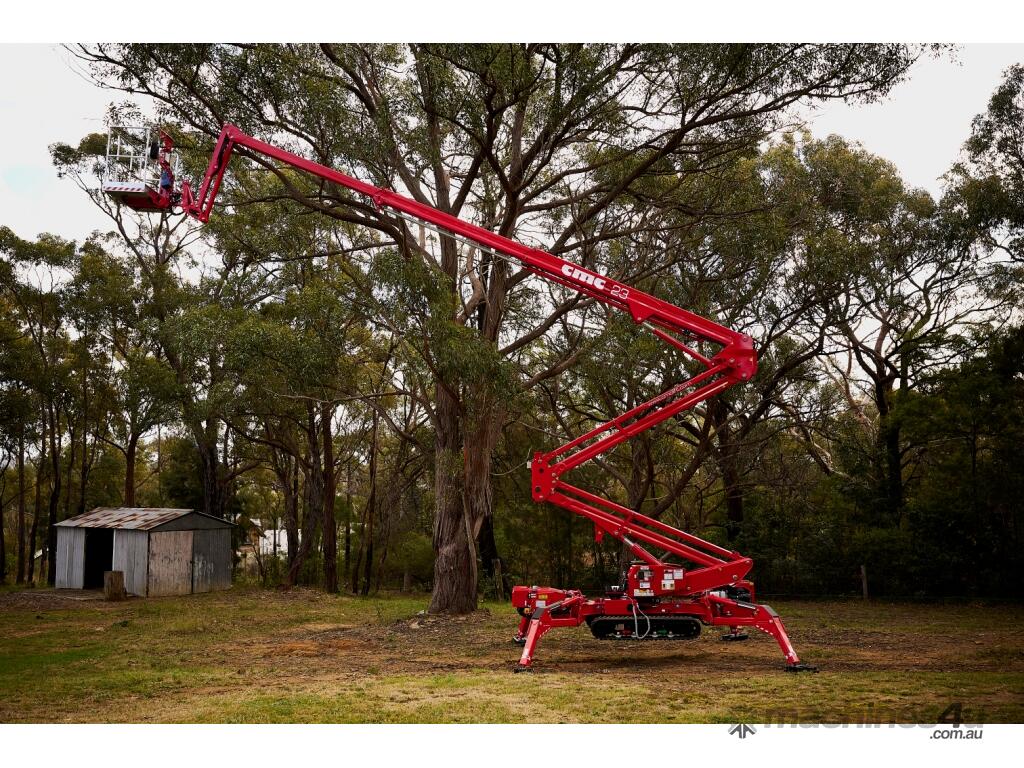

Max. outreach 12.4 m

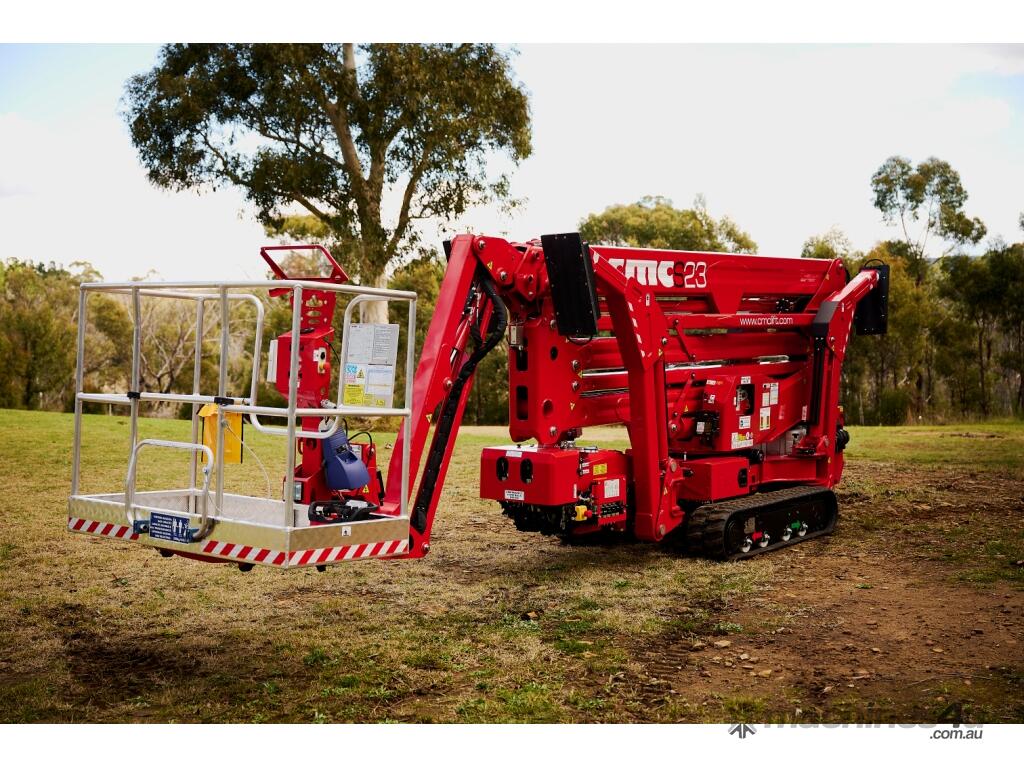

Basket size 1.4 x 0.7 x 1.1 m
Basket max. load 200 Kg
Turret rotation +/- 355° (710° continuous)
Basket rotation + 90°/-87° (optional)
Weight 3055 Kg
