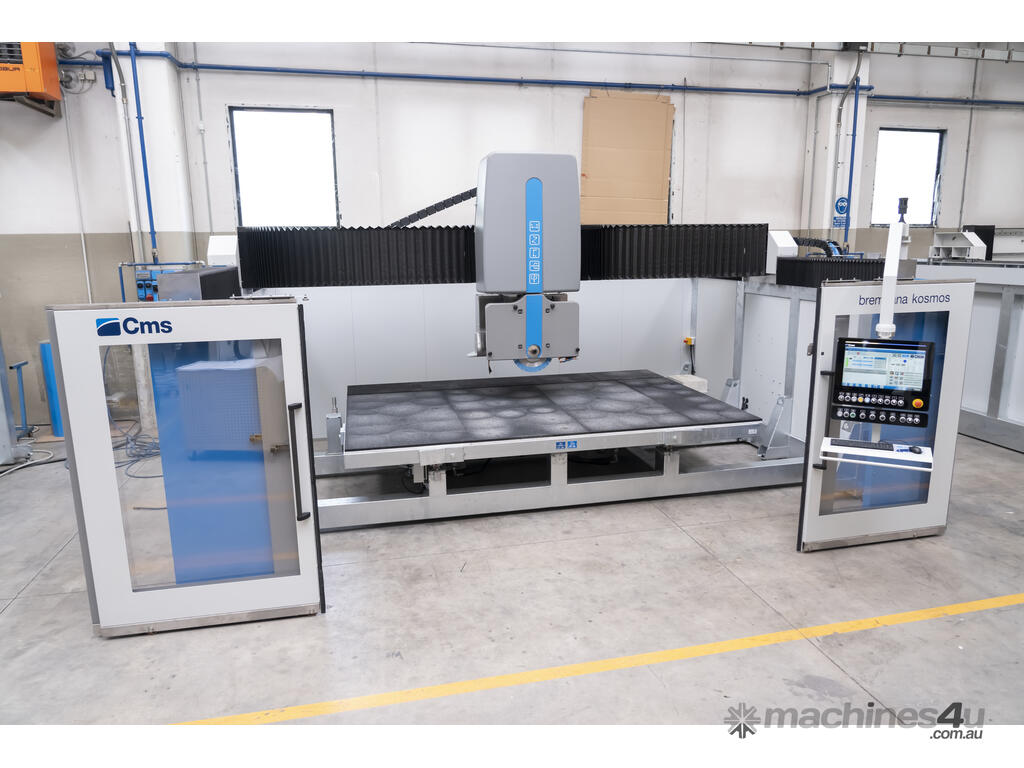

CMS BREMBANA KOSMOS 5-axis monoblock CNC Bridgesaw with Vacuum Manipulator

Innovync is a company with decades of experience with CNC machinery. With offices in NSW and QLD, local spare parts and a team of local technicians, we strive to be the example for excellent customer service.

**QUALITY MADE IN ITALY**

The Cms Brembana KOSMOS been designed for affordability while maintaining a high level of automation. By keeping this level of automation in an affordable entry level range, human input is removed and maximum ROI can be achieved.

UNIQUE FEATURES:

***Remove The Responsibility From the Operator***

• Automatic system for checking the blade diameter assisting in 45 degree cutting and other
applications
• Automatic dressing station for the blade ensuring a sharp and uniform blade

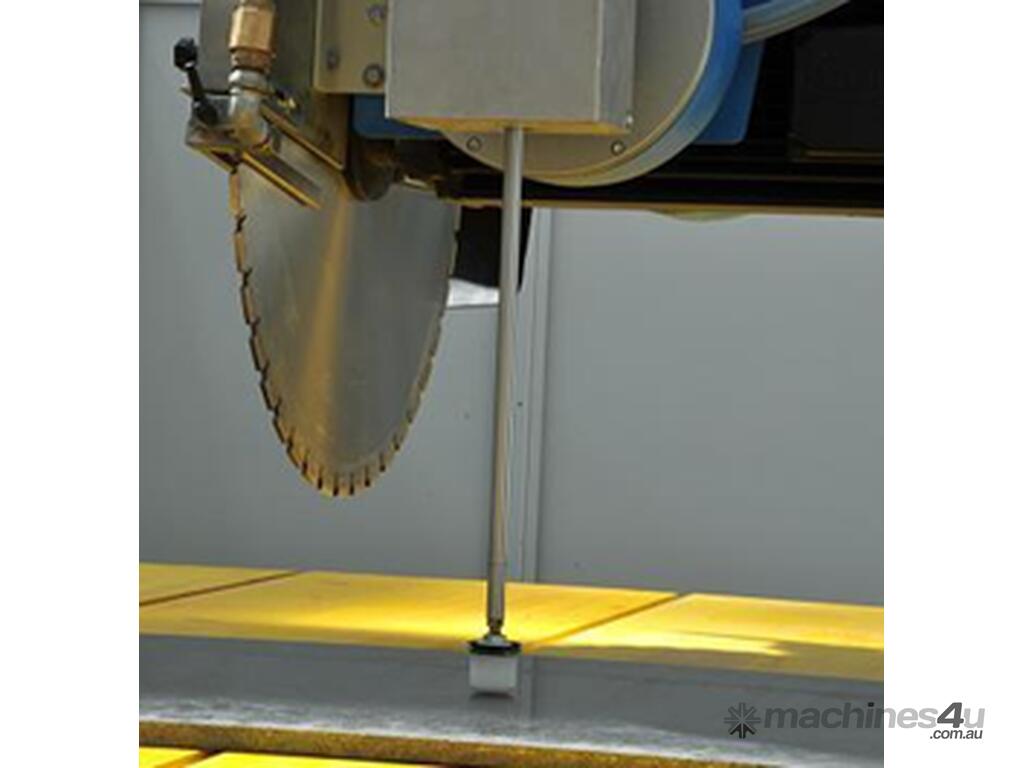

• Automatic mechanical probe for checking the thickness of the slab assisting in 45 degree
cutting
• Laser spot for manual operations

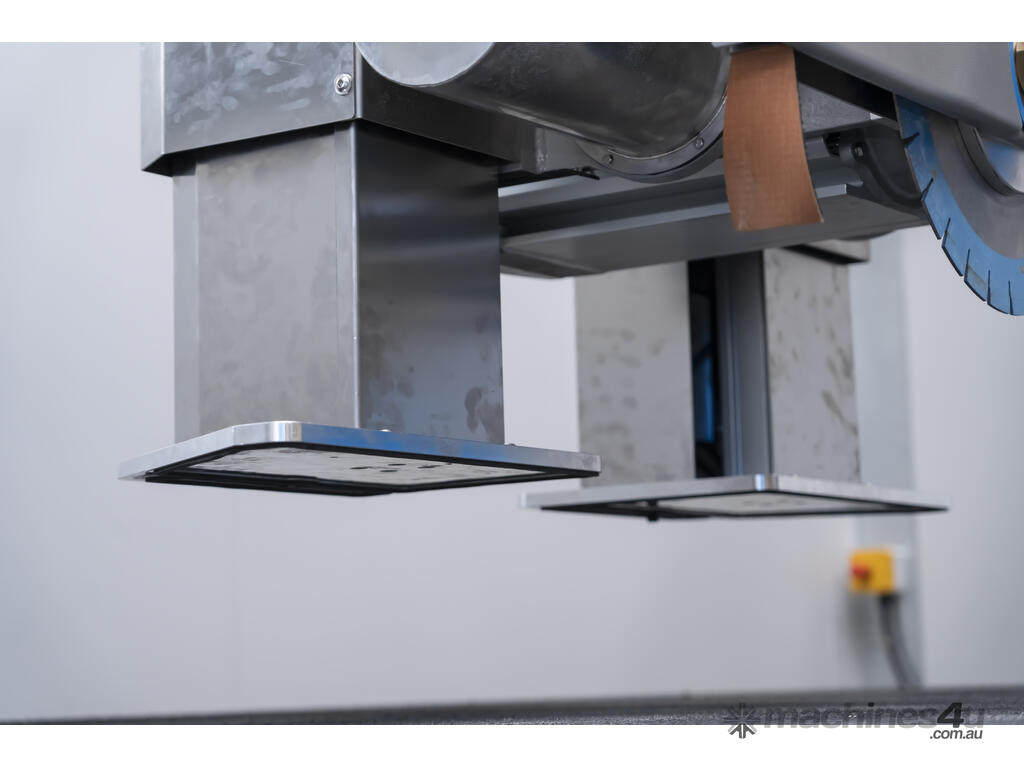

• Automatic Vacuum Manipulator 500. Capable of lifting 500Kg with a cleaning system prior to
lifting the piece, this function makes the machine and completely automatic machine.

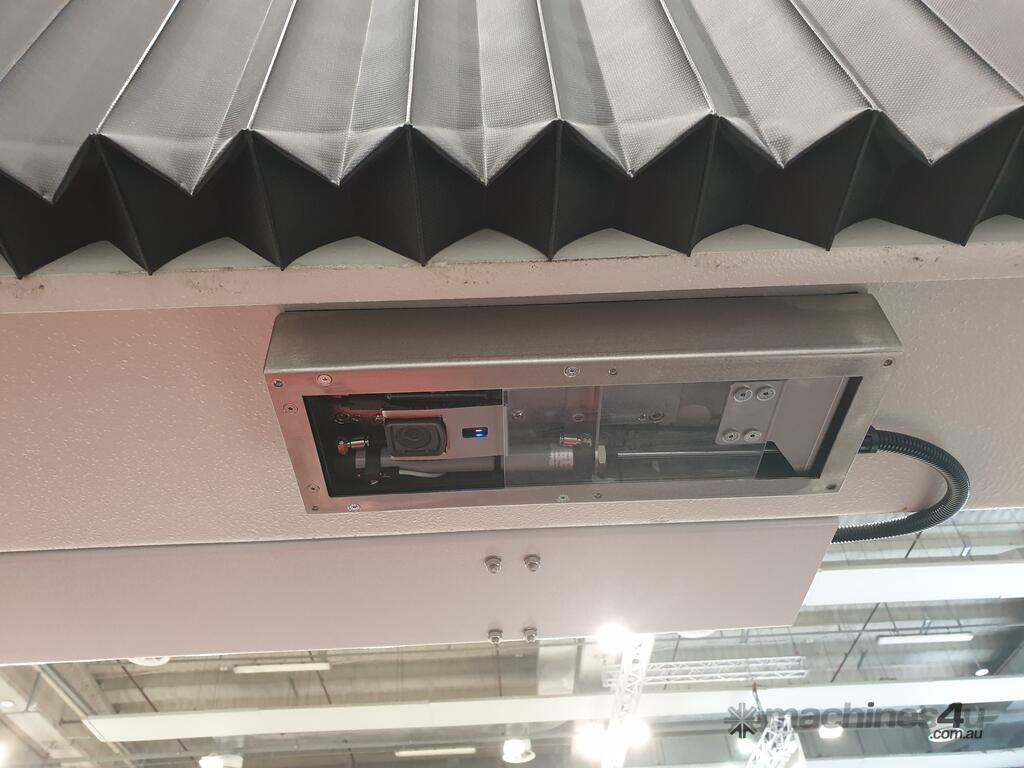

• Action Cam hidden inside the bridge allowing recognition of the slab position and nesting

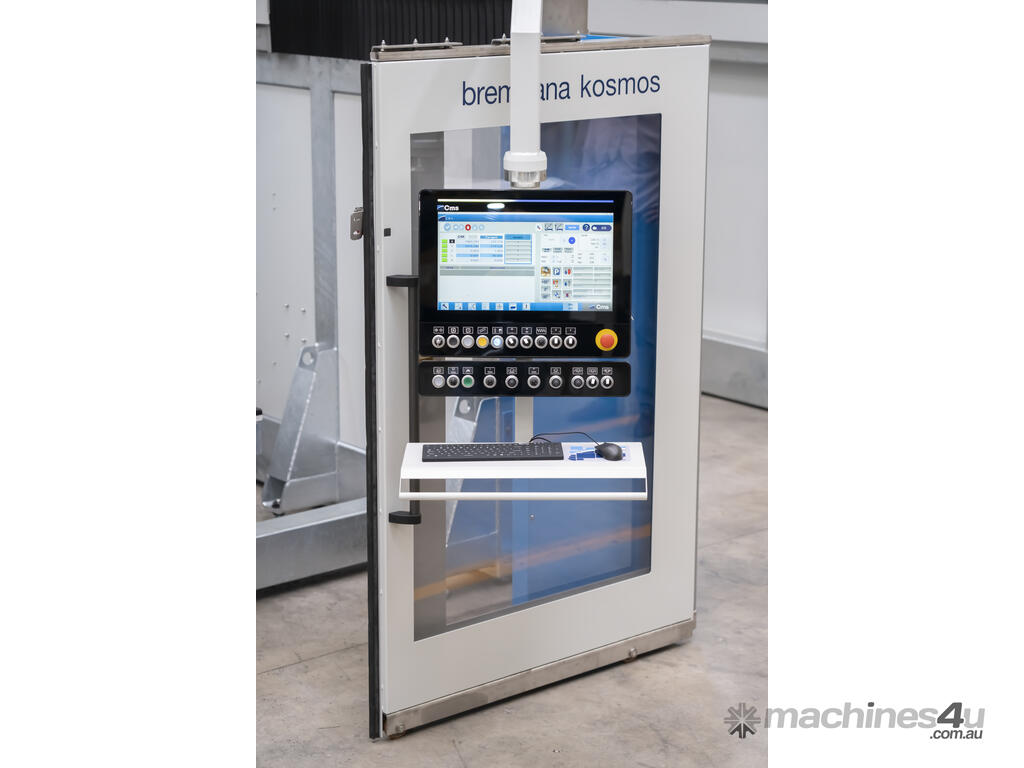

• Air conditioning of the control console and the electrical cabinet

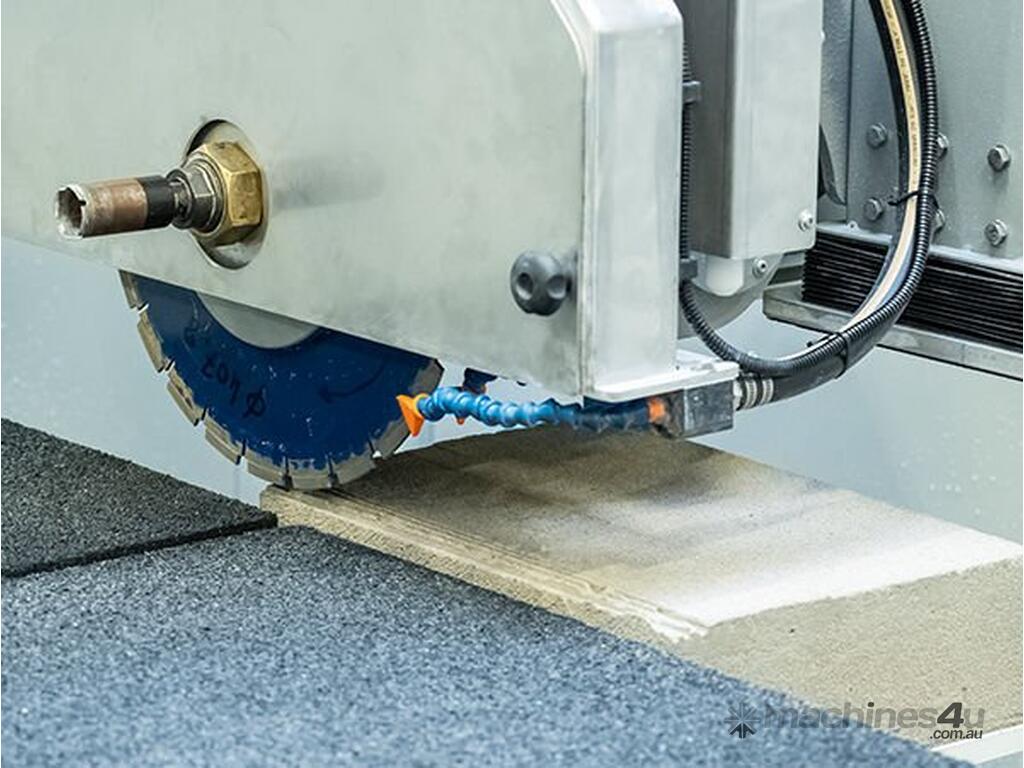

• Rubber table surface assisting in accurate 45 degree mitre cutting
• Automatic lubrication system servicing all the moving parts.

***Reliable Structure*****

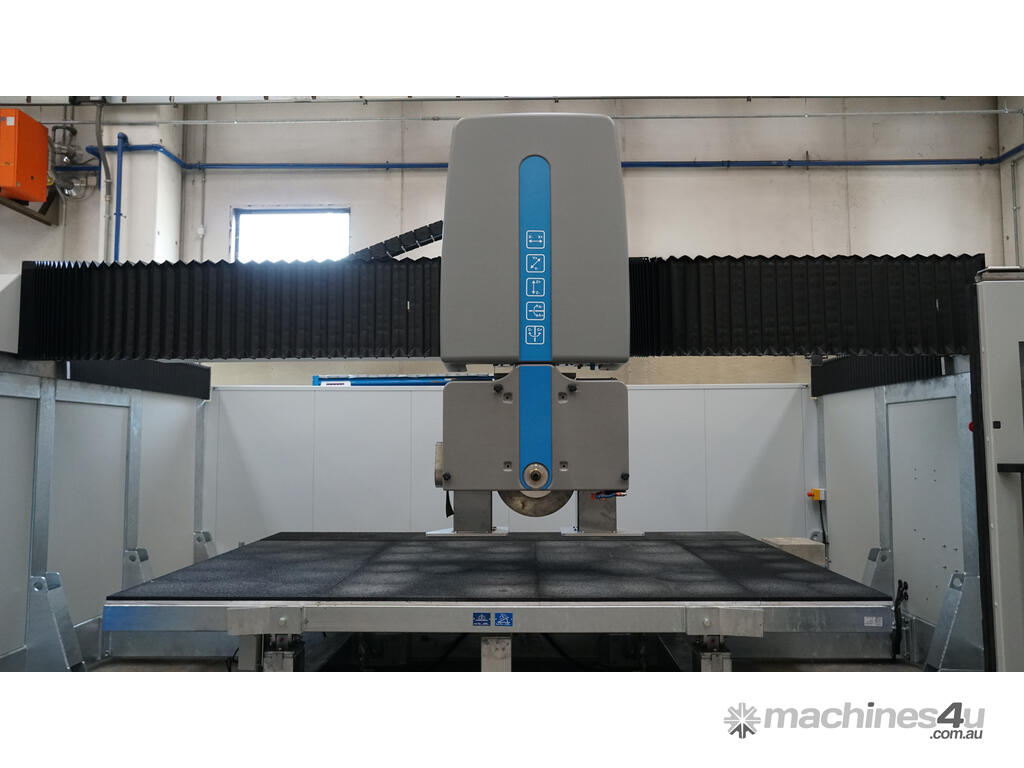

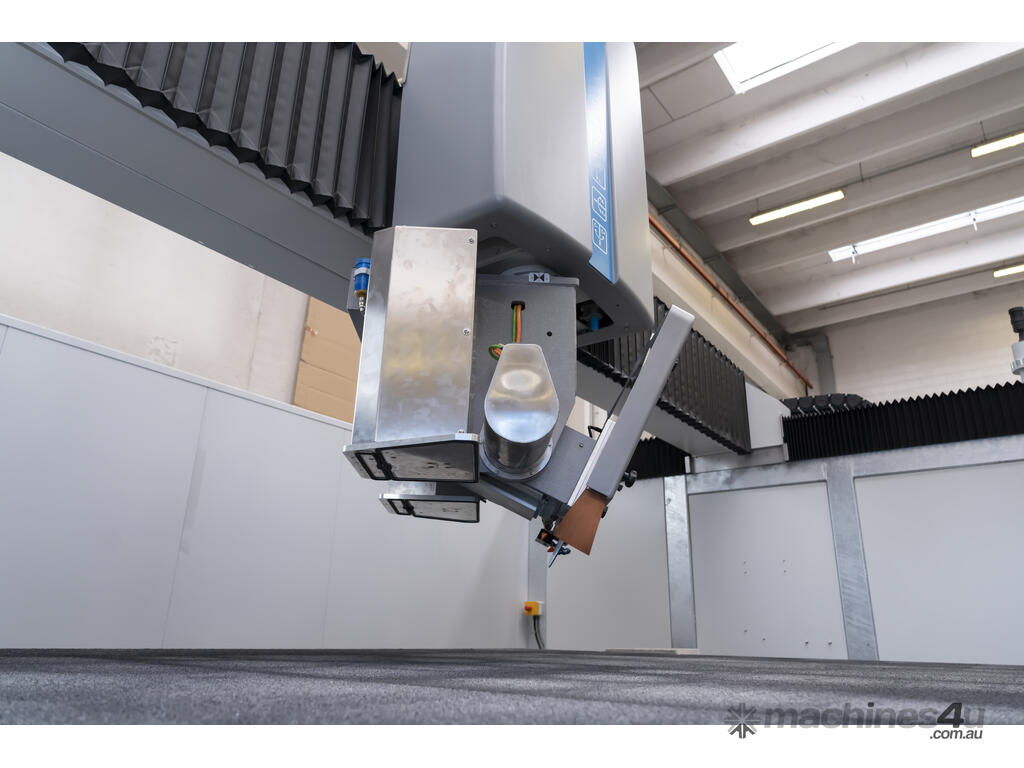

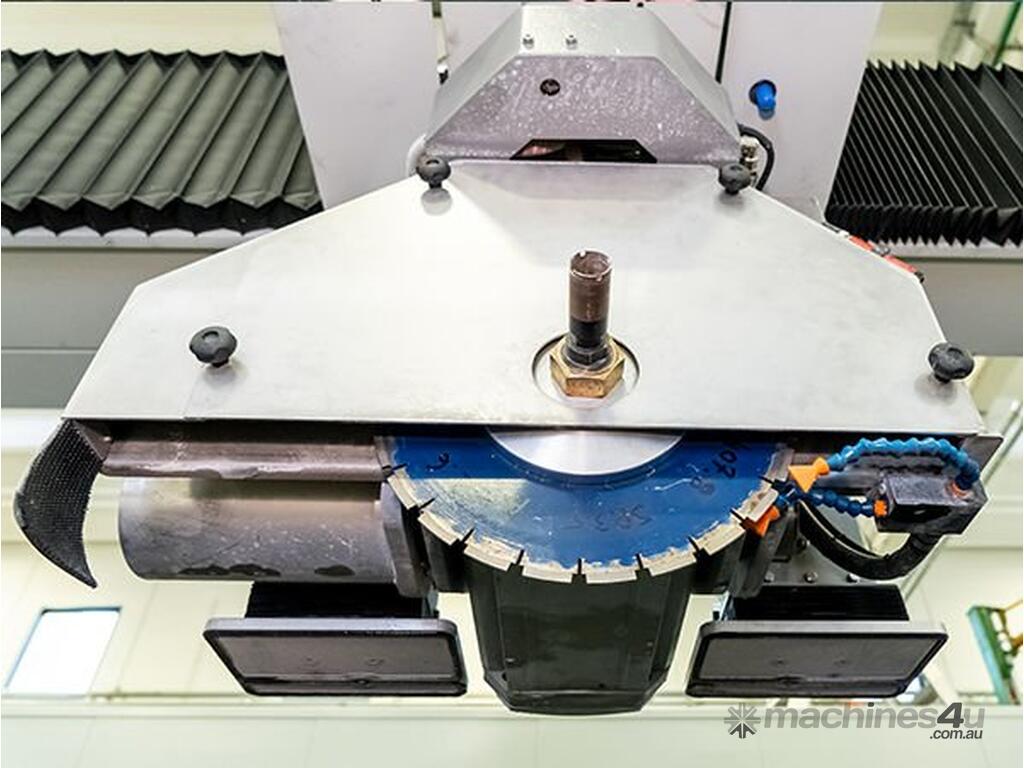

• 5- Axis cutting head capable of automatic X, Y, rotative and 45 degree cutting
• Mono-block construction allowing quick installation and decreasing vibration
• Blade motor with 18Kw/25 HP, internal cooling allows for better reliability with the use of milling and drilling tools

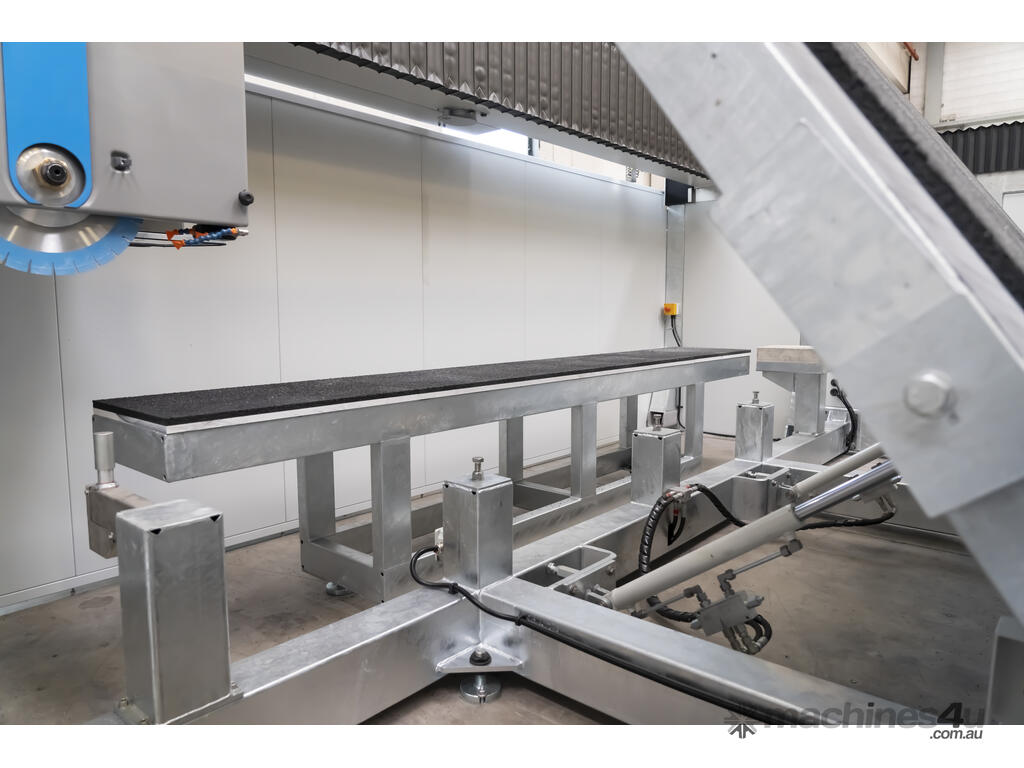

• Tilting table function for easy and efficient loading of the slab (1,200 kg capacity)
• Movement by Helical rack & pinion supported by heavy duty linear guides ensuring accuracy

***Make It Easy***

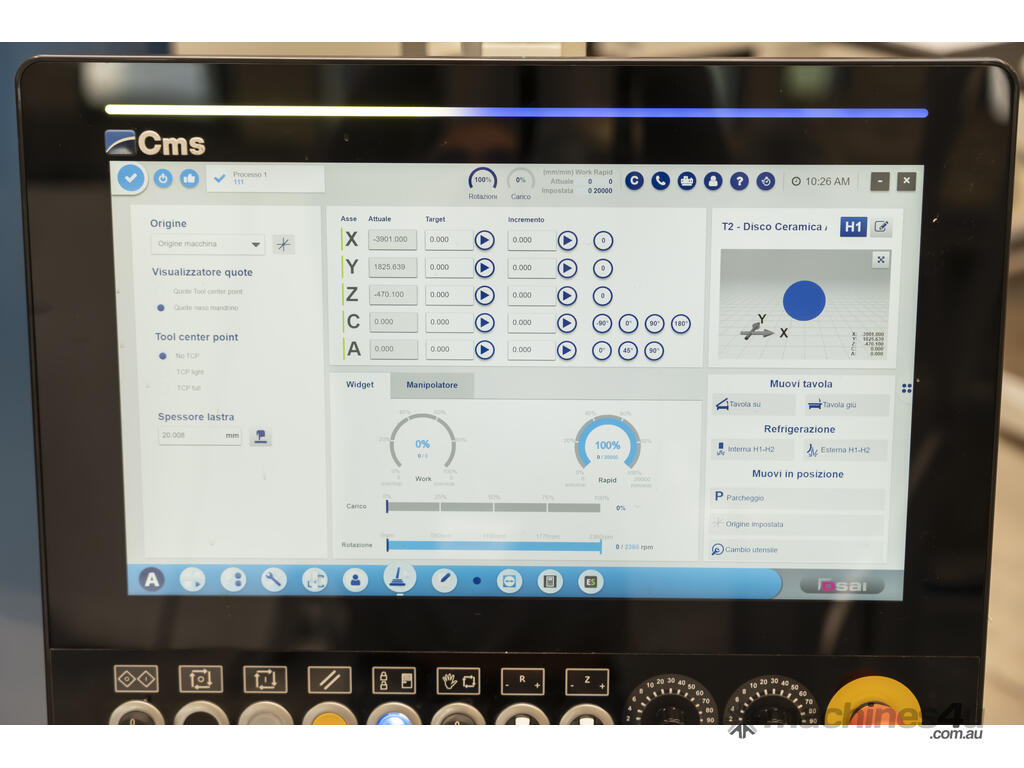

• User friendly CMS Active operating software for the purpose of any employee being able to operate
the machine with minimal training.
• Onboard programming with nesting, vein matching and simulation
• All safety features including front sliding doors.


DOWNLOAD THE PDF BROCHURE FOR MORE INFORMATION .
