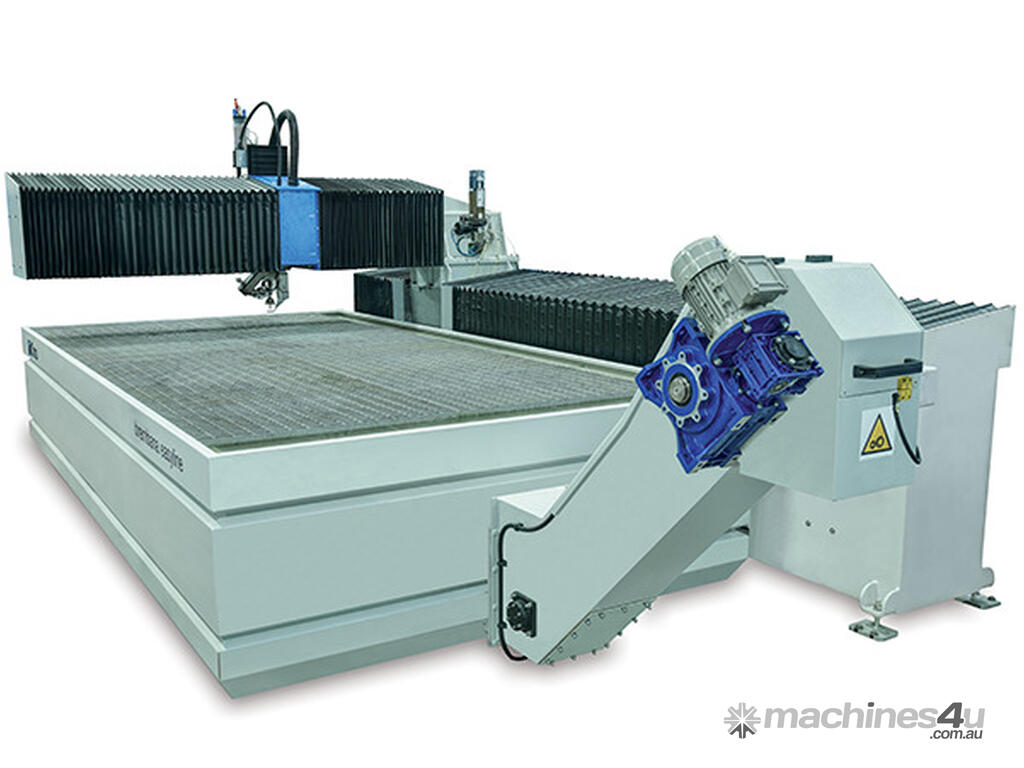

CMS Easyline 2040 3-Axis Waterjet Machine For Glass Processing

The CMS Easyline 2040 Waterjet Machine is a high precision machine perfect for glass splashbacks and custom laminated glass products. Its multi purpose design allows access from three sides and the unique GreenJET Electric Intensifier Pump will save you appx. $12,000 annually!

The cutting edge configuration can consist of:

- Max loading area = 4000mm x 2000mm

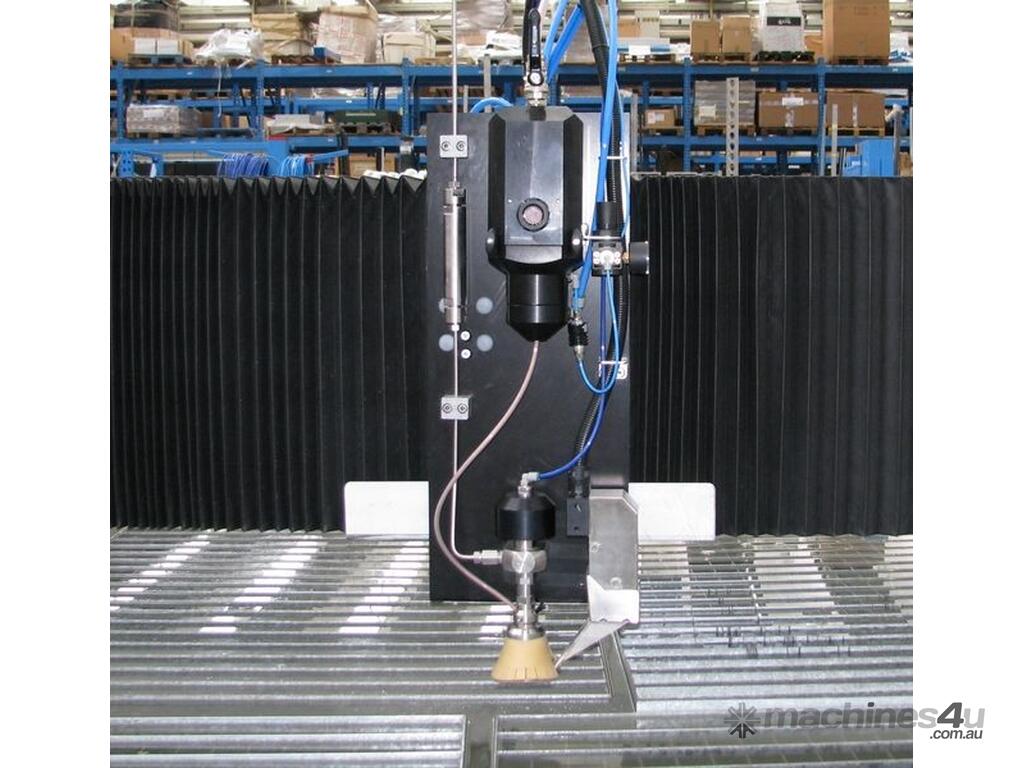

- 3-axis cutting head designed, manufactured and supported by CMS

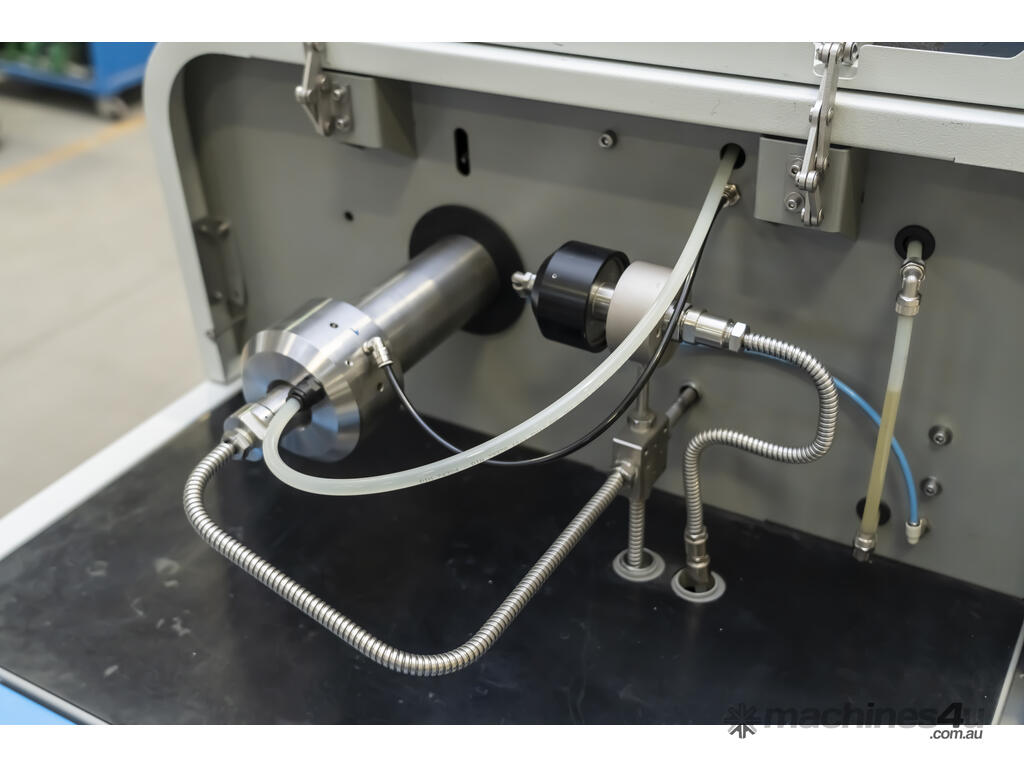

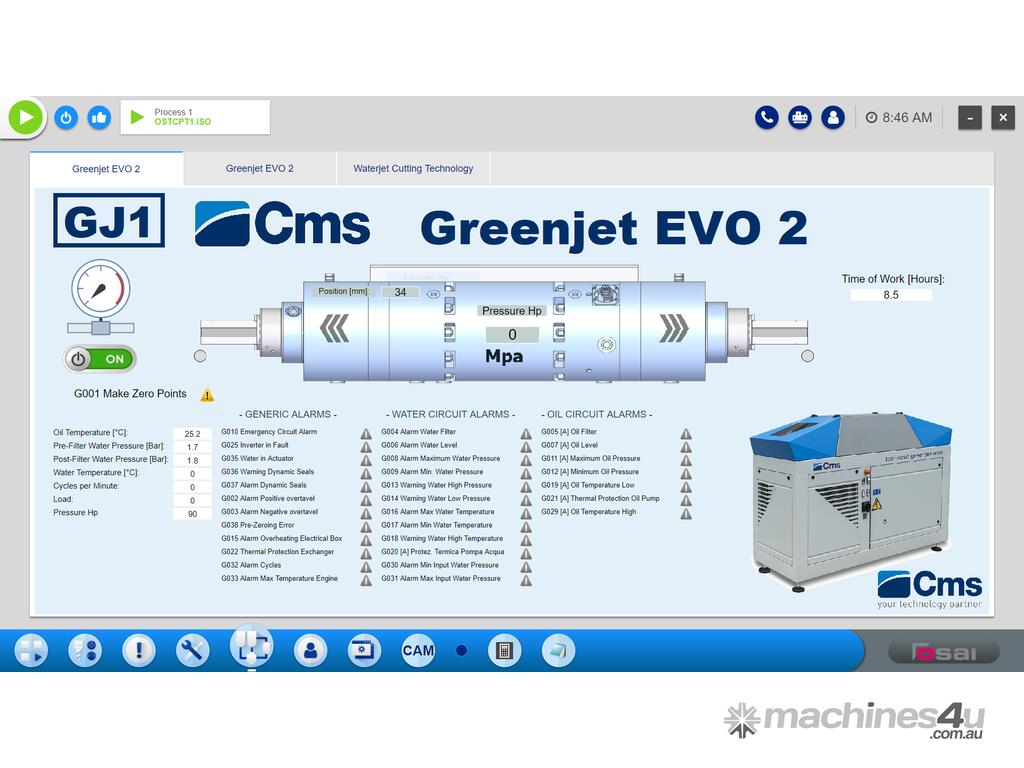

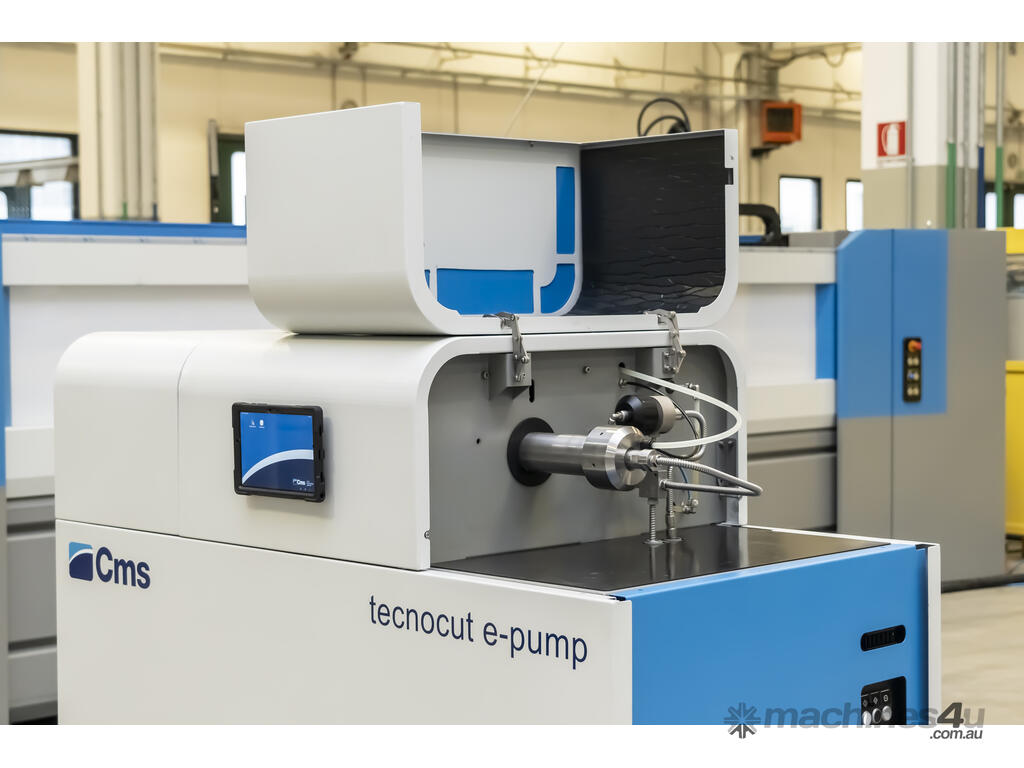

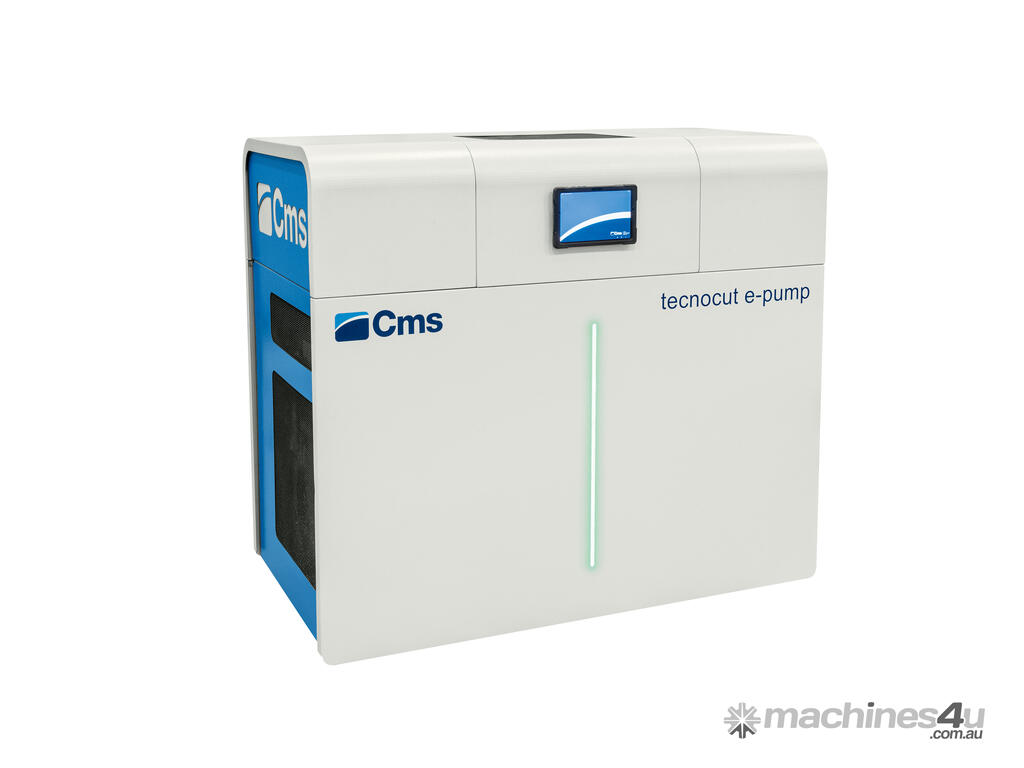

- Exclusive GreenJET Electric Intensifier Pump 34 Kw 4150 bar uses less power, less consumables and less maintenance than traditional intensifiers or direct drive pump

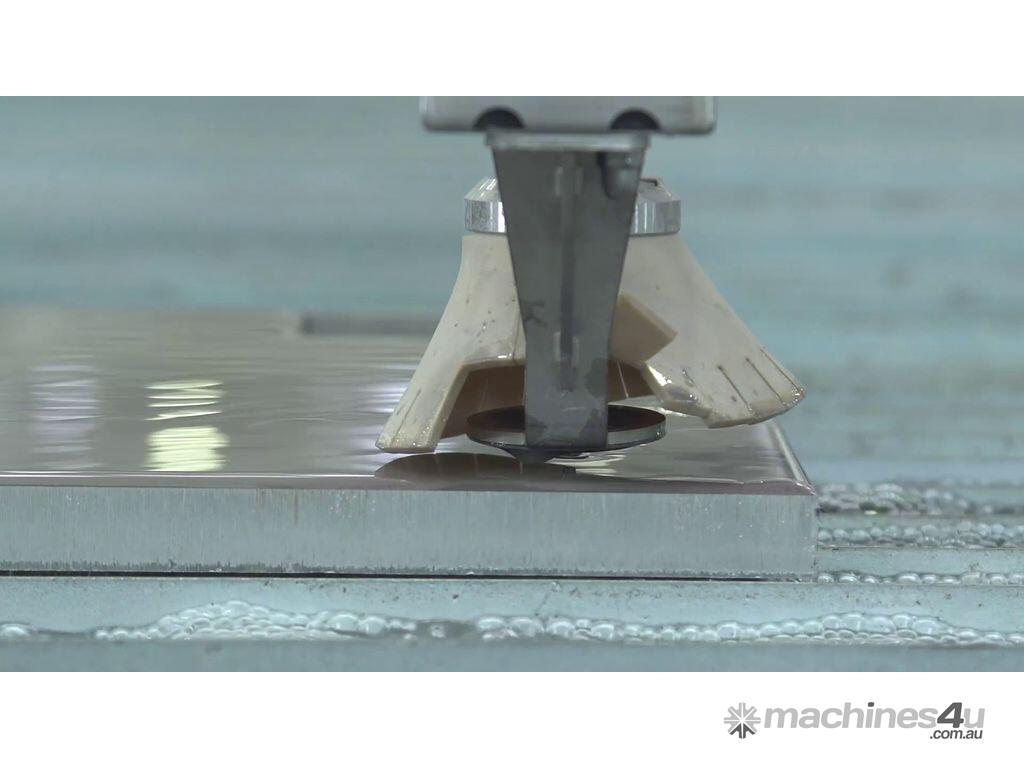

- Height sensing feeler guaranteeing precision cutting with anti-collision function

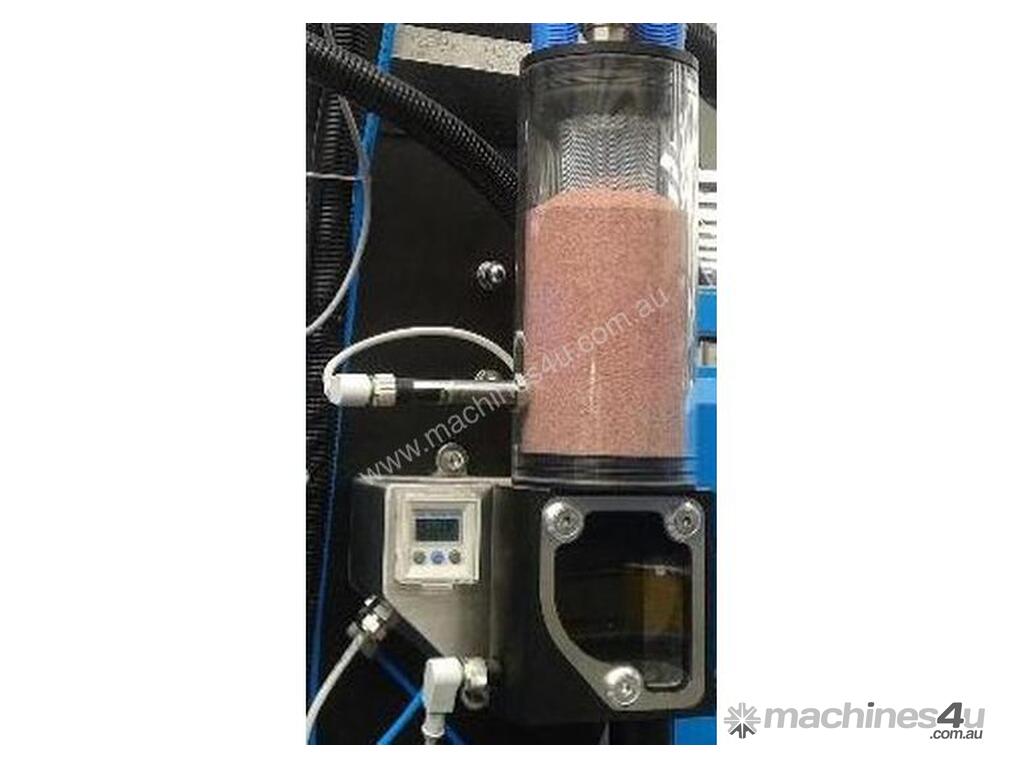

- Electronic controlled abrasive dosing system for highly accurate abrasive feed and easy changing from the software.
- Material Databse which automatically adjusts cutting speeds and piercing depending on thickness and type of material - removes responsibility from operator
- Hand held remote control

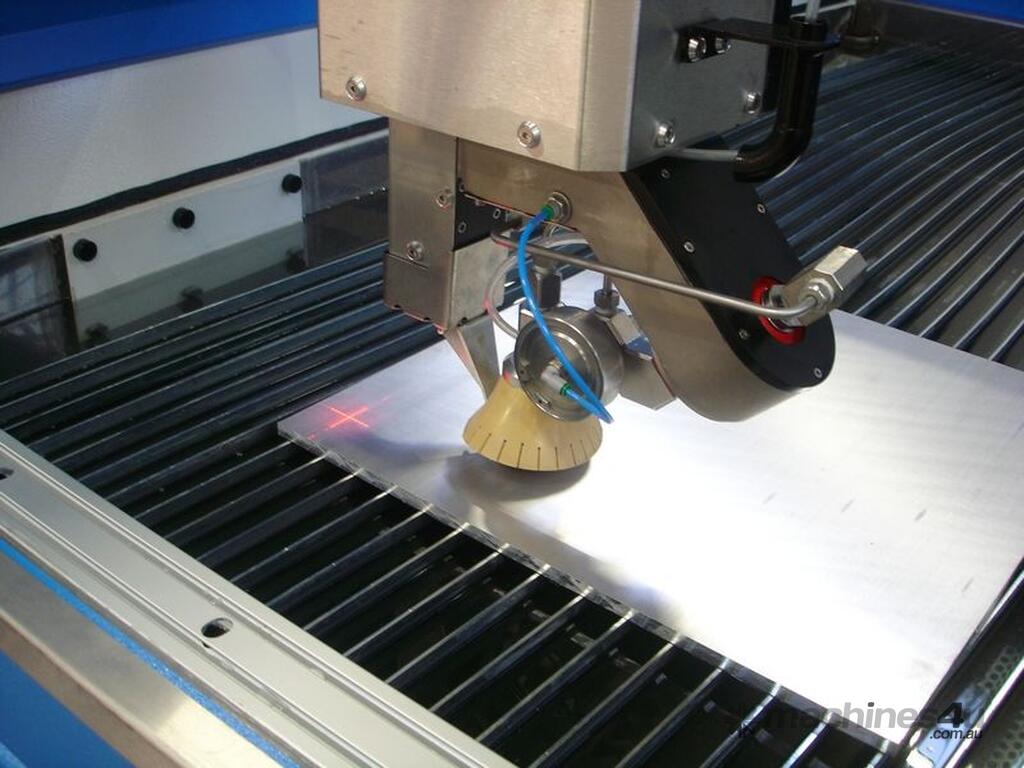

- Laser Crosshair for setting the 0,0 point
- System for quick and easy cutting nozzle replacement. Zeroing of the axis is not required.
- Cutting area cleaning water nozzles
- 270Kg pressurized abrasive hopper with warnings for refilling

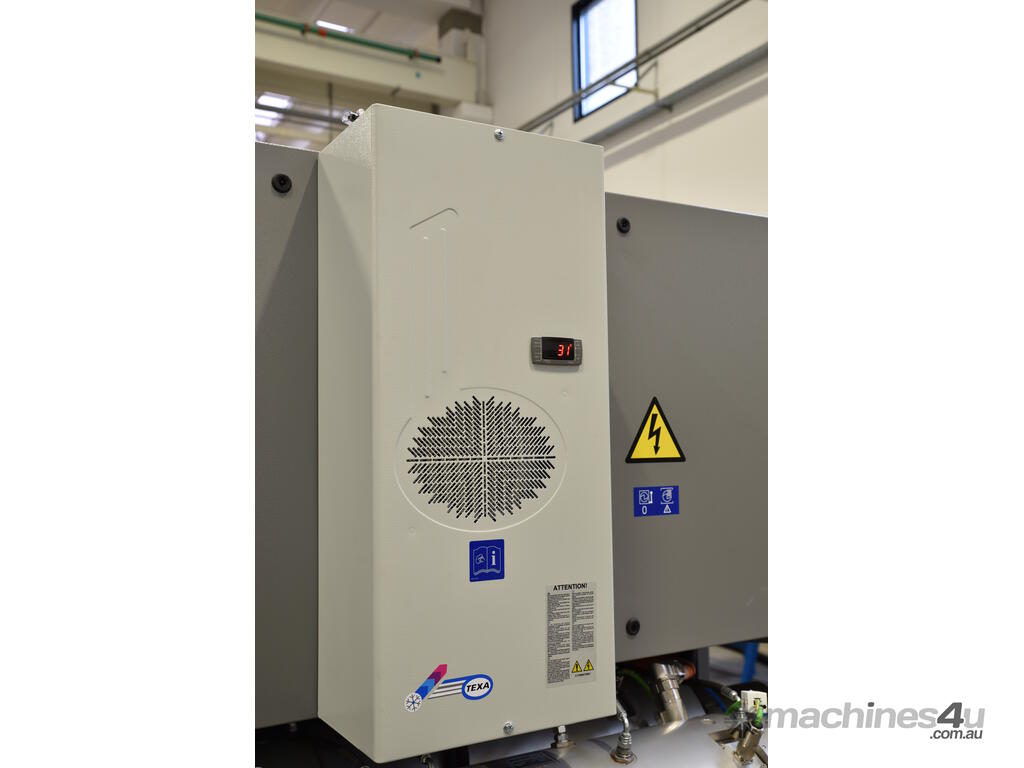

- Air conditioning of the pump and machine electrical cabinet
- Automatic lubrication system on all the moving parts

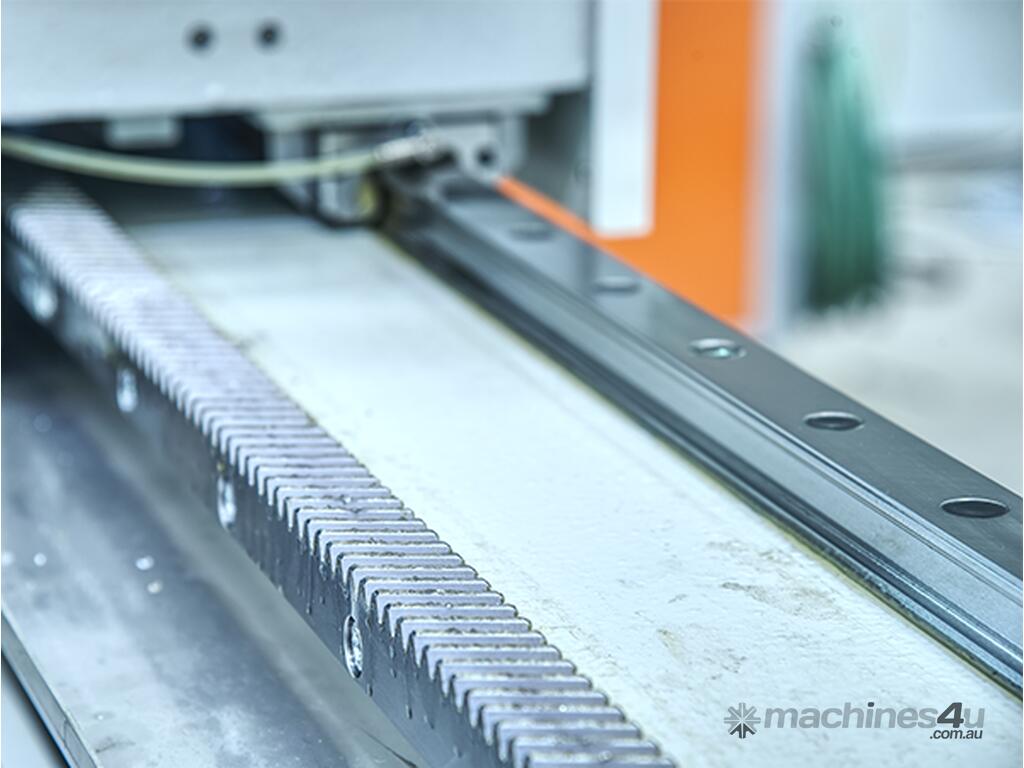

- Heavy duty rack & pinion on the X and Y axis supported by heavy duty linear guides

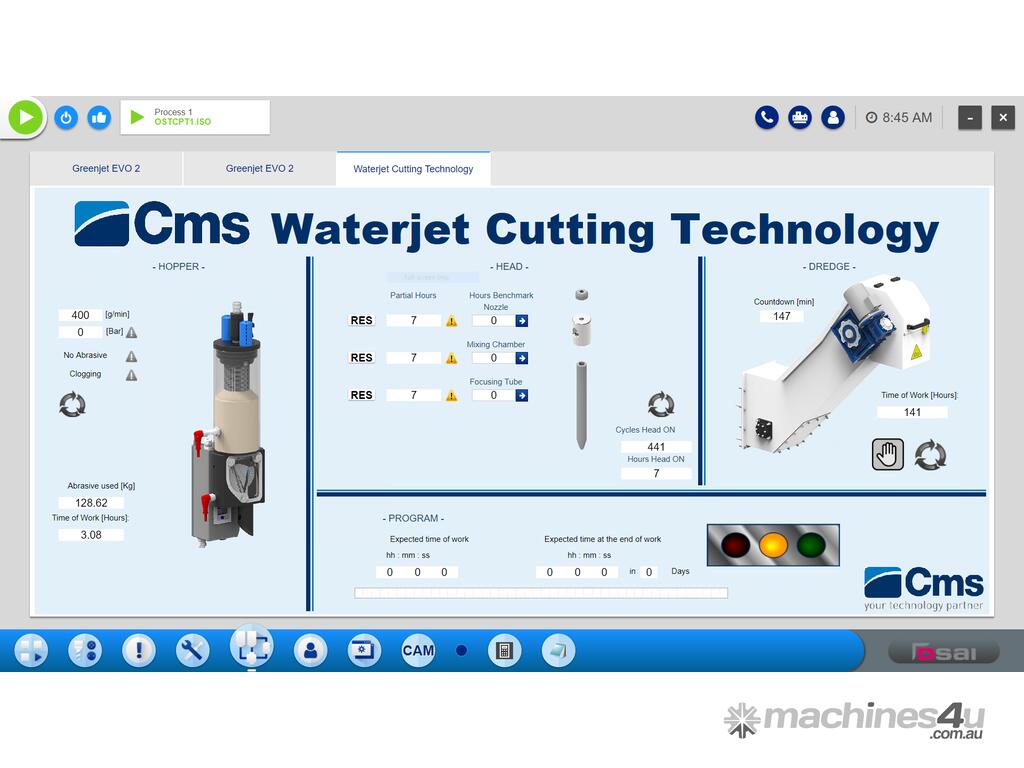

- User friendly EasyJET CADCAM Software
