CMS SPEED TR - Rotating Table CNC Machining Centre For Fast and Efficient Glass Panel Production

QUALITY MADE IN ITALY

The Cms Brembana Speed TR36OF is a multi functional DUAL ROTATING TABLE CNC designed for efficient and cost effective production of glass panels.

The time to create a glass panel is greatly reduced thanks to the ability for machining and loading of the next panel to take place simultaneously. The cost of production is also reduced due to the reduction in human input.

The footprint of the machine is surprisingly small and the user friendly software ensures that even a novice machine operator can be into full and low cost production in a very short period of time.

****The solid construction and local services of Innovync PTY LTD ensures reliability.
****The automatic features of the range removes the need for highly skilled and expensive human input



UNIQUE FEATURES:


******Rely On Quality*****

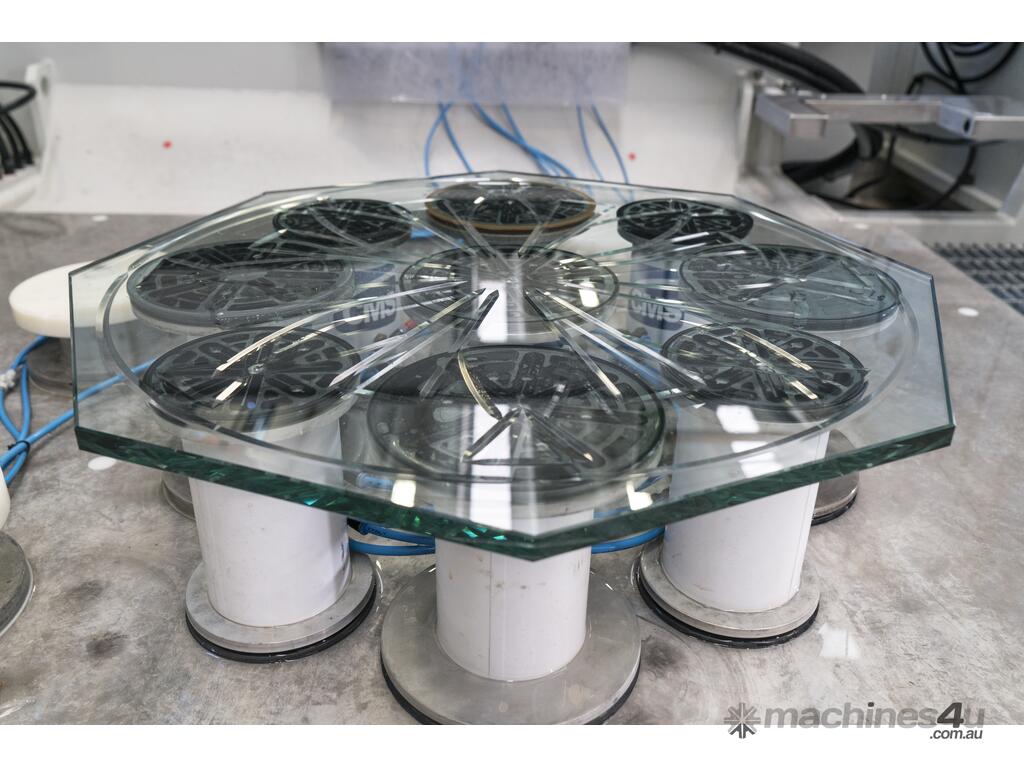

• A choice between circular or rectangular tables.
• Maximum axis stroke for each table = 3800mm x 2300mm.

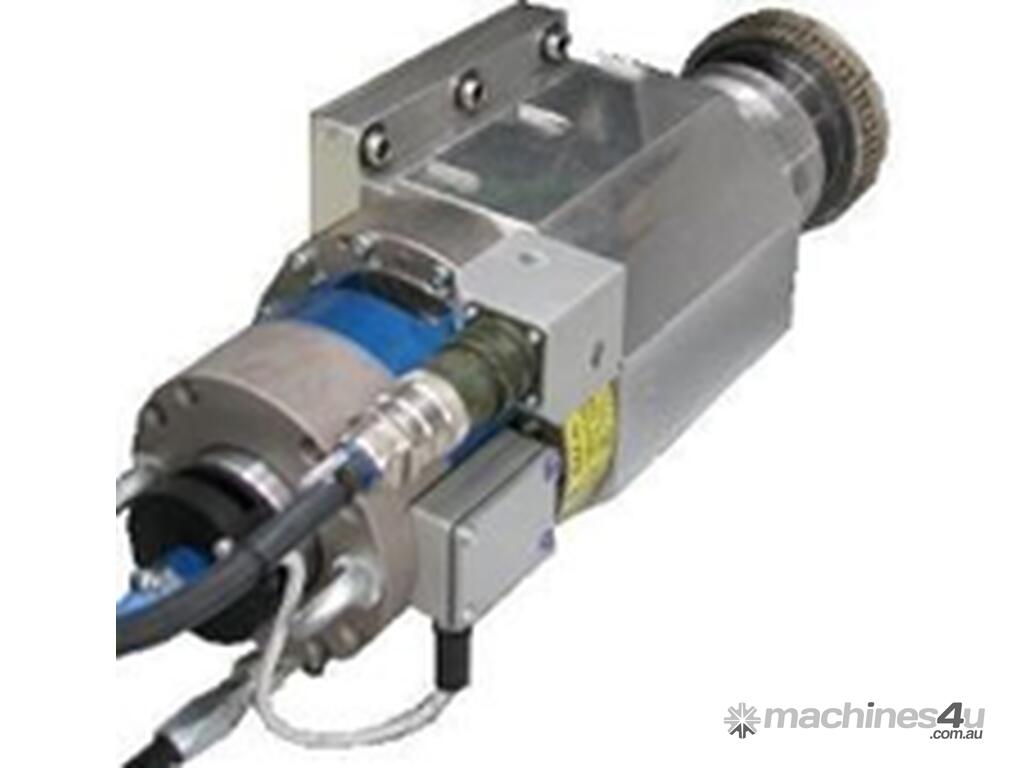

• 13. Kw Electro-Spindle designed, manufactured and supported by Cms Brembana.
• Unique cooling system for the electro-spindle prolonging the life and ensuring constant performance

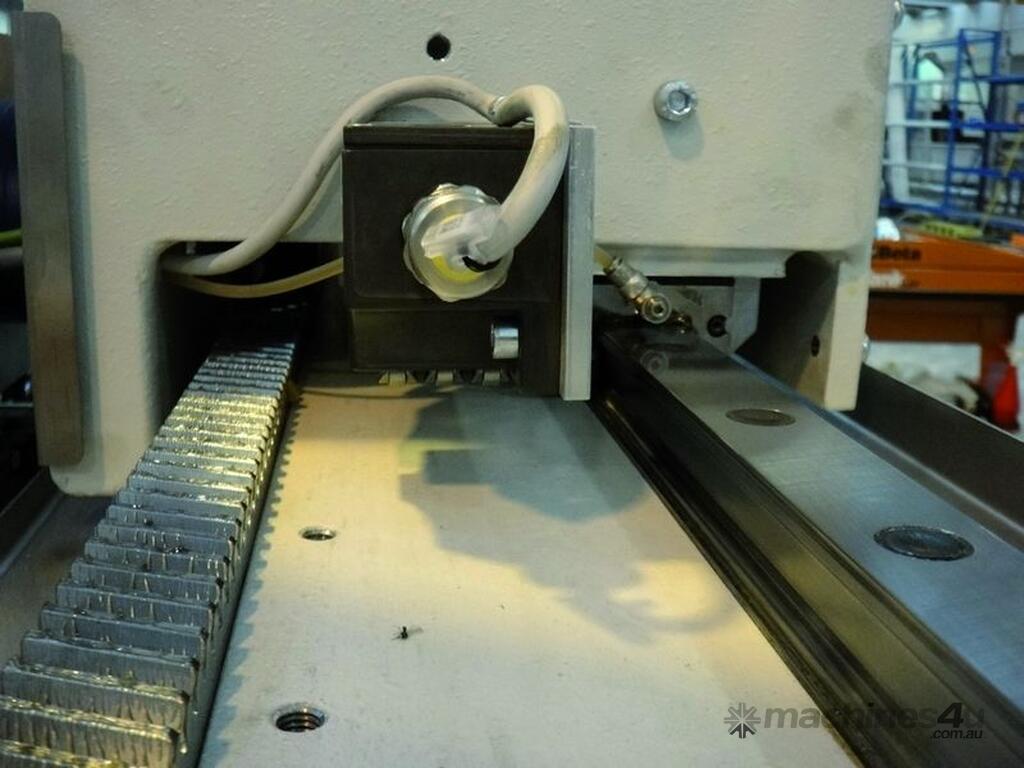

• High precision Helical rack & pinion package in X, Y and Z movements supported by heavy duty linear guides.



*****Remove The Responsibility From the Operator *****

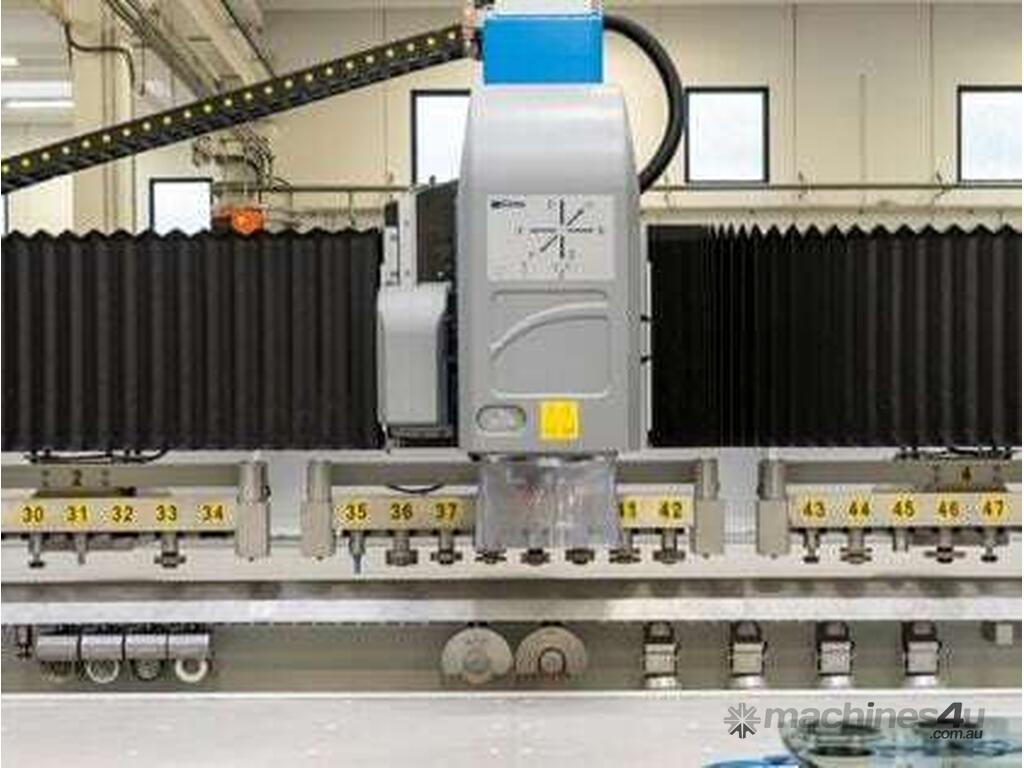

• 2 x 13 position linear tool racks (one for each table) with enough capacity to maximise glass production.
• Central safety screen so that machining and loading / unloading can be carried out simultaneously and safely.

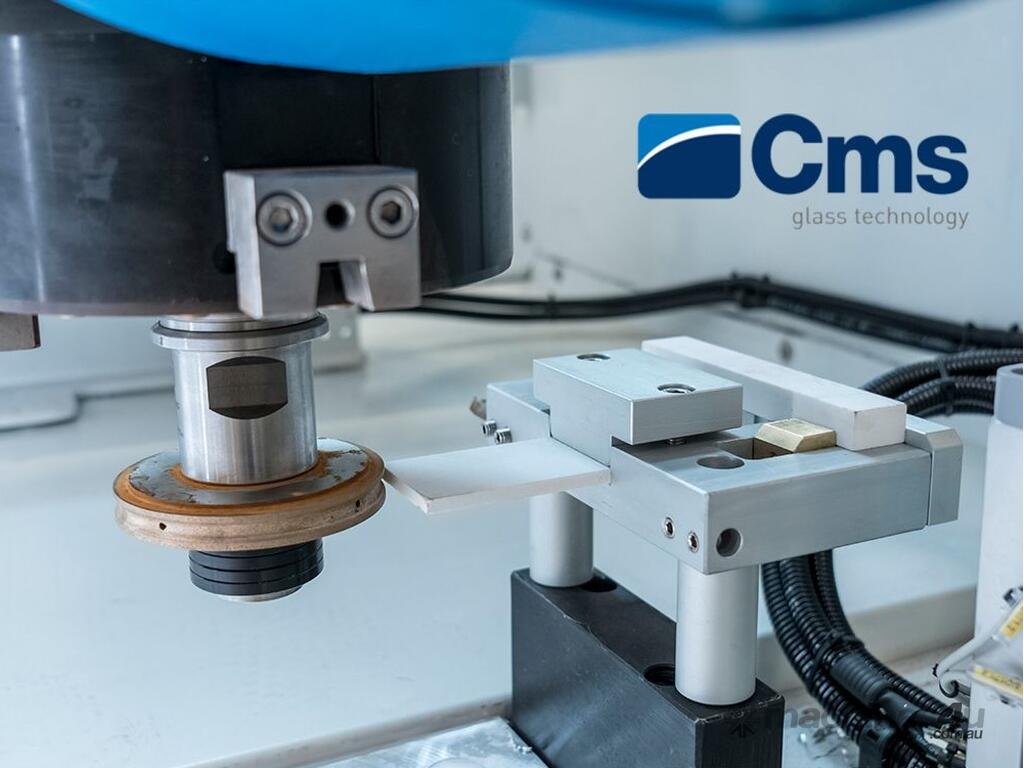

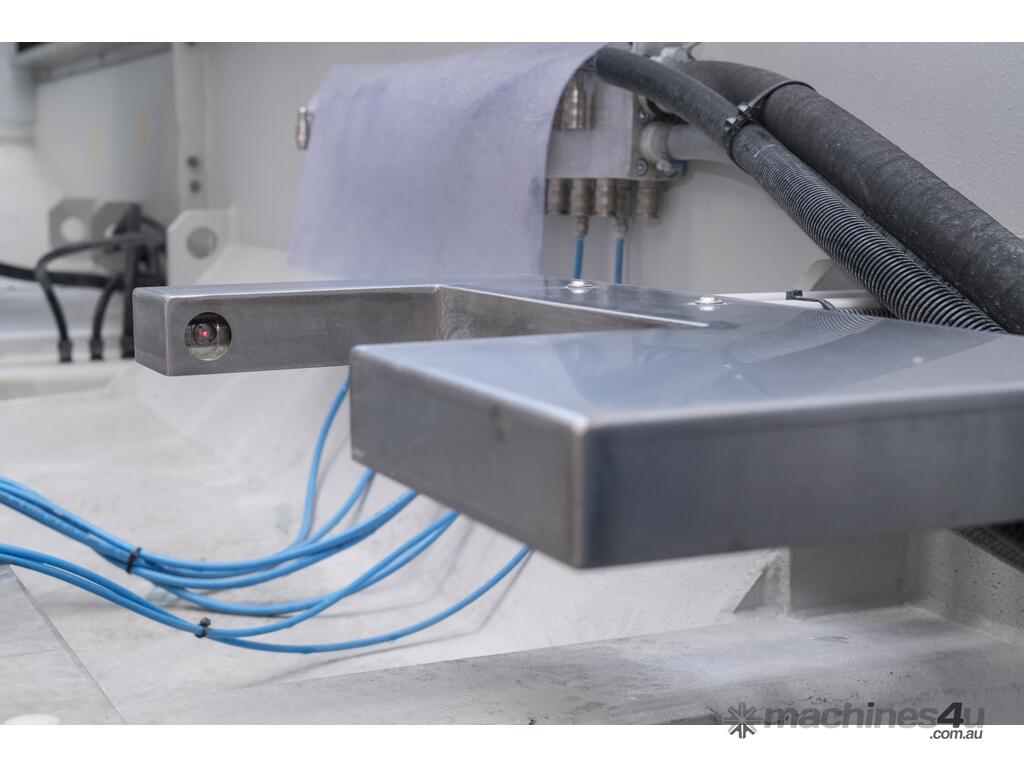

• Automatic Laser calibration unit for the diamond tools performed in dead time ensuring perfect edge finish and uninterrupted daily production cycles

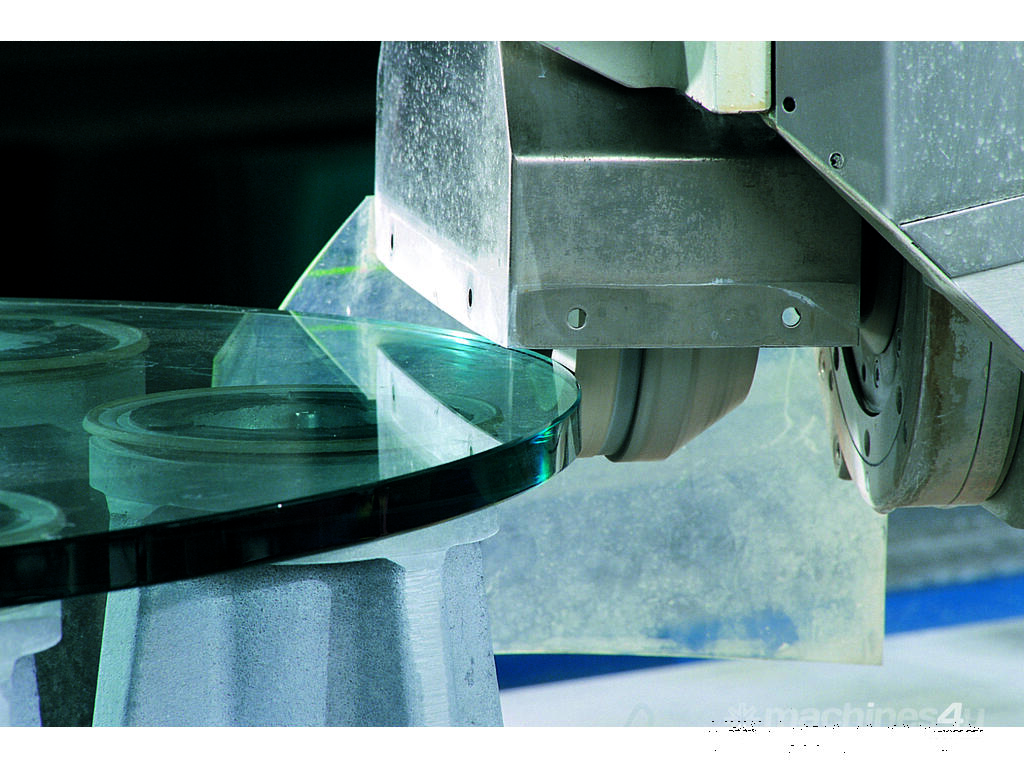

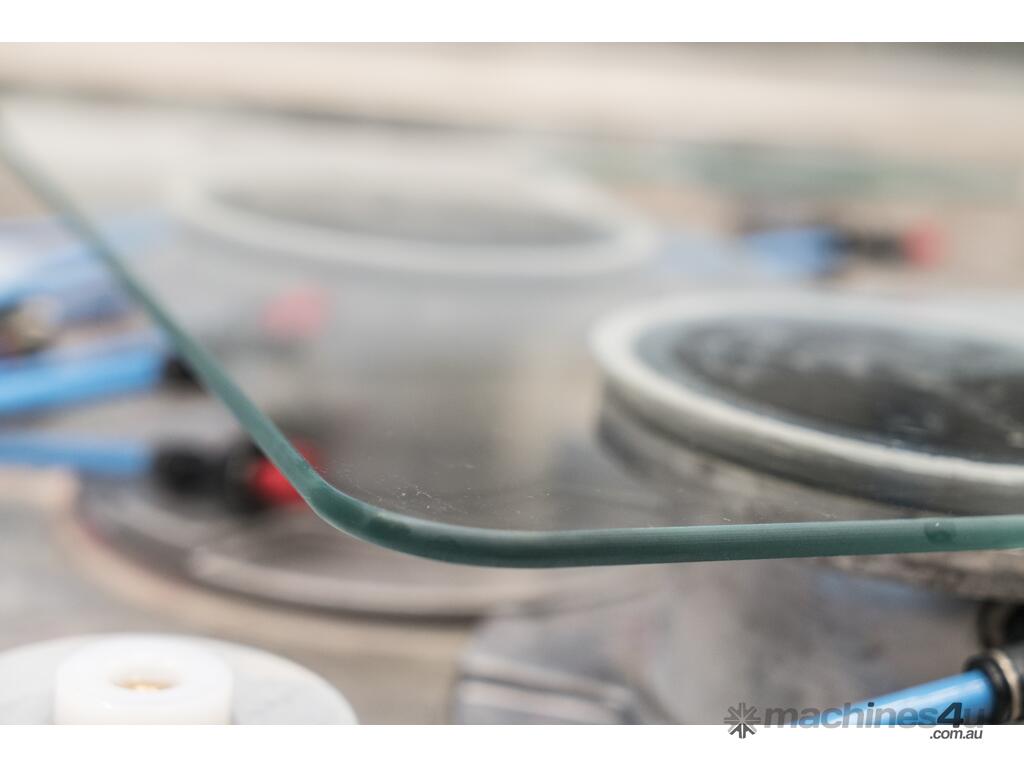

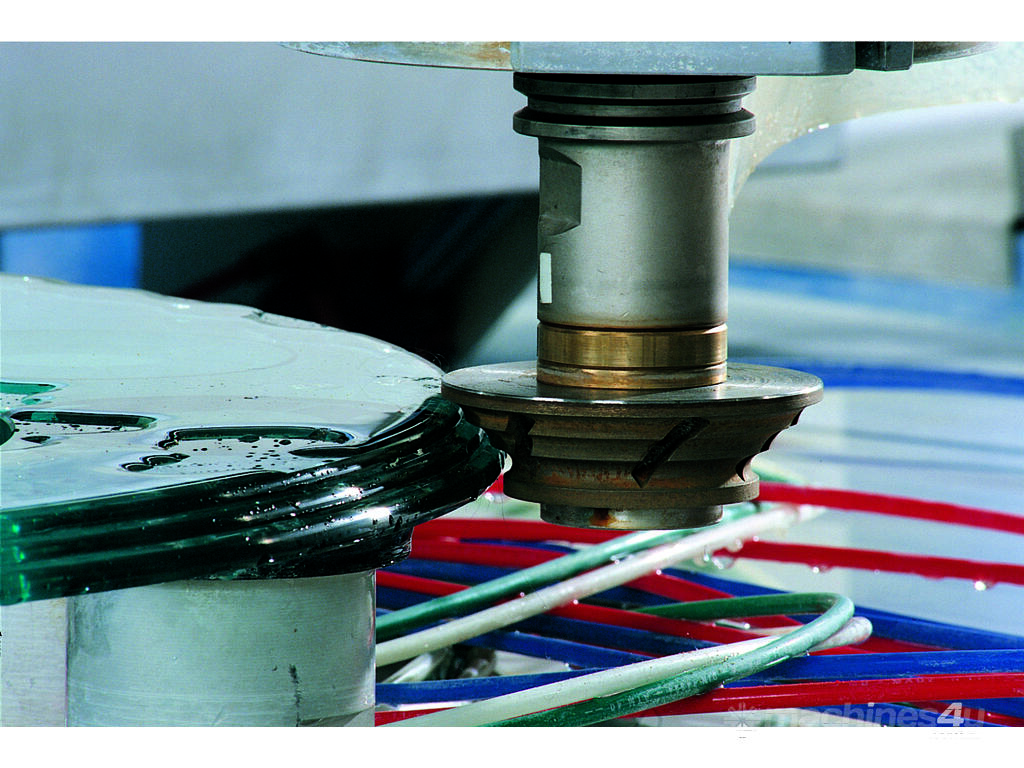

• Automatic compensation system for the polish wheel wear guaranteeing a superior polished edge finish.
• Automatic system to redress the polish wheels preventing any surface scratching.
• Automatic lubrication of all the moving parts removing this responsibility from the operator

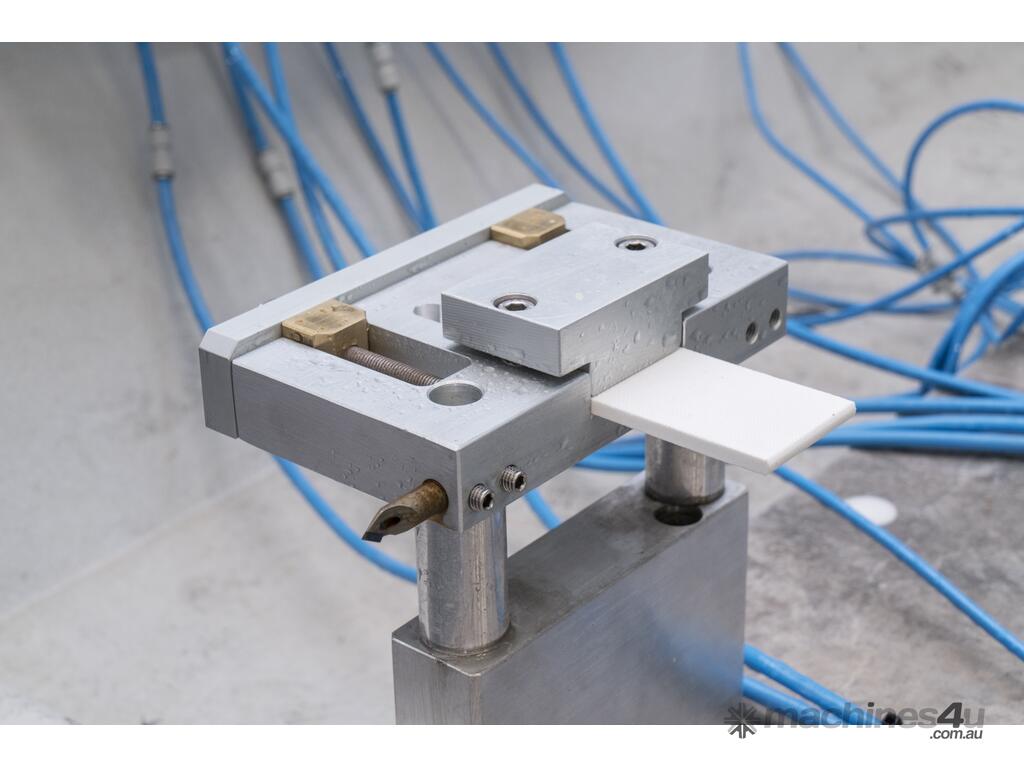

• Automatic dressing unit for the drilling tools



******Make It Easy****

• Handbox control of the machine movements and safety features
• User friendly EasyGlass CADCAM software with automatic job, tool and production management capabilities.
• Seamless communication with the companies management software system ensuring that the input from the operator is minimised.
