CMS VERTEC - CNC vertical Drilling & Milling Machine for easy Showerscreen and Ballustrade Cutouts

QUALITY MADE IN ITALY

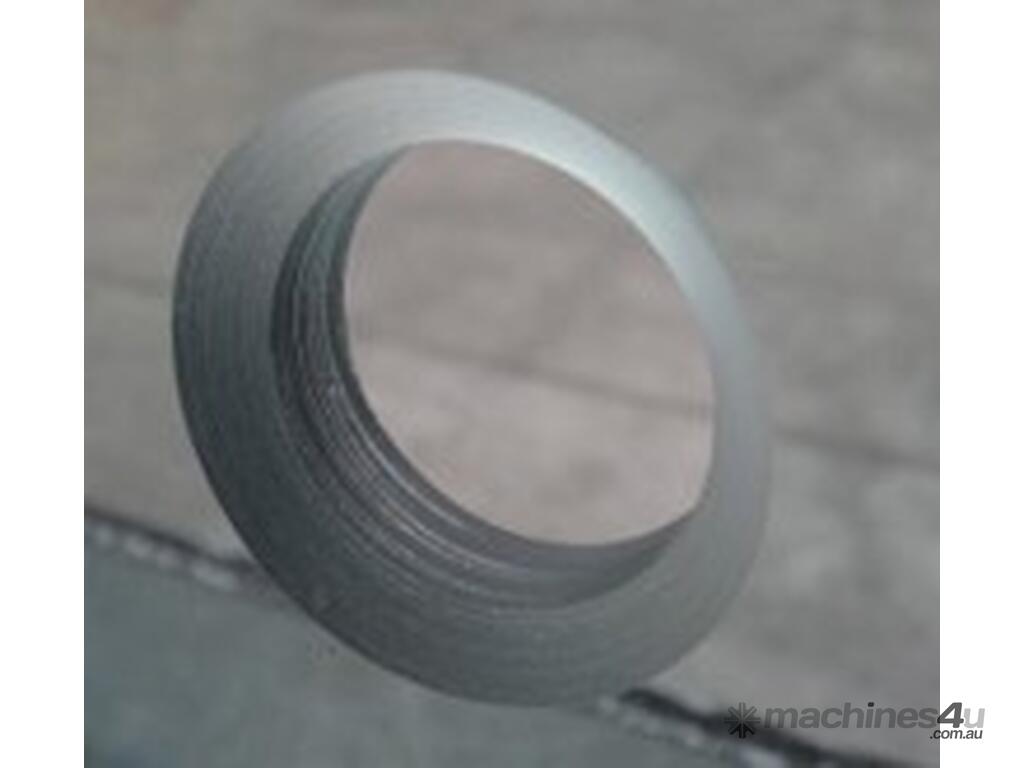

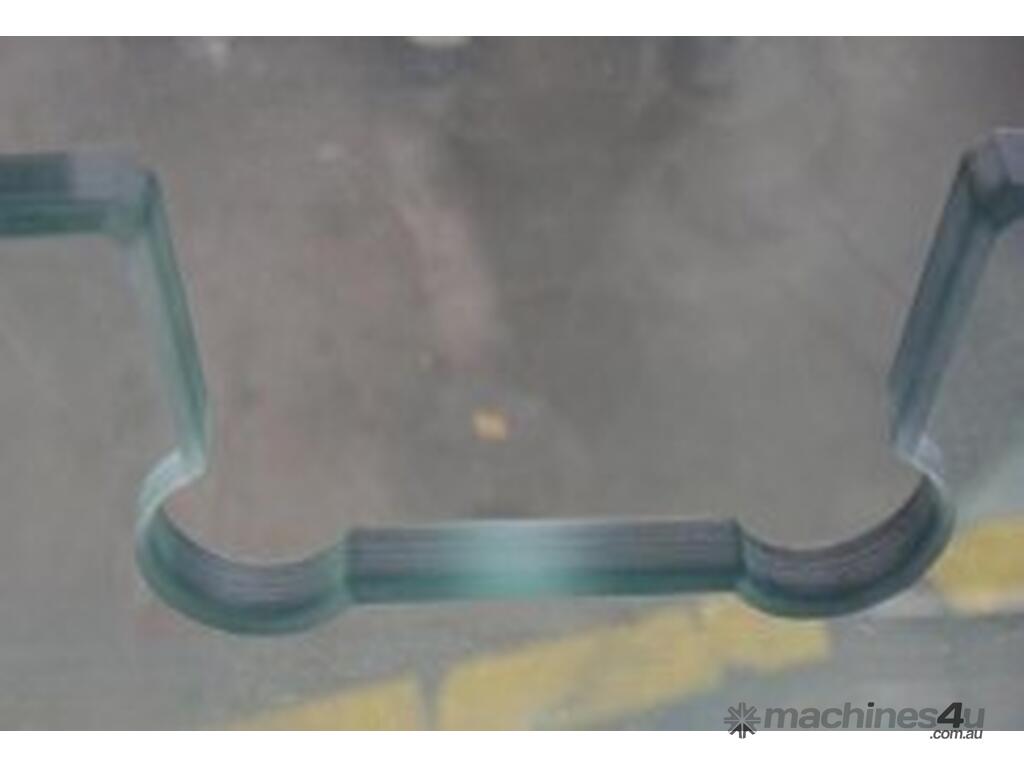

CNC vertical machine for drilling, countersinking, milling and notching operations on monolithic, laminated and Low-E glass.
- possibility to work both rectangular and shaped glass sheets (one rectilinear side required)

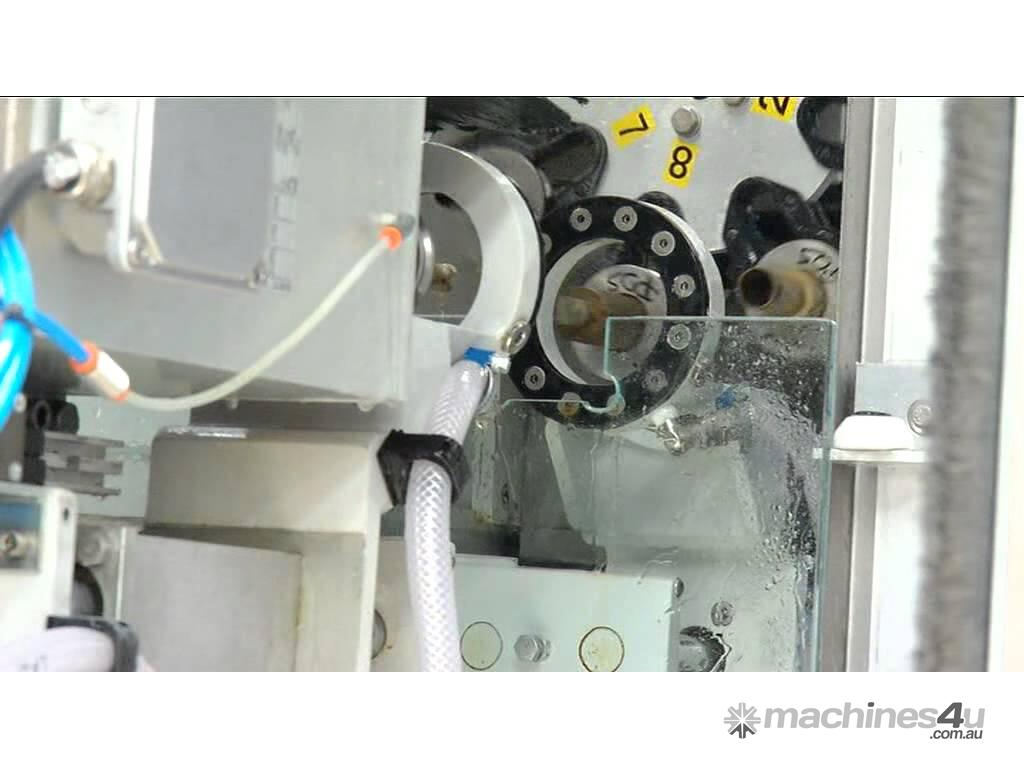

- two coaxial opposed electrospindles and tool cooling system with internal and external water, which enables a higher finishing and machining quality
- two 9+9 stations NC-controlled rotating tool crib installed on a carriage fixed to the electro-spindle, ensure tool change operations in the shortest time
- high-pressure water cushion (patented)


ADVANTAGES

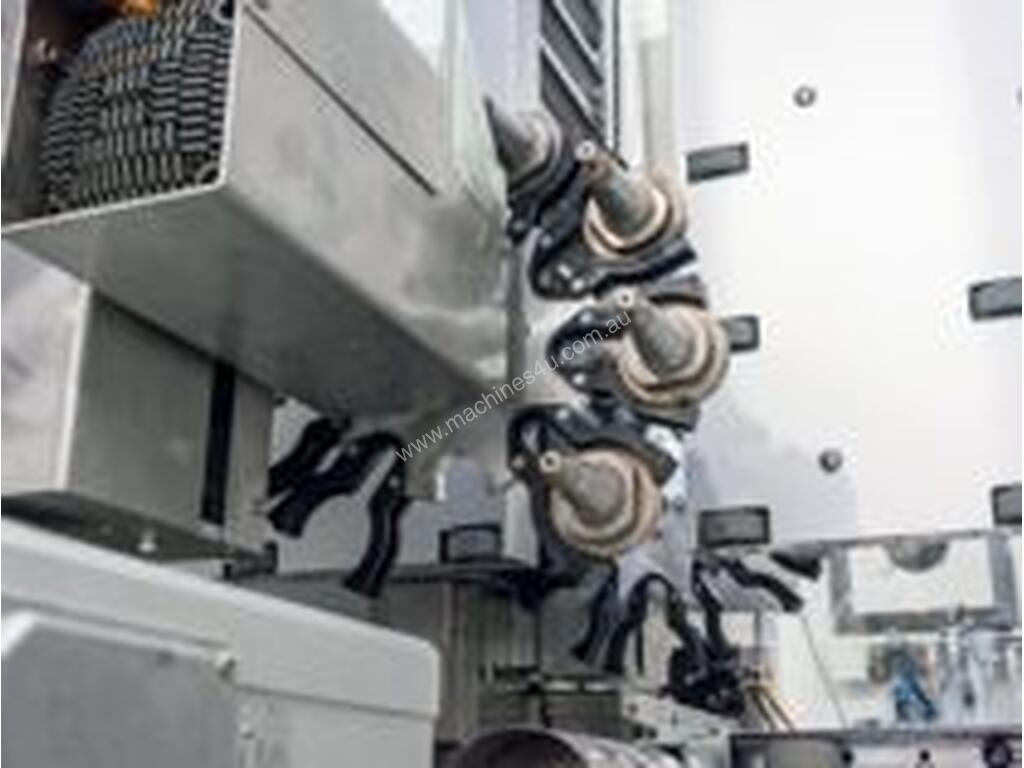

MINIMUM TOOL CHANGE TIMES

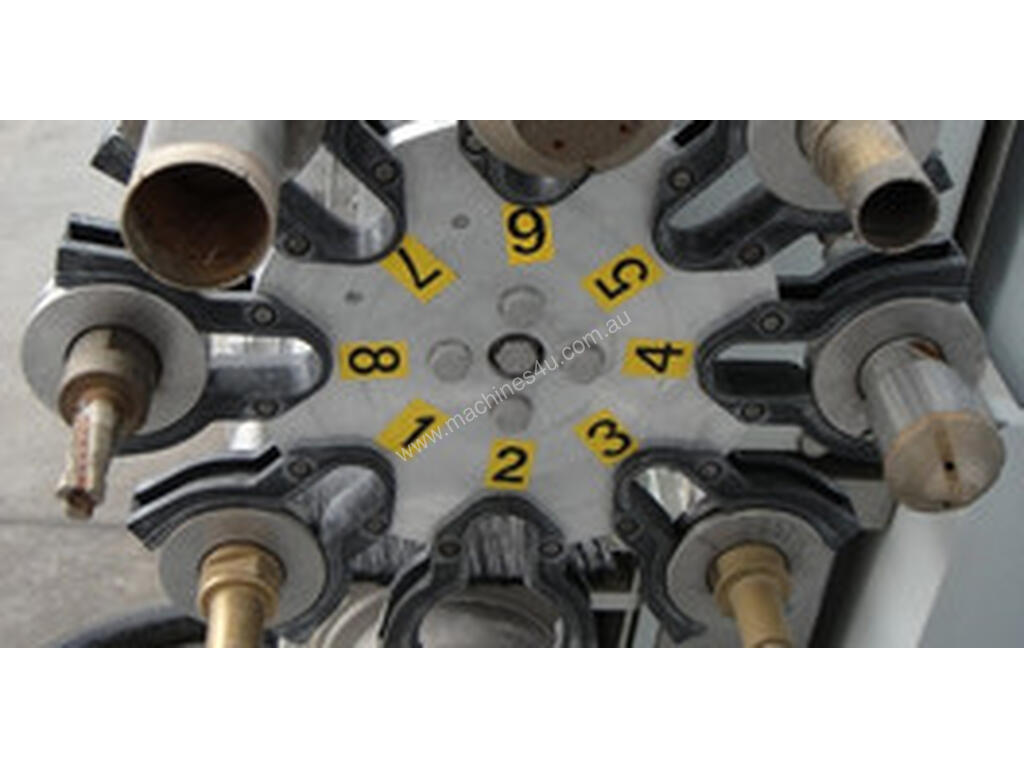

The machine has two 9 + 9 position tool magazines fixed integrally with the vertical carriage. In this way, the tool change operation takes just 10" regardless of the processing area.

TOOLS ALWAYS AT THE BEST PERFORMANCE

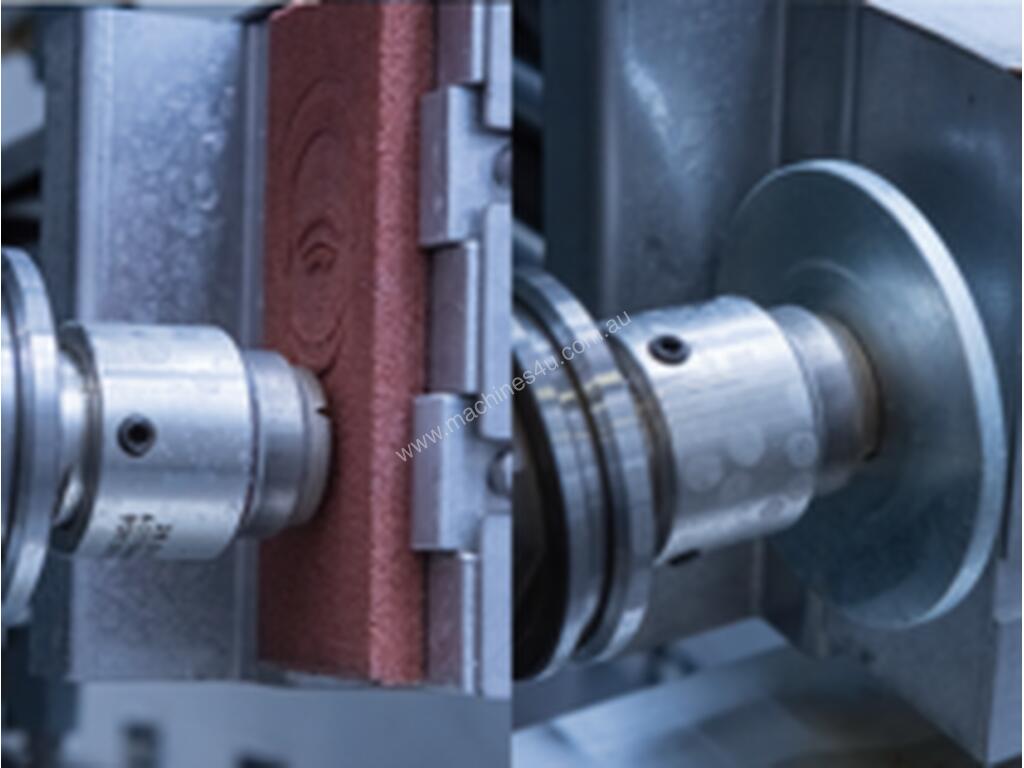

To ensure maximum machining precision, the machine has an automatic measurement system for core drill bits with a centesimal precision. It is also possible to revive the core bits completely automatically.
This system allows having in total safety tools that always work at maximum performance.

ANTI SCRATCH SYSTEM

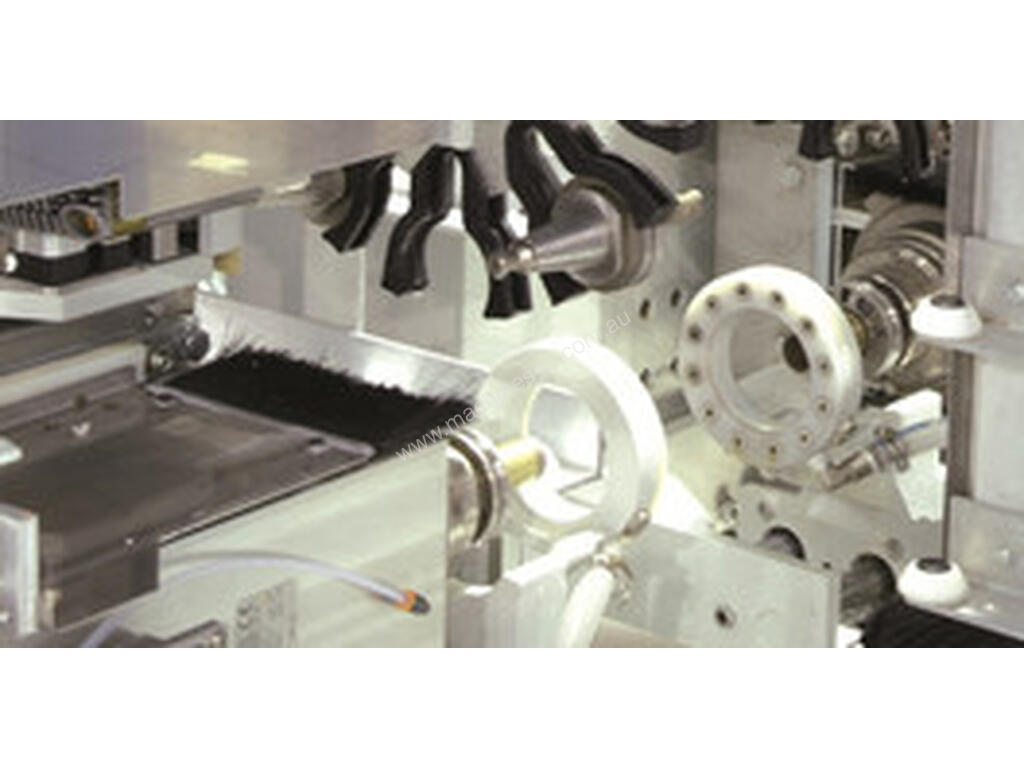

During the milling and profiling operations, the pressers remain separated from the glass 0.2 mm and thanks to the patented water cushion system they ensure the absence of vibrations, perfect cooling of the tool and uniformity of the size of the chamfers along the entire sheet.

PERFECT FOR LOW-E GLASS

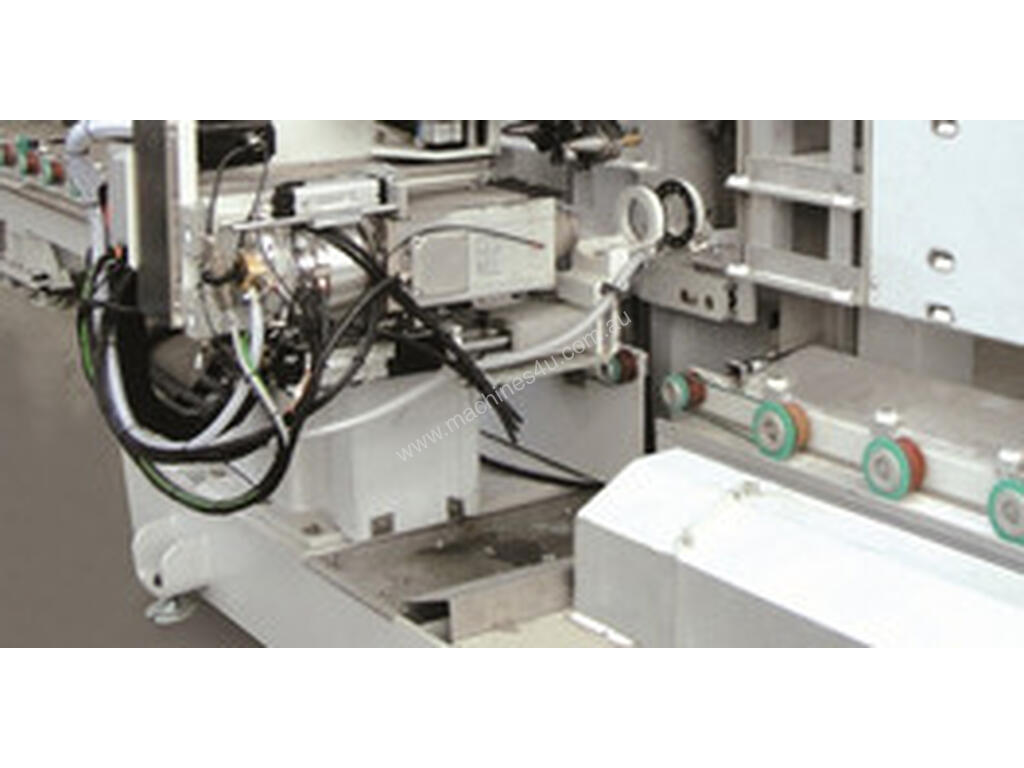

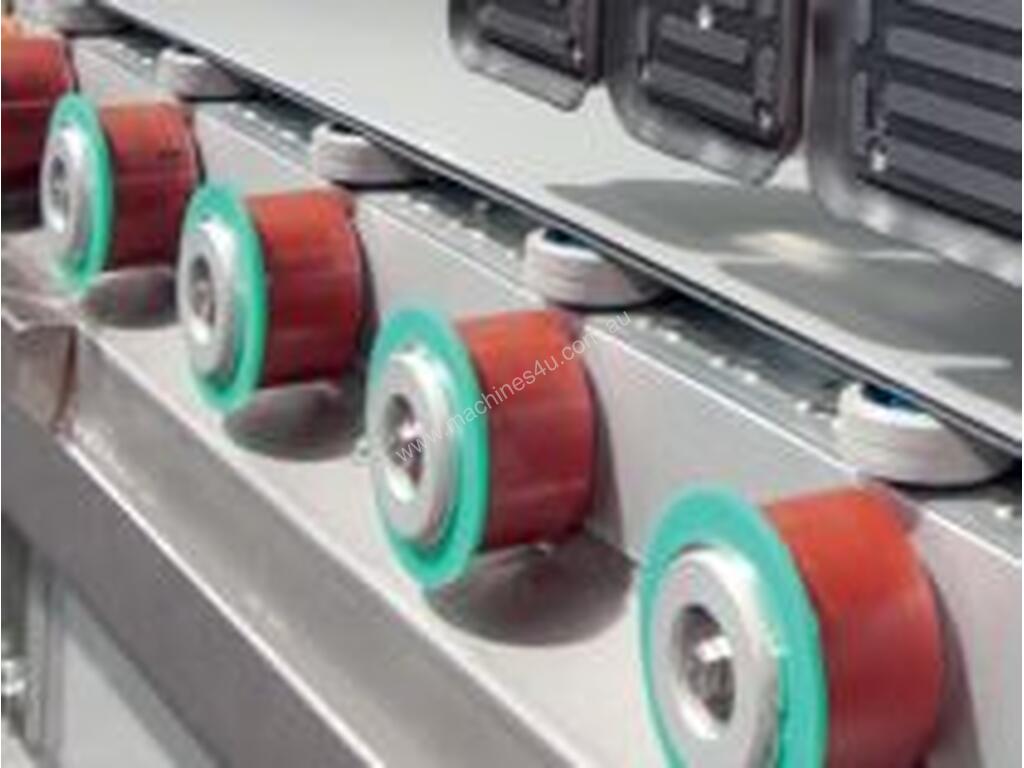

The stop guarantees positioning with an accuracy of fewer than 3 tenths of a millimeter thanks to the transmission with pinion and rack. The sheet zeroing takes place without stapling the surface, in this way it is possible to process low-E glasses.
