CMT 2500MM LENGTH | 4MM CAPACITY | HYDRAULIC | CNC TOUCH SCREEN CONTROLLER | PAN BRAKE

Name: CMT 2500MM LENGTH 4MM CAPACITY HYDRAULIC CNC TOUCH SCREEN CONTROLLER PAN BRAKE
Brand: cmt
SKU: M000087
Price: 20500 AUD
Availability: InStock

QLD, NSW - Delivers Nationally

Play Video

$20,500 AUD($22,550 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$71.41
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Wondering about delivery costs?
Get your instant quote today!

120+ million km

Freight posted per year

80,000+

Loads posted per year

Get Instant Transport Quote

Specifications

Condition:

New

Category:

Pan Brakes & Folders

Make:

CMT

No. in Stock

Year:

Not specified

Type of Sale:

In Stock

Member Since: Nov 2007

Platinum Member

Listings: 527

Label:

In Stock

Press Operation Type:

Hydraulic Press

Sellers stock ID:

M000087

Description

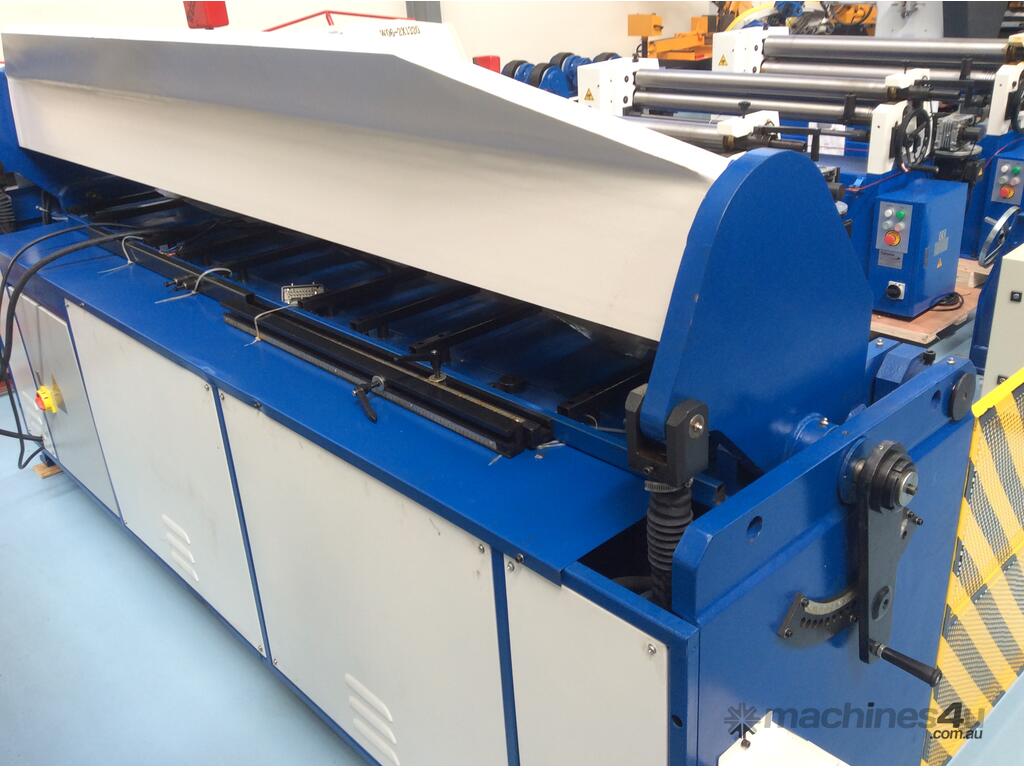

NEW CMT 2500MM LENGTH X 4MM CAPACITY WITH HYDRAULIC CLAMP, HYDRAULIC FOLD AND CNC TOUCH SCREEN PAN BRAKE

FEATURES & SPECIFICATIONS

• 4mm capacity x 2500mm length
• 4mm mild steel
• 120º Maximum included angle
• Maximum open height 120mm
• Top bend gauge adjustments: 0, 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 5, 6
• Motor 5.5Kw, 3PH 415V
• 3200mm x 900mm x 1600mm (without gates attached)
• Weight – 3ton
• Welded steel structure: heavy duty high rigidity
• Adjustable beam for varying metal thickness up to 4mm
• Foot pedal switch for hands free control
• Hydraulic clamping of upper beam
• Segmented top fingers

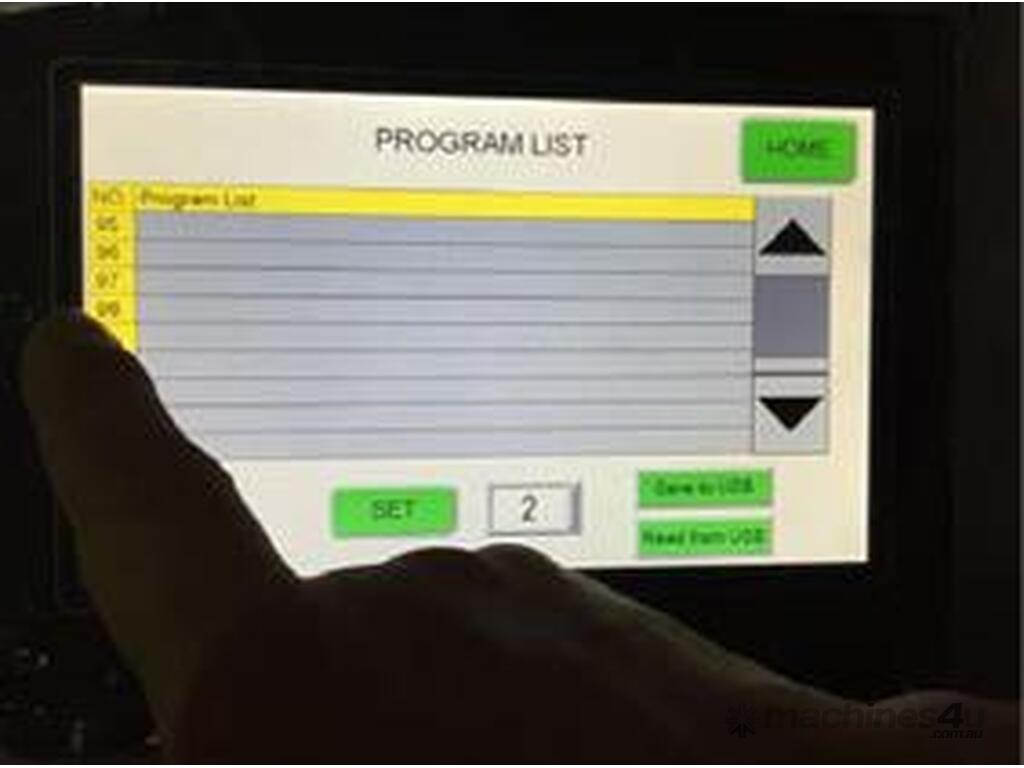

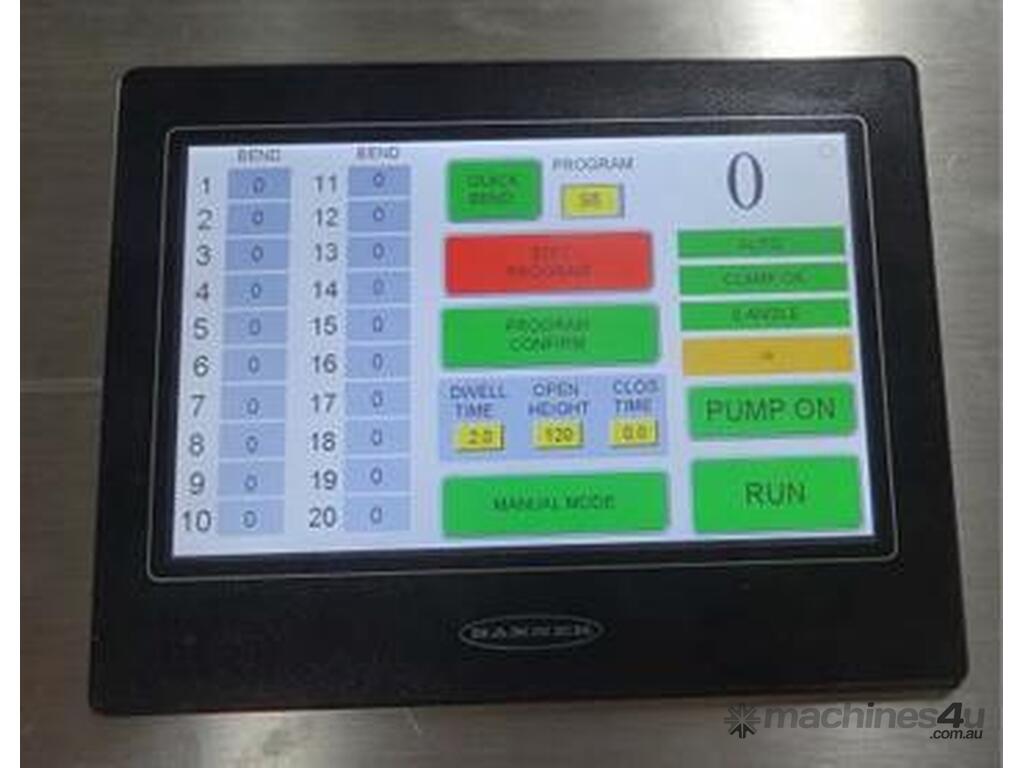

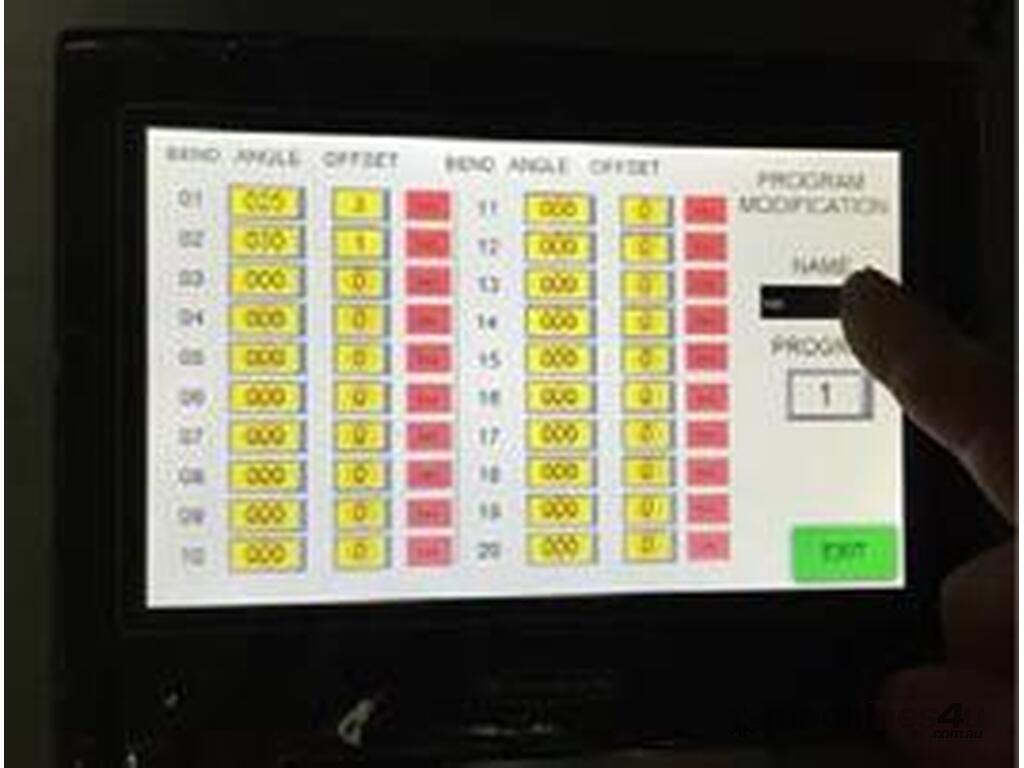

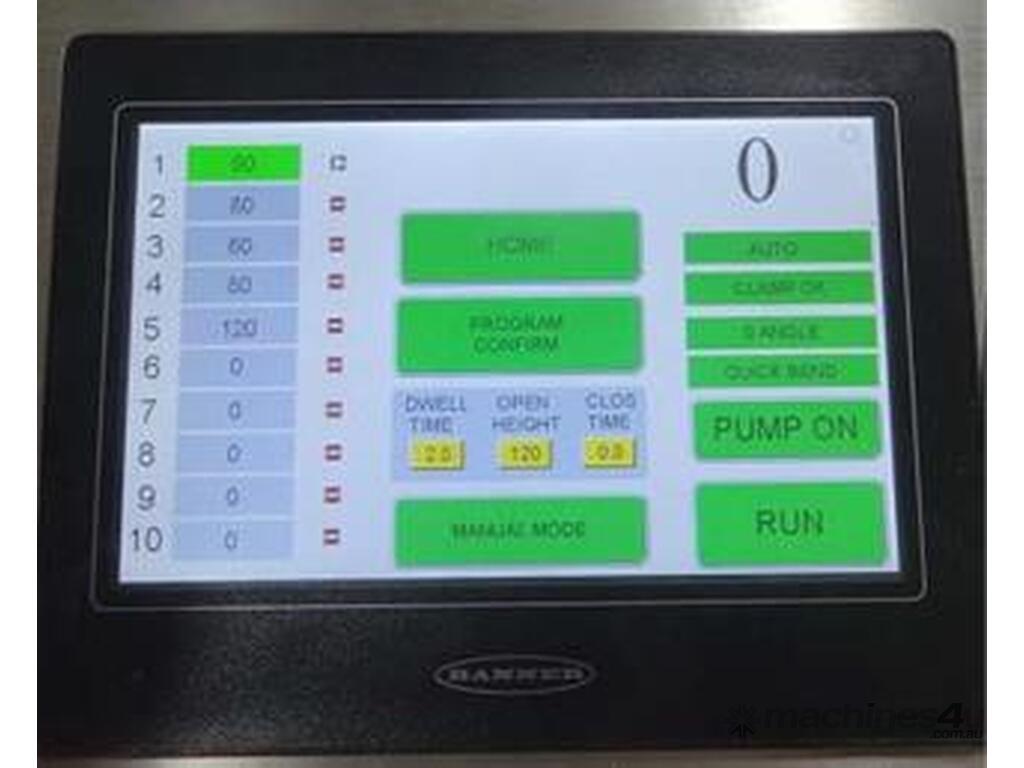

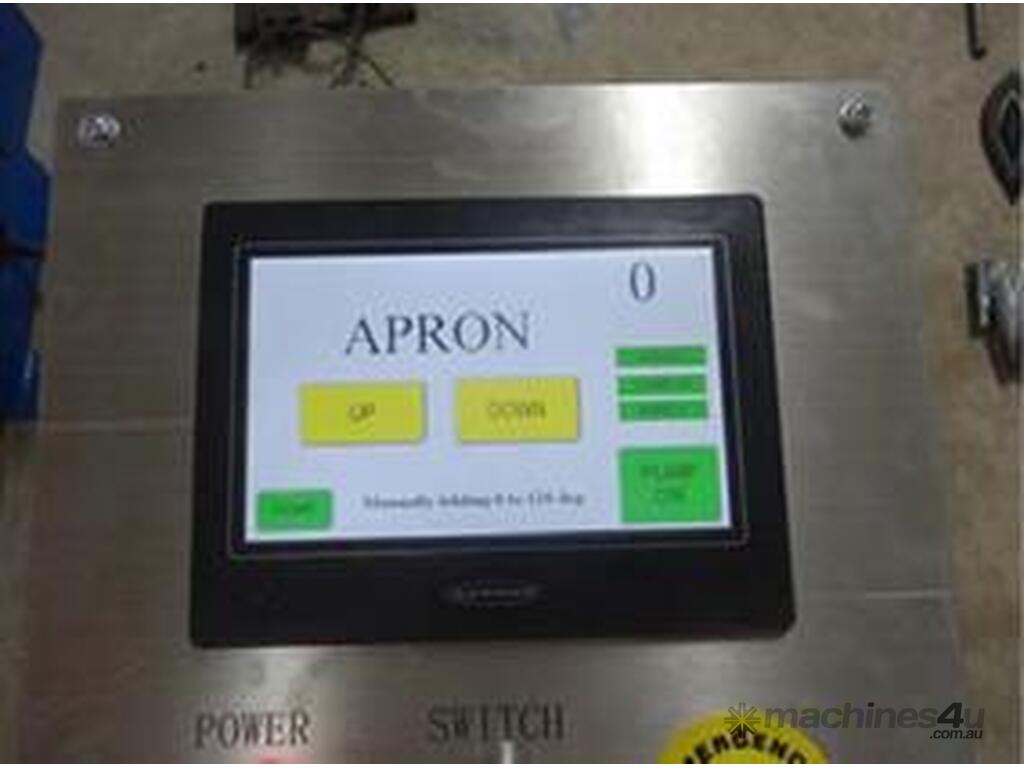

• Touch screen controller with Banner PLC storing up to 99 jobs with 20 bends in each job
• 1000mm back gauge
• 20mm safety stop between top beam and bed

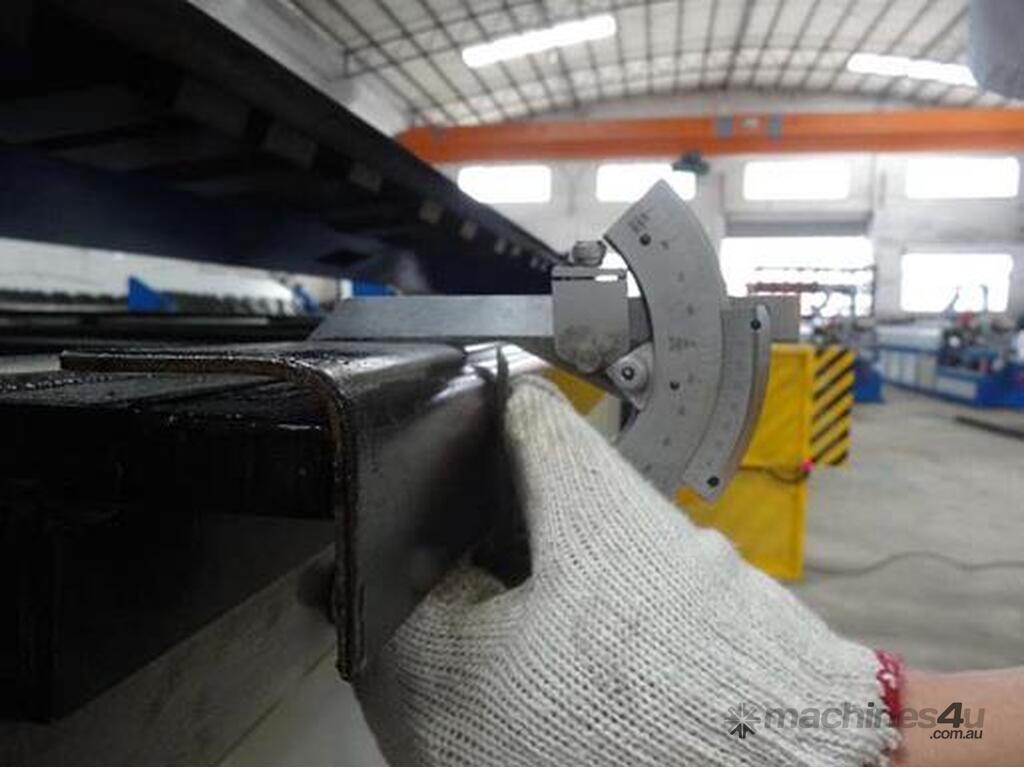

• Spring back setting on angle adjustment
• Open height adjustable by controller to maximum of 120mm
• Banner machine controller

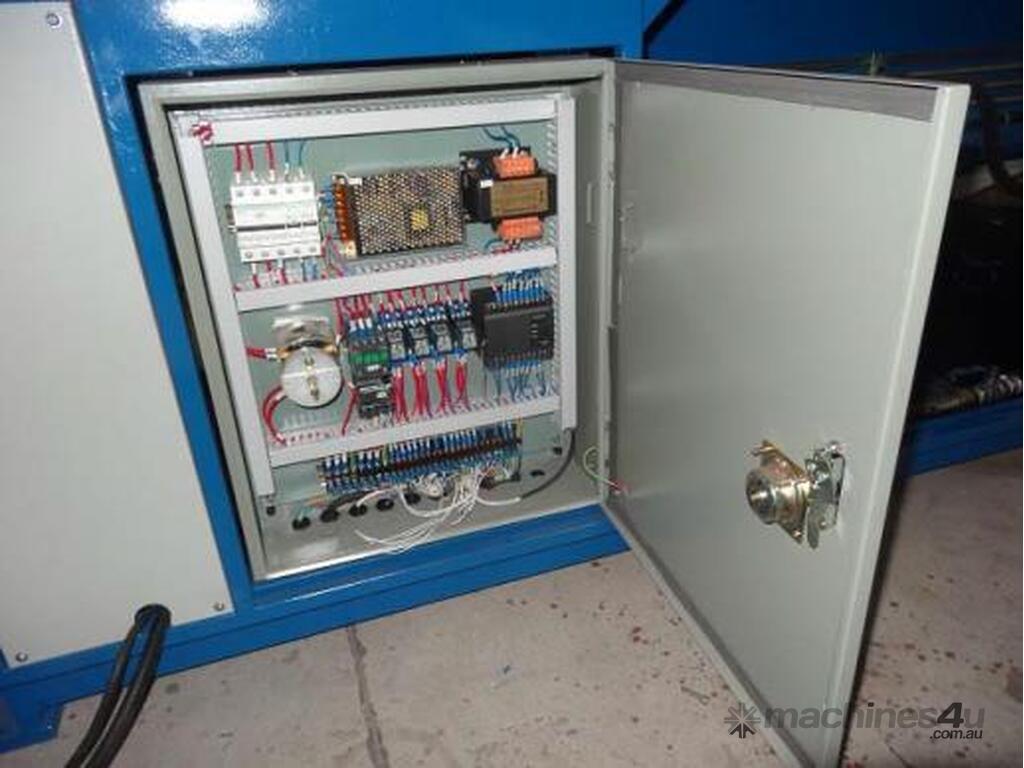

• Schneider electrics
• Omron relays
• Omron safety sensors
• CRT hydraulic pump
• Dachung hydraulics

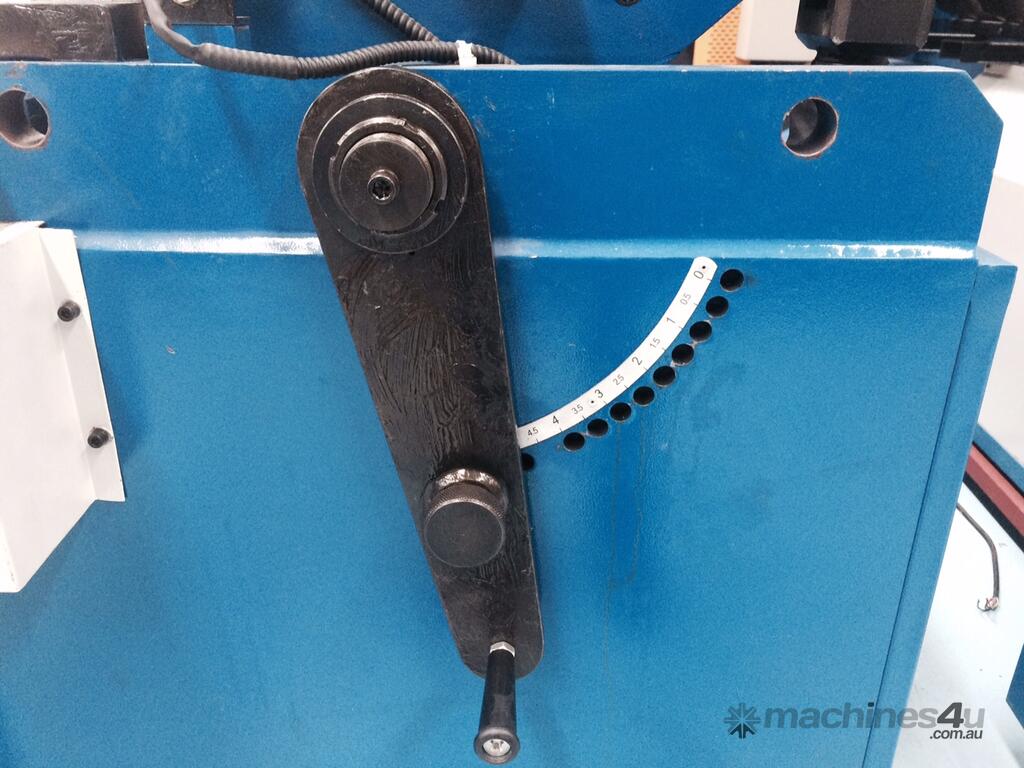

• Top bend gauge adjustment by lever with 11 positions
• Front and rear physical safety guards

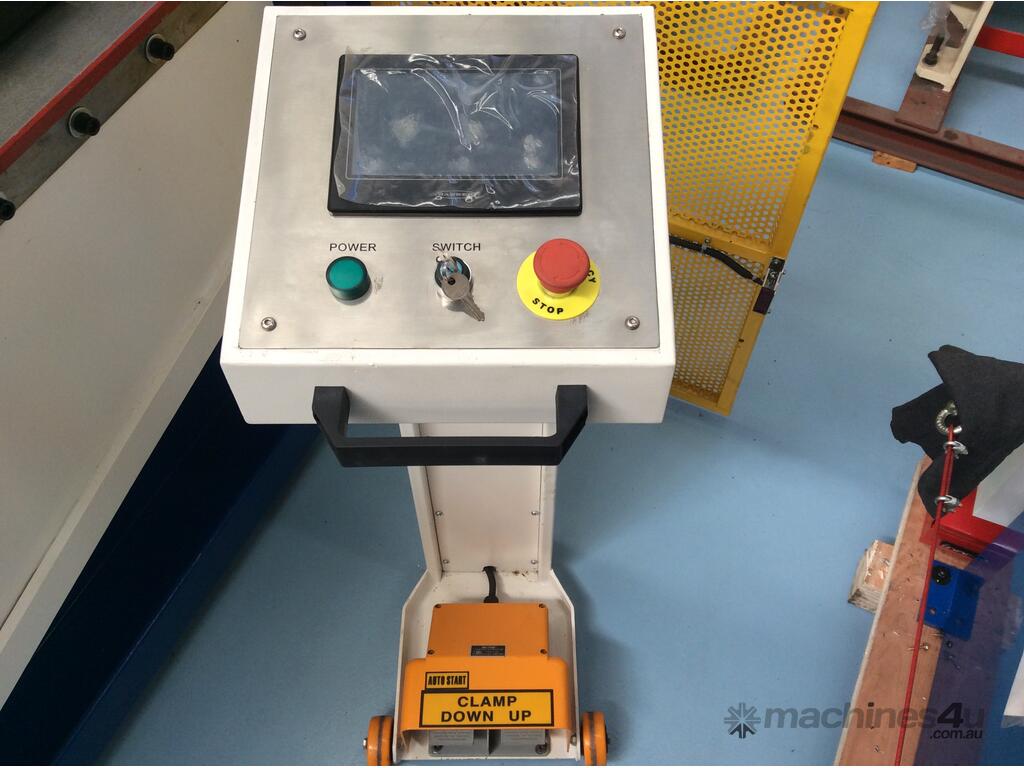

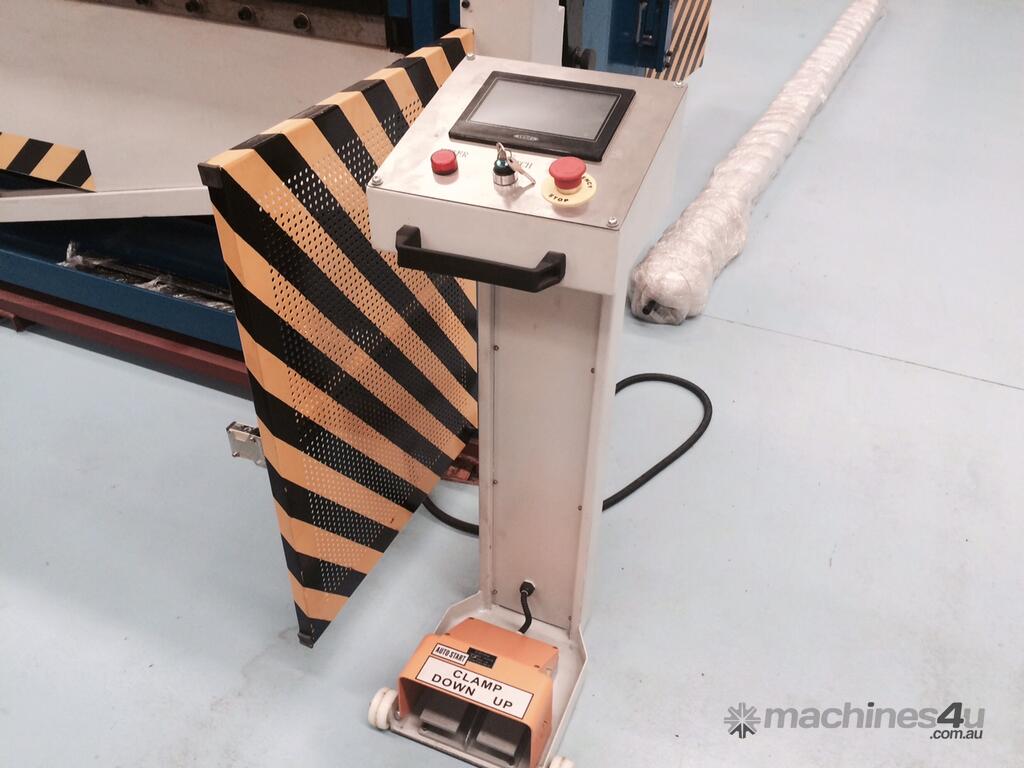

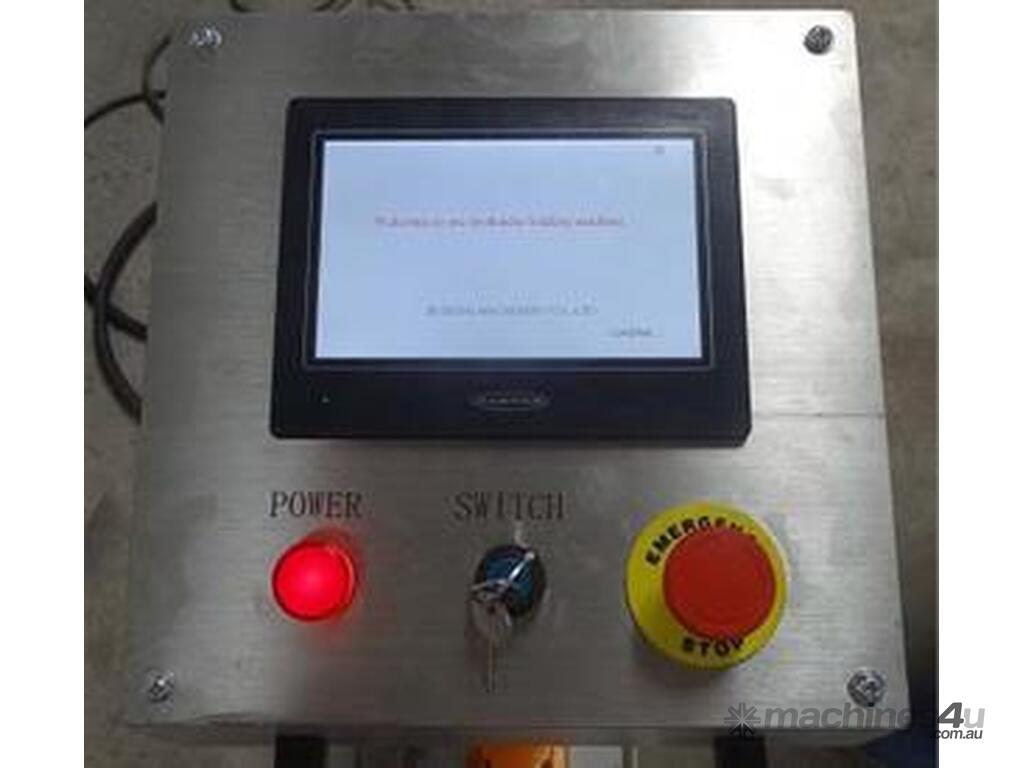

• Roving operator station with emergency stop, raise and lower foot pedals, touch screen controller and lockable power switch
• Manual back gauge, 1000mm with measuring scales
