CNC Beam Drilling, Milling, Tapping & Cutting Line

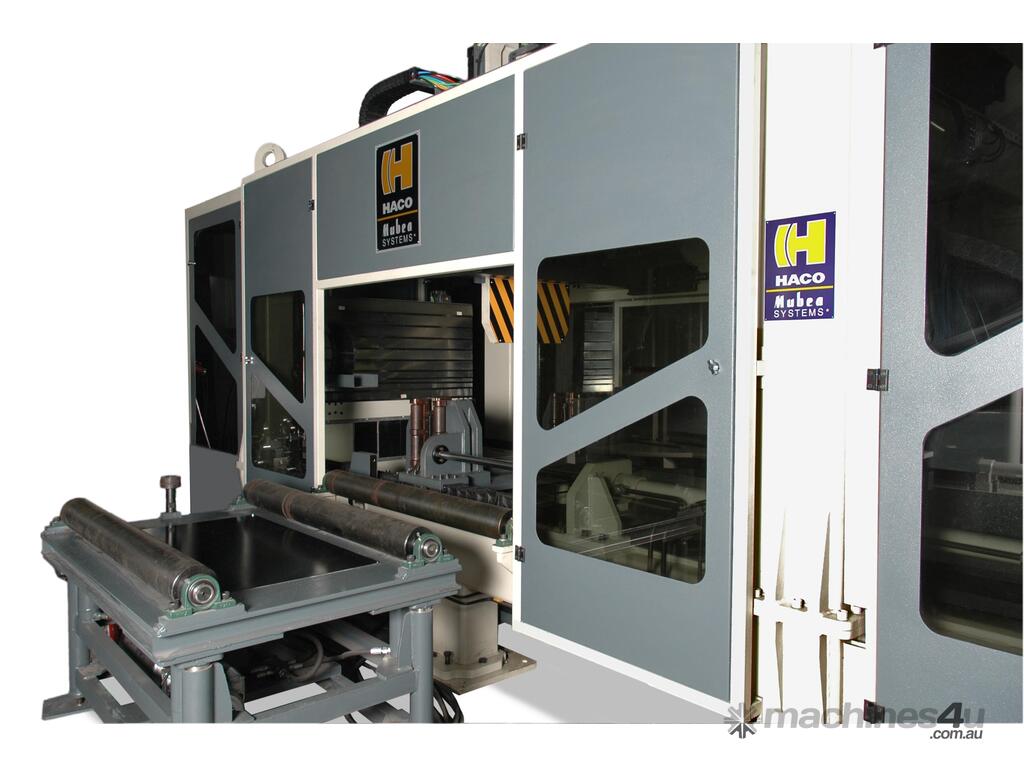

The DRILLMASTER 1203 is a fully integrated MULTI spindle CNC controlled drilling line, designed for processing of beams and shaped rolled sections.

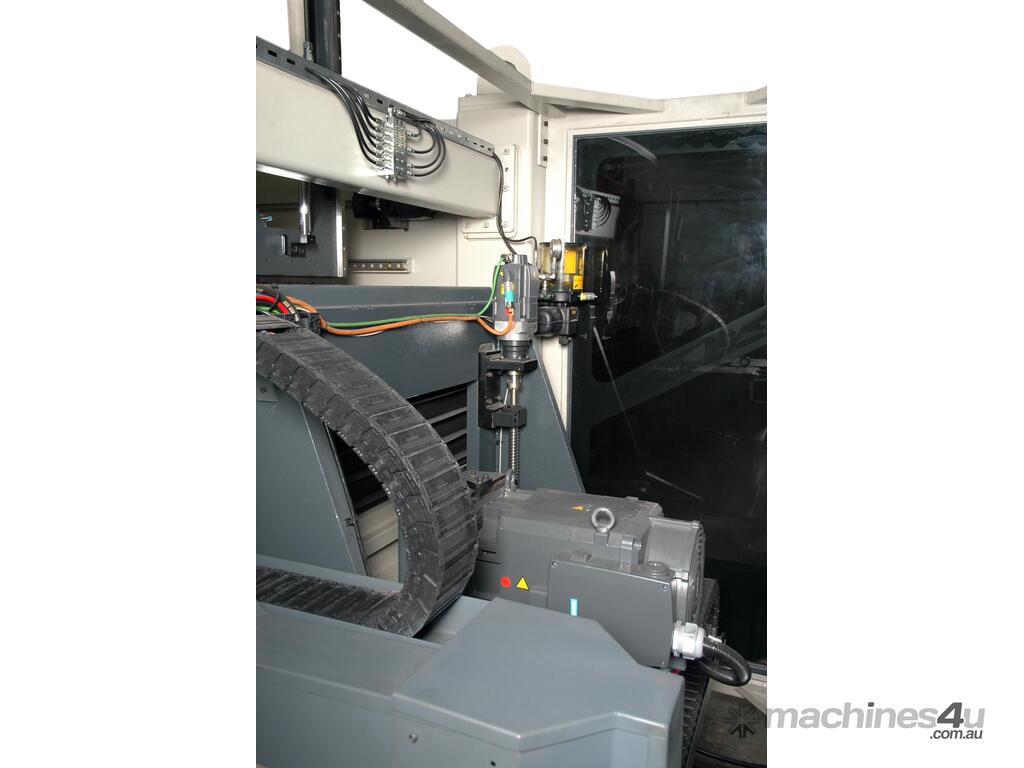

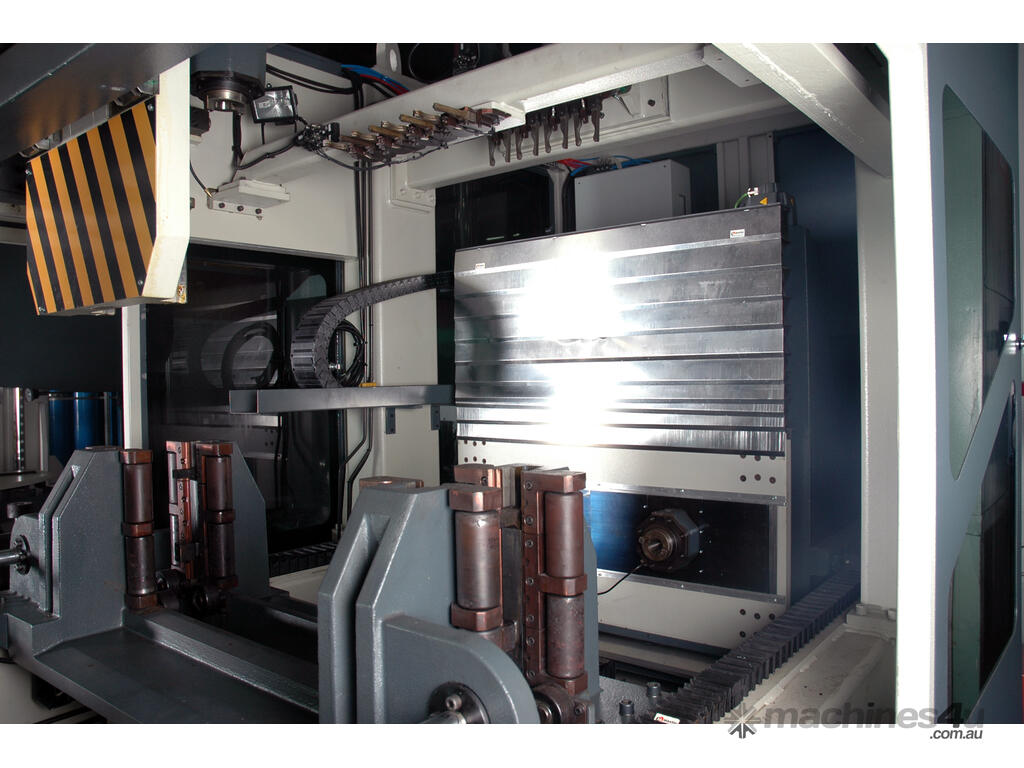

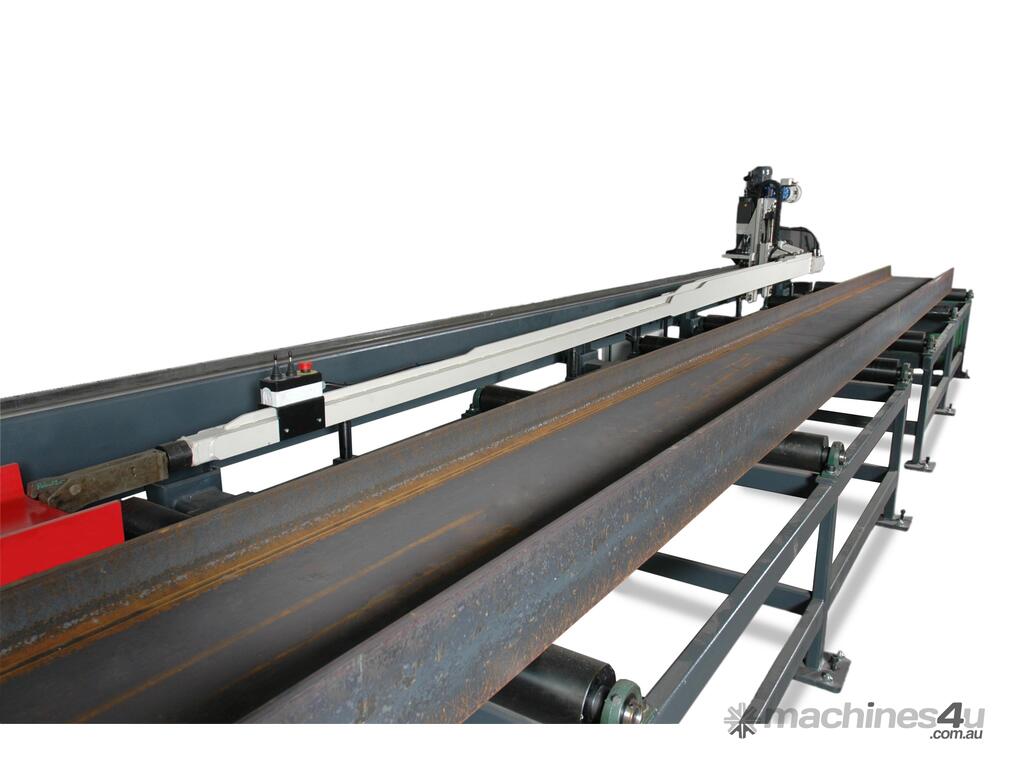

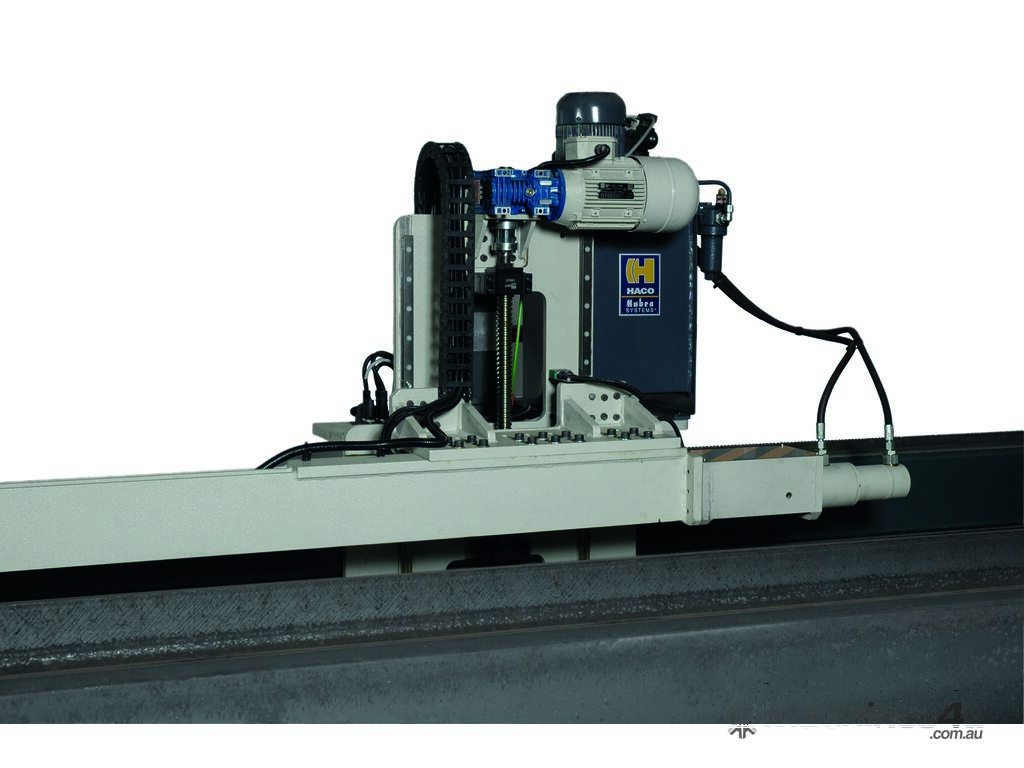

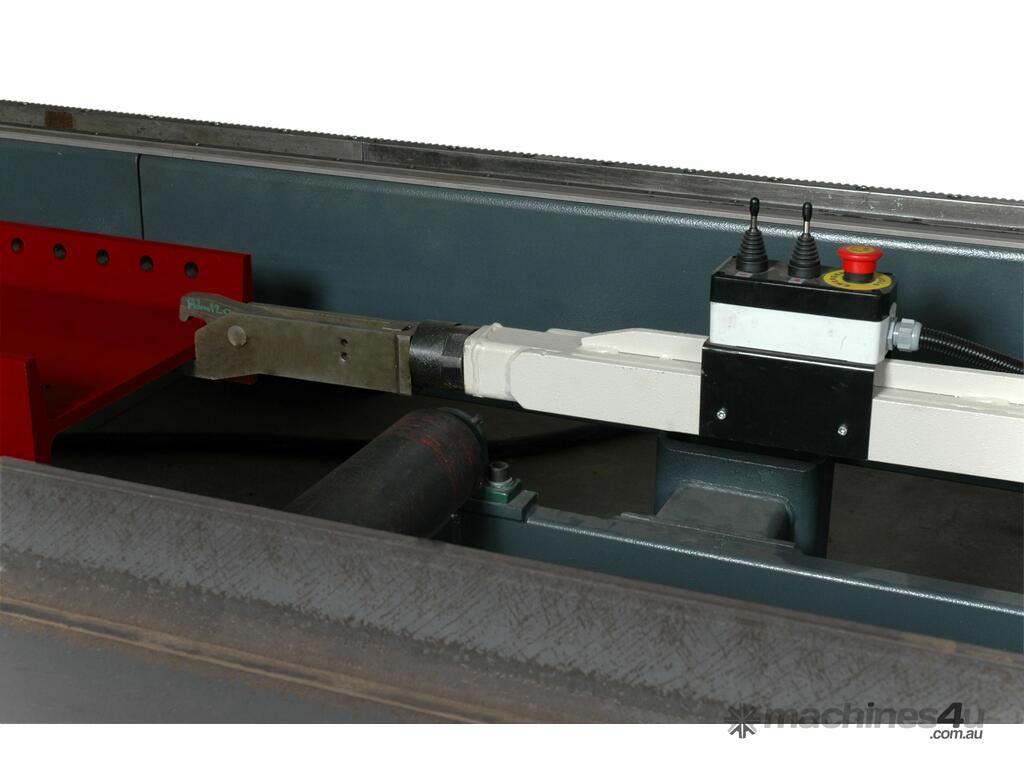

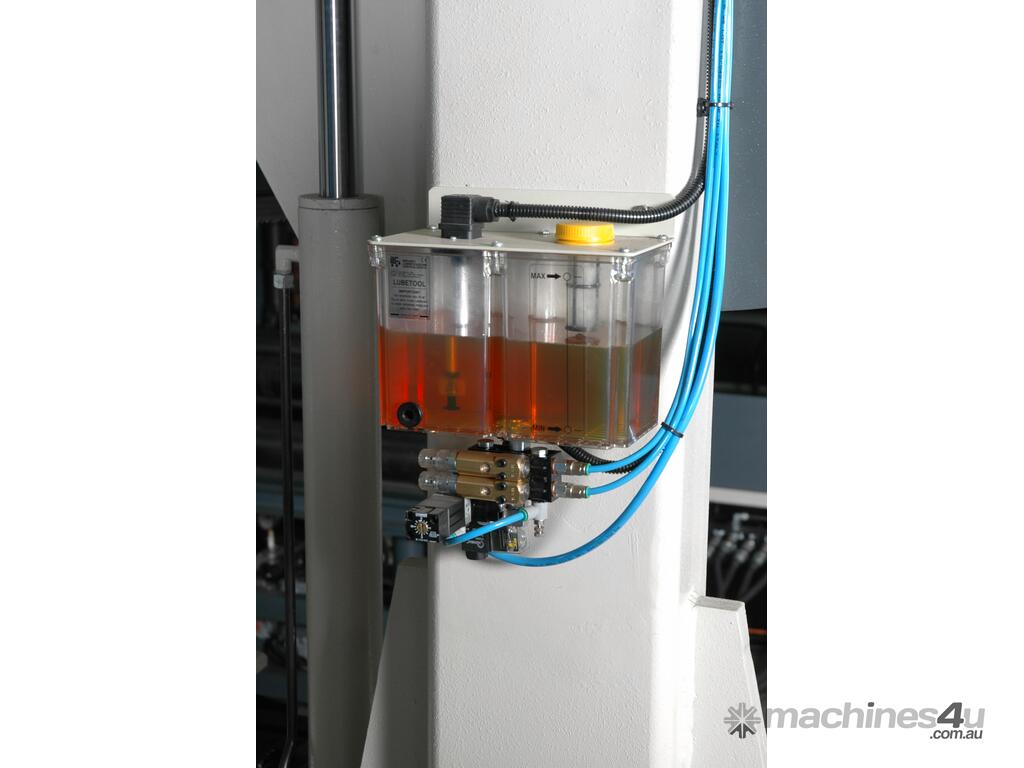

Executed with three drilling spindles. The CNC controlled In-feed conveyor will position the profiles thru the drilling station. The automatic hydraulic double jaw vice, will clamp the material in both horizontal and vertical position. The full option, three spindle machines are executed with an Z-axis allowing simultaneous and independent control of each individual spindle over 500mm stroke, without repositioning the beam, increasing flexibility and productivity.

The Haco CNC Drilling and Cutting lines provide high quality solutions in manufacturing of beams and shaped rolled sections (Beams, Angles, flats, Channels,...). Used in major sectors such as General Steel Manufacturers, Bridge manufacturers, Tower manufacturers, Truck and Crane manufacturers, they offer greatly enhanced productivity, efficiency and reduced processing time in just one operation. All our Drilling lines can simultaneously drill, tap, scribe and mill and all spindles are standard manufactured with an Automatic tool changer. The optional CNC controlled horizontal bandsaw will cut your profiles to size.

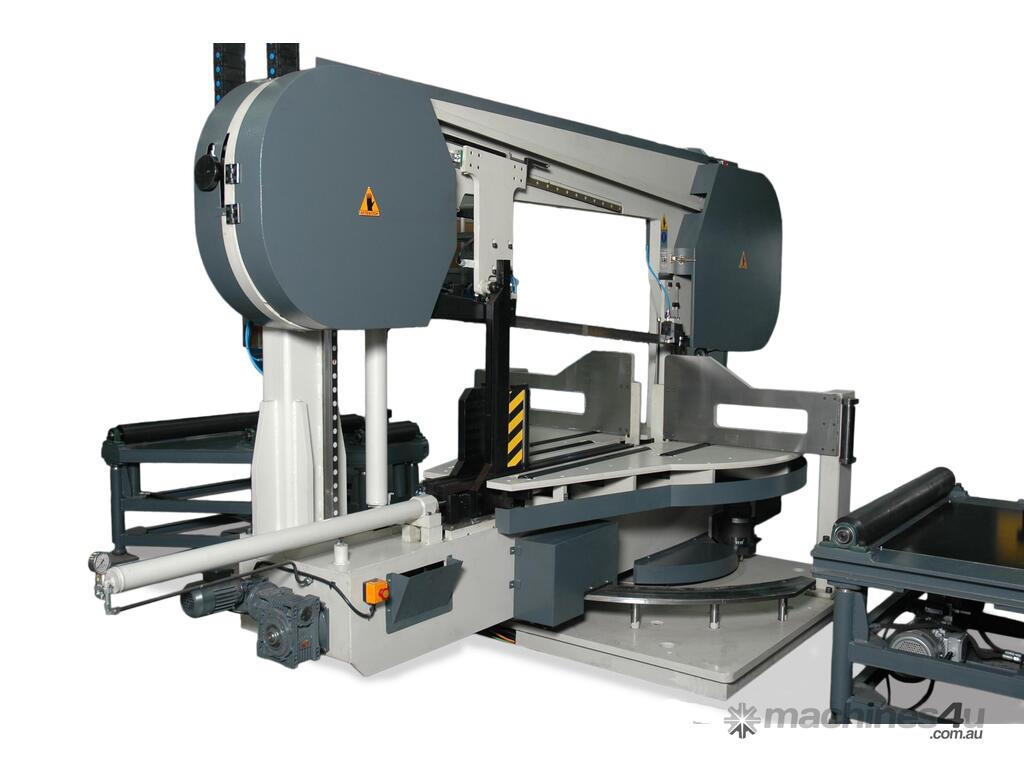

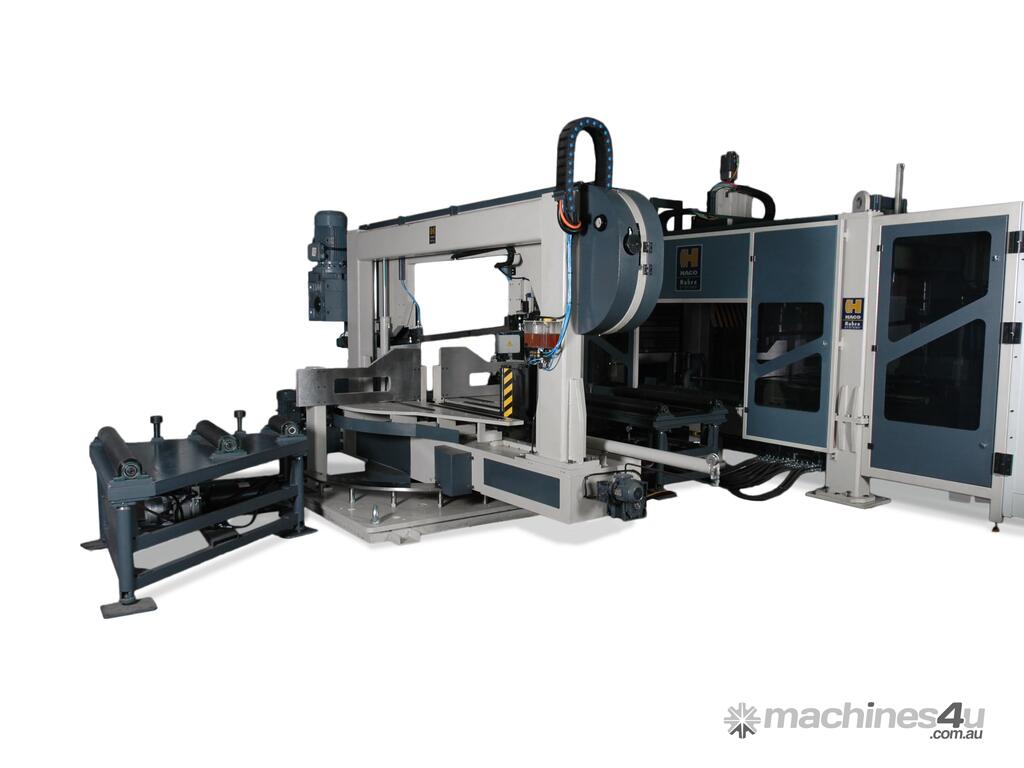

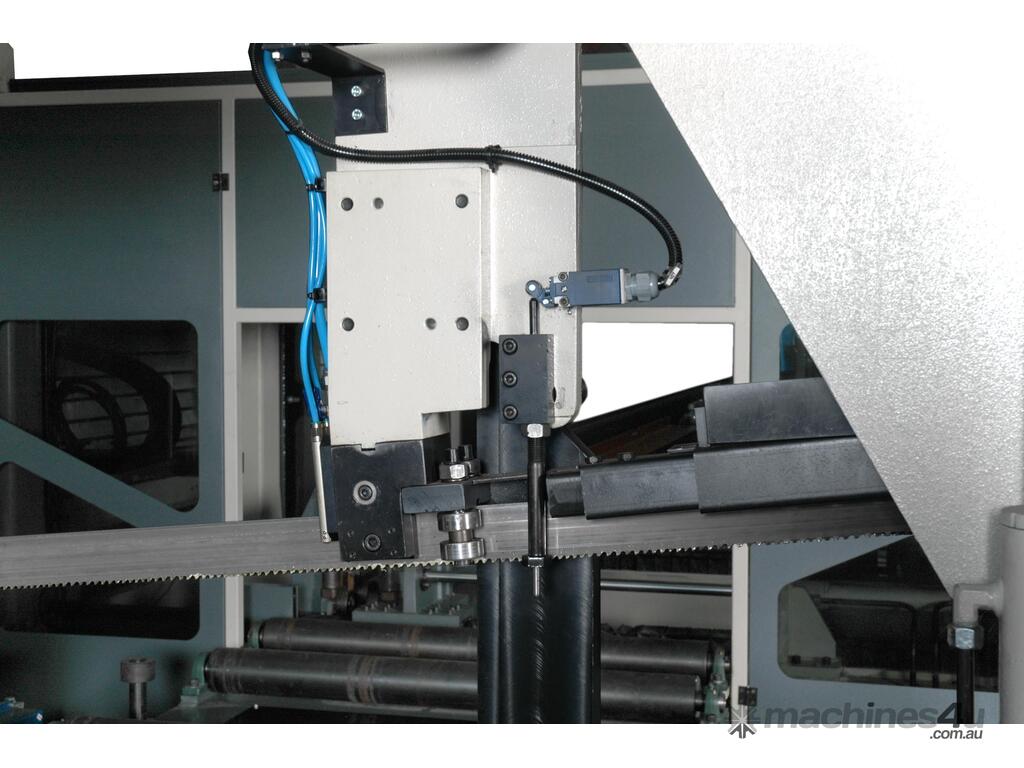

The automatic Mitre cutting, Horizontal Bandsaw Machine, can be optionally integrated into the CNC system. It can mitre cut on a 45 degree left angle and 60 degree right angle. During the automated cutting process controlled via the DRILLMASTER operator control, the material is fed through the machine. For a straight cut, the machine will automatically start cutting after the feeder has reached the required position. For a mitre cut, the large CNC controlled turntable, driven by a servo motor, will turn the table to the desired cutting angles.

Capabilities:

- Drilling
- Milling
- Tapping
- Countersinking
- Layout Marking

- Beam
- Channel
- Tube
- Angle
- Plate

- Optional AST1200 mitre cutting bandsaw to complete the total package

Features:

- 500mm sub-axis for independent spindle control. Multiple processes can be performed on the beam with a 500mm range without the need for re-positioning - resulting in much improved processing speeds of your profile.
- Mitsubishi servo motors for maximum performance and reliability
- Intelligent spindle movements ensure material is approach at maximum feed-rate and only slows to optimum processing feed-rate as it closes in on the material. Again, resulting in improved processes speeds by minimising non-optimal movement speeds.
- Advanced Mitsubishi C70 Series CNC IQ Platform

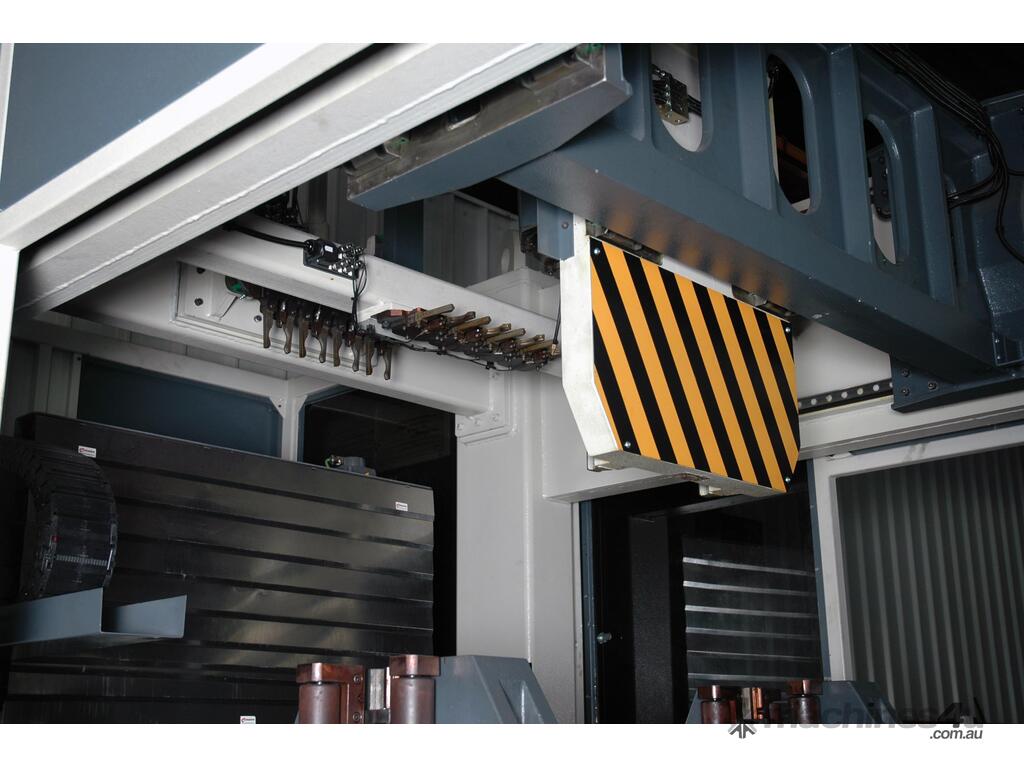

- Automatic tool changer with 8kg load for each station, 4 stations per spindle.
…….. and much, much more

Specifications:

- 200 x 80mm (min), 1200 x 500mm (max) operation range for section
- 2000 - 12000mm operating range (length)
- 50-3000rpm (stepless) spindle speed
…….. contact us for a complete list of specifications and profile capacities.
