CNC Bed type milling machine KNC-U1050

CNC Bed type milling machine KNC-U1050

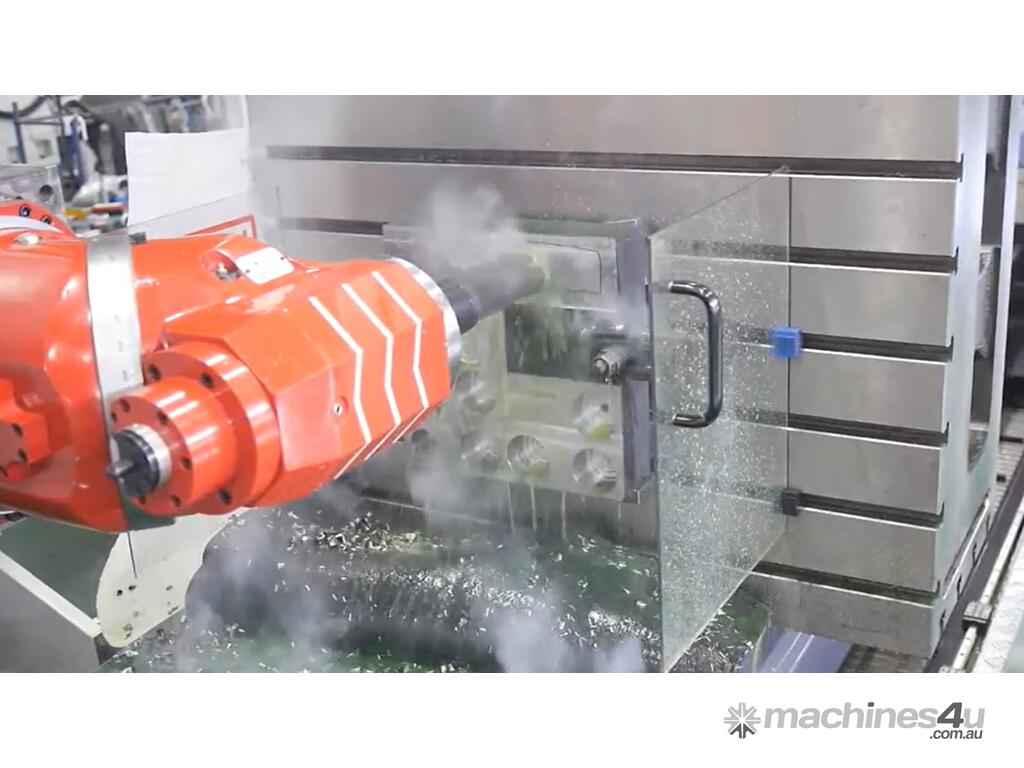

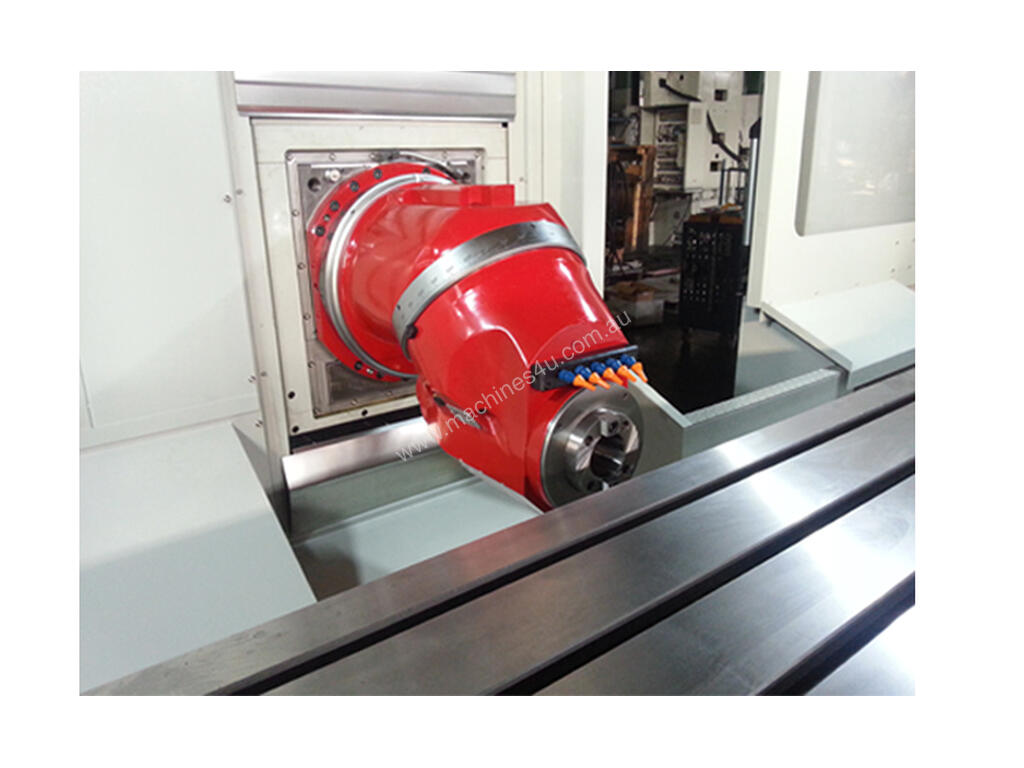

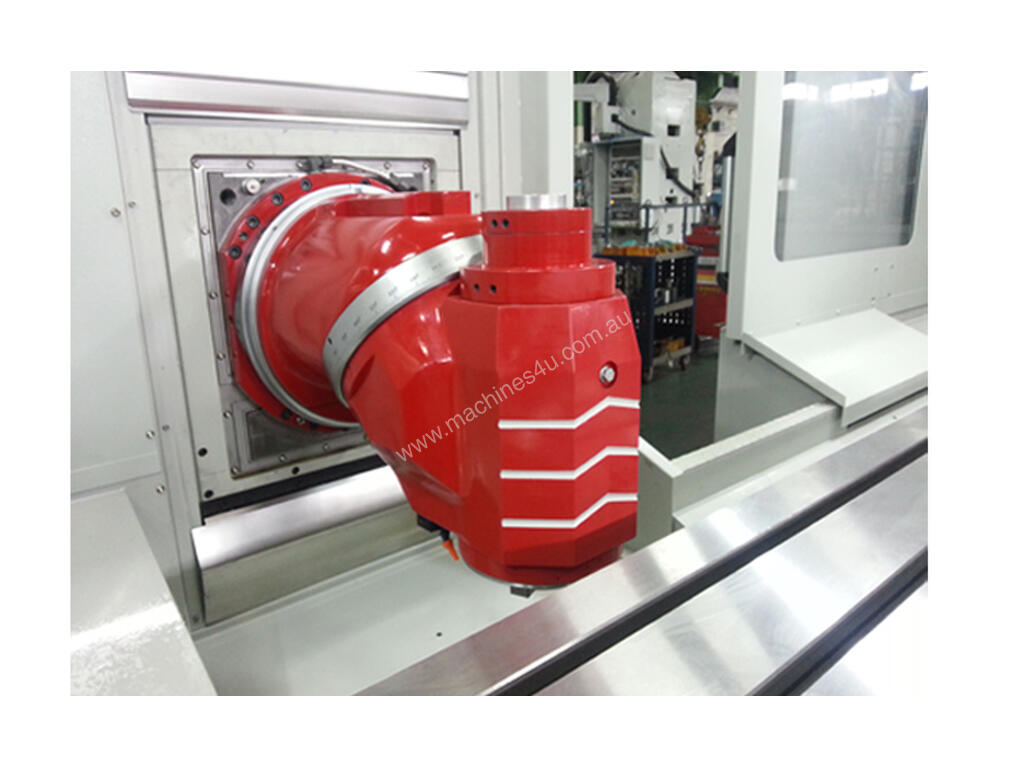

U1050 is designed for heavy machining and small-medium sized parts! it can support work piece up to 10,000kg. And it is the high performance machine featuring rigid construction with Flat-Ram design which cannot be disturbed with “inside-works”, because all the transmission equipment (ZF gear box, Belt/Pulley) are located at the rear of the Ram.

So this structure can be very stable with good rigidity suitable for both heavy duty rough operations and the accurate finishing machining.
For the high accuracy, cross Y-axis Ball screw has the internal oil cooling system. And the high rigidity KORTA ball screw with hardened C3 class double nut ball screws are preloaded to minimize backlash, provide high precision movement, and reduce heat deformation on all axes.

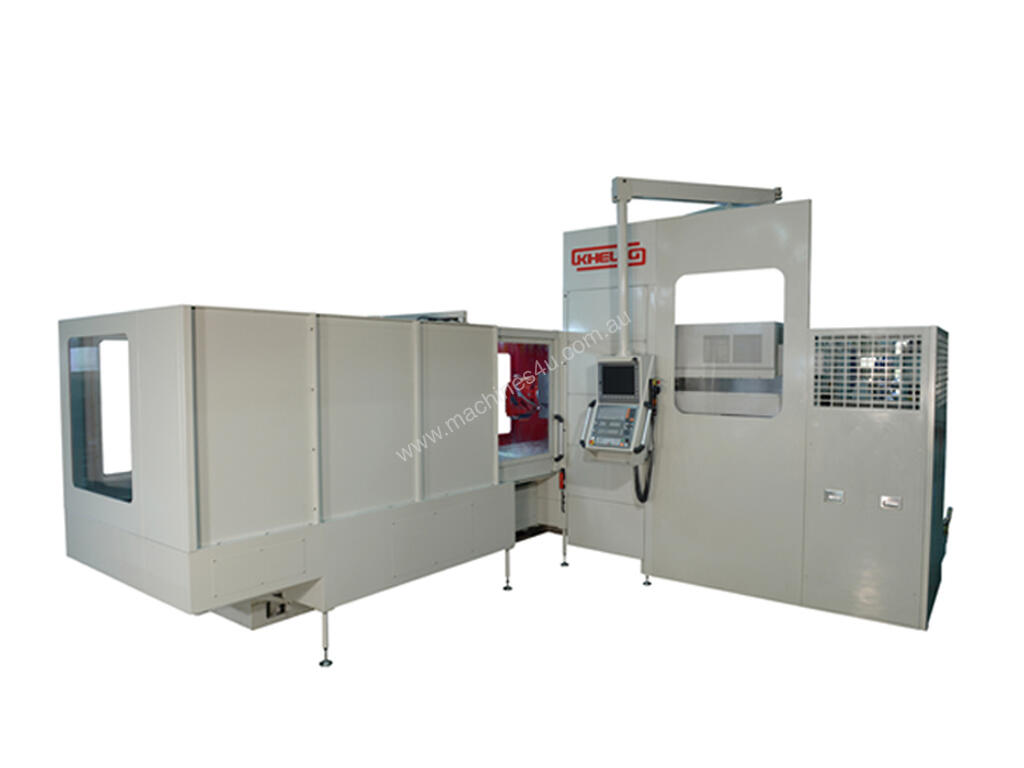

Also excellent accessibility to the working area, and the operator protections are provided including complete enclosures which allow a perfect chip disposal, coolant containment and can be the noise damper.

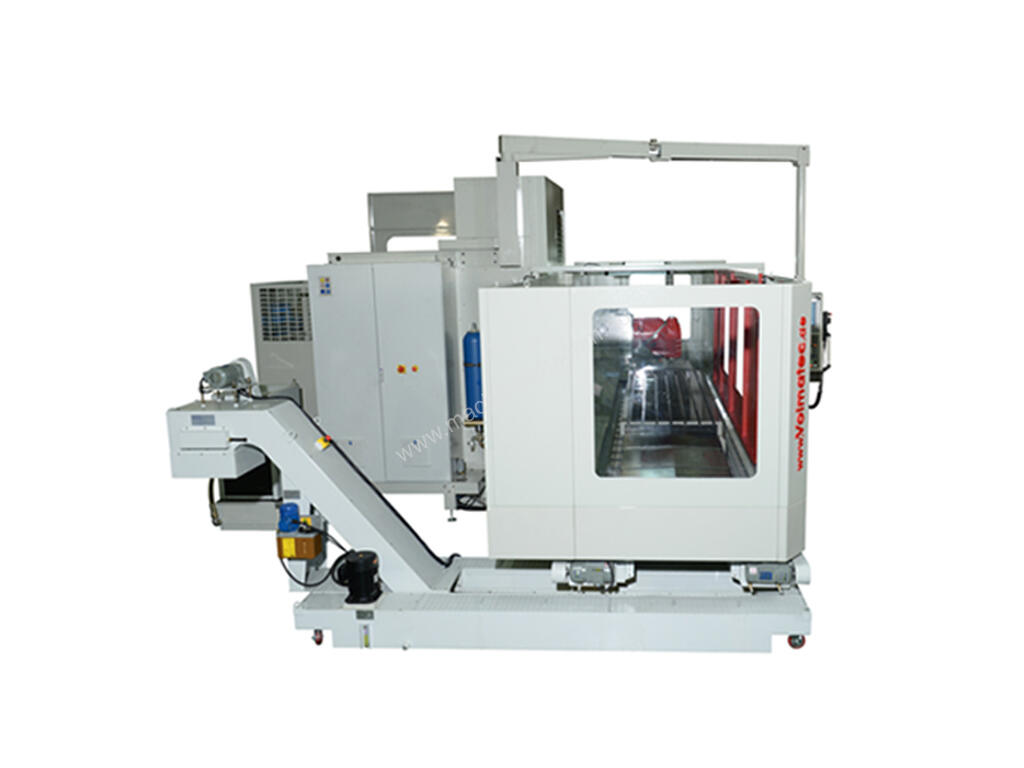

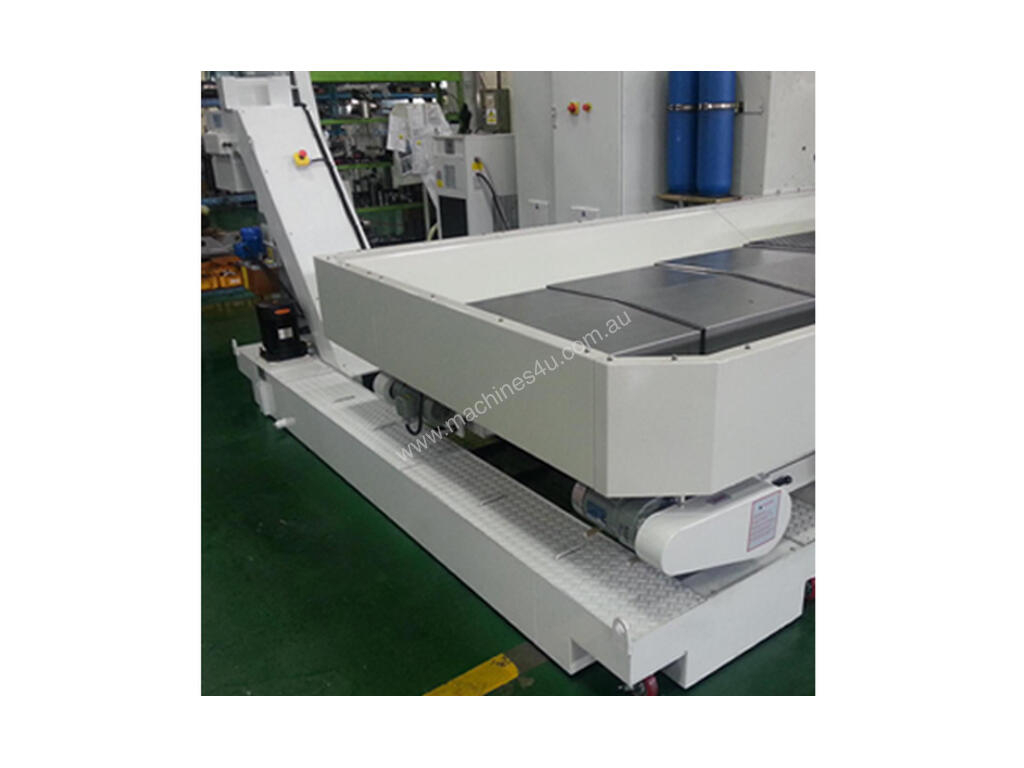

Furthermore all the chips and coolant water can be protected perfectly and conveyor to the chip reservoir and coolant tank effectively.


Machine specification U1050
TABLE
Length mm 2200/2700/3200
Width mm 900
T-slot/Width/Distance mm 7/22/125
Max permissible load kg 8000/9000/10000
TRAVEL
Longitudinal mm 2000/2500/3000
Cross mm 1050
Vertical mm 1300/1600
FEED
Axis mm/min 10000
Rapid mm/min 16000(X,Y,Z)
Drive motor Nm 28(X), 21.6(Y), 28(Z)
SPINDLE
Taper ISO50
Speed rpm 4000 (2 step : 0~1000, 1001~4000)
Drive motor kW 24/38
WEIGHT kg 19000/21000/23000

Please call or enquire for more info or pricing we are happy to assist
