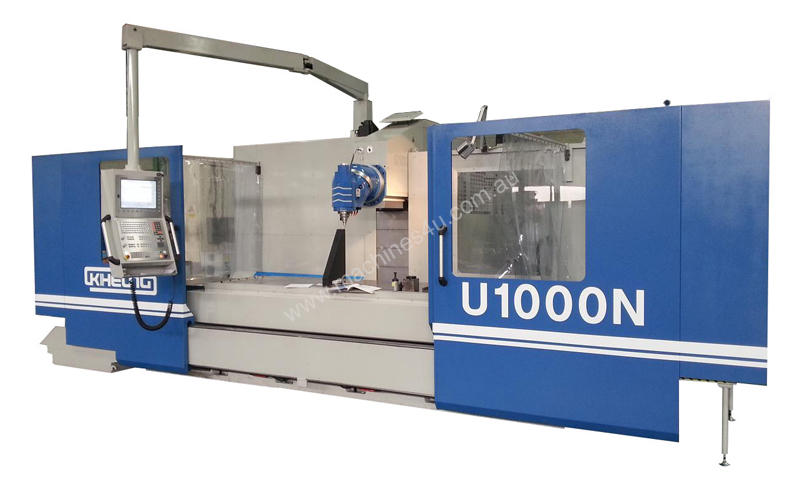

CNC Bed type milling machine U1000

CNC Bed type milling machine U1000

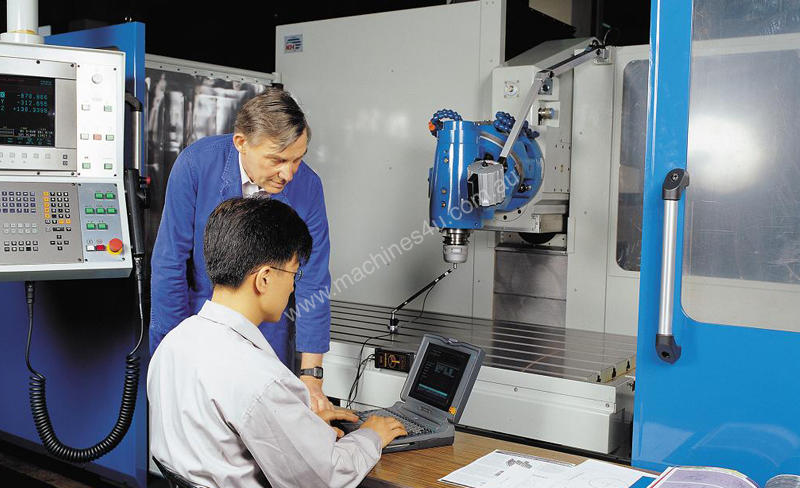

U1000 is designed for heavy machining and variety sized parts! it can support work piece up to 13,000kg and milling performances, power 42kw and torque 1636Nm.

For the high accuracy, cross Y-axis ball screw has the internal oil cooling system. For the perfect movement cross Y-axis, there is the box way saddle with anti-friction material(turcite or biplast).

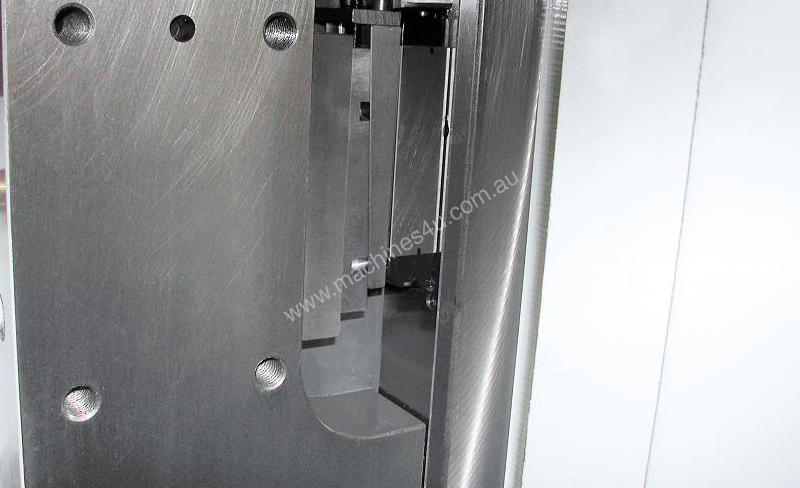

For the no "Ram drooping" of Y-axis 1250mm, there are the combination of box way design, INA steel way on the column and INA roller shoes on the saddle.

For the smooth movement of vertical Z-axis, there are the hydraulic cylinder weight balance with French Olaer accumulator and anti-friction material(turcite or biplast).

LM ball screw support system with the ball screw vibration absorber can make vibration-free running, noise reduction and also the no accuracy deformation.

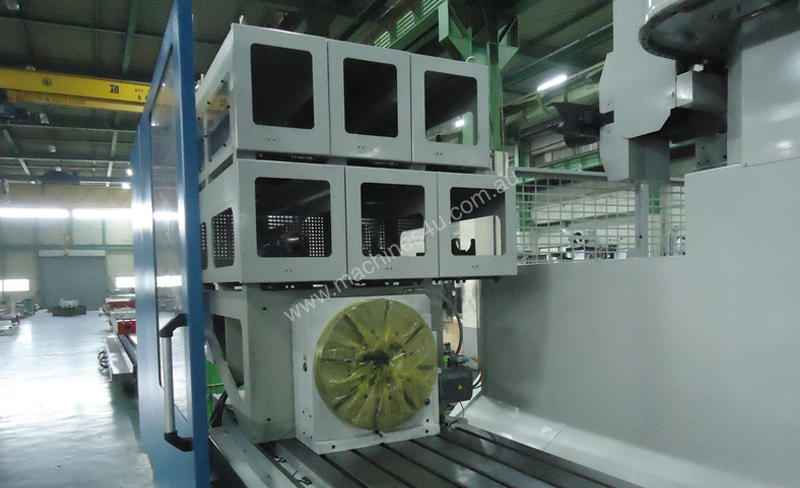

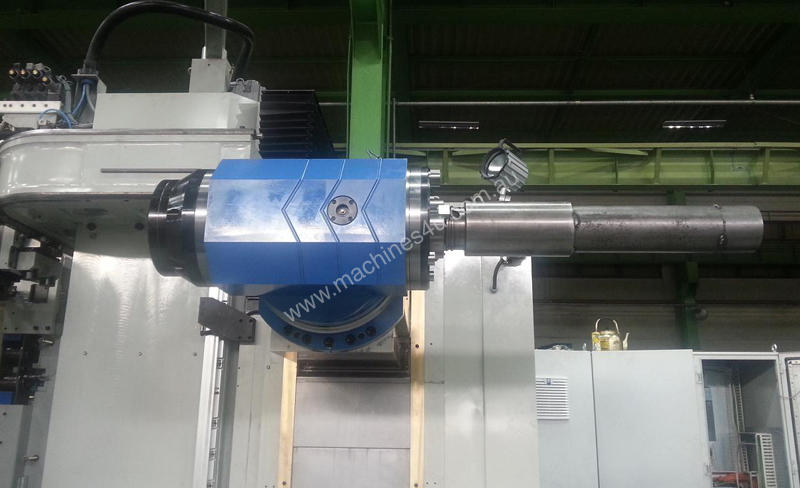

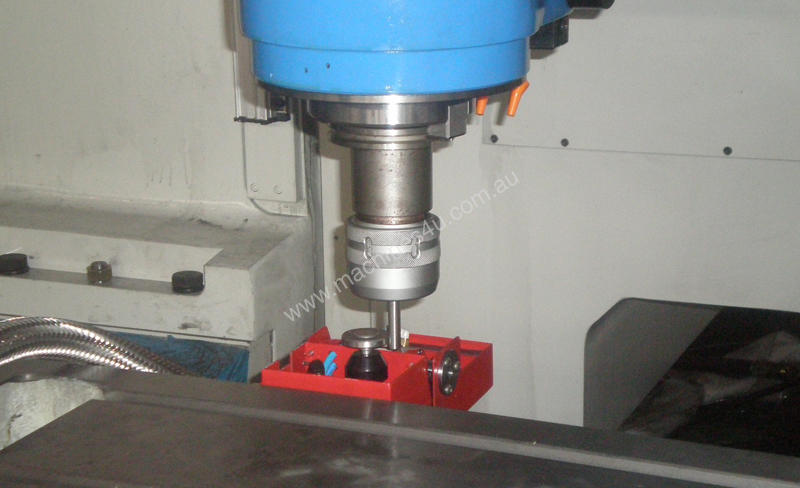

Together with the wide choice of heads(vertical, A2, A4 and orthogonal etc..) and accessories(4th axis rotary table, sub angle table and special head change station etc..) available, makes this machine reliable and suitable for a variety of applications.


Machine specification U1000
TABLE
Length mm 2500/3100/3600/4100/4500/5000
Width mm 900(1050)
T-slot/Width/Distance mm 6(7)/22H7/125
Max permissible load kg 8000~13000
TRAVEL
Longitudinal mm 2100/2600/3100/3600/4100/4500/5000
Cross mm 1000/1250
Vertical mm 1050/1350/1600/2000
FEED
Axis mm/min 5000
Rapid mm/min ~X3600 : 12000(X,Y), 10000(Z)
X4100~ : 16000(X), 12000(Y), 10000(Z)
Drive motor Nm ~X3600 : 27(X,Y,Z)
X4100 : 50(X), 27(Y,Z)
X4500~ : 70(X), 27(Y,Z)
SPINDLE
Taper ISO50
Speed rpm 4000 (2 step : 0~1000, 1001~4000)
Drive motor kW 28/38
WEIGHT kg 21000~35000
