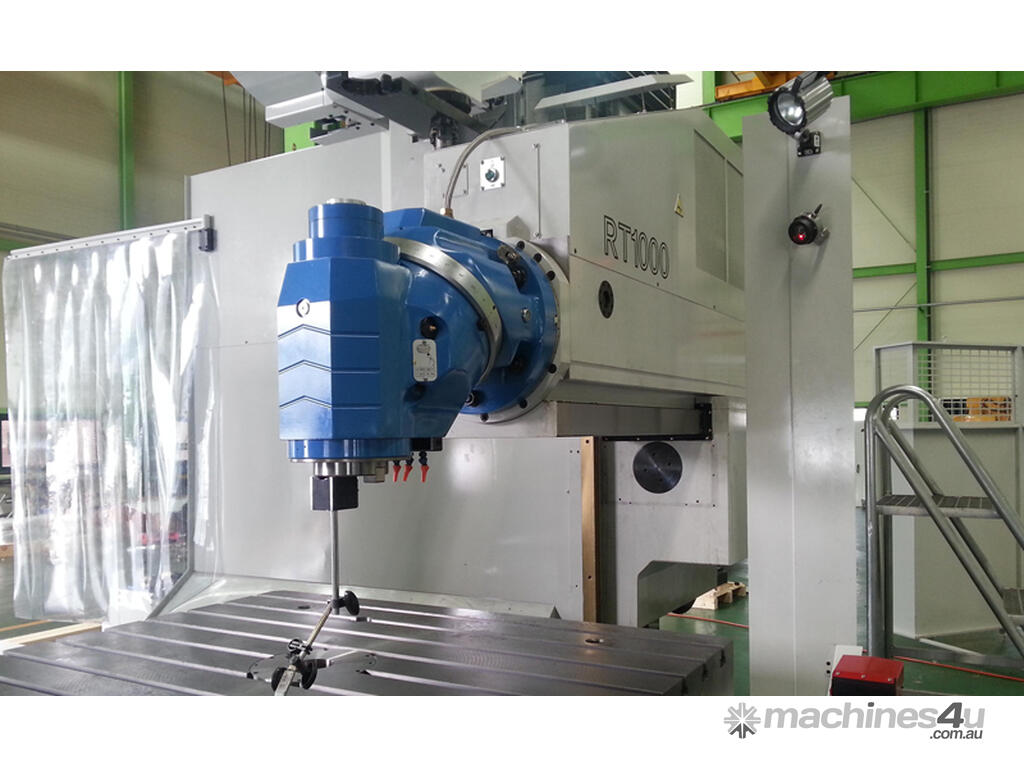

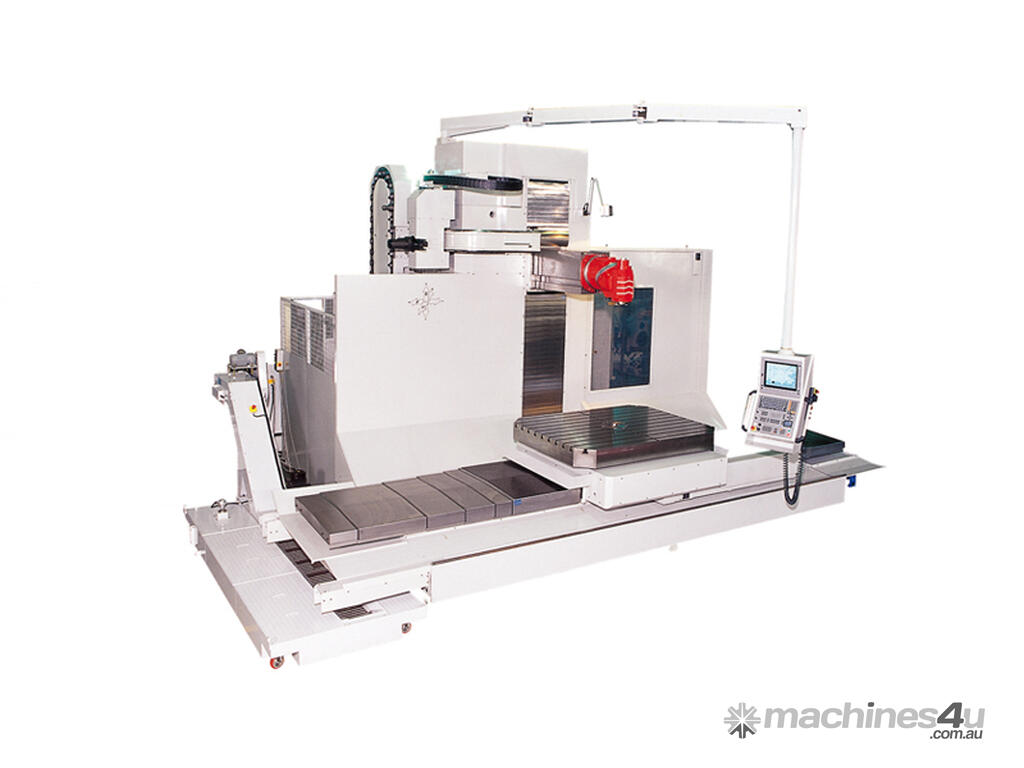

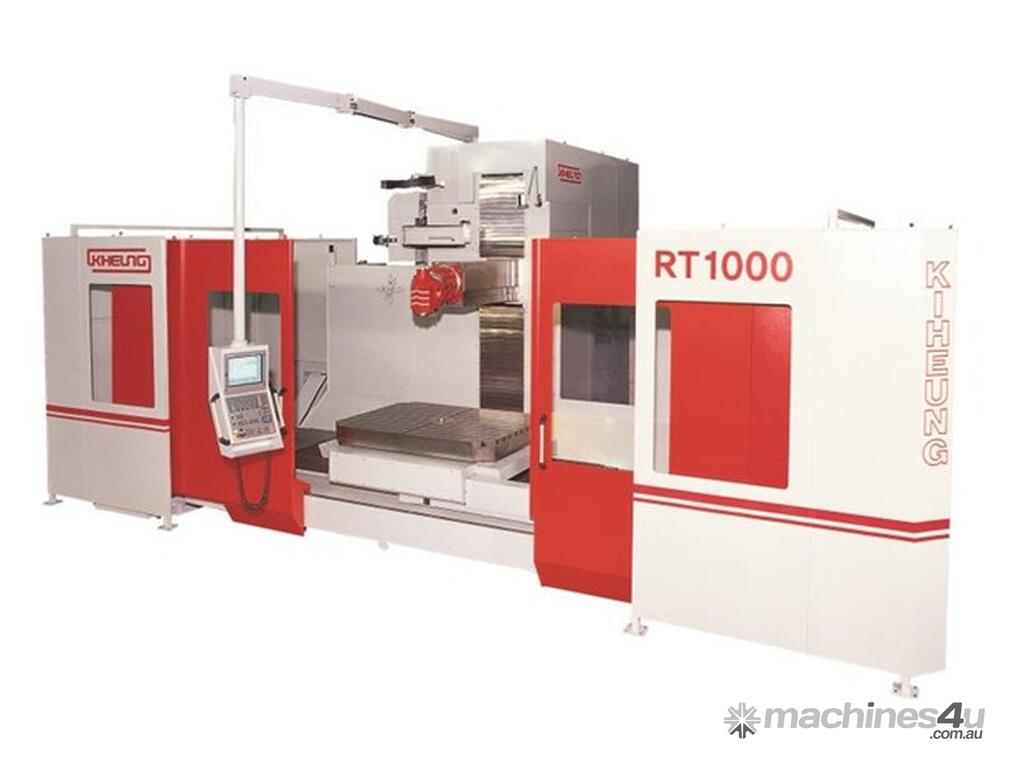

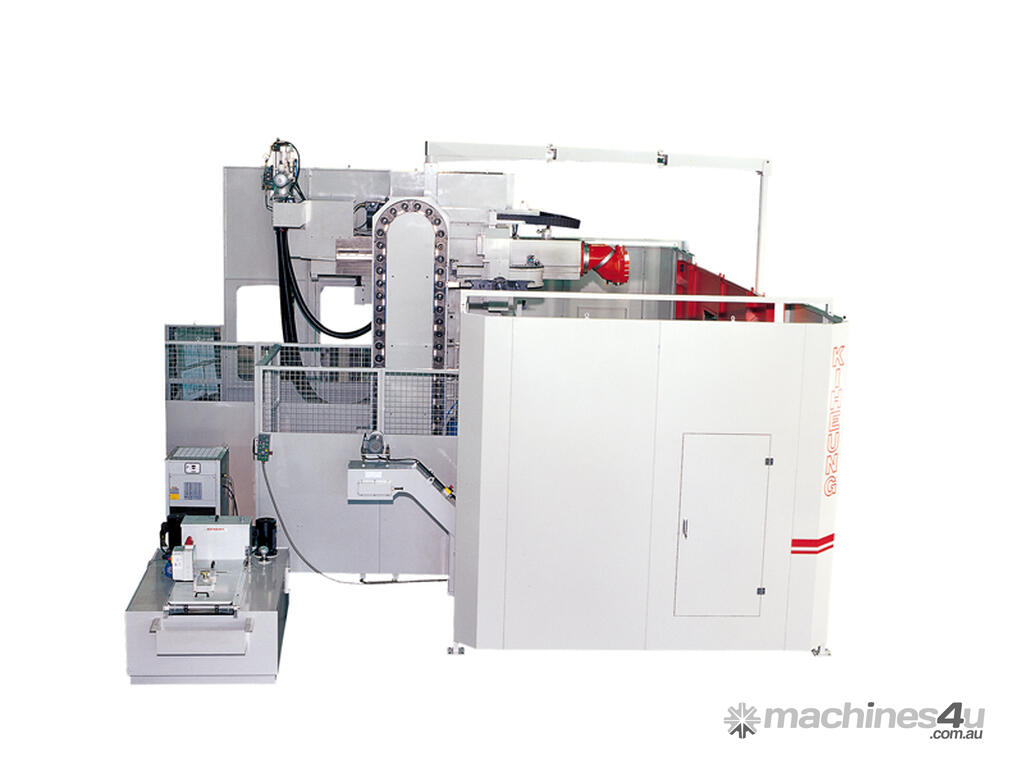

CNC Bed type milling machine with rotary table RT1000

RT1000 is designed for heavy and versatile position machining! Table can support work piece up to 8000kg and milling performances, power 42kw and torque 1636Nm.

The technical specification and fundamental characteristics are based on U1000, also the stable rotary table(Germany, FIBRO or Italy, OMR..) can make RT1000 has more good precision and rigidity.

Max. spindle speed 4000 rpm - also in continuous operation - is ensured with high quality component, such as spiral bevel gear (Germany, Tandler) and bearing (Sweden, SKF) as well as head cooling system, which is supplied as standard.

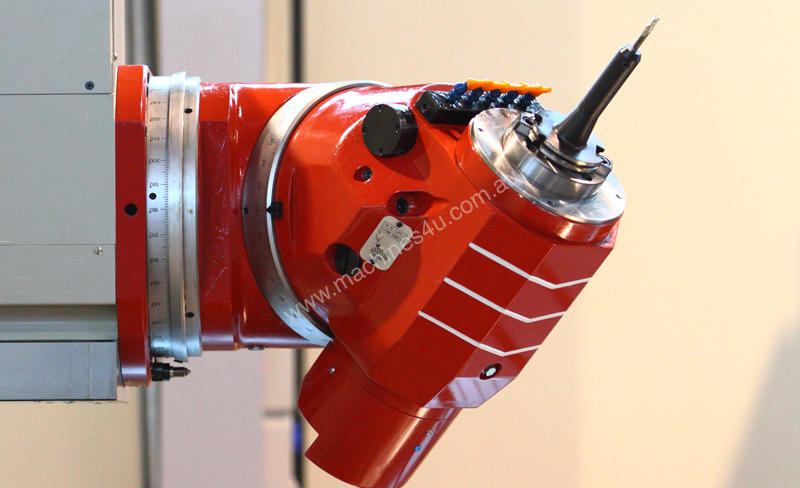

Also it incorporates top quality high precision bearings (Spain KORTA), ball screw and spindle assemblies and features ‘ZF gear box’ arrangement as standard. Optional universal automatic Vertical(2.5°indexing) head, A2(vertical-horizontal) and A4(2.5°indexing) head arrangement allows extremely flexible machining capabilities.

Especially suitable from 5 sides thanks to its built in automatic positioning 2 axis head.

Machine specification RT1000
TABLE
Surface mm 1400x1200/1800x1400
T-slot/Width/Distance mm 9(11)/22/125
Max permissible load kg 8000
Auto indexing,continuous ° 0.001
TRAVEL
Longitudinal mm 2500/3000/4000
Cross mm 1050/1250 (with Flat ram)
1000/1250 (without Flat ram)
Vertical mm 1450/1850
FEED
Axis mm/min 5000
Rapid mm/min 12000(X,Y), 10000(Z), 6(C)
Drive motor Nm T1400x1200 : 50(X), 27(Y,Z), 50(C)
T1800x1400 : 70(X), 27(Y,Z), 70(C)
SPINDLE
Taper ISO50
Speed rpm 4000 (2 step : 0~1000, 1001~4000)
Drive motor kW 28/38
WEIGHT kg 25000~36000

Please call or enquire for more info or for pricing, are happy to assist.
