CNC Bed type universal machining center COMBI-U10,

CNC Bed type universal machining center COMBI-U10, U11

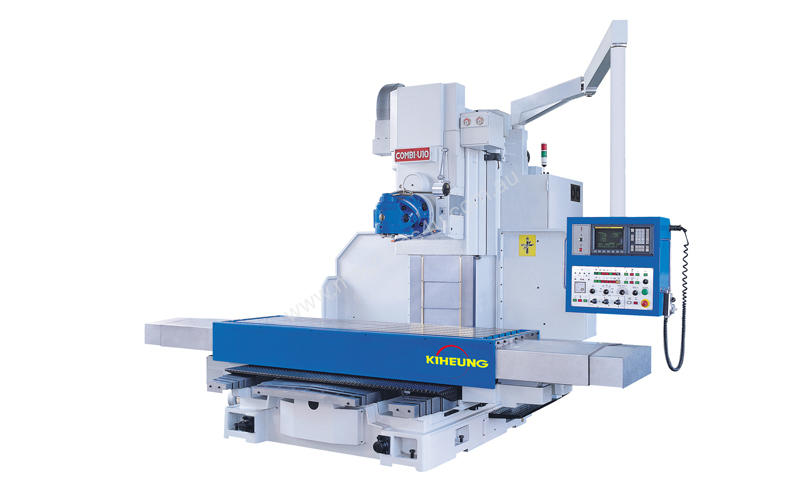

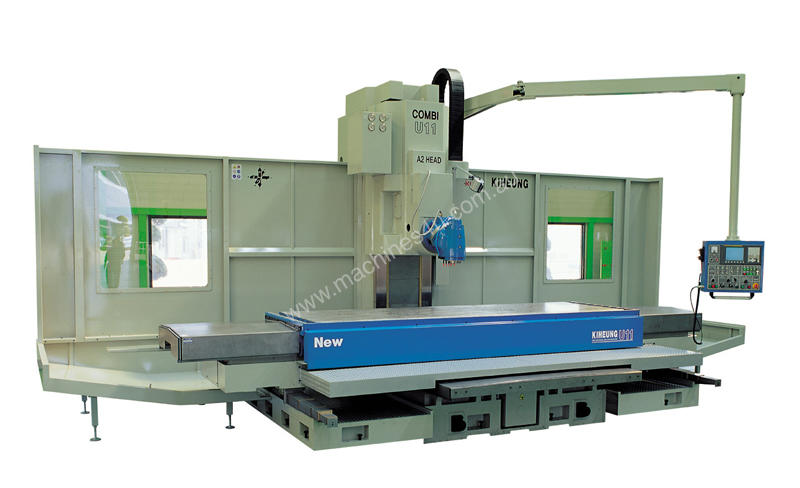

With the Fanuc, Heidenhain and Siemens CNC, COMBI-U10,U11 can control the 3-axis simultaneously and it is designed for heavy machining and medium-big sized parts!Milling performance, power 22kW and max. spindle speed 2000rpm with the 2 step high-low automatic gear change system, and the KiHEUNG`s unique huron system consisted of up head and low head can be turned to any desired angle and also vertical, horizontal combined angle milling is available. Optional universal automatic A2-head (Vertical-Horizontal) and A4-head(2.5° indexing) arrangement allows extremely flexible machining capabilities especially the machining for tilting plane. COMBI-U10,U11 are completed through the professional assembly and hand scrapping skills. The KiHEUNG`s unique Huron system consisted of up head and low head can be turned to any desired angle and also vertical, horizontal, combined angle milling is available. The column is of a rugged box-type construction and its ground slide ways are wide to support and guide securely the spindle head. The bed is composed of one piece construction with double box for lubrication oil and coolant. The hardened and ground slide ways of the bed provide high stability to the saddle, the saddle has a rigid box-type construction to cope with loads during heavy-duty cutting. It is supported by the wide slide ways of the bed to assure stale movement and the Biplast(anti-friction material) ensures the smooth movement of the axis.


TECHNICAL SPECIFICATION COMBI-U10 COMBI-U11

M head | A2 head | A4 head

TABLE
Surface mm 2660/3140/3600x1100 2660/3140/3600x1100
T-slot/Width/Distance mm 8/22/125 8/22/125
Max permissible load kg 4000 4000
TRAVEL
Longitudinal mm 2300/2800/3200 2300/2800/3200
Cross mm 1050 1400
Vertical mm 850 1200
Height from table to
vertical spindle nose mm 50~900 -15~1185 | -85~1115 | -95~1105
Height from table to
horizontal spindle nose mm 60~910 -5~1195 | 0~1200 | 0~1200
FEED
Axis mm/min 5000 5000
Rapid mm/min 10000 10000
motor Nm 30(X), 40(Y), 22(Z)
22/30(X),40(Y),22(Z)

SPINDLE
Taper ISO50 ISO50
Speed rpm 2000(1~540, 541~2000) 2000(1~540, 541~2000)
Drive motor kw 18.5/22 18.5/22
Distance from column to
vertical spindle center kw 1000 1180 | 1180 | 1280
Distance from column to
horizontal spindle center kw 1010 1200 | 1275 | 1355
WEIGHT kg 18500/21000/23000 21500/24000/26000
