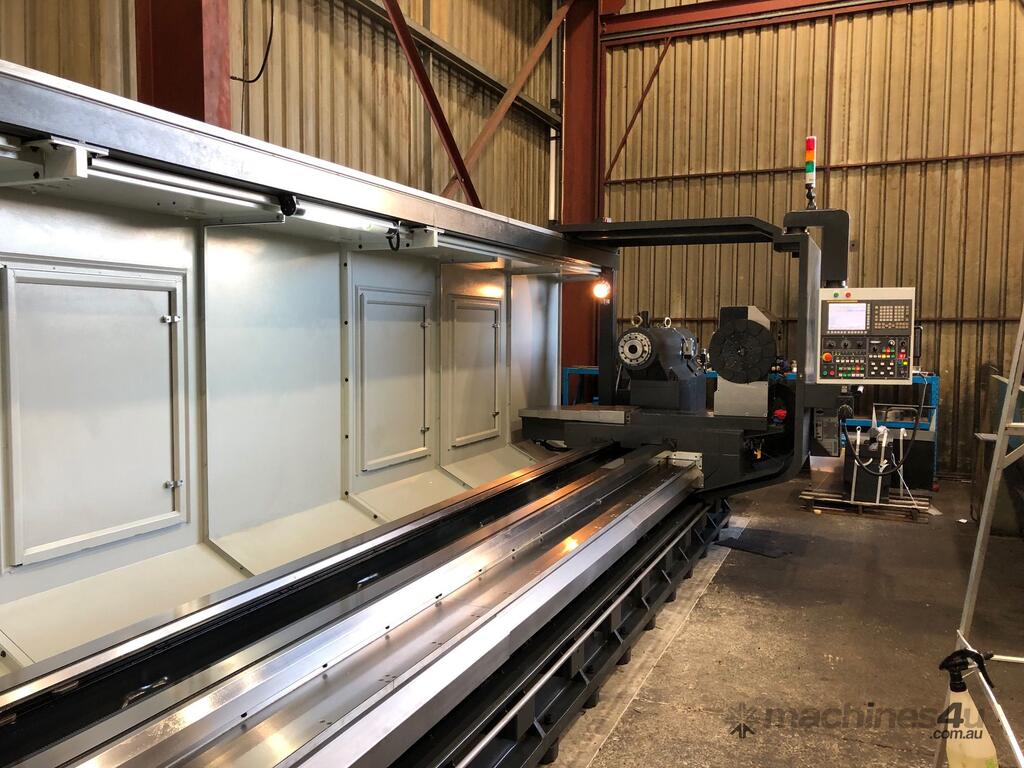

CNC LATHE MEGABORE 50"SWING X 20 FT CENTERS

Condition:
New - Build-To-Order


The LD series CNC Lathes offer a medium duty Lathe that is versatile and cost effective. The LD series is the most popular among our clients. Outstanding features. * One piece bed, floor type casting. * Alloy steel spindle with opposed taper roller bearings. * All gears in the headstock are hardened and precisely ground. * Automatic ranges of spindle speed through pneumatic gear shift. * Spindle speed ranges are automatically changed by M code. * Infinitely variable speed are commanded by S code. * Tool change are commanded by T code. * Auto lubrication system is equipped for headstock, carriage, and cross-slide. * Precision tapered roller bearings are equipped on the spindle and the quill. * The quill is heat treated and precisely ground. * Internal taper of quill to suit MT#5 dead center or live centre. * Turcite B anti friction material is applied on cross slide and carriage for reduce friction. * X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant.

Swing 50"
Machining Length 20'
# Axis 3
Bar Capacity 10"
Power 50 hp
Turning Dia 35"
Tailstock Yes
Live Tooling Yes
Control CNC (Fanuc)
Weight 15,000 KG

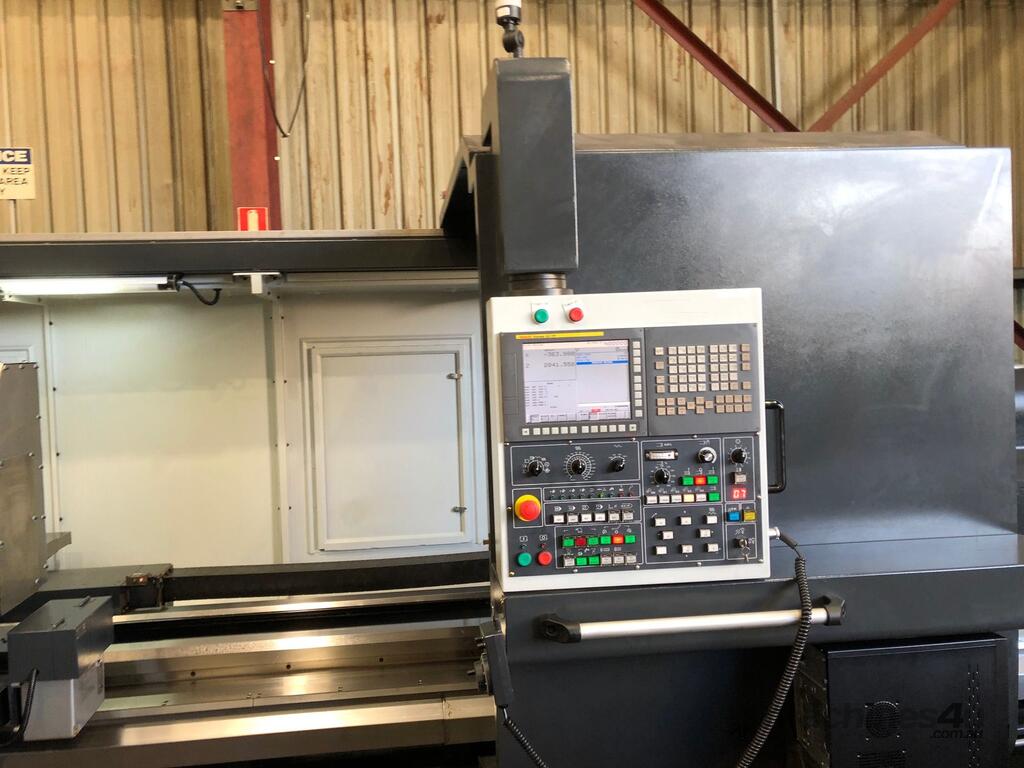

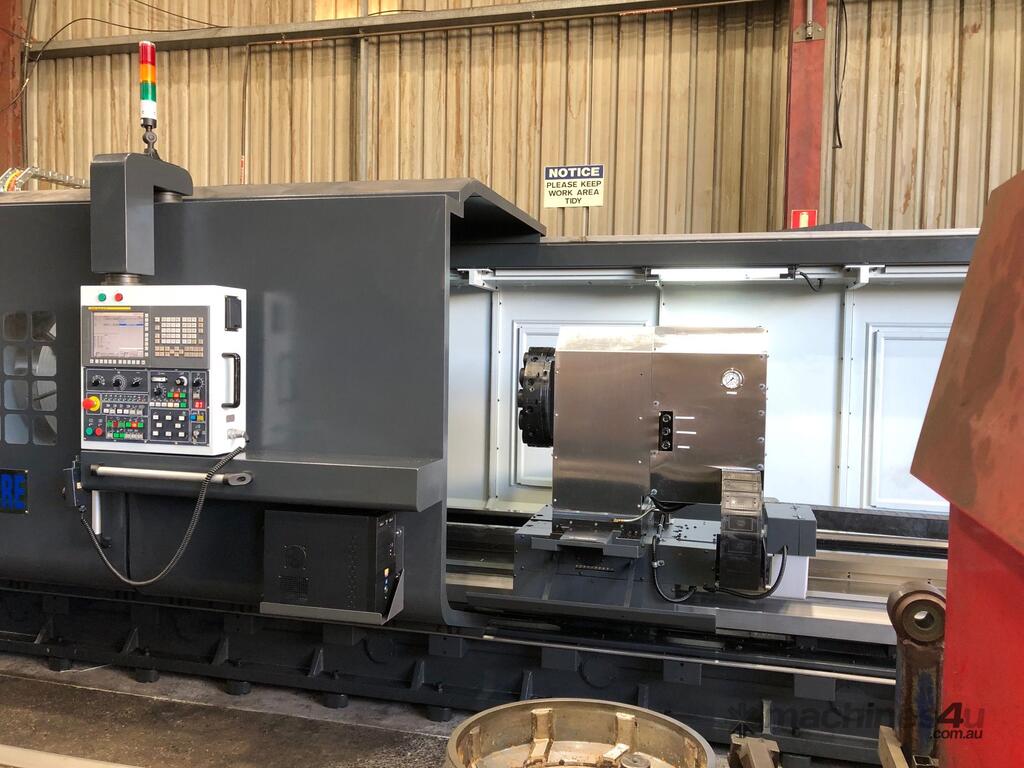

Fanuc 0iTF CNC Control with Manual Guide I Function.

Two Door Type Full Length Splash Guard 1 set

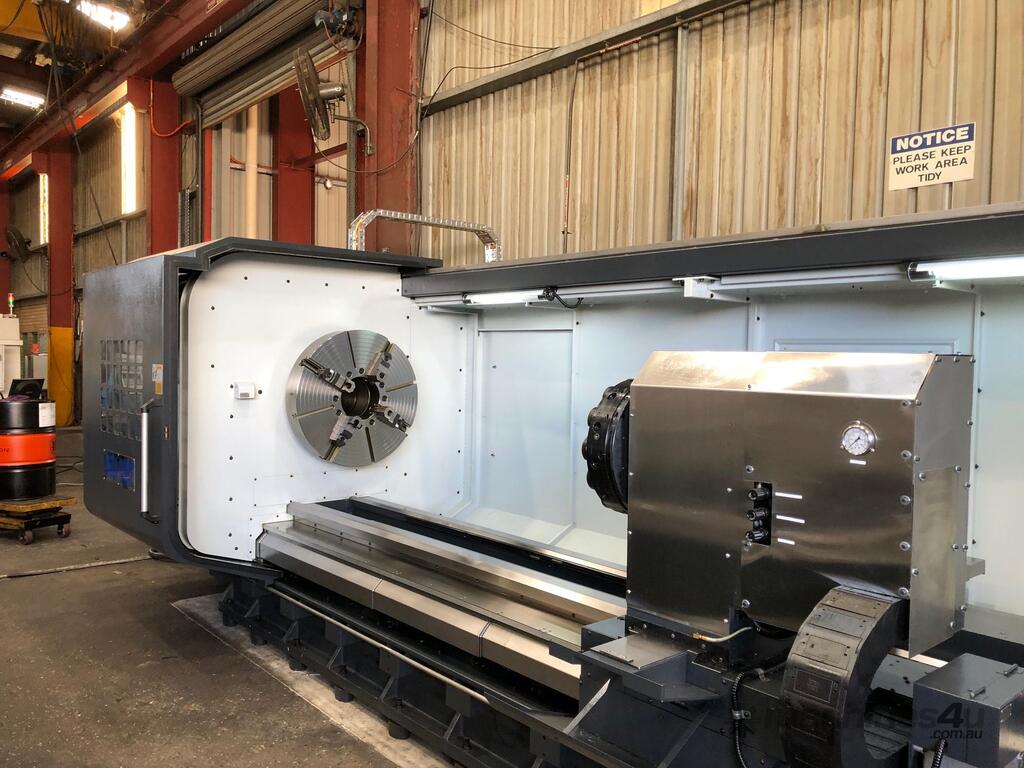

4 jaw independent chuck 32” diameter 2 off
Rear Chuck adaptor 1 off
Headstock Oil Cooler (18,000 BTU) 1 set
Cabinet Refrigerator 1 set
Flush Coolant Water System 1 set
Auto Lubrication System 1 set
1 x Fixed steady rest (50 to 400mm) 1 set
1 x Fixed steady rest (350 to 700mm) 1 set

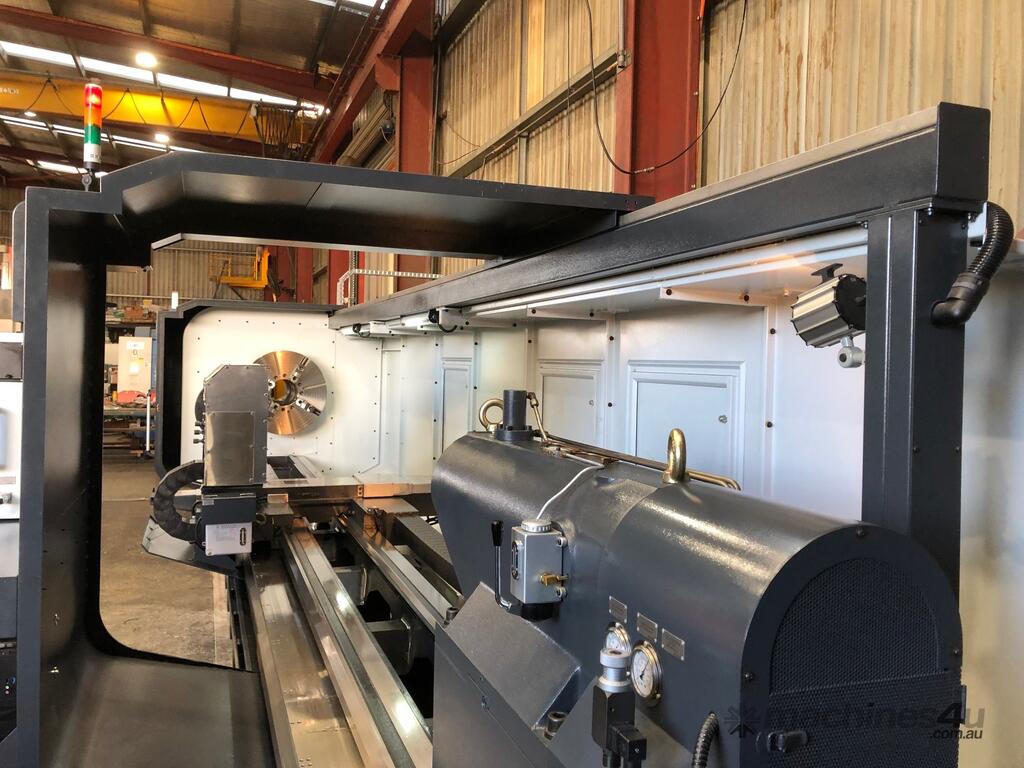

Programmable Heavy duty tailstock with 235mm Quill 1 set
Swarf Conveyor & bin 1 set
Cross slide mounted Boring bar holder (6” Capacity) 1 off

CF-AXIS
Cf-Axis Position Accuracy +/-12”
Cf-Axis Repeatability 12”
Cf-Axis Servo Motor Fanuc Alpha30 (9.5hp)
Cf-Axis Spindle with Hydraulic Brake Unit
Cf-Axis Heidenhain Circular Scale Feed Back

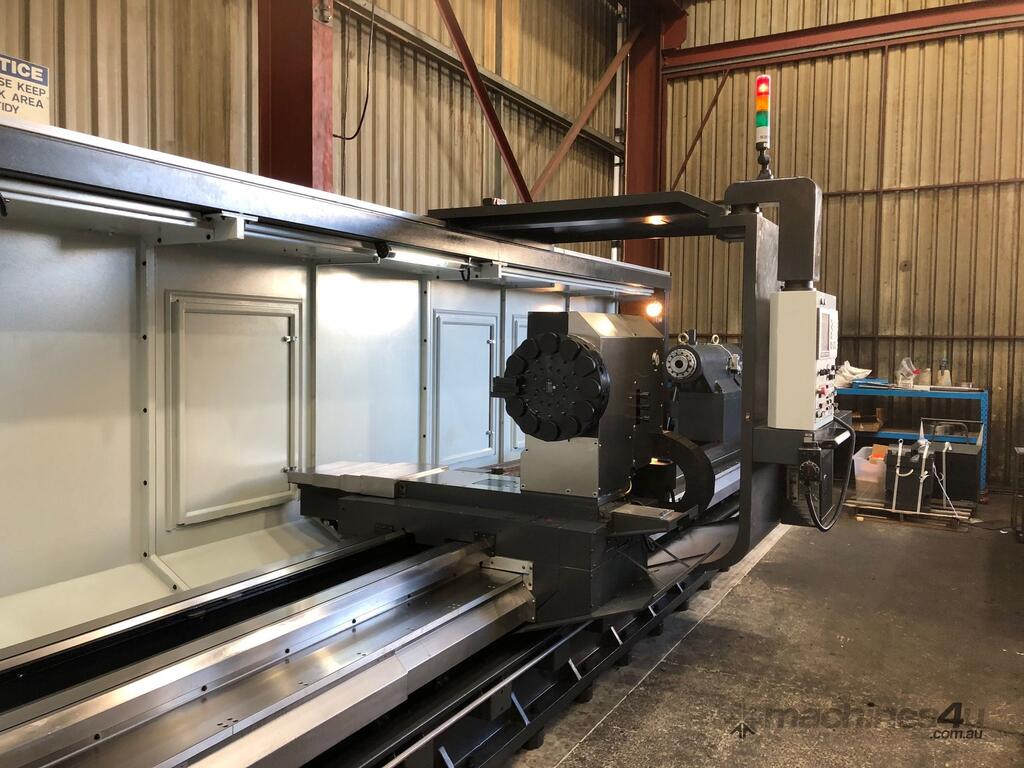

V12 Baruffaldi TBYA200 Turret with VDI40
Y-Axis Travel +/- 75mm
Y-Axis with Hydraulic Counter Balance System


Equipped With:

Spindle Bore: 255mm
Spindle Nose: A2-15
Spindle Rpm: 10~500 rpm
Spindle Speed Steps: 4 steps
Swing Over Bed: 1275mm
Swing Over Carriage: 900mm
Cross Slide X Travel: 610mm
Distance between Centre: 6000mm
Z-Axis Ball Screw Diameter: 80mm
235mm Tailstock Quill with MT#6
Minimum Program Command: 0.001mm
X axis Position Accuracy: 0.015mm
Z axis Position Accuracy: 0.025mm
Repeatability: 0.01mm
Back Edit Function
X-Axis Servo Motor Alpha30
Y-Axis Servo Motor Alpha30 with ABS
Z-Axis Servo Motor Alpha30 with ABS
Main Spindle Motor 40/50HP (Alpha 30)
