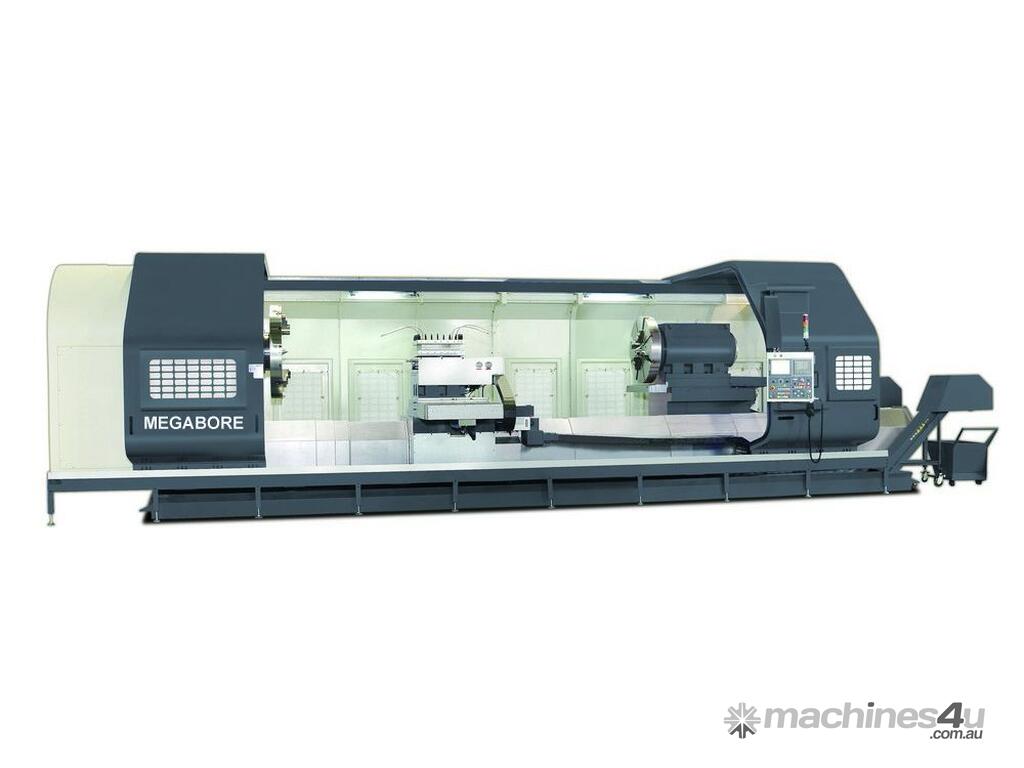

CNC LATHES 3 SHEAR BED HEAVY DUTY FLAT BED

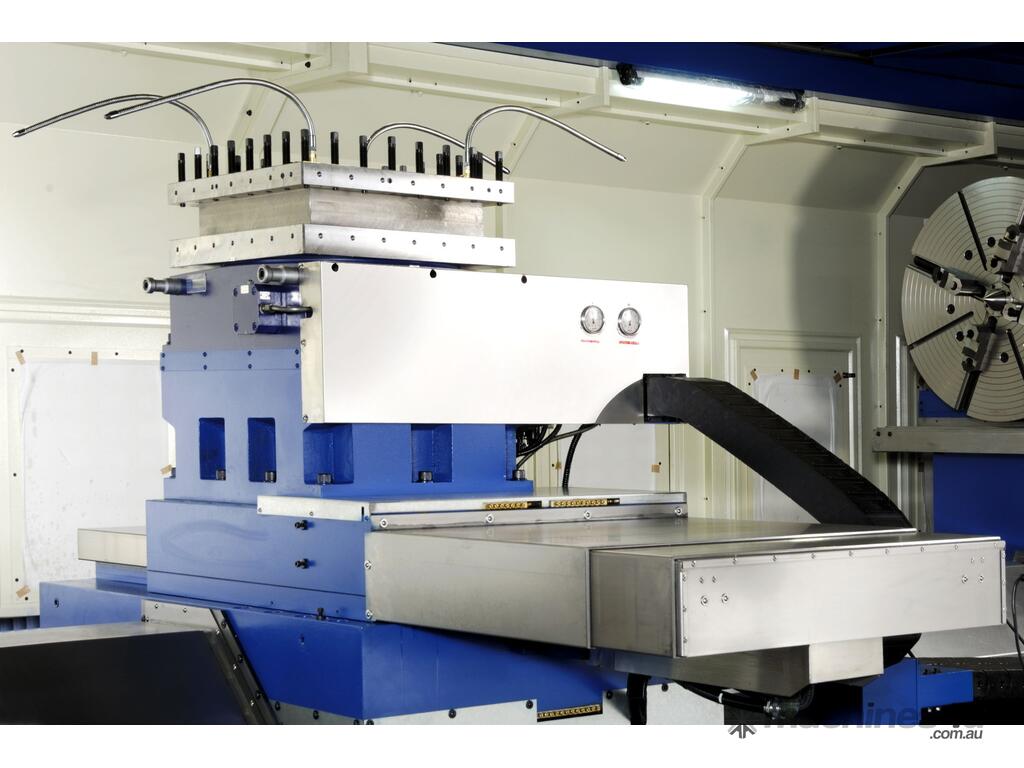

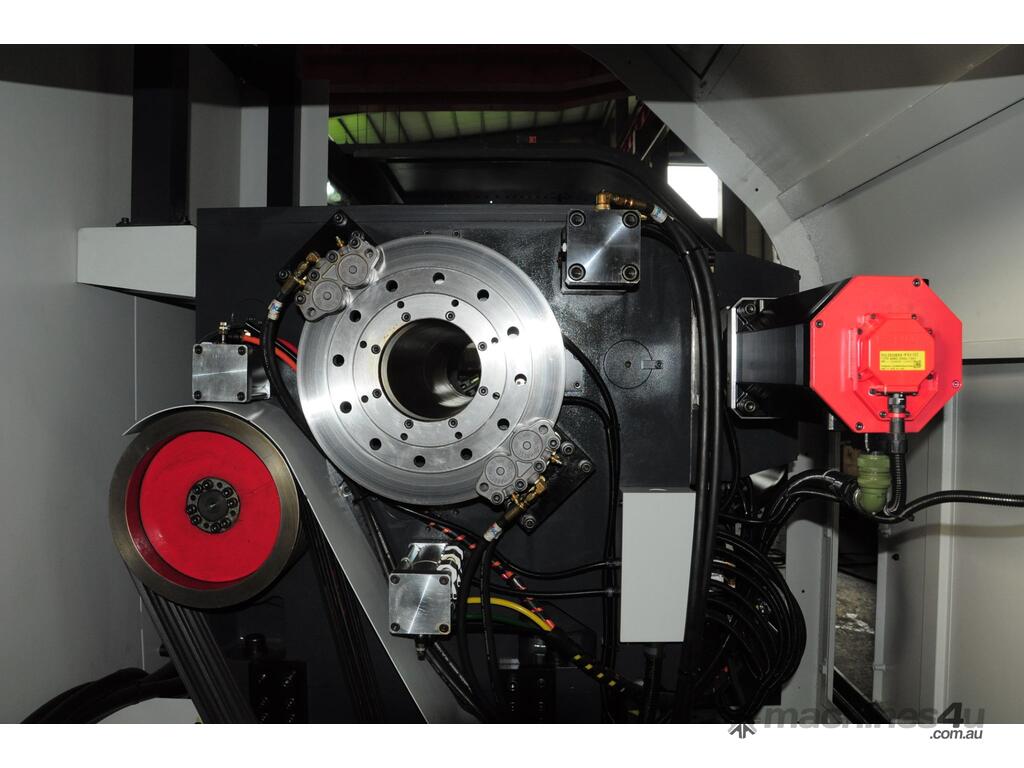

The latest in the product range from Megabore, the base machine can be configured in many ways to suit client requirements. BED WIDTH : 1350mm (53.14") Model No. denotes approx.swing over bed in inches. One Piece Meehanite Cast Iron Bed for Extreme Rigidity and Maximum Stability During Heavy Machining. High Torque 4-Stage geared headstock with an integral oil bath refrigeration system to maintain normal temperature at high speed. Precision Hardened and Ground Slideways and High Precision Ball Screws.Baruffaldi servo driven turret for a fast tool change of only 1 second. Fully enclosed splash guard for ultimate operator safety. Programmable tailstock for convenient operation. Fanuc (Or client request) Control System for simplicity & reliability, together with linear scale feedback for accuracy. Outstanding Features * One piece bed, floor type casting. * Alloy steel spindle with opposed taper roller bearings. * All gears in the headstock are hardened and precisely ground. * Automatic ranges of spindle speed through pneumatic gear shift. * Spindle speed ranges are automatically changed by M code. * Infinitely variable speed are commanded by S code. * Tool change are commanded by T code. * Auto lubrication system is equipped for headstock, carriage, and cross-slide. * Precision tapered roller bearings are equipped on the spindle and the quill. * The quill is heat treated and precisely ground. * Internal taper of quill to suit MT#6 dead center or live centre. * Turcite B anti friction material is applied on cross slide and carriage for reduce friction. * X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant. Photos show some of the many configurations available.


Control: CNC (FANUC / FAGOR / SIEMENS)

BED WIDTH : 1350mm (53.14?)
KAN series KAN-80 KAN-90 KAN-100 KAN-120
Swing over bed 2,050mm 2,300mm 2,550mm 2,800mm
Swing over cross slide 1,620mm 1,870mm 2,120mm 2,370mm
Distance between centers 3,000mm~12,000mm in 40? increments
Spindle nose A2-15~A2-40
Spindle bore 9?~32?
Spindle motor Standard-50HP ; Option-60HP,75HP,100HP
Controller FANUC / FAGOR / SIEMENS

Equipped With:
Standard equipment.
Standard Accessories
Specification
* Hydraulic H4 turret.
* Rotating tailstock quill with 235mm diameter.
* Motorized tailstock body and quill movement.
* FANUC 0i-TF series complete with manual guide and thread repair.
* Front and rear chip conveyor.
