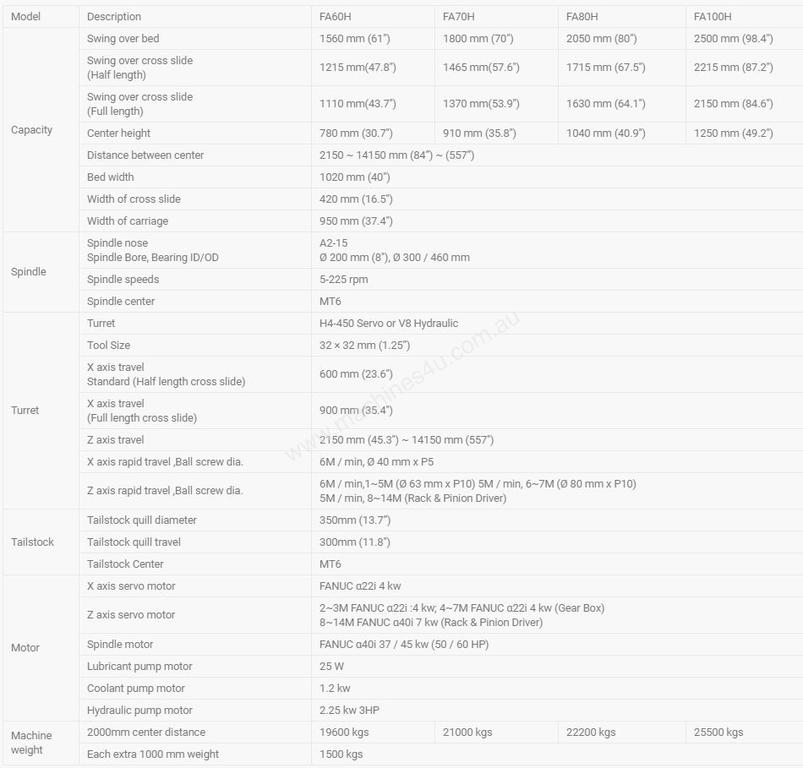

CNC Lathe FA45H / 50H / 55H / 60H

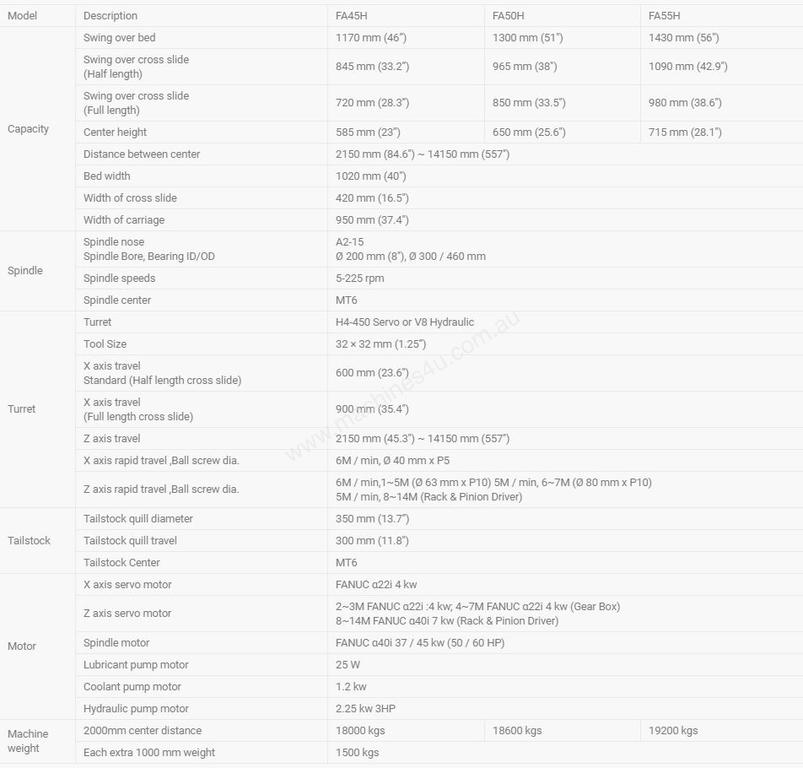

Model Description FA45H FA50H FA55H
Capacity Swing over bed 1170 mm (46”) 1300 mm (51") 1430 mm (56")
Swing over cross slide
(Half length) 845 mm (33.2”) 965 mm (38") 1090 mm (42.9")
Swing over cross slide
(Full length) 720 mm (28.3”) 850 mm (33.5") 980 mm (38.6")
Center height 585 mm (23”) 650 mm (25.6") 715 mm (28.1")
Distance between center 2150 mm (84.6") ~ 14150 mm (557")
Bed width 1020 mm (40")
Width of cross slide 420 mm (16.5")
Width of carriage 950 mm (37.4")
Spindle Spindle nose
Spindle Bore, Bearing ID/OD A2-15
Ø 200 mm (8"), Ø 300 / 460 mm
Spindle speeds 5-225 rpm
Spindle center MT6
Turret Turret H4-450 Servo or V8 Hydraulic
Tool Size 32 × 32 mm (1.25”)
X axis travel
Standard (Half length cross slide) 600 mm (23.6")
X axis travel
(Full length cross slide) 900 mm (35.4")
Z axis travel 2150 mm (45.3") ~ 14150 mm (557")
X axis rapid travel ,Ball screw dia. 6M / min, Ø 40 mm x P5
Z axis rapid travel ,Ball screw dia. 6M / min,1~5M (Ø 63 mm x P10) 5M / min, 6~7M (Ø 80 mm x P10)
5M / min, 8~14M (Rack & Pinion Driver)
Tailstock Tailstock quill diameter 350 mm (13.7”)
Tailstock quill travel 300 mm (11.8")
Tailstock Center MT6
Motor X axis servo motor FANUC ?22i 4 kw
Z axis servo motor 2~3M FANUC ?22i :4 kw; 4~7M FANUC ?22i 4 kw (Gear Box)
8~14M FANUC ?40i 7 kw (Rack & Pinion Driver)
Spindle motor FANUC ?40i 37 / 45 kw (50 / 60 HP)
Lubricant pump motor 25 W
Coolant pump motor 1.2 kw
Hydraulic pump motor 2.25 kw 3HP
Machine weight 2000mm center distance 18000 kgs 18600 kgs 19200 kgs
Each extra 1000 mm weight 1500 kgs

STANDARD ACCESSORIES

Main motor and electrical box
Splash guard
Auto gear change
Tailstock center MT6
Work light
Auto-lubrication, coolant and hydraulic system
Servo 4 stations turret or hydraulic 8 stations turret
Front & rear chip conveyor
Tool box with tools

OPTIONAL ACCESSORIES

Y axis
C axis
Spindle 5º indexing
Steady rest & follow rest(Capacity , Hydraulic or Manual)
Steady rest with cutting pass through equipment
Hyd. chuck & cylinder
Lagger spindle bore
Manual 3-jaw, 4-jaw chuck
Driving tool turret
Driving tool holder
Special boring bar toolholder
Higher coolant preasure
Other countroller
Spindle oil chiller
CE Mark
Transformer
