CNC Lathe LD 45 / LD 50 / LD 55 / LD 60

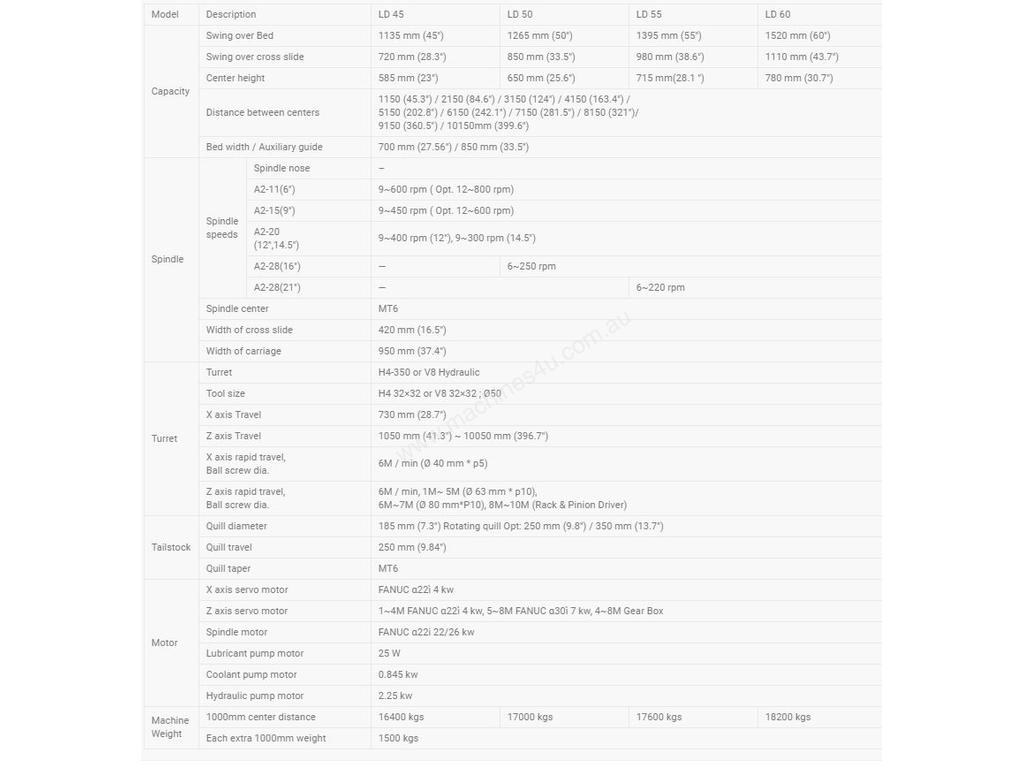

Model Description LD 45 LD 50 LD 55 LD 60
Capacity Swing over Bed 1135 mm (45") 1265 mm (50") 1395 mm (55") 1520 mm (60")
Swing over cross slide 720 mm (28.3") 850 mm (33.5") 980 mm (38.6") 1110 mm (43.7")
Center height 585 mm (23") 650 mm (25.6") 715 mm(28.1 ") 780 mm (30.7")
Distance between centers 1150 (45.3") / 2150 (84.6") / 3150 (124") / 4150 (163.4") /
5150 (202.8") / 6150 (242.1") / 7150 (281.5") / 8150 (321")/
9150 (360.5") / 10150mm (399.6")
Bed width / Auxiliary guide 700 mm (27.56") / 850 mm (33.5")
Spindle Spindle
speeds Spindle nose –
A2-11(6") 9~600 rpm ( Opt. 12~800 rpm)
A2-15(9") 9~450 rpm ( Opt. 12~600 rpm)
A2-20
(12",14.5") 9~400 rpm (12"), 9~300 rpm (14.5")
A2-28(16") — 6~250 rpm
A2-28(21") — 6~220 rpm
Spindle center MT6
Width of cross slide 420 mm (16.5")
Width of carriage 950 mm (37.4")
Turret Turret H4-350 or V8 Hydraulic
Tool size H4 32×32 or V8 32×32 ; Ø50
X axis Travel 730 mm (28.7")
Z axis Travel 1050 mm (41.3") ~ 10050 mm (396.7")
X axis rapid travel,
Ball screw dia. 6M / min (Ø 40 mm * p5)
Z axis rapid travel,
Ball screw dia. 6M / min, 1M~ 5M (Ø 63 mm * p10),
6M~7M (Ø 80 mm*P10), 8M~10M (Rack & Pinion Driver)
Tailstock Quill diameter 185 mm (7.3") Rotating quill Opt: 250 mm (9.8") / 350 mm (13.7")
Quill travel 250 mm (9.84")
Quill taper MT6
Motor X axis servo motor FANUC ?22ì 4 kw
Z axis servo motor 1~4M FANUC ?22ì 4 kw, 5~8M FANUC ?30ì 7 kw, 4~8M Gear Box
Spindle motor FANUC ?22i 22/26 kw
Lubricant pump motor 25 W
Coolant pump motor 0.845 kw
Hydraulic pump motor 2.25 kw
Machine
Weight 1000mm center distance 16400 kgs 17000 kgs 17600 kgs 18200 kgs
Each extra 1000mm weight 1500 kgs

STANDARD ACCESSORIES

Fanuc control & motors
H4 or V8 hydraulic turret
Auto coolant, hydraulic & lubrication system
Box way on cross slide
Splash guard
6" spindle bore
Work light
Hydraulic tailstock with rotating quill
Tool box with tools
Chip conveyors (auger for front & chain for rear

OPTIONAL ACCESSORIES

Extra spindle bore, motor & speeds
Spindle oil chiller
Chucks, Rear chuck adapter & Face plate
C axis or Spindle 5° indexing or 15° orientation
Driving tool turret
Special boring bar toolholder
Higher coolant pressure
Twin turret (V8 front +H4 rear)
Tool presetter
Other controller
Steady rest & follow rest (Capacity, Hydraulic or Manual)
Steady rest with cutting pass through equipment
Heavy duty milling attachment
Y axis (with heavy duty milling attachment)
Grinding head on turret or cross slide
Chain type chip conveyor for front
Extra tailstock quill dia. 250mm/350mm (A2-8)
Transformer (power supply except 220V)
CE mark
