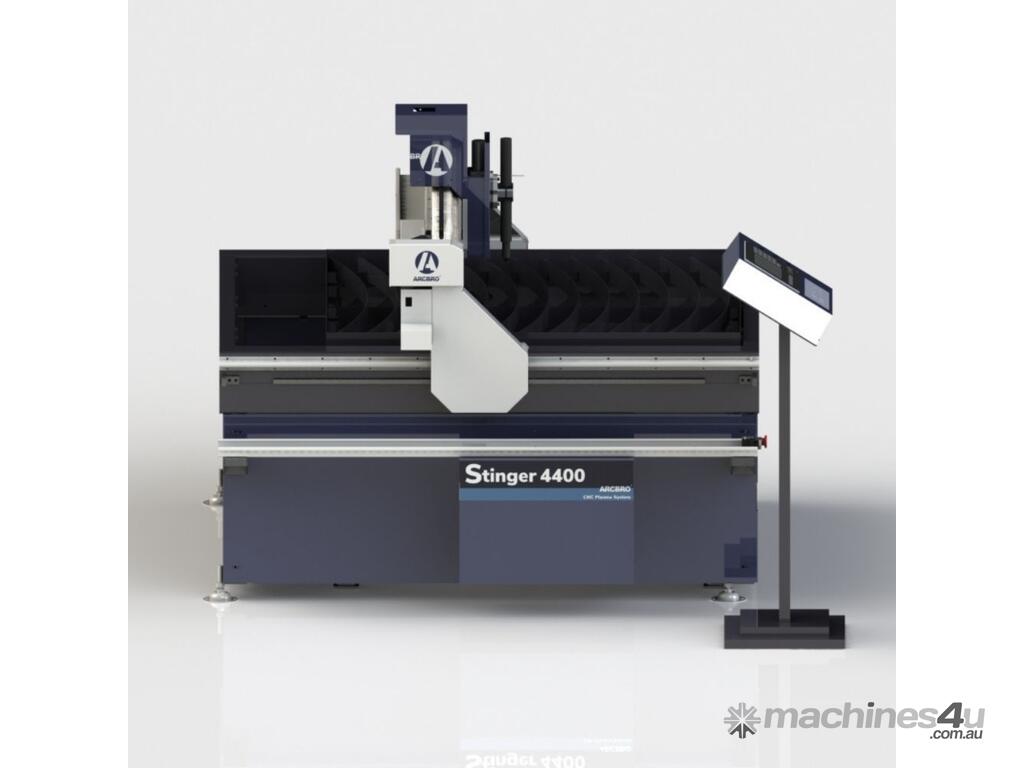

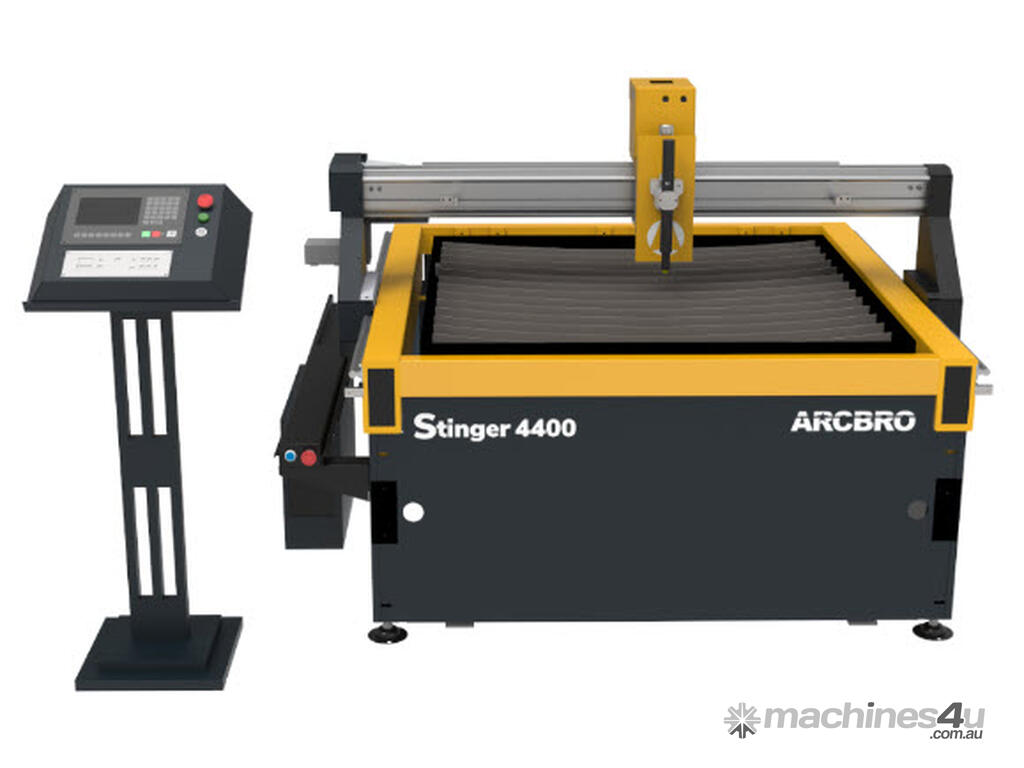

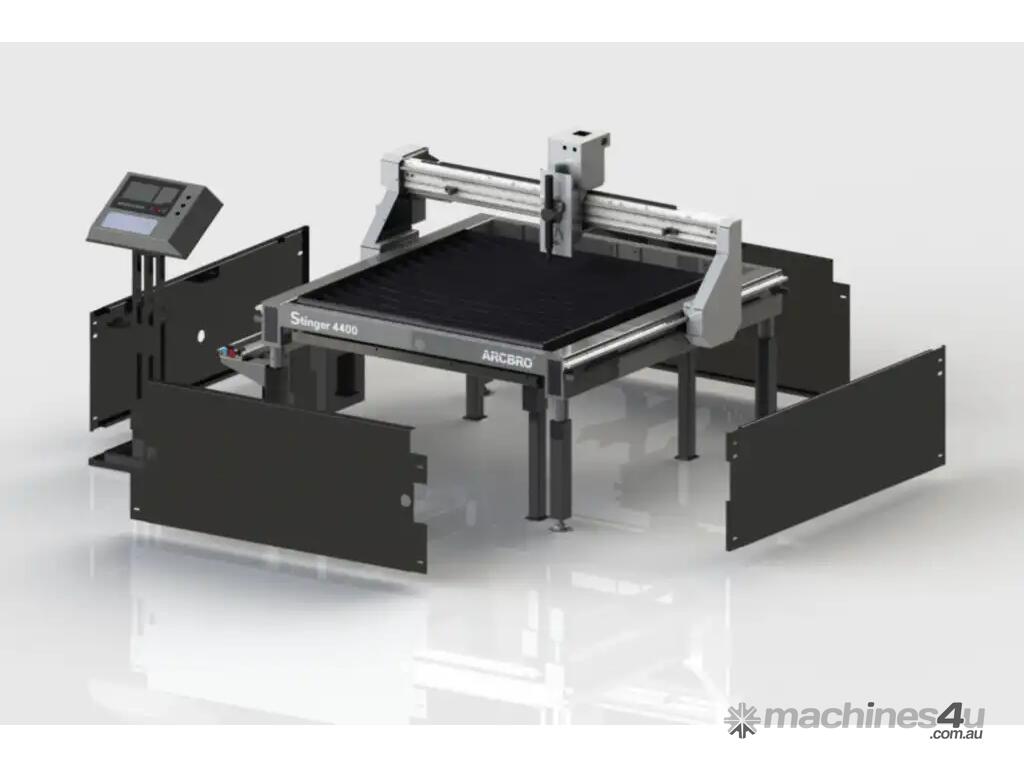

CNC Plasma Cutter, 1300 x 1300mm, up to 25mm Steel plate

Overview
Vicon's 4400 CNC Plasma Cutting Table is characterized by better machinery performance, less shipment cost, and longer life. One machine can meet all needs!

And it is completely a plug-and-play machine, the Vicon 4400 is shipped fully assembled. The setup process has been streamlined that making the process smooth and enabling you can start to put the machine to work right away.

Standard Features
Starfire operating system (SF-2100S)
Leisai 57 Hybrid servo motor + HBS57 driver, single motor dual drive
HYD Auto Height Control + pneumatic THC
Water table, independent design
Libellula software

Optical axis guide and V-wheel, synchronous transmission on both sides
Type VICON 4400
Effective Area (mm) 1300*3000mm
Thickness Range 0.3~30mm (Depends on plasma power source capability)
Input Voltage Single phase, 230VAC
Power Frequency 50/60Hz
Cutting Mode Plasma Cutting (Flame is optional)
Driver Motor Hybrid servo drives
Cutting Speed 1~8,000mm/min
Tolerance
