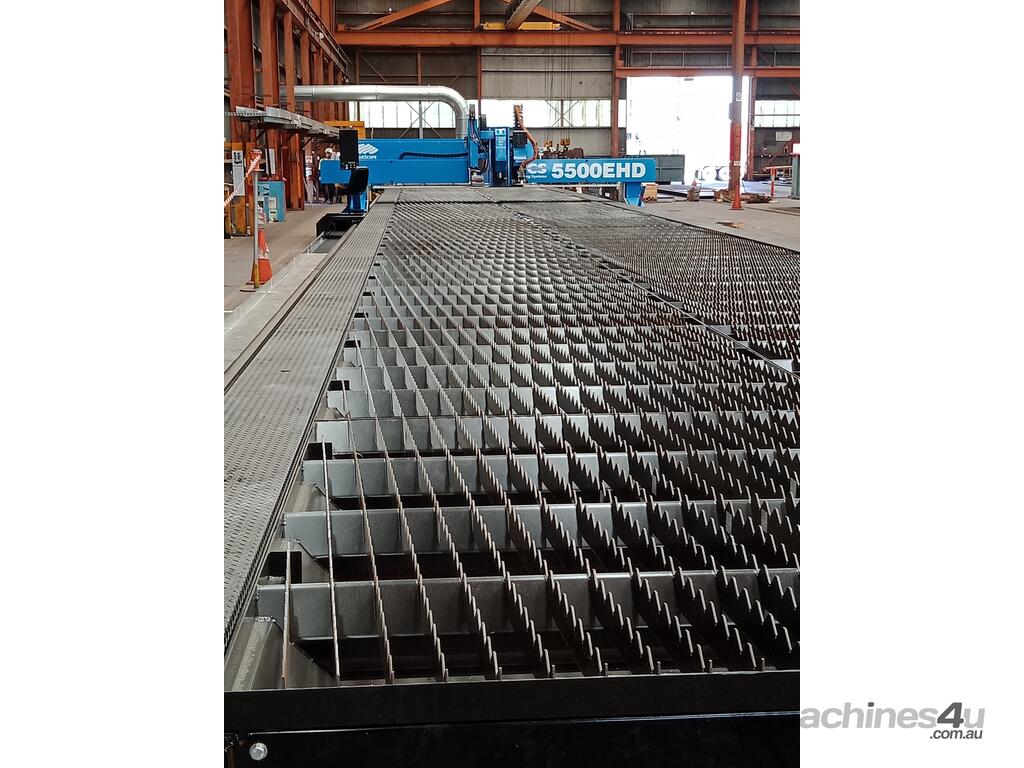

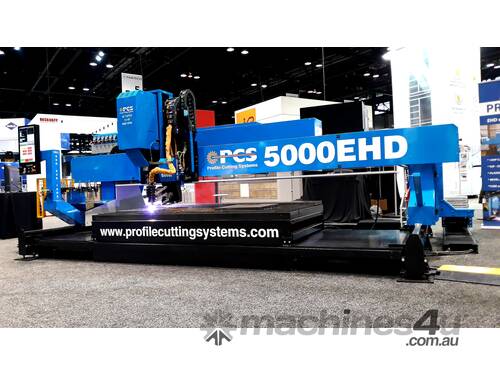

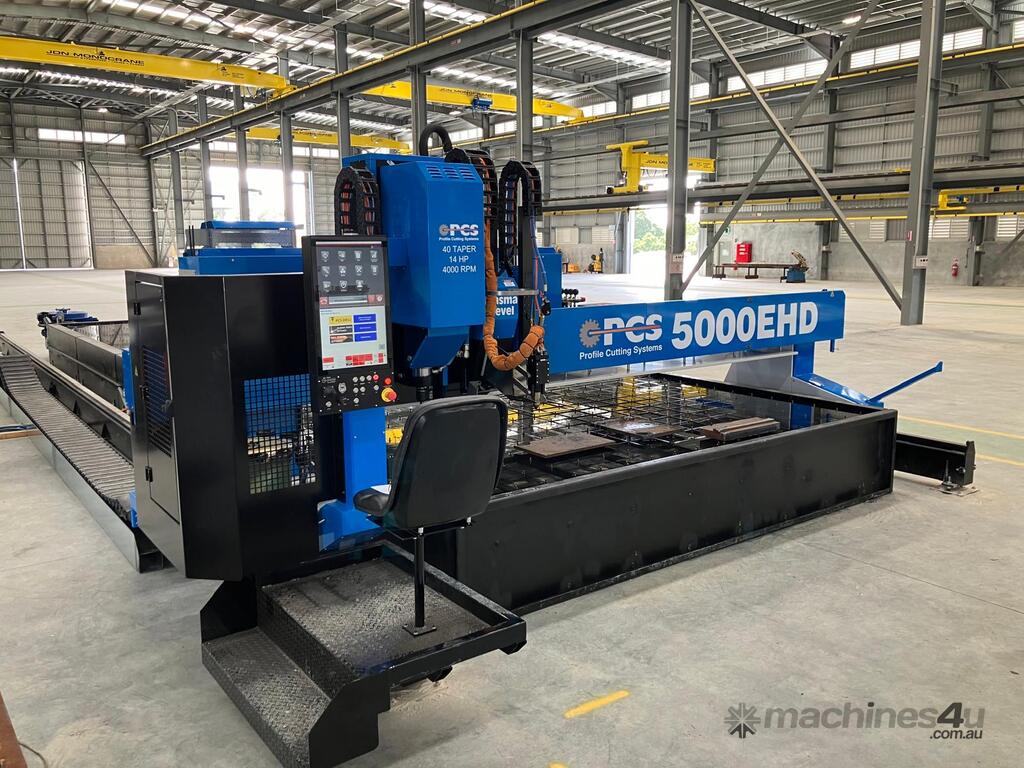

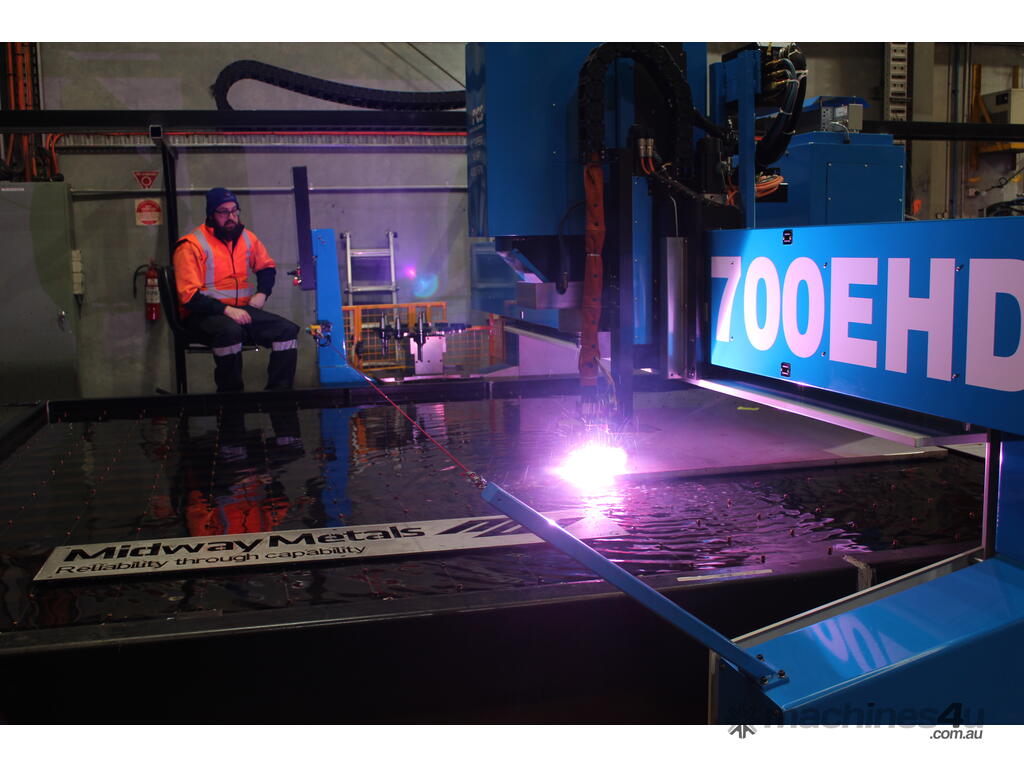

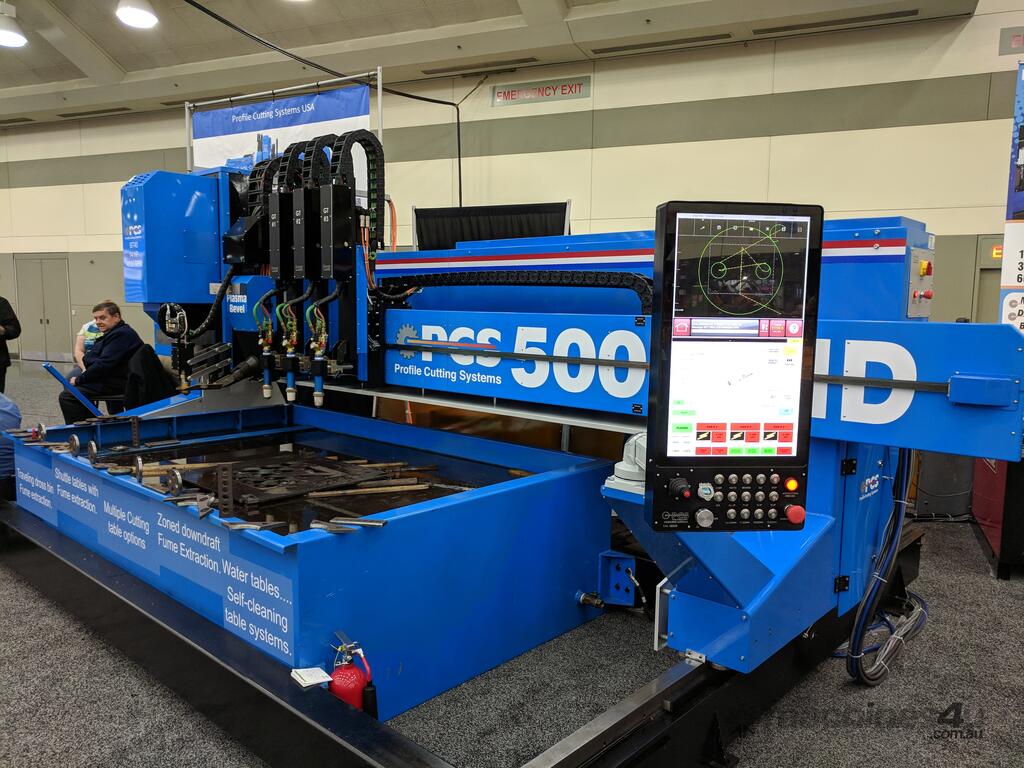

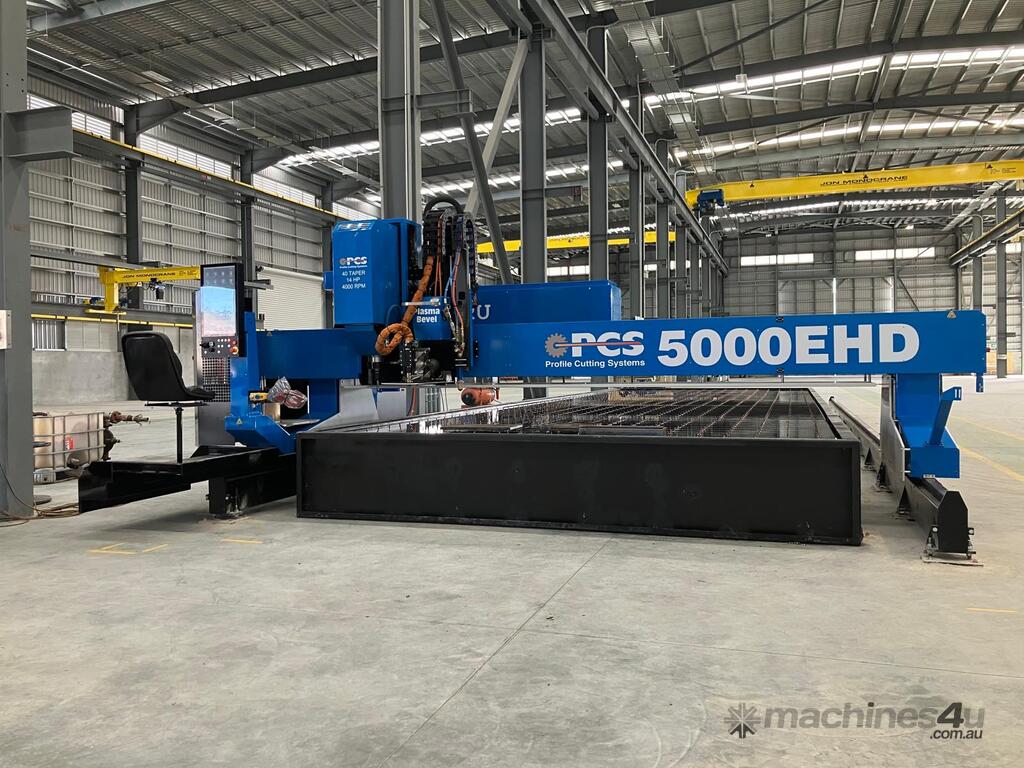

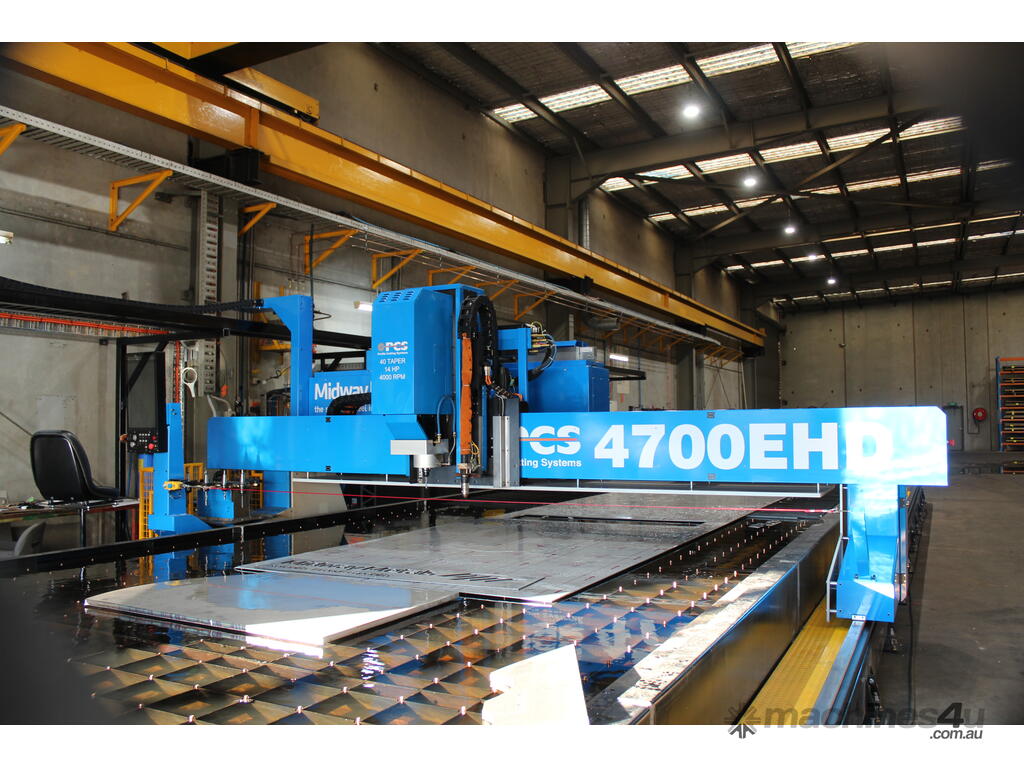

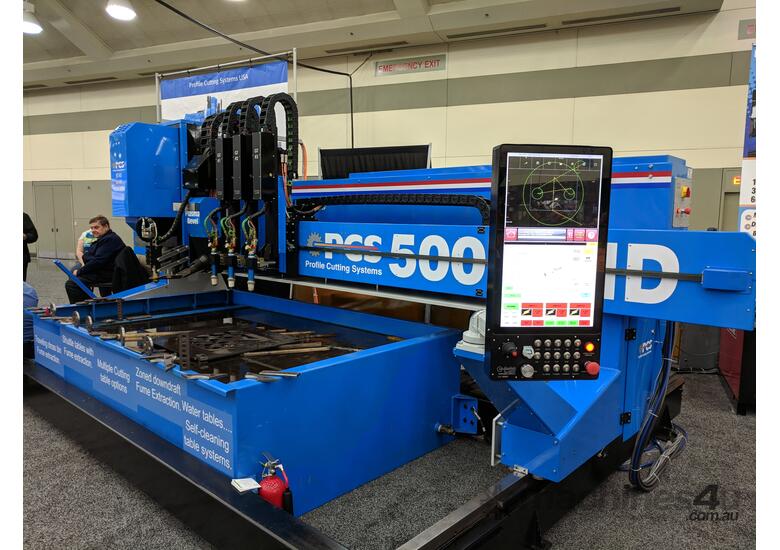

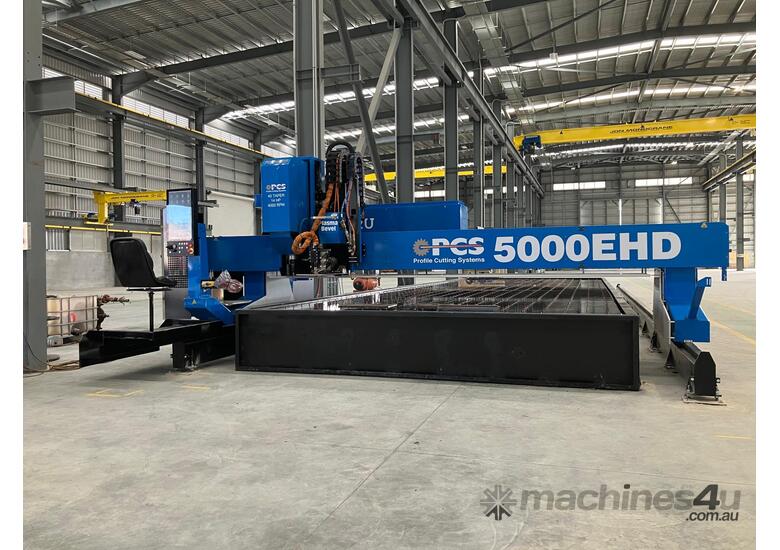

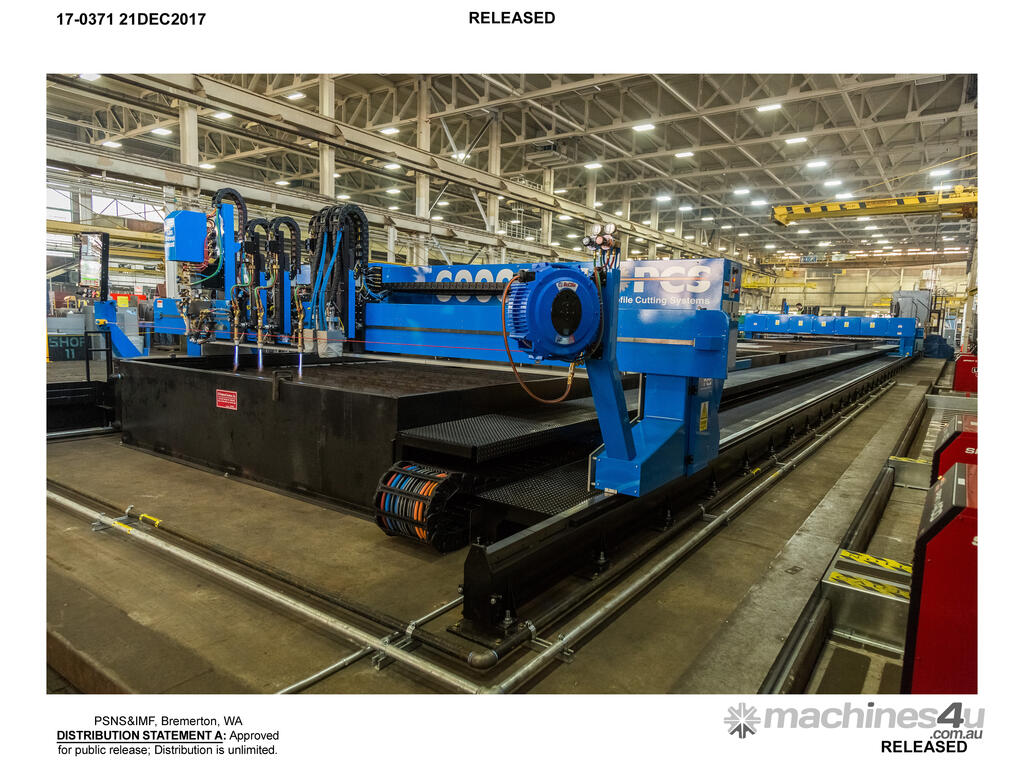

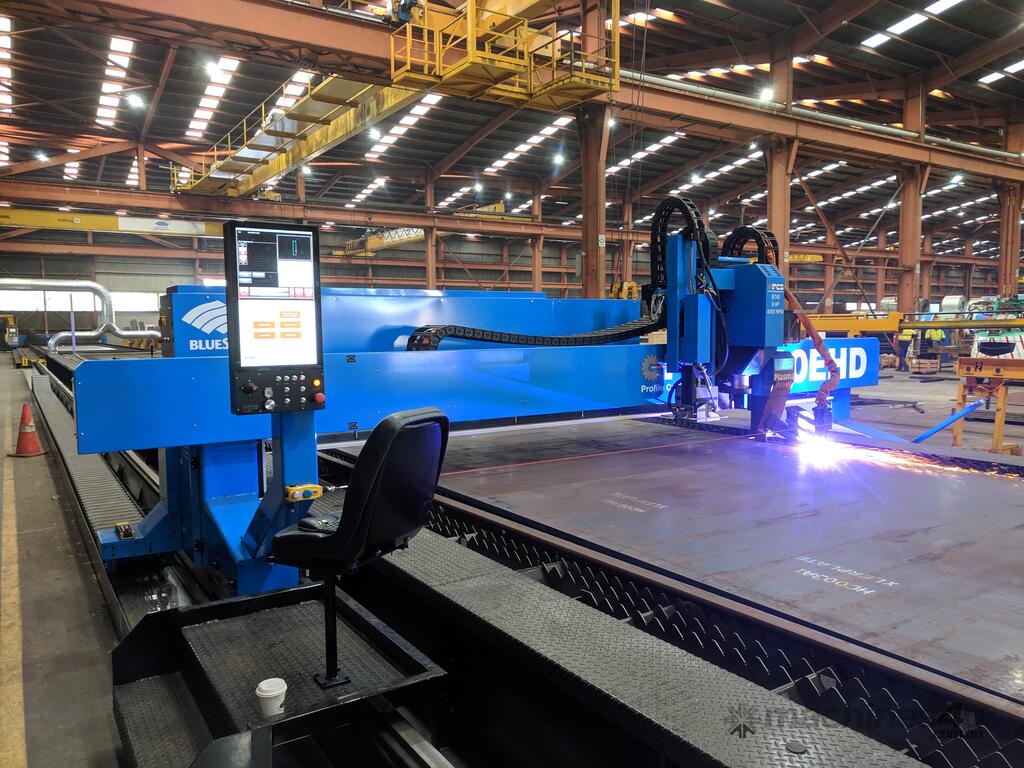

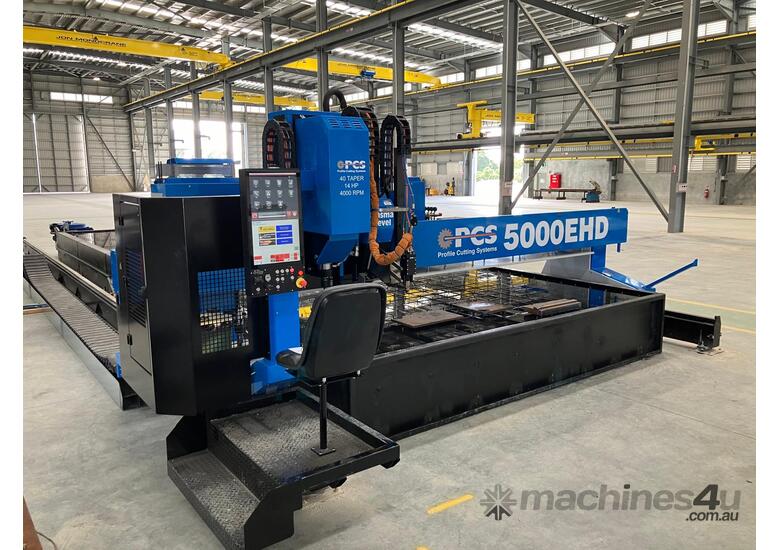

The PCS EHD CNC cutting and drilling machine was first introduced in 1996 and is based on the legendary HD series. The EHD has a triple-supporting main beam and uprated structure throughout. The EHD CNC plasma cutting and drilling machine is recommended in favour of the HD for spans over 5m and/or if Heavy-Duty Drilling is required. Like the HD series, the EHD is known for its reliability and longevity and is available in multiple configurations with options ranging from Plasma Bevelling, Oxy/Fuel Bevelling, Drilling, Tapping, Machining, Pipe Cutting, Pin Marking, Paint-Jet Marking and much more.
PCS EHD at a glance:
Cutting Width up to 8m (~26f)
Multiple Cutting Operations – Plasma up to 800amps, Plasma Bevel, Flame, Flame Bevel

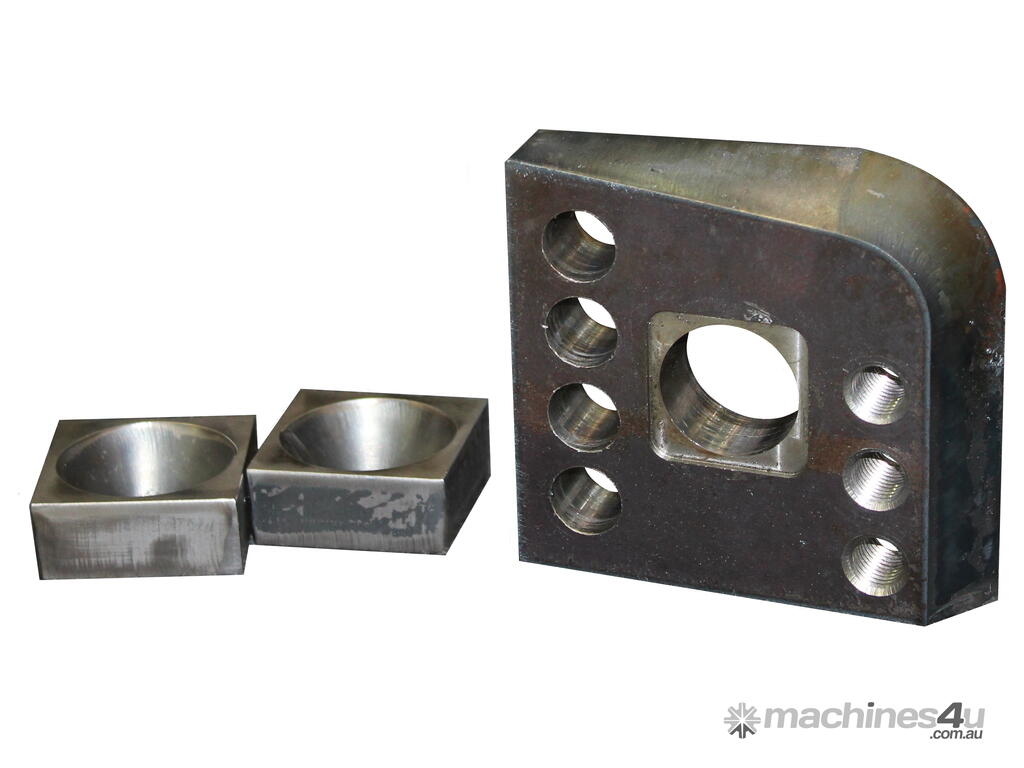

Optional 14HP BT-40 Drill Head for high speed drilling of holes up to 40mm dia.
Excellent reliability and longevity thanks to Extra Heavy Duty construction and quality components
Class Leading Burny S10 PC based CNC on custom PCS flat panel touch screen (up to 21.5”)
Manufactured from NON-PROPRIETRY components
State-Of-The-Art Motion Control System – Bosch Rexroth digital drives and motors with absolute encoders
25m/min (1000" per min) traverse speed (limited)

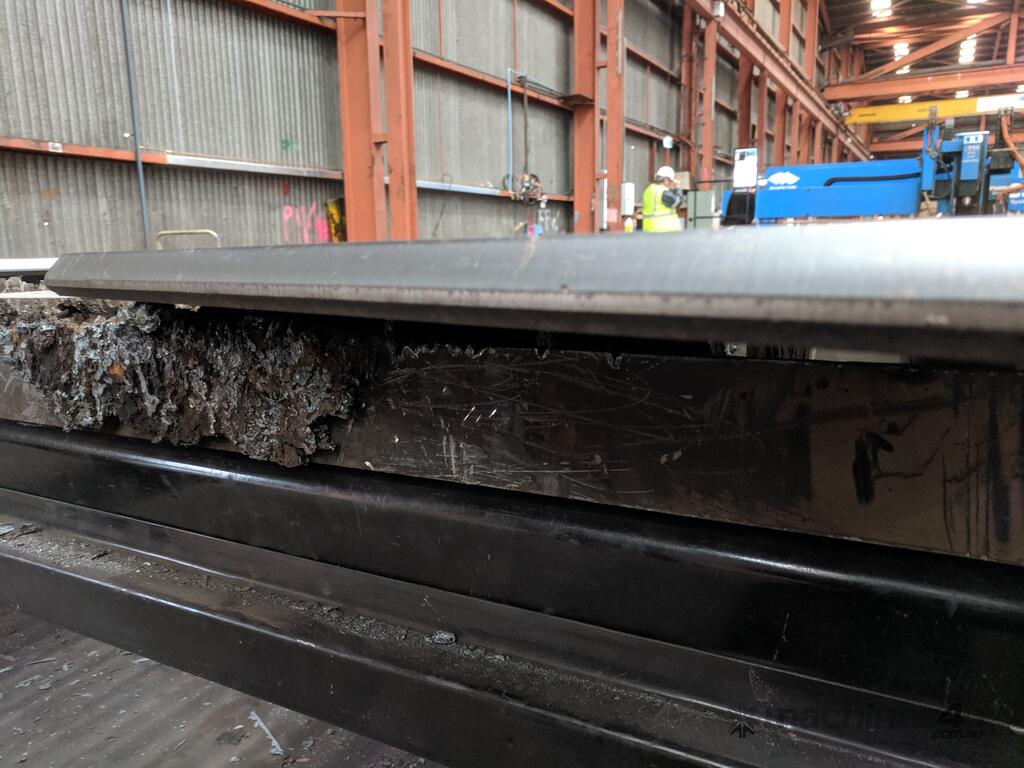

Heavy Duty floor mounted rail system made of machined hardened billet
Automatic rail cleaning/polishing system. Cleans and polishes running surface as machine traverses
OPTIONAL HEADS:
Hypertherm HPR400XD and XPR300 Plasma
Lincoln FineLine300 Plasma

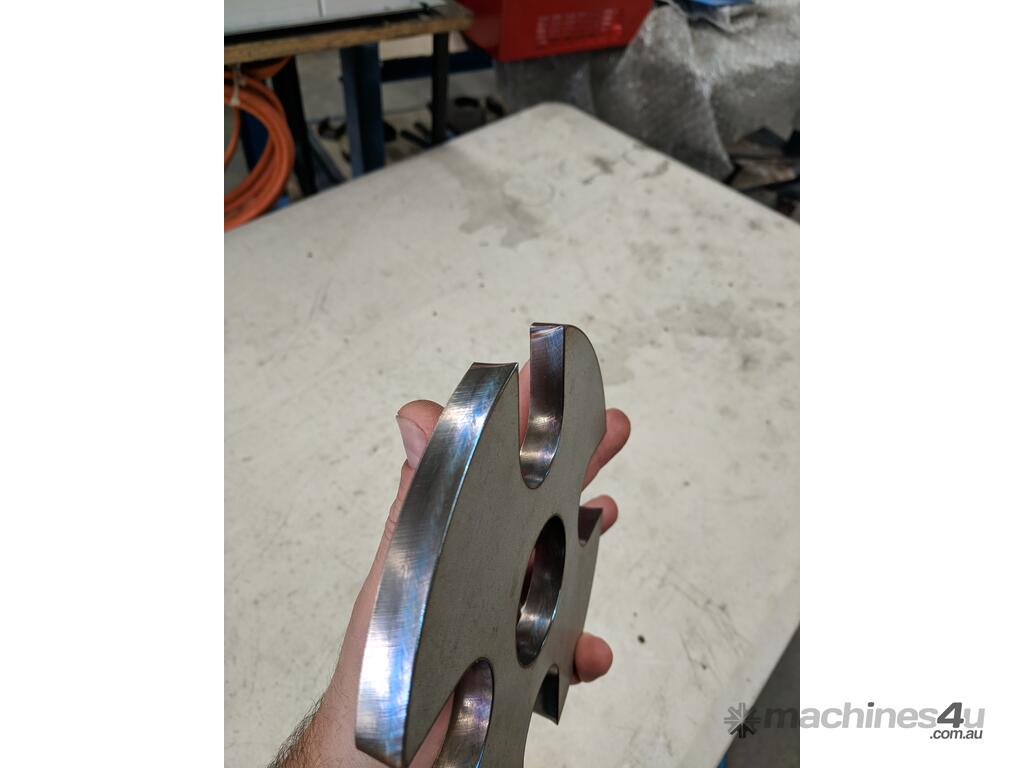

PCS Zero-Offset Plasma Bevel Head (Patented)

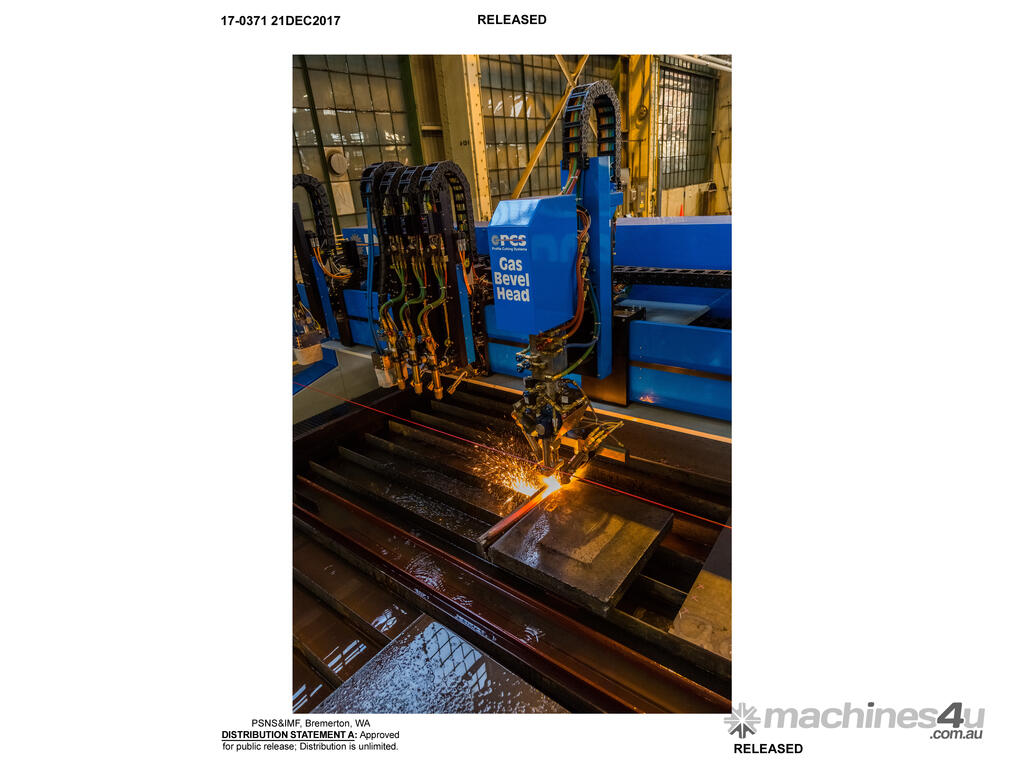

Oxy Fuel cutting head
PCS Triple Burner Oxy Fuel Head
Pin Marking

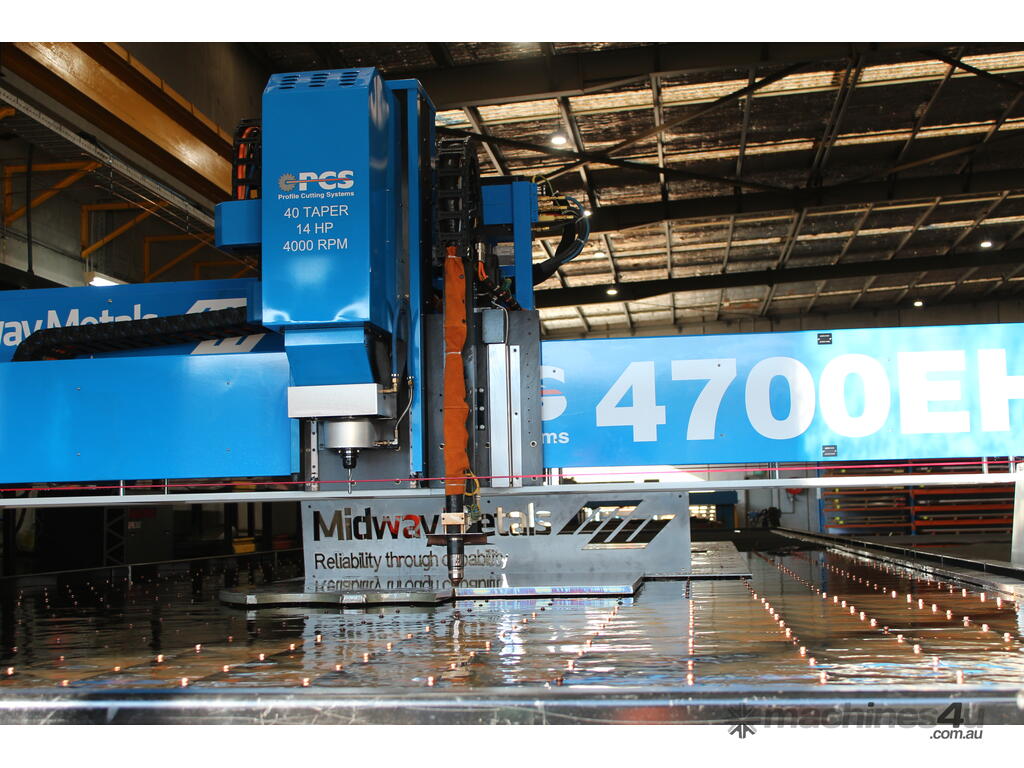

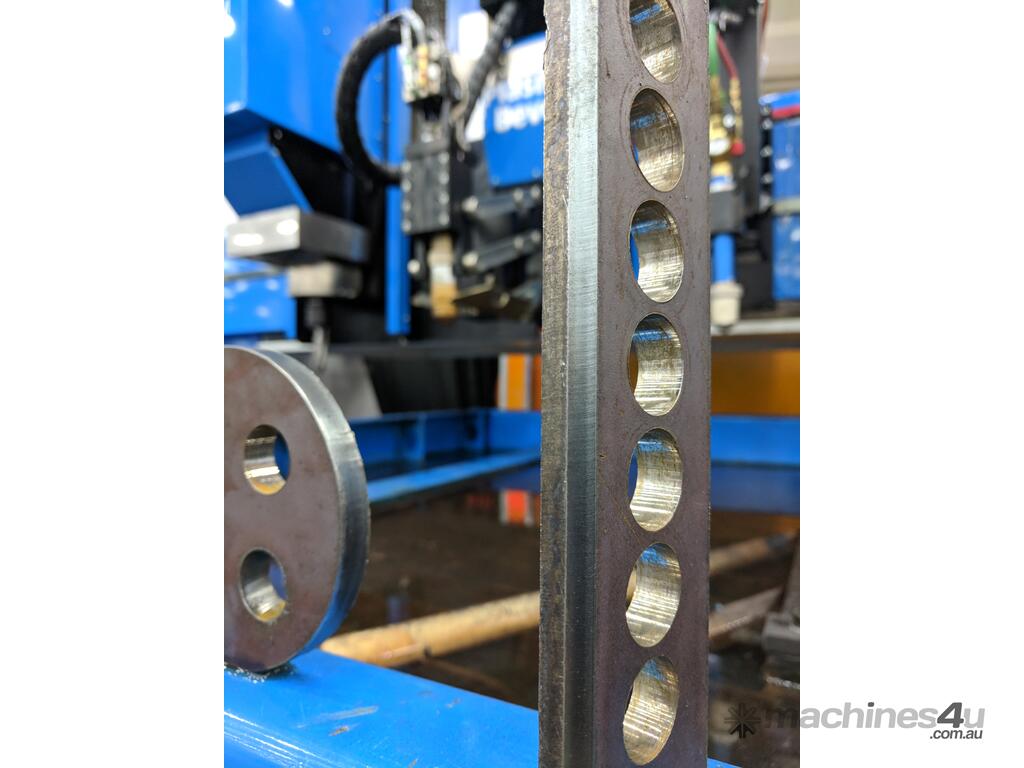

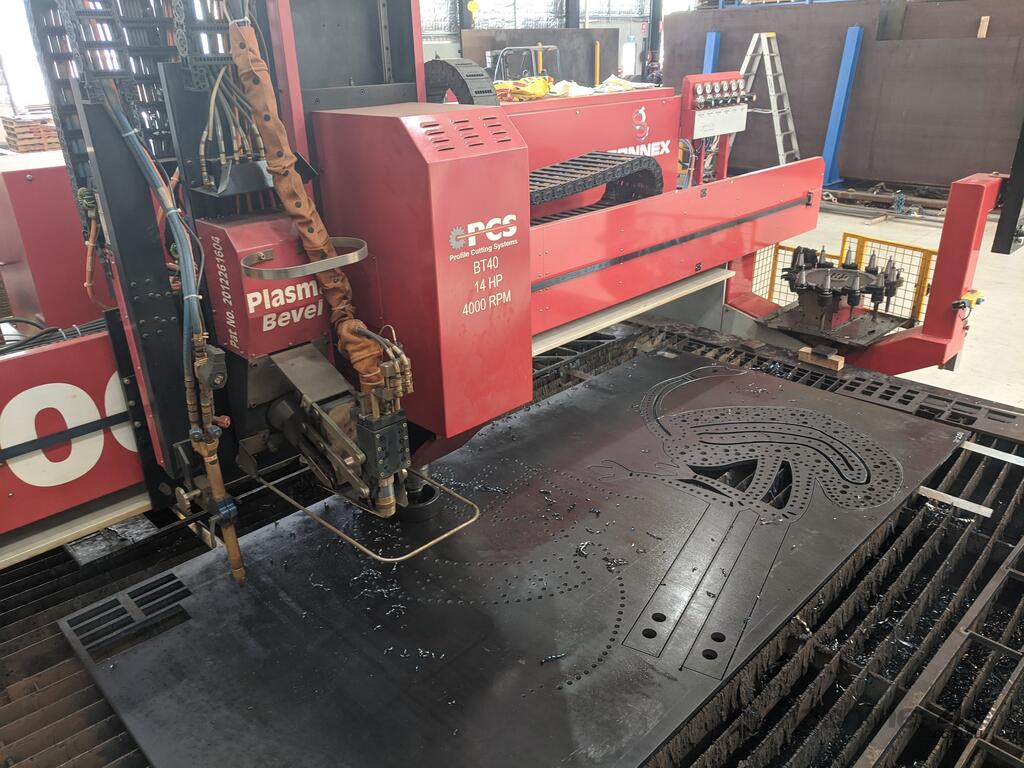

Drilling Head – 3 axis BT-40, 14HP, 40mm diameter drilling capacity. 24mm tapping.
For more information, visit .profilecuttingsystems
