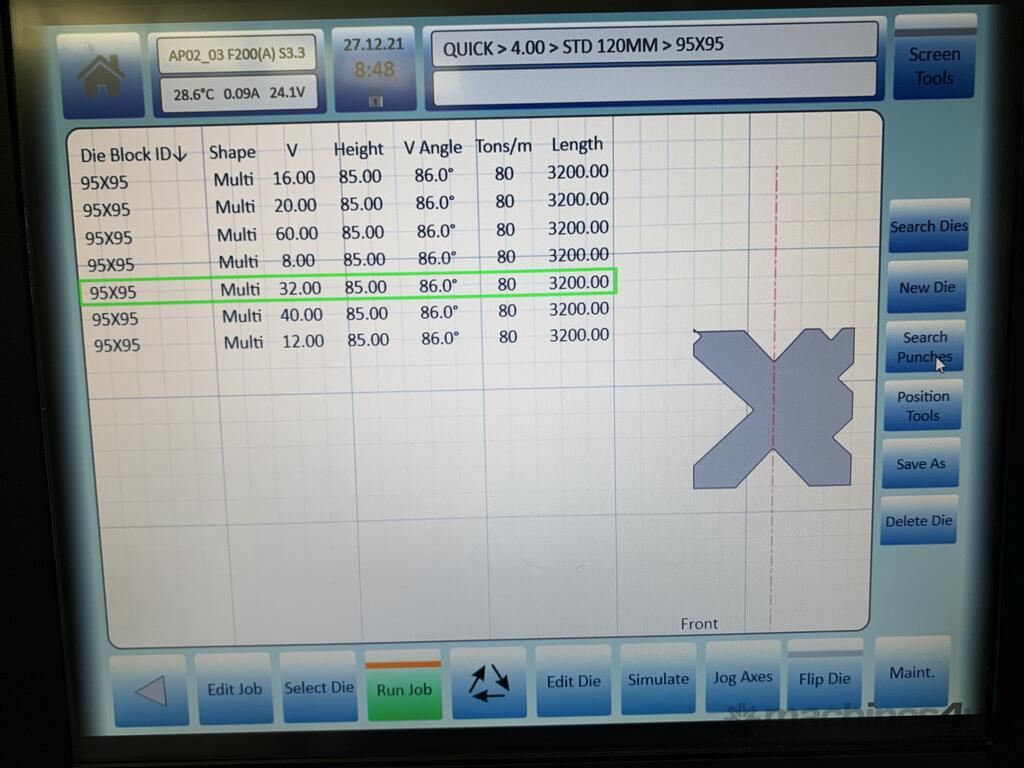

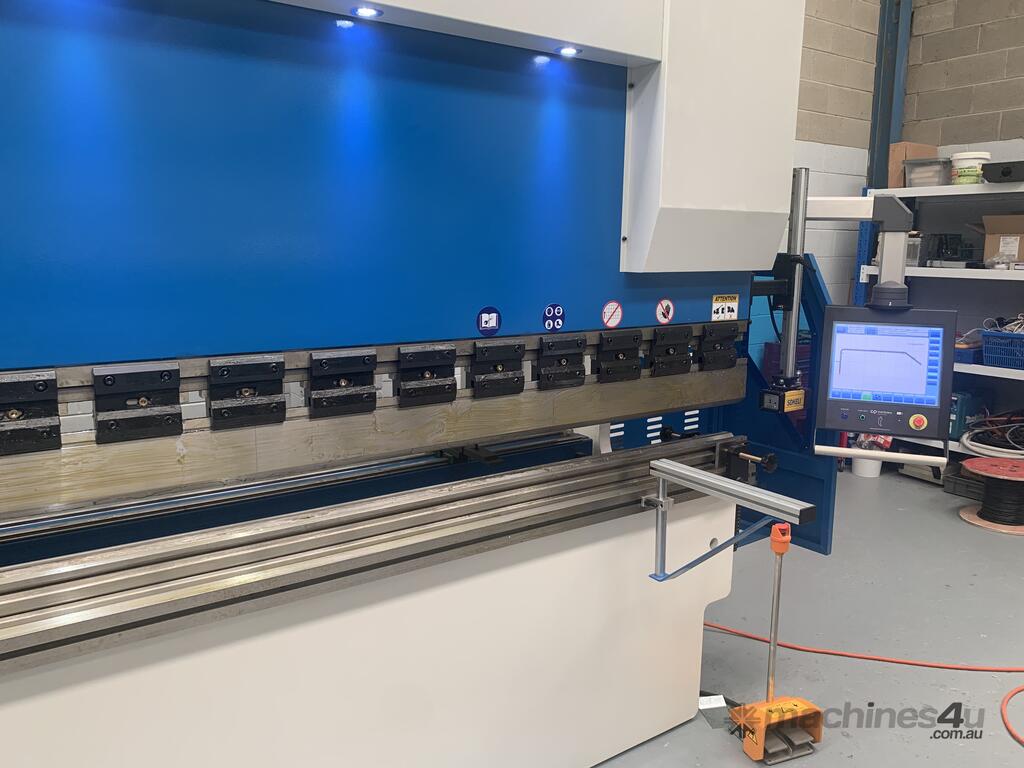

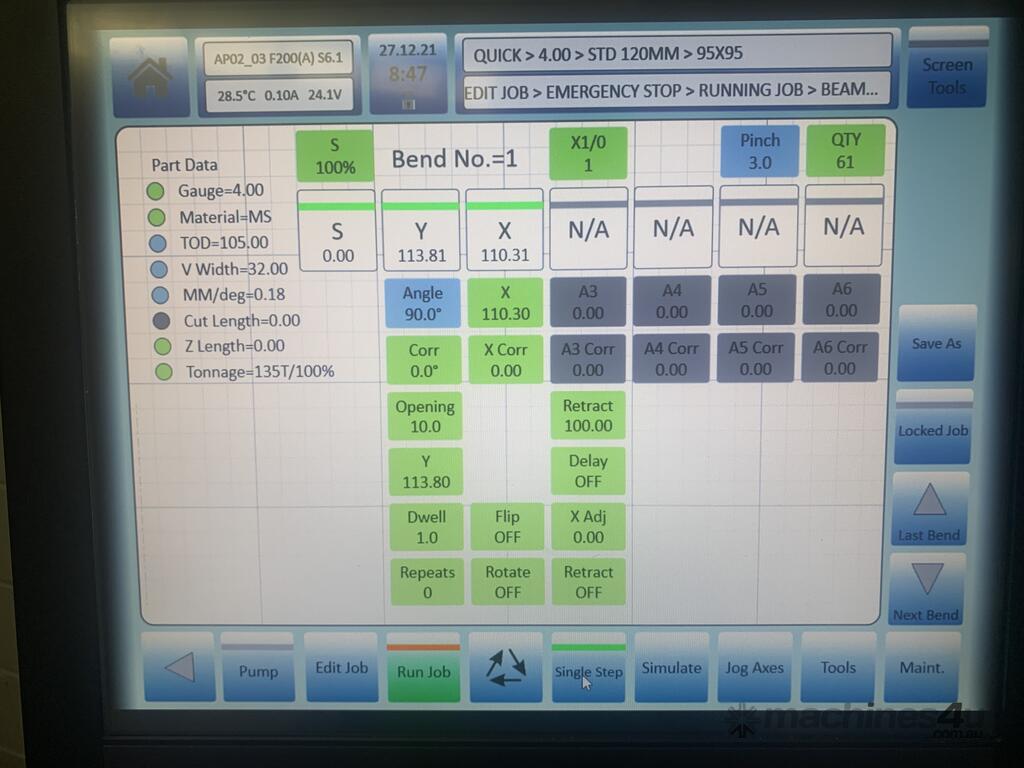

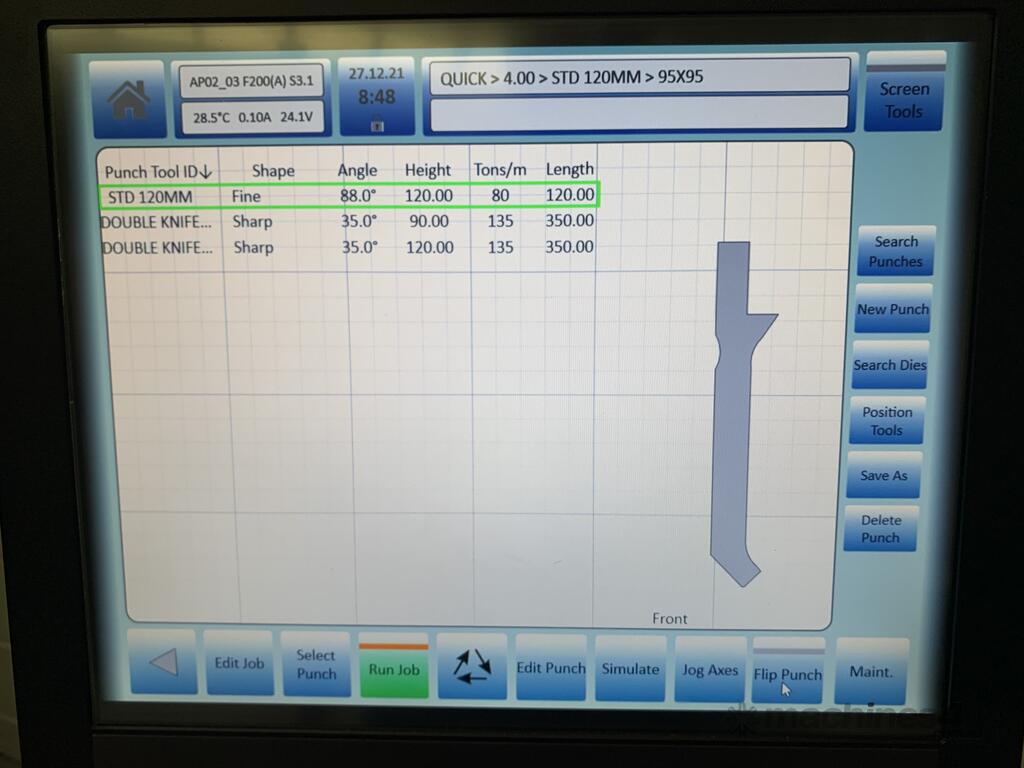

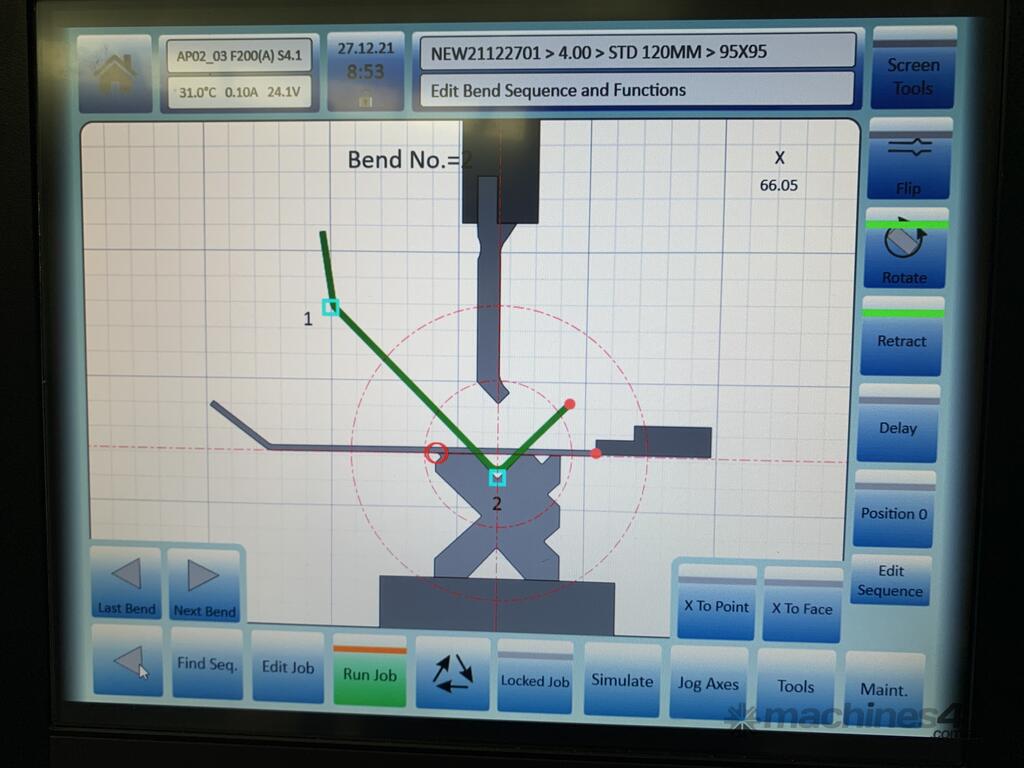

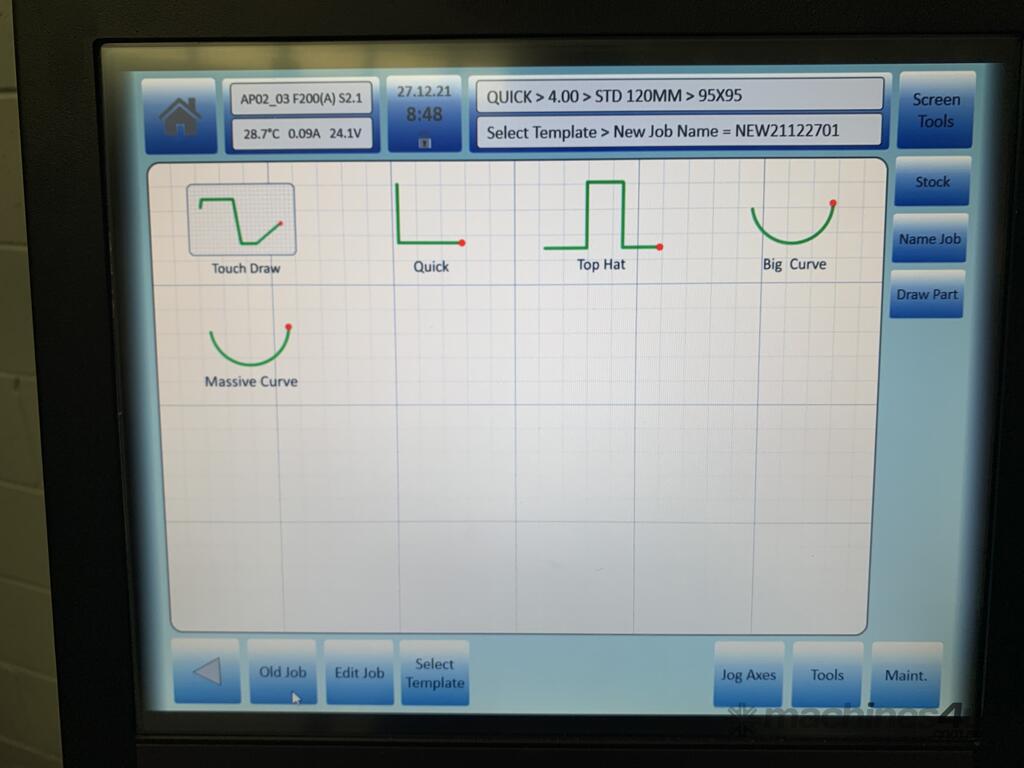

1.NC press brake with Torsion Bar and User friendly Touch screen CNC controller iCON
2D touch screen with angle programming , programming of Tools , Products, Auto sequence calculation, Multi steps programs and large memory for product and Jobs. Backed up by service team with more than 20 years of experience .
2. 2 axes NC control, Y and x axes precision inverter drive control.
3.Efficient low noise and accurate hydraulic system BOSCH REXROTH.

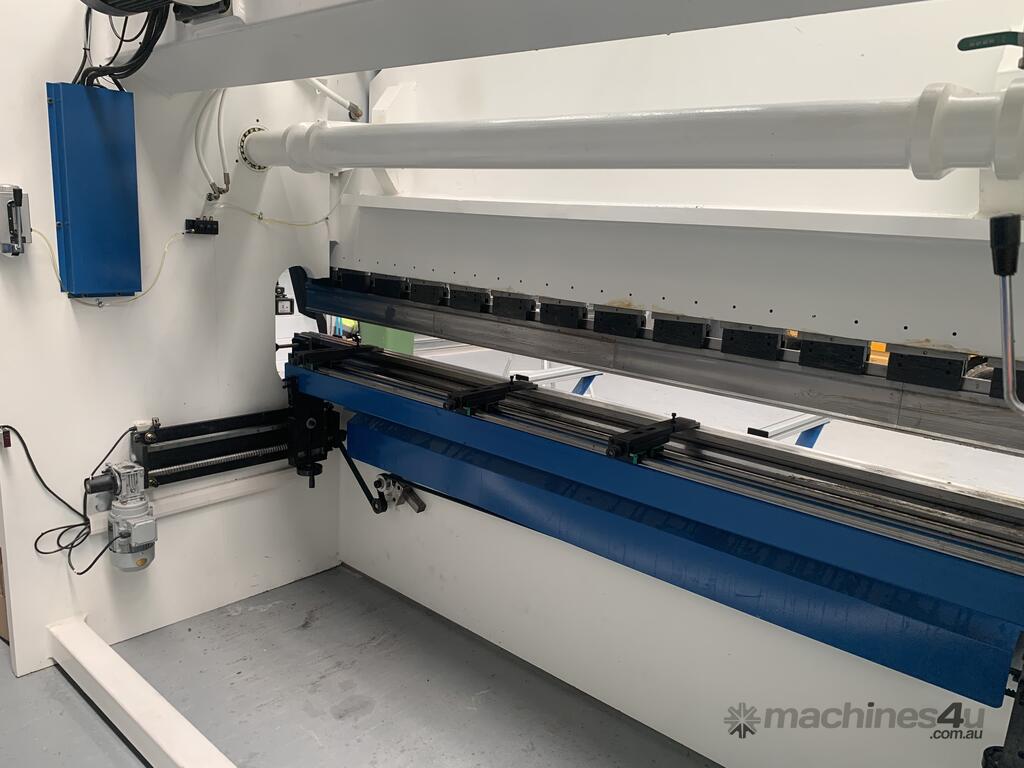

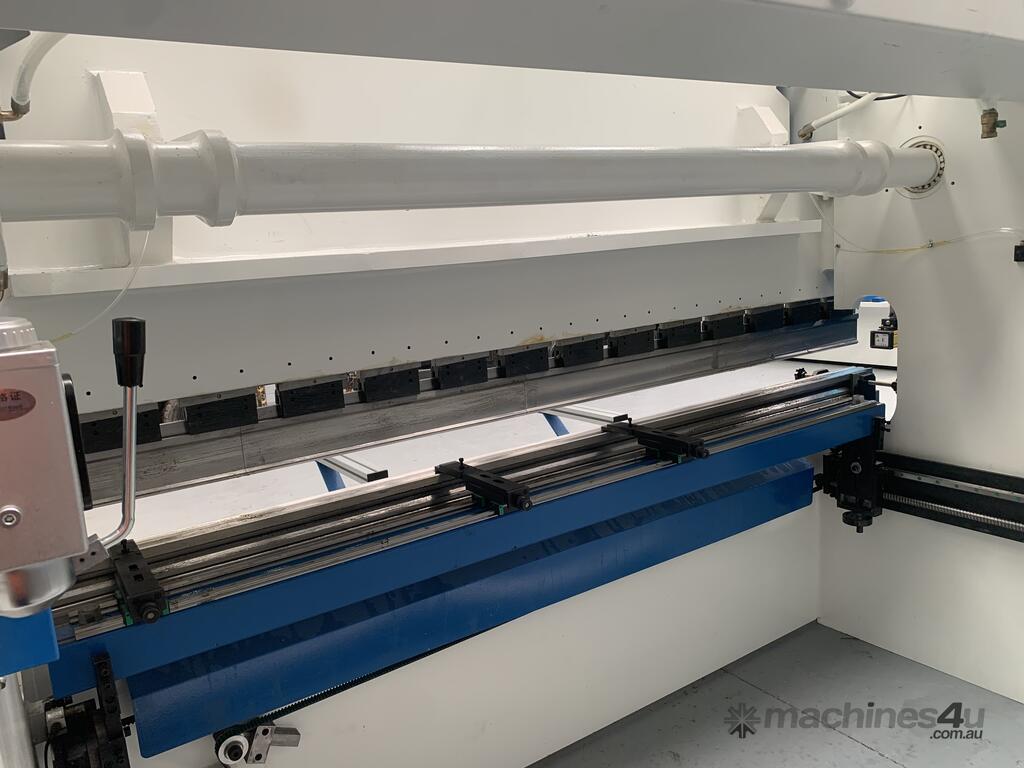

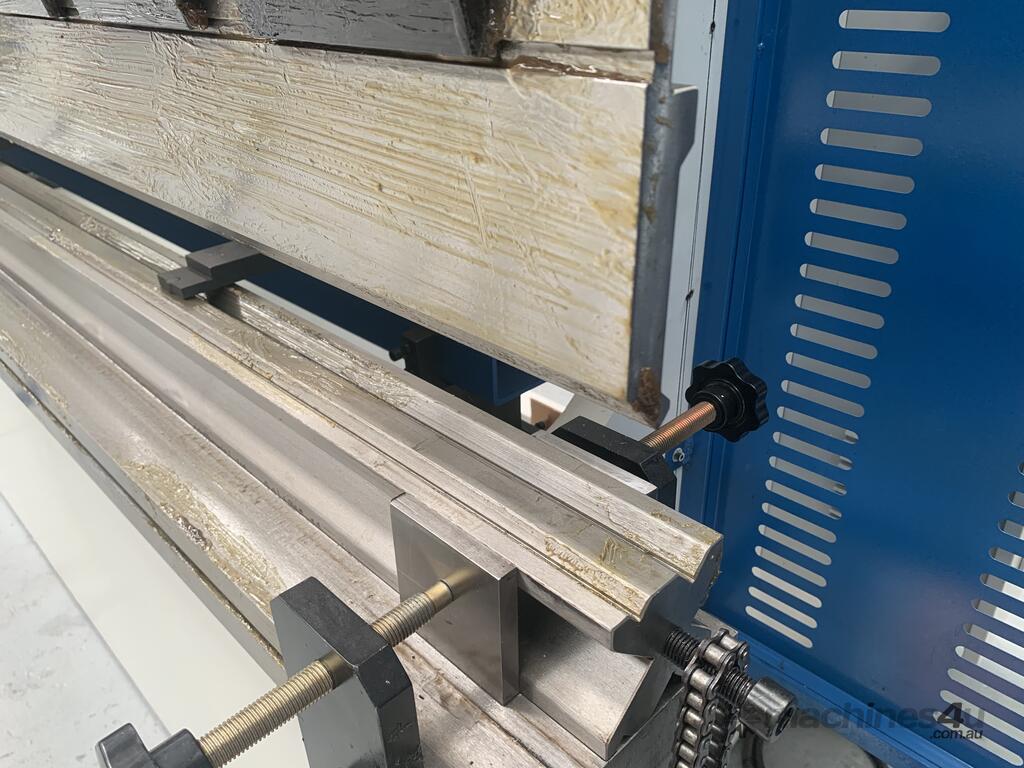

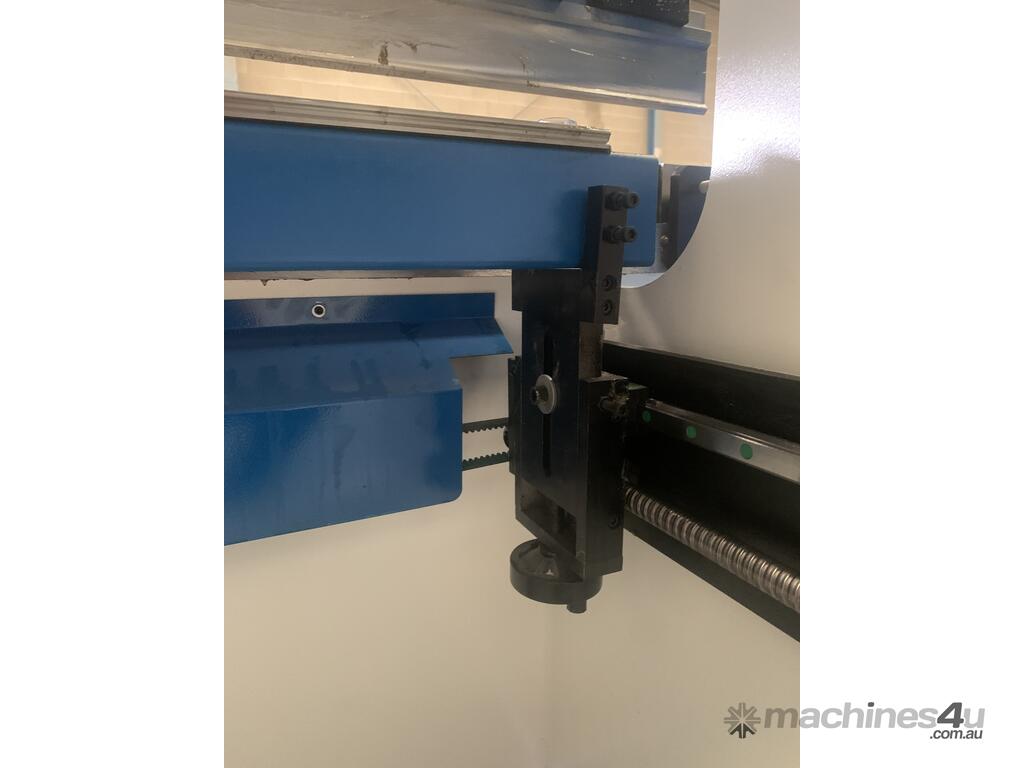

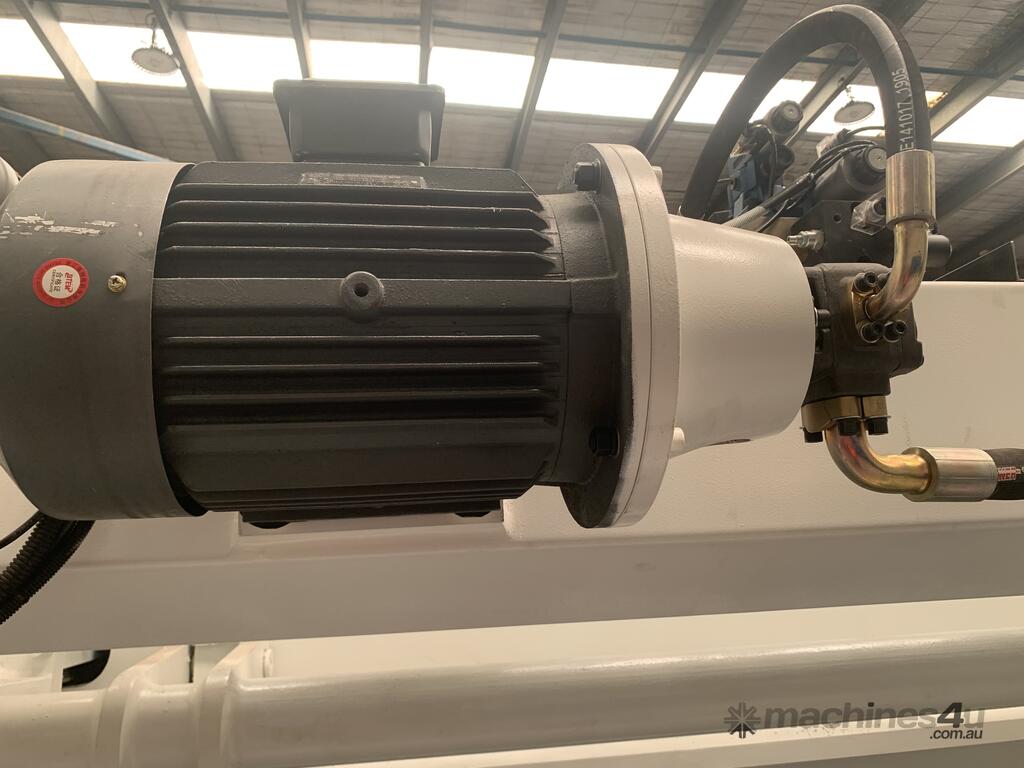

4.Silent and reliable gear pump from Sunny Hydraulics USA.
5.Manual movable backgauge fingers along bending length.
6.Side and rear safety covers and sensors.

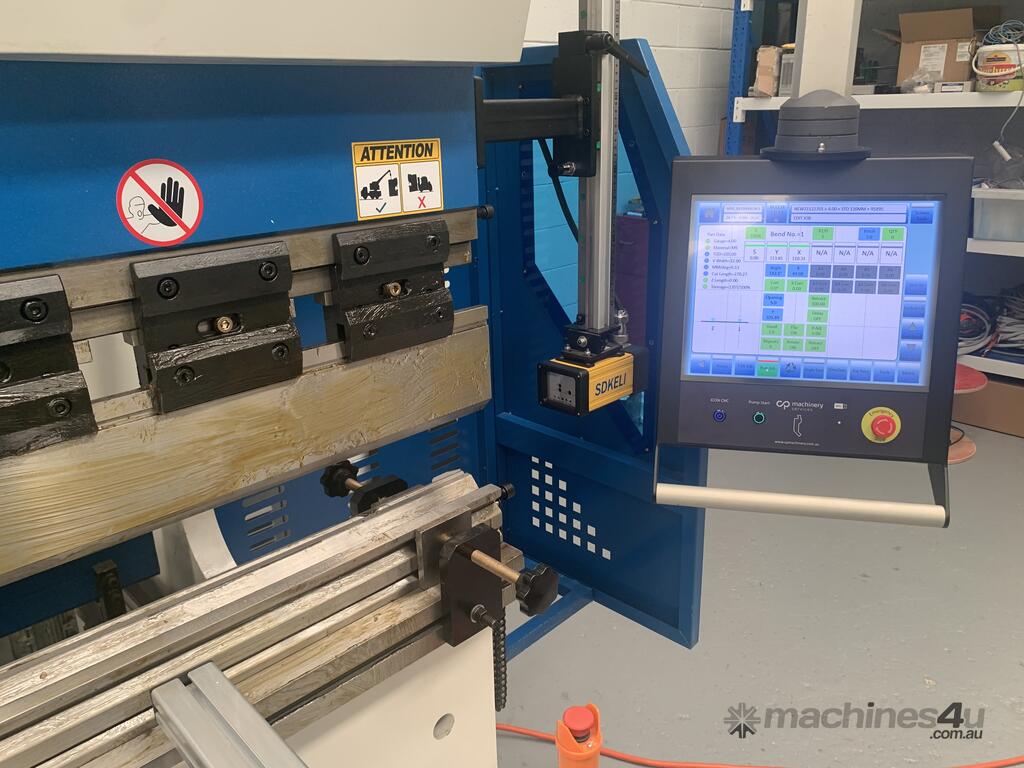

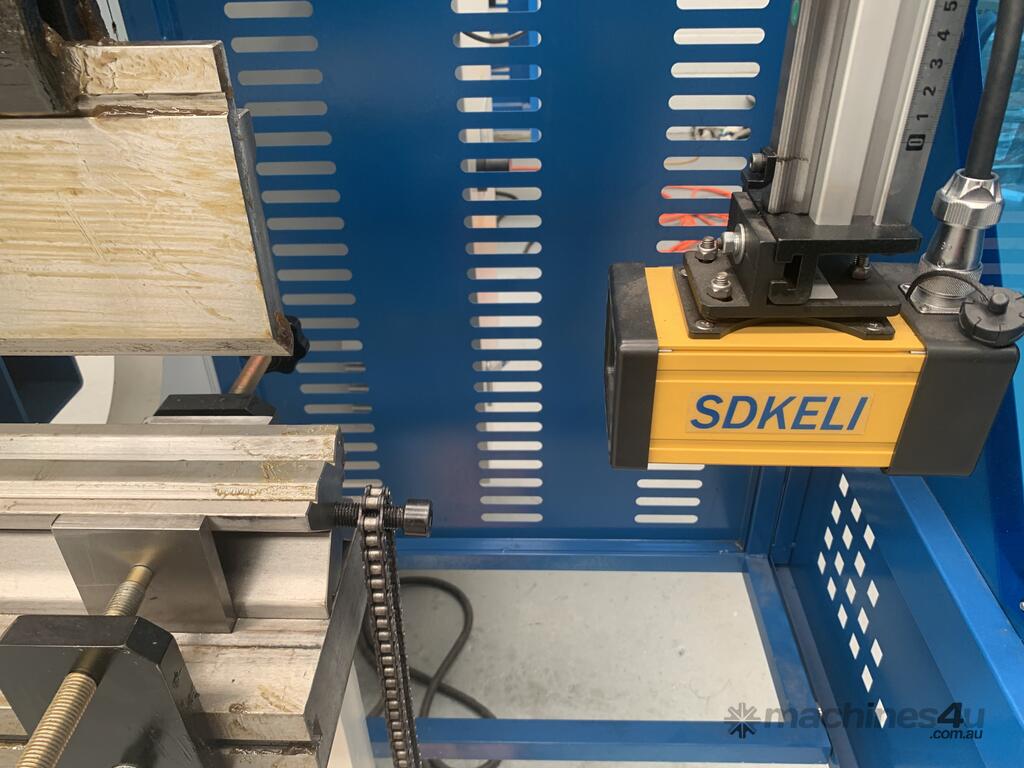

7. Comes with SD Kelli safety laser guards at front.
8.Schneider Electrical components
9.Hiwin Ball screw from Taiwan
10. Shihlin inverter drive from Taiwan
Bending Force: 135 Ton
Bending length: 3200mm
Distance between columns: 2600mm
Ram stroke: 150mm
Daylight: 390mm
Throat depth: 330 mm
Table width: 180mm
Fast closing speed: 100mm/sec
Work speed: 10mm /sec
Return speed: 100 mm/sec
motor power: 7.5 kW
Weight: 7800Kgs
