Manford Machinery Co., LTD was founded in 1987 with a vision to produce high-quality machine tools. Over the years, Manford has expanded its operations, owning four companies in Taiwan, including Avemax, Automac Smartauto, and Manford Guarding Co. Ltd. Our product range includes 5-axis machining centers, vertical and horizontal machining centers, CNC lathes, and more. We also offer OEM/ODM solutions, catering to diverse industries like aeronautics, high-tech electronics, and automotive sectors. Today, Manford products are sold worldwide, delivering precision, reliability, and innovation.
With the Vertical Machining Centres, Manford offers 2 series with 3 model types.
---------------------------------
CNC Tool Room Mill
---------------------------------
- - - - - - - - - - - - - - - - - - - - - - -

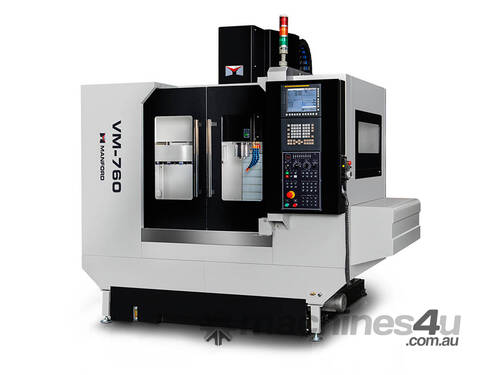

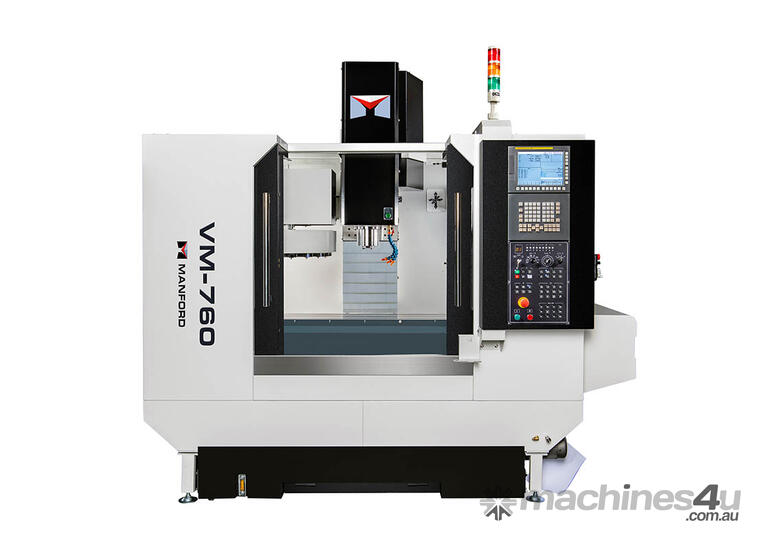

Linear Guide Way - VM-760
- - - - - - - - - - - - - - - - - - - - - - -
Product Specifications:
X Travel: 760 mm
Y Travel: 400 mm
Z Travel: 400 mm
Table Size: 1270 × 305 mm
T-Slot Configuration: 3 slots (16 mm width, 102 mm spacing)
CNC Control Options: Mitsubishi, Fanuc, Siemens, Fagor
Spindle Taper: BT40
Spindle Speed: 10,000 rpm
ATC Capacity: 12 tools
- - - - - - - - - - - - - - - - - - - - - - - - -

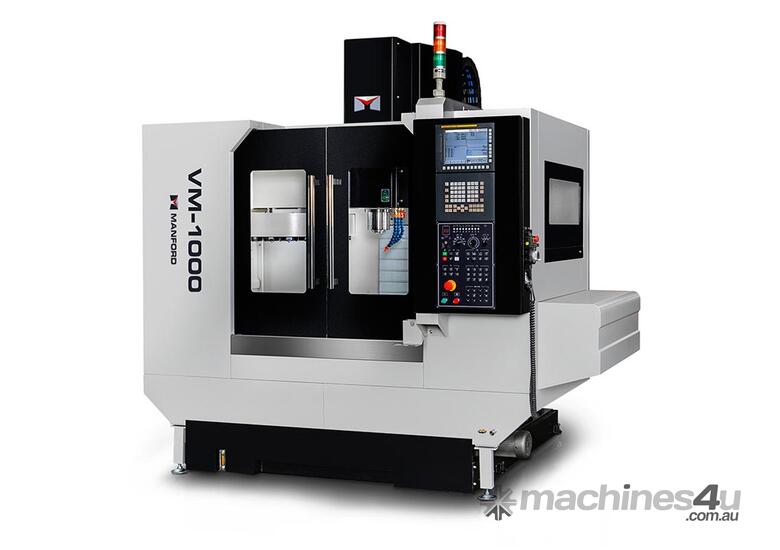

Linear Guide Way - VM-1000
- - - - - - - - - - - - - - - - - - - - - - - - -
Product Specifications:
X Travel: 1020 mm
Y Travel: 400 mm
Z Travel: 400 mm
Table Size: 1524 × 305 mm
Max Table Load: 300 kg
CNC Control Options: Mitsubishi, Fanuc, Siemens, Fagor
Spindle Taper: BT40
Spindle Speed: 10,000 rpm
ATC Capacity: 12 tools
________________________________________________________________________________________________________________________
- - - - - - - - - - - - - - -

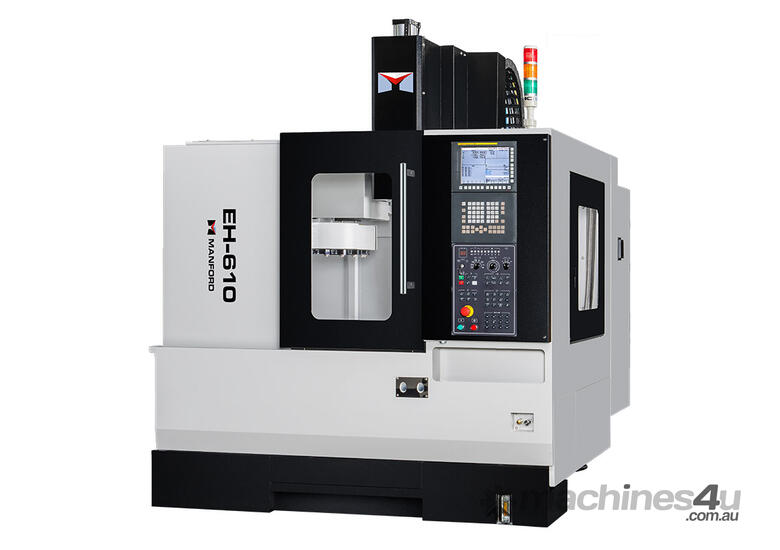

Box Way - EH-610
- - - - - - - - - - - - - - -
Product Specifications:
X Travel: 610 mm
Y Travel: 350 mm
Z Travel: 460 mm
Table Size: 710 × 350 mm
Max Table Load: 350 kg
CNC Control Options: Mitsubishi, Fanuc, Siemens, Fagor
Spindle Taper: BT40
Spindle Speed: 10,000 rpm
ATC Capacity: 12 tools
For more information and to see this product in action: youtu.be/dLiZER5QnJM
_______________________________________________________________________________________________________________________
MORE OPTIONAL ACCESSORIES OPTIONS ARE AVAILABLE.
FOR ANY CUSTOMISATION, OUR TEAM IS AVAILABLE TO SUPPORT AND GUIDE.
All our machines come with strict quality control checks, and certificates issued to the machines come along with the machine despatch.
A one-year standard warranty is applicable to all our machines and models. We offer additional warranty and services upon request, so please contact us for further information.
All our sales, prices, and information strictly adhere to our terms and conditions. Please contact us and demand the terms and conditions information document. Customers can also visit our for more information.
We offer complete Turnkey solutions and Our skilled service engineers and technicians are available to come to your site for machine installation and training. We have the capability to keep your machine operational at all times with on-time spare parts delivery, whether they are general consumables or critical.
We continuously enhance our capabilities and provide support to our customers, fostering strong relationships with them.
