CNC Vertical Lathe TKV-1100

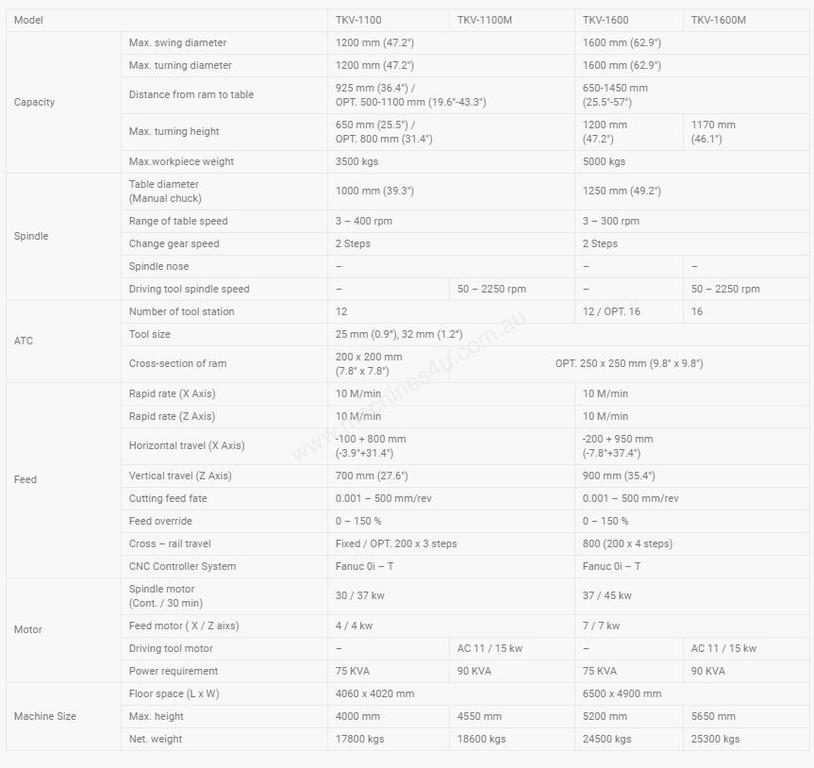

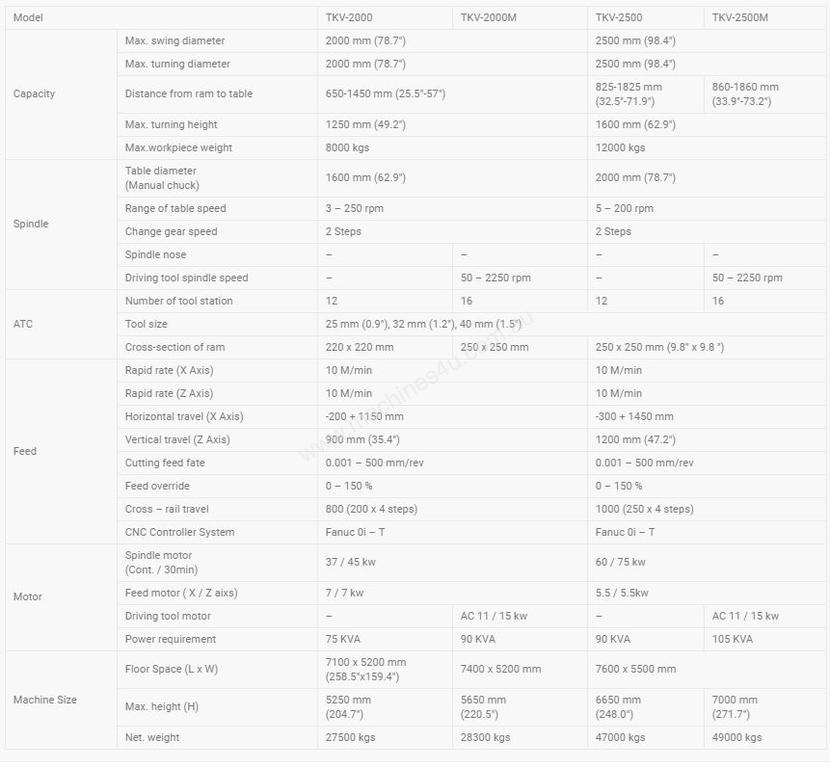

Model TKV-1100 TKV-1100M TKV-1600 TKV-1600M

Capacity Max. swing diameter 1200 mm (47.2") 1600 mm (62.9")
Max. turning diameter 1200 mm (47.2") 1600 mm (62.9")
Distance from ram to table 925 mm (36.4") /
OPT. 500-1100 mm (19.6"-43.3") 650-1450 mm
(25.5"-57")
Max. turning height 650 mm (25.5") /
OPT. 800 mm (31.4") 1200 mm
(47.2") 1170 mm
(46.1")
Max.workpiece weight 3500 kgs 5000 kgs
Spindle Table diameter
(Manual chuck) 1000 mm (39.3") 1250 mm (49.2")
Range of table speed 3 – 400 rpm 3 – 300 rpm
Change gear speed 2 Steps 2 Steps
Spindle nose – – –
Driving tool spindle speed – 50 – 2250 rpm – 50 – 2250 rpm

STANDARD ACCESSORIES

Spindle orientation
Table with manual 4-jaw chuck
Hydraulic power unit
Electric torque limitation
Foot switch for hydraulic chuck
Automatic lubrication system
Coolant system through tool holder to inserts (3 bar)
Coolant flushing system with tank
Protection door
Heat exchanger for electrical cabinet
Full enclosed splash guard
Work light
Warning light ( R / Y / G )
Workpiece counter
Chain type chip conveyor & chip trolley
Manual of operation & maintenance
Manual of electrical & hydraulic circuit diagram
Manual for controller
Fixed type cross rail on TKV-1100 & 1100M
Tool box with tool kits
Leveling bolts & pads

OPTIONAL ACCESSORIES

Higher power motor
Extra hydraulic chuck & cylinder
Dual speed gear box for driving tool spindle
High & low pressure chucking
Hard jaws of hydraulic chuck
Manual guide i
Hydraulic chuck & cylinder, diameter as spec
Linear scale on X/Z axis
Lubricant chiller for spindle bearing & gear
Special tool holder
Higher pressure coolant through turret (6 bar)
Tool presetter with cover protection (Turning dia. is reduced)
Tool arrangement
Tool holder base
Air conditioner for electrical cabinet
Oil skimmer (Disk type)
Scrap type chip conveyor with chip trolley
Moveable crossrail for TKV-1100, 1100M
Jig & fixture
Turnkey project
External power transformer
CE mark
