CNC Vertical Lathe TKV-760 / 760M / 900 / 900M

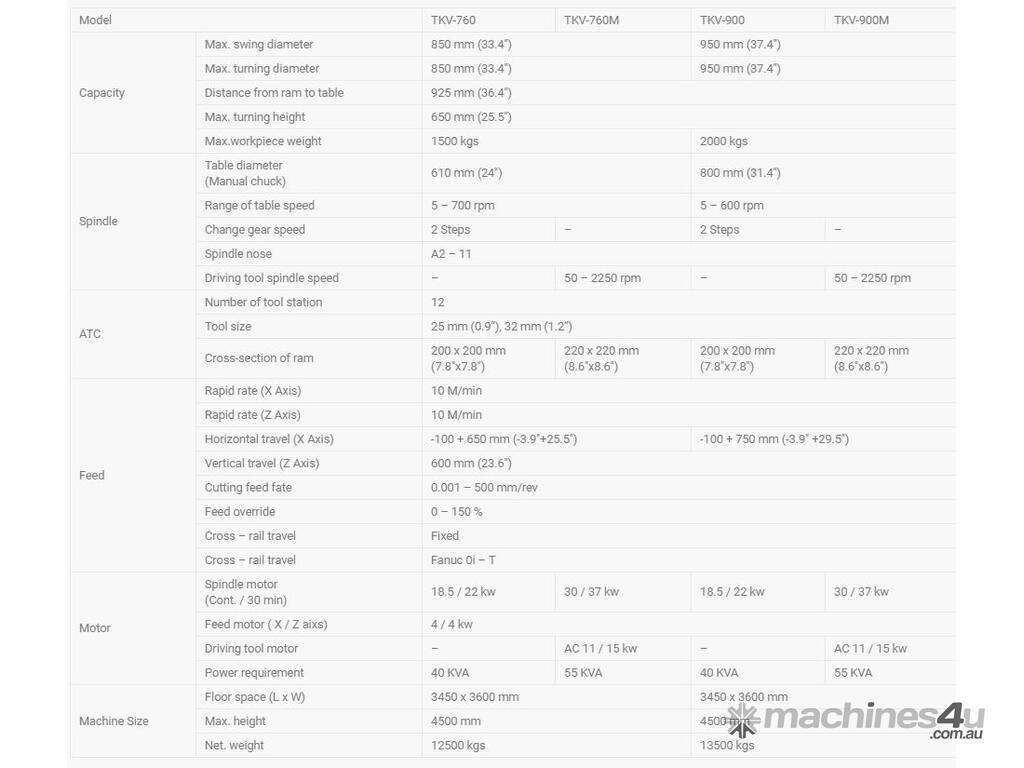

Model TKV-760 TKV-760M TKV-900 TKV-900M

Capacity Max. swing diameter 850 mm (33.4") 950 mm (37.4")
Max. turning diameter 850 mm (33.4") 950 mm (37.4")
Distance from ram to table 925 mm (36.4")
Max. turning height 650 mm (25.5")
Max.workpiece weight 1500 kgs 2000 kgs
Spindle Table diameter
(Manual chuck) 610 mm (24") 800 mm (31.4")
Range of table speed 5 – 700 rpm 5 – 600 rpm
Change gear speed 2 Steps – 2 Steps –
Spindle nose A2 – 11
Driving tool spindle speed – 50 – 2250 rpm – 50 – 2250 rpm
ATC Number of tool station 12
Tool size 25 mm (0.9”), 32 mm (1.2”)
Cross-section of ram 200 x 200 mm
(7.8"x7.8") 220 x 220 mm
(8.6"x8.6") 200 x 200 mm
(7.8"x7.8") 220 x 220 mm
(8.6"x8.6")
Feed Rapid rate (X Axis) 10 M/min
Rapid rate (Z Axis) 10 M/min
Horizontal travel (X Axis) -100 + 650 mm (-3.9"+25.5") -100 + 750 mm (-3.9" +29.5")
Vertical travel (Z Axis) 600 mm (23.6")
Cutting feed fate 0.001 – 500 mm/rev
Feed override 0 – 150 %
Cross – rail travel Fixed
Cross – rail travel Fanuc 0i – T
Motor Spindle motor
(Cont. / 30 min) 18.5 / 22 kw 30 / 37 kw 18.5 / 22 kw 30 / 37 kw
Feed motor ( X / Z aixs) 4 / 4 kw
Driving tool motor – AC 11 / 15 kw – AC 11 / 15 kw
Power requirement 40 KVA 55 KVA 40 KVA 55 KVA
Machine Size Floor space (L x W) 3450 x 3600 mm 3450 x 3600 mm
Max. height 4500 mm 4500 mm
Net. weight 12500 kgs 13500 kgs

SPECIFICATIONS

Spindle orientation
Hydraulic 3-jaw solid chuck, cylinder & soft jaw x 1 set (For TKV-760, TKV-900 series)
Hydraulic power unit
Electric torque limitation
Foot switch for hydraulic chuck
Automatic lubrication system
Coolant system through tool holder to inserts (3 bar)
Coolant flushing system with tank
Protection door
Heat exchanger for electrical cabinet
Full enclosed splash guard
Work light
Warning light ( R / Y / G )
Workpiece counter
Chain type chip conveyor & chip trolley
Manual of operation & maintenance
Manual of electrical & hydraulic circuit diagram
Manual for controller
Tool box with tool kits
Leveling bolts & pads

OPTIONAL ACCESSORIES

Higher power motor
Extra hydraulic chuck & cylinder
Dual speed gear box for driving tool spindle
High & low pressure chucking
Table with manual 4-jaw chuck
Hard jaws of hydraulic chuck
Manual guide i
Hydraulic chuck & cylinder, diameter as spec
Linear scale on X/Z axis
Lubricant chiller for spindle bearing & gear
Special tool holder
Higher pressure coolant through turret (6 bar)
Tool presetter with cover protection (Turning dia. is reduced)
Tool arrangement
Tool holder base
Air conditioner for electrical cabinet
Oil skimmer (Disk type)
Scrap type chip conveyor with chip trolley
Jig & fixture
Turnkey project
External power transformer
CE mark
