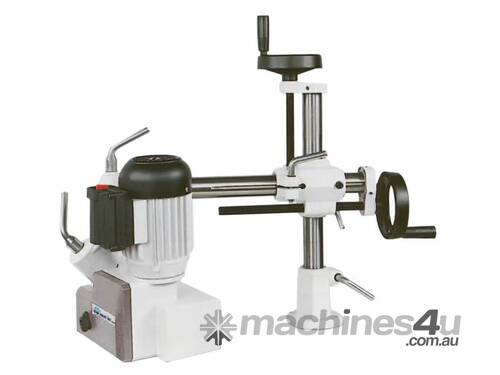

CO-MATIC AF-32 'JUNIOR' POWER FEED UNIT

CO-MATIC AF-32 ‘JUNIOR’ POWER FEED UNIT

Specifications
§ Three feed rollers with abrasion resistant vulcanised rubber ‘tyres’.
§ Four different feed speeds for various operations – forward and reverse.
§ Universally adjustable mounting stand to allow feeding operations vertically, horizontally or
at any angle in between.
§ Turning type switch for electric motor and reversible gears to select required speeds.
§ A versatile light weight feed unit that can be used on many different types of small
woodworking machines.
§ CO-MATIC – undisputed world leading supplier of power feeders!

Technical Data
Single phase electric motor 0.25 hp
Vertical roller suspension limit 12 mm
Diameter of feed rollers 80 mm
Width of feed rollers 30 mm
Total nett weight 32 kgs
Four available feed speeds 6, 8, 10 or 13 m/min
