COMAC – Digital Radius Gauge measuring device

The instrument is able to determine the radius of a curve extremely quickly, it can be used indifferently both on the outside and on the inside of the curved profile.

By simply placing the gauge on the profile whose radius is to be determined, the instrument detects a measurement that, when searched for on the kit, immediately signals the radius. In this way, the operator working on a bending machine can easily control the curve up to the desired bending radius.

DIGITAL meter of the bending radius.
The radius measure is shown on the display of the device (no
decoding chart).
Range of measured radii: 250 – 700.000mm

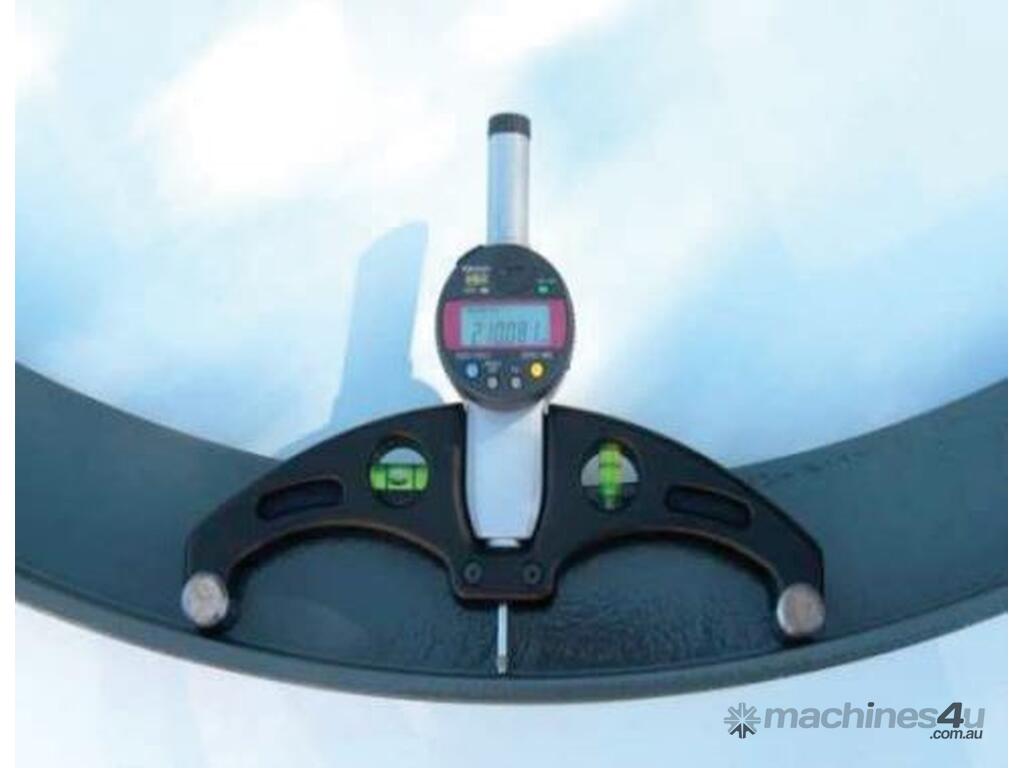

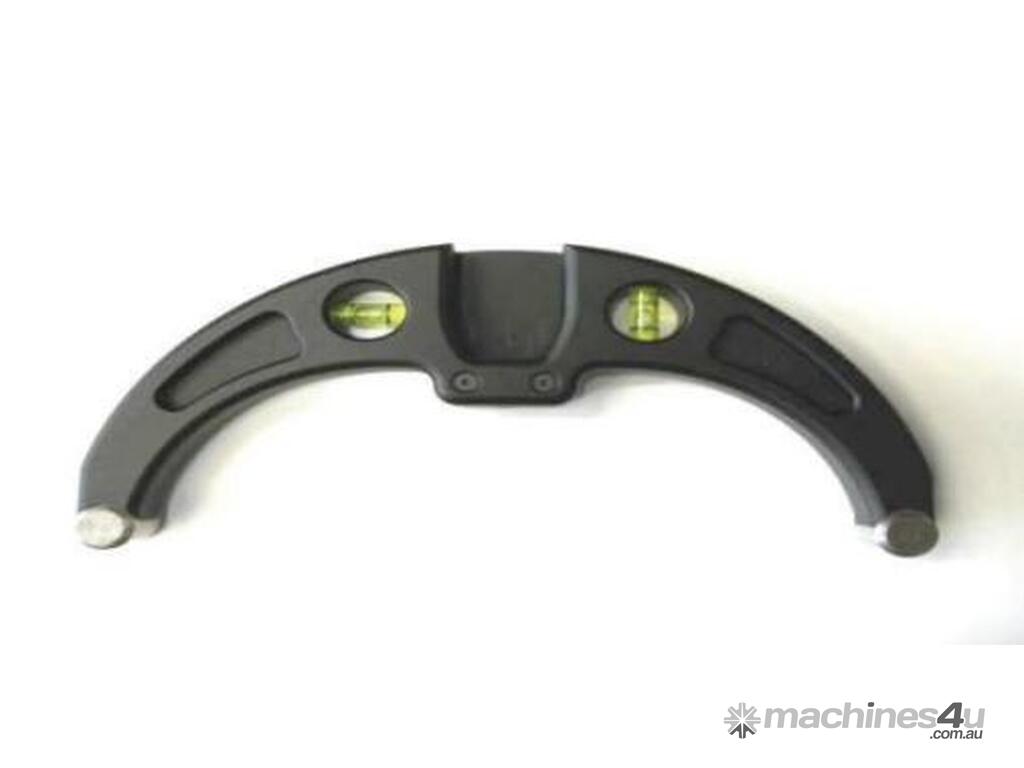

Supplied complete with machined bar for zero setting and support for
measurement of the inside radius.

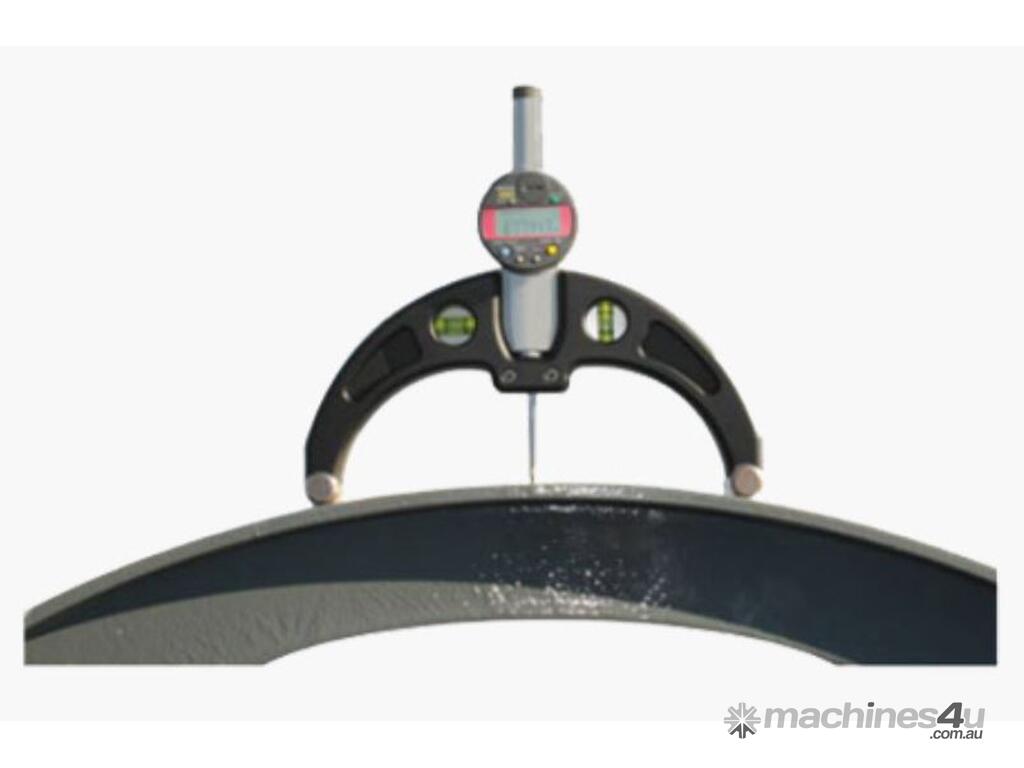

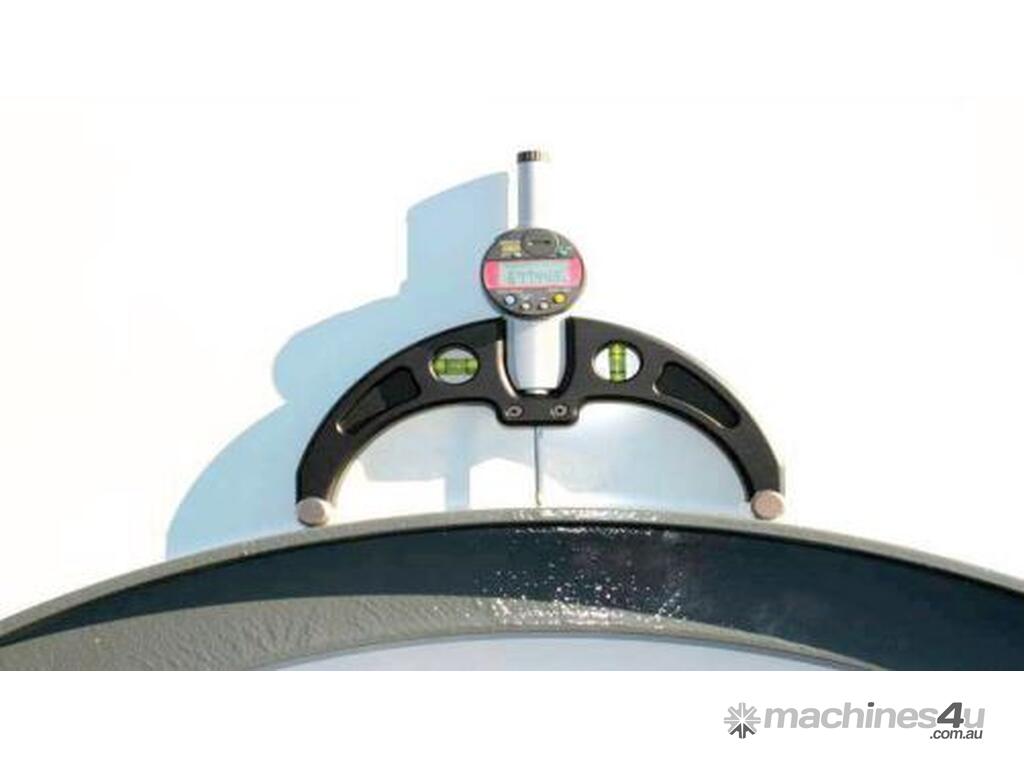

Extra support for measurement of the outside radius – optional
