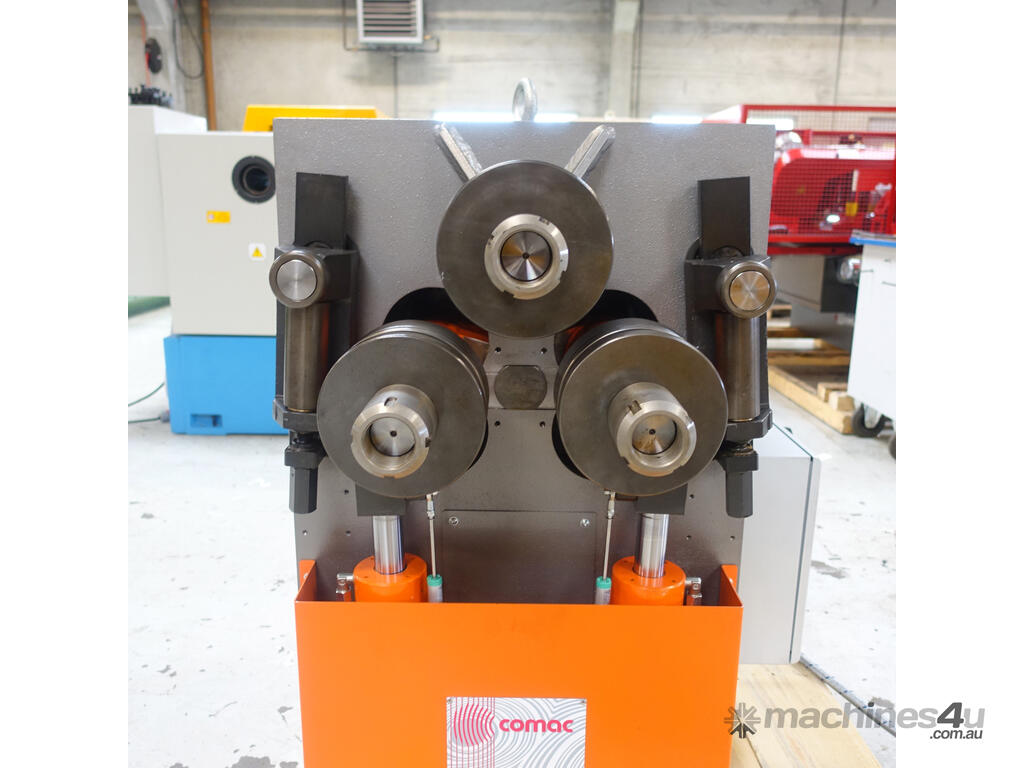

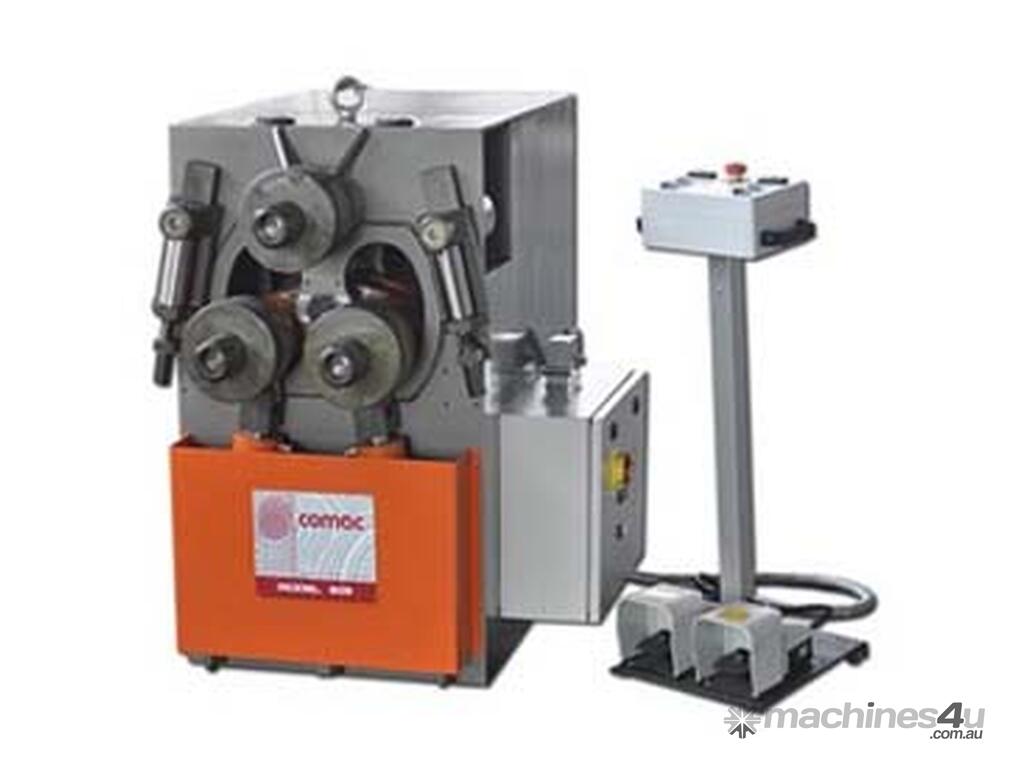

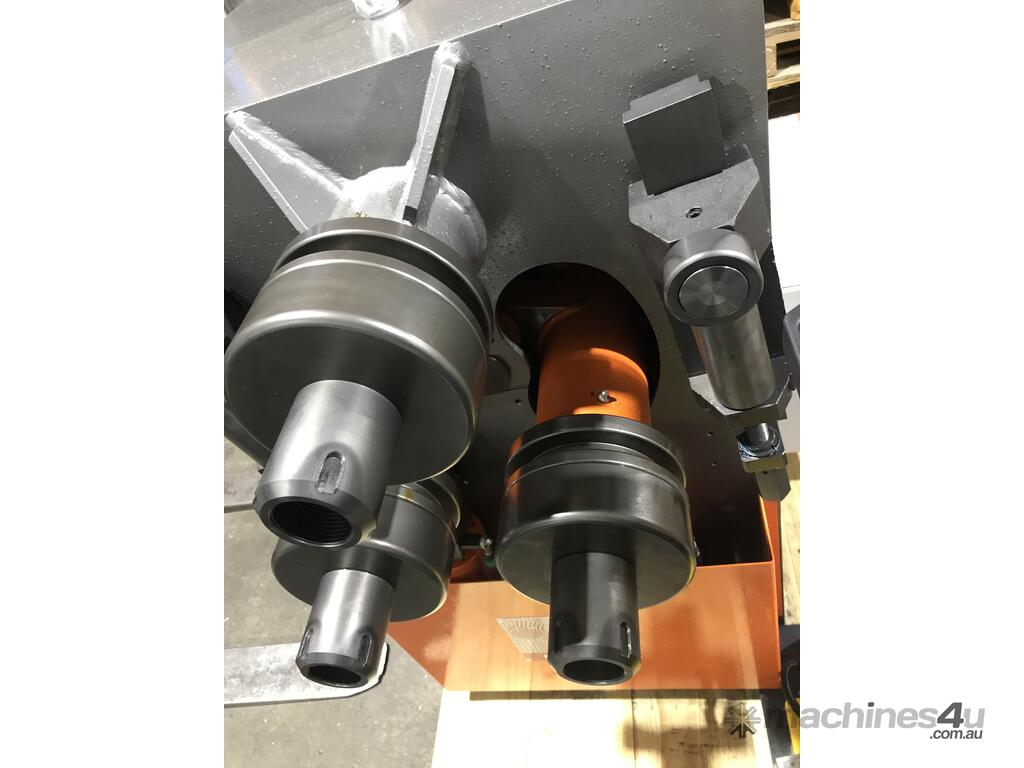

• 3 driving rolls to guarantee maximum drive on the profile
• Bending rolls independently adjustable, for double pre-bending capability

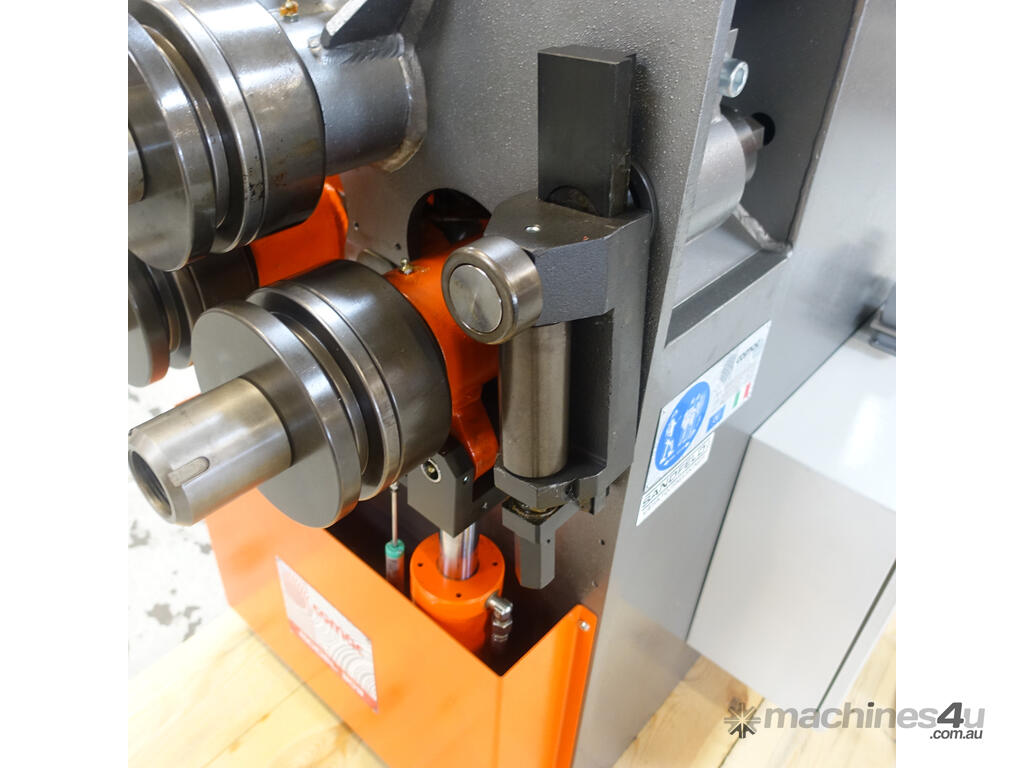

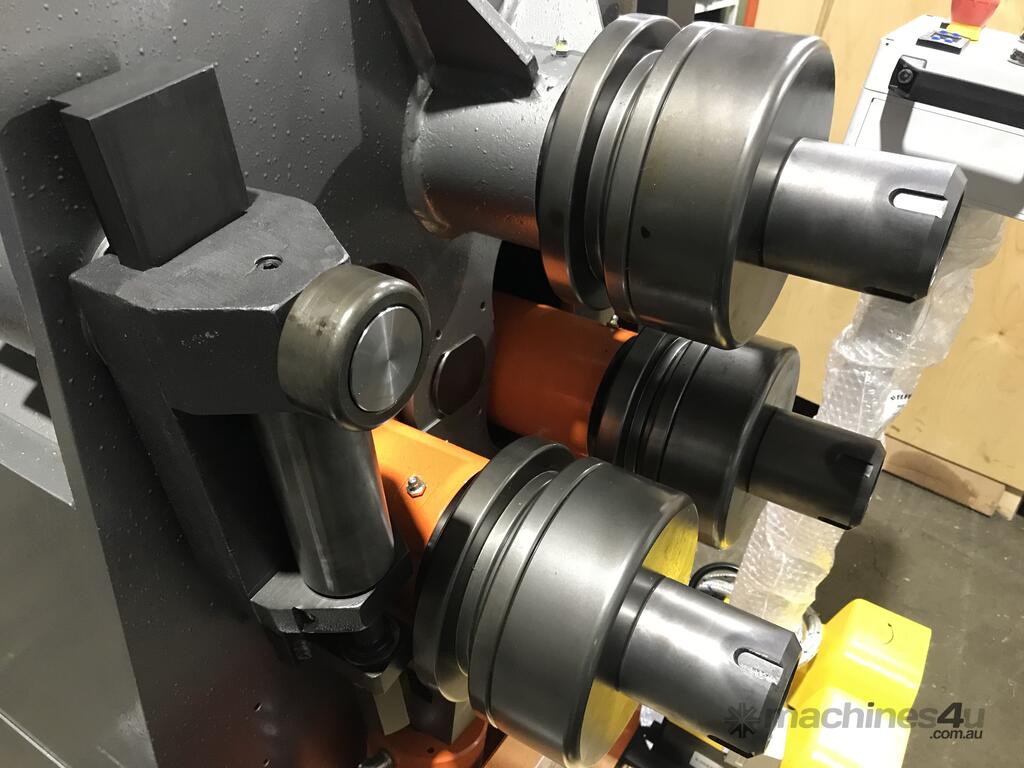

• Fully adjustable lateral guide rolls

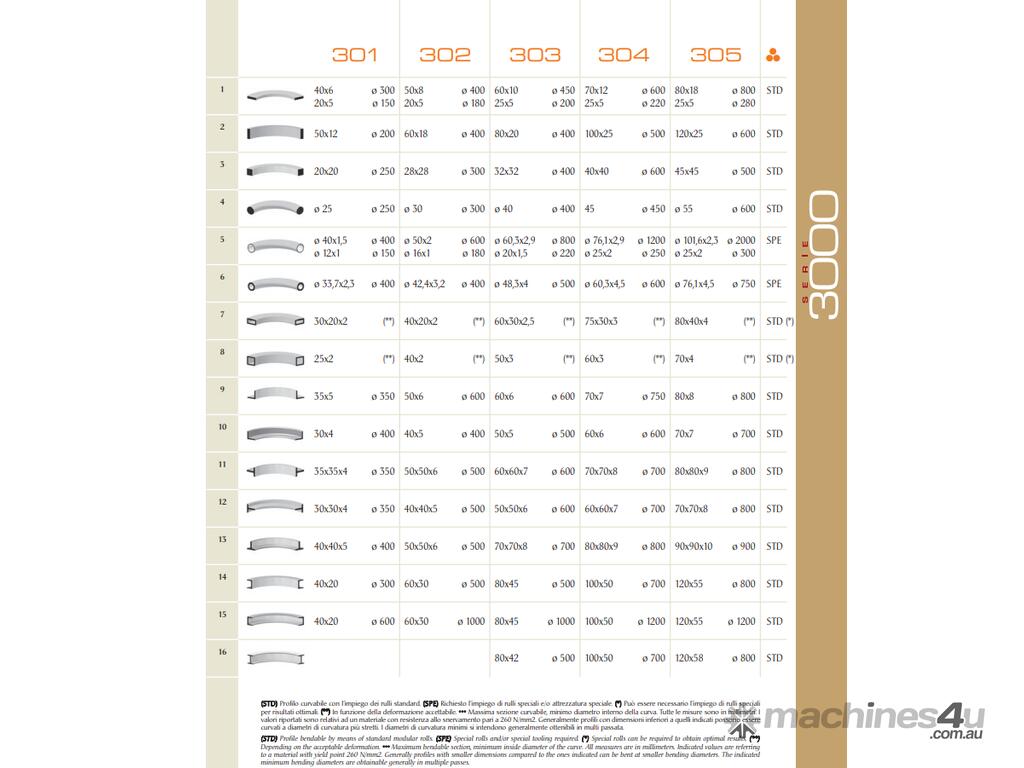

• Machine supplied with universal rolls for Flat, angle and solid bars
• Digital read out for position of bending rolls

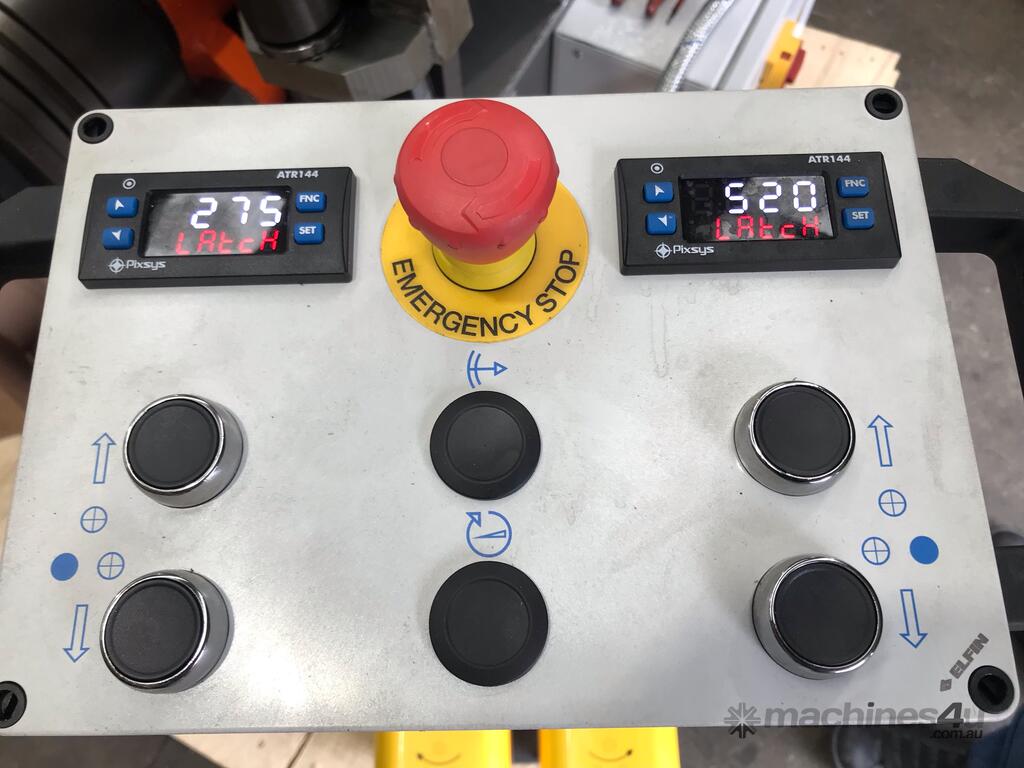

• Free-standing remote-control pedestal
• Possibility to operate machine both in vertical and horizontal position
• One-piece fabricated steel frame
• Torque limiter installed on top roll shaft
• Shaft and pinions installed on high dynamic load roller bearings
• Gears coupled on splined shafts

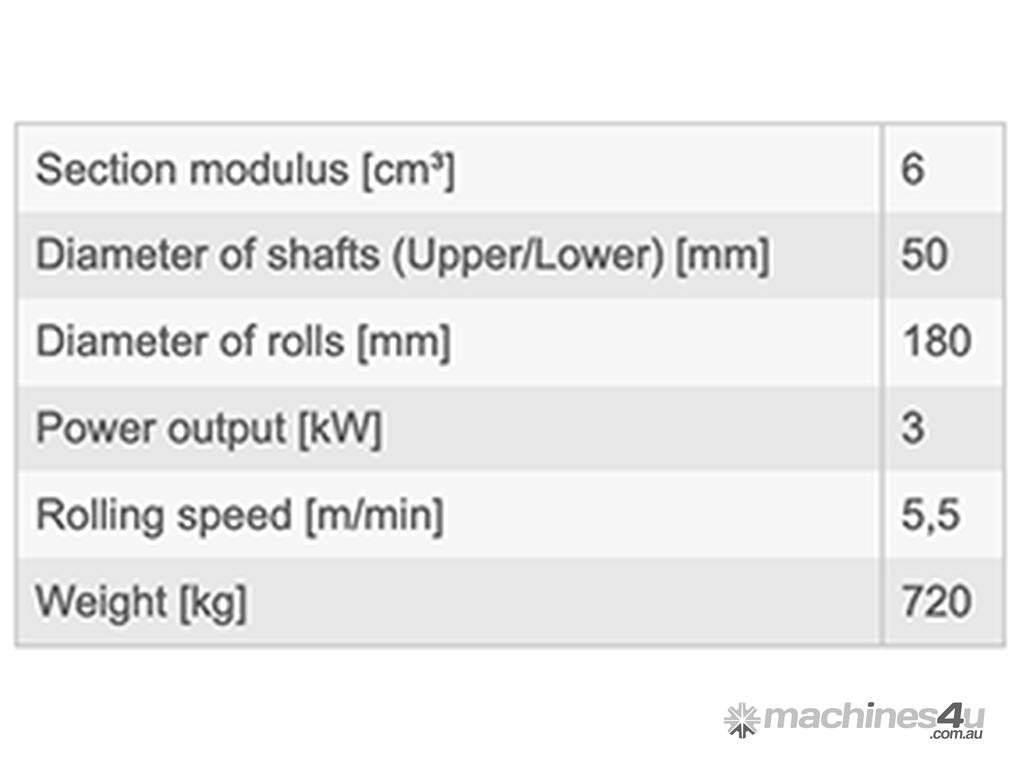

Section modulus [cm³] 6
Diameter of shafts (Upper/Lower) [mm] 50
Diameter of rolls [mm] 180
Power output [kW] 3
Rolling speed [m/min] 5,5
Weight [kg] 720
