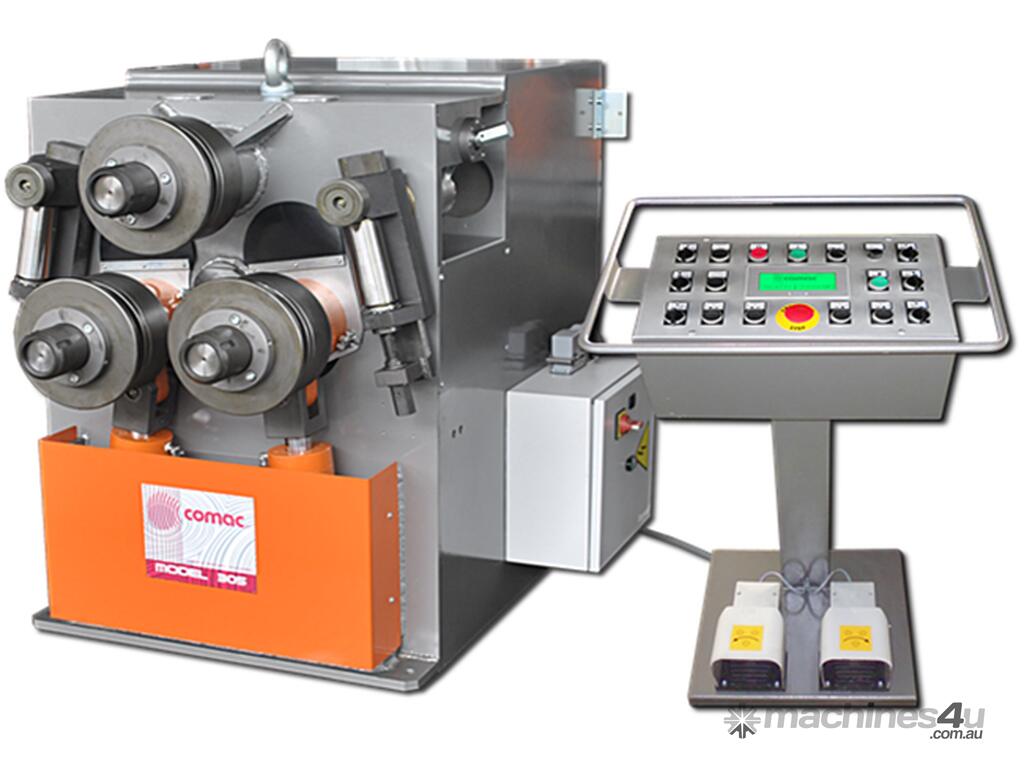

COMAC - MODEL 305 - Section and Profile Rolling Machine [made in Italy]

Name: COMAC - MODEL 305 - Section and Profile Rolling Machine made in Italy
Brand: comac
SKU: 658157
Availability: InStock

KNOXFIELD, VIC - Delivers Nationally

Play Video

Contact this seller for accurate pricing

Finance Repayment Calculator

Get a quote from our independent finance provider

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Section Rollers

Make:

COMAC

Model:

MODEL 305

Year:

Not specified

Member Since: Jun 2008

Silver Member

Listings: 278

Description

- Machines compliant to 2006/42/CE standard
- 3 driving rolls to guarantee maximum drive on the profile
- Bending rolls independently adjustable, for double pre-bending capability on the leading and trailing end of symmetrical profiles
- Lateral guide rolls with three-dimensional adjustment
- Modular rolls that allow the bending of most profiles
- Standard bending rolls of alloy steel, heat treated to surface hardness 60 HRC

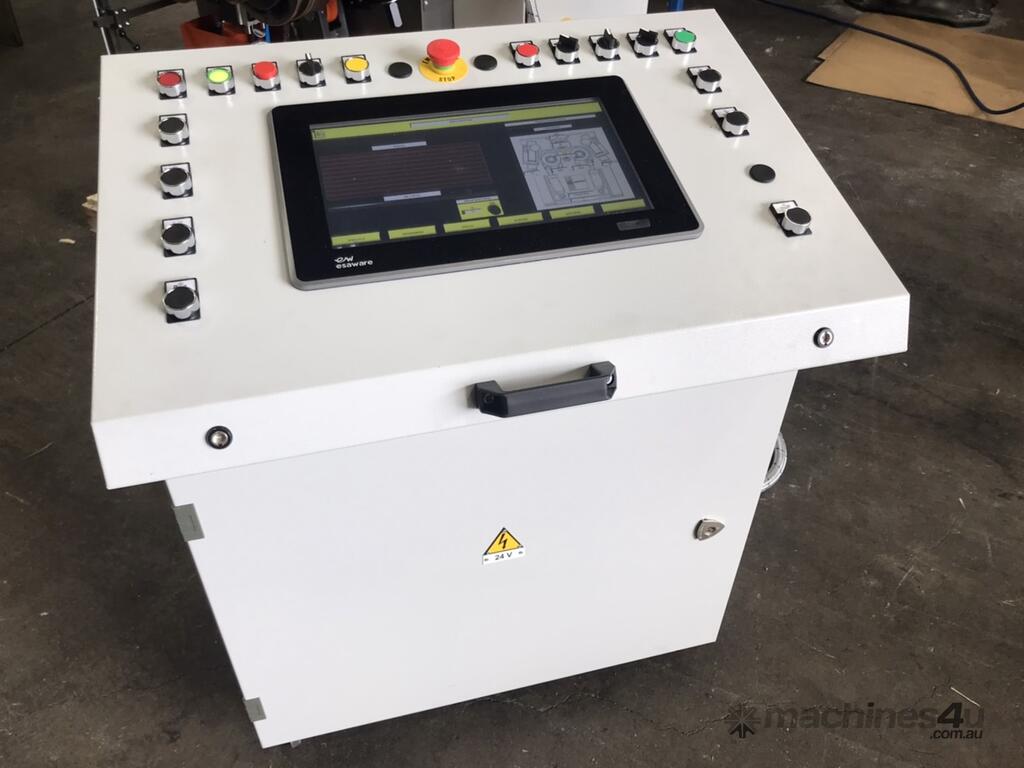

- Free standing remote control station to control the machine in safety

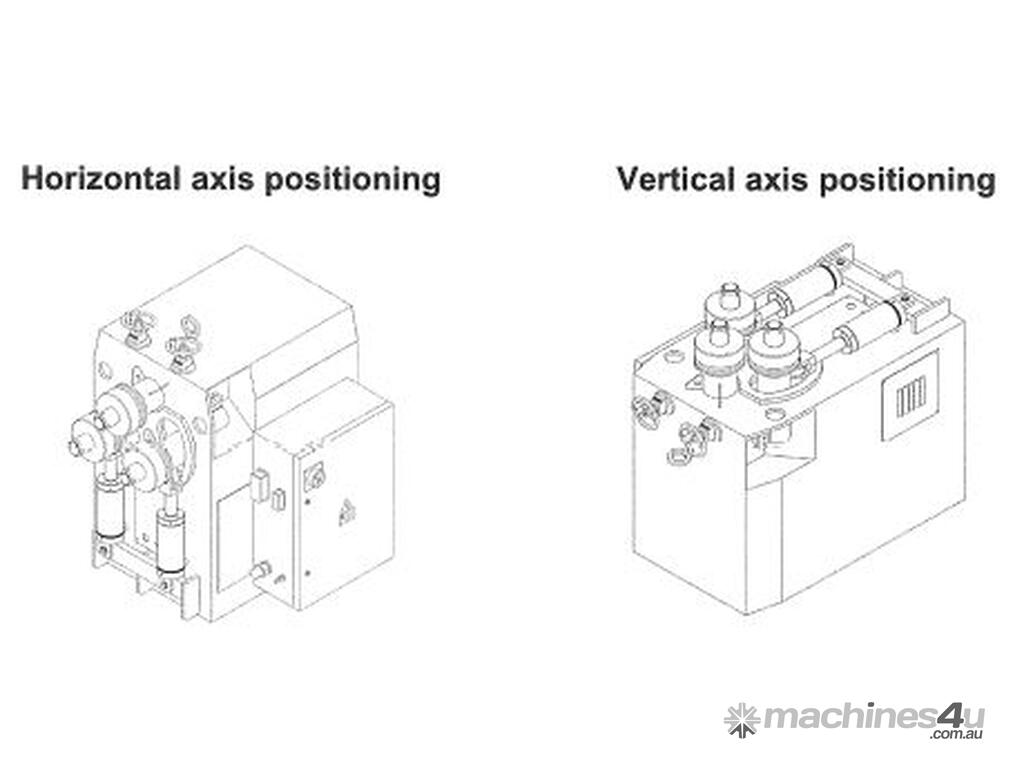

- Possibility to install the machine both in vertical and horizontal position
- One-piece fabricated steel frame
- Torque limiter installed on top roll shaft
- Shaft and pinions installed on high dynamic load roller bearings
- Gears coupled on splined shaft
- Water based environmental friendly paint

Section modulus [cm³] 18
Diameter of shafts (Upper/Lower) [mm] 70
Diameter of rolls [mm] 245
Power output [kW] 4,9
Rolling speed [m/min] 6,1
Weight [kg] 1520

UNIVERSAL PROFILE BENDING MACHINE MODEL 305 CN3-I V

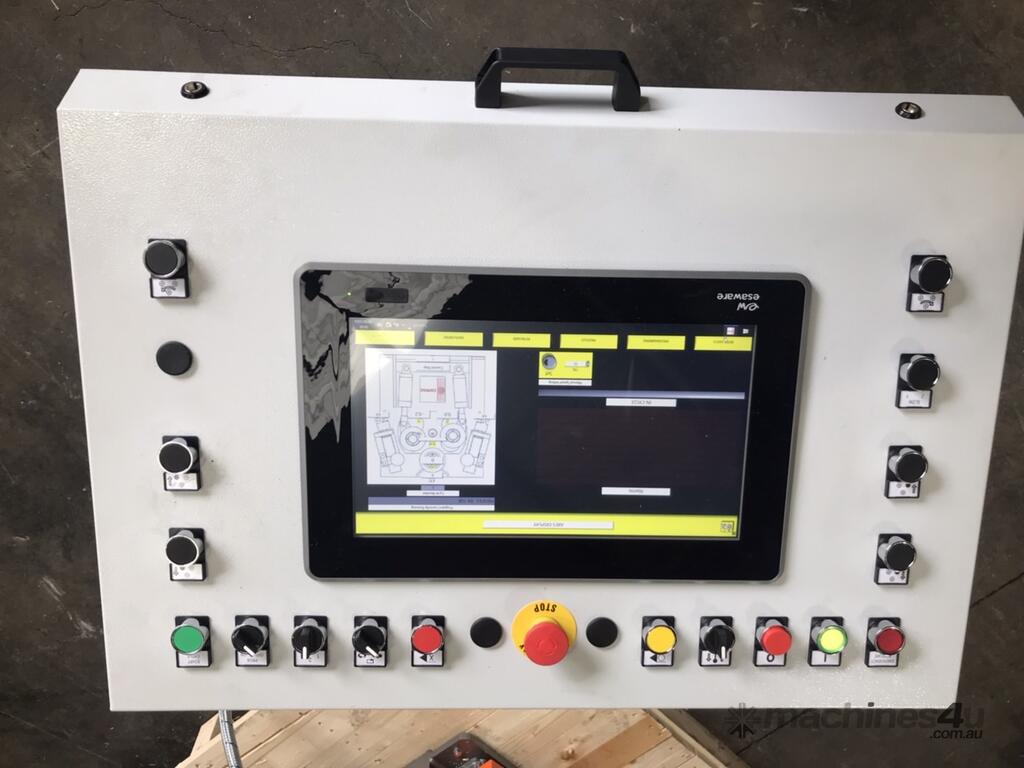

Equipped with CNC control type CN3.1V and Universal standard rolls
Price From: $95,000+GST+Delivery
