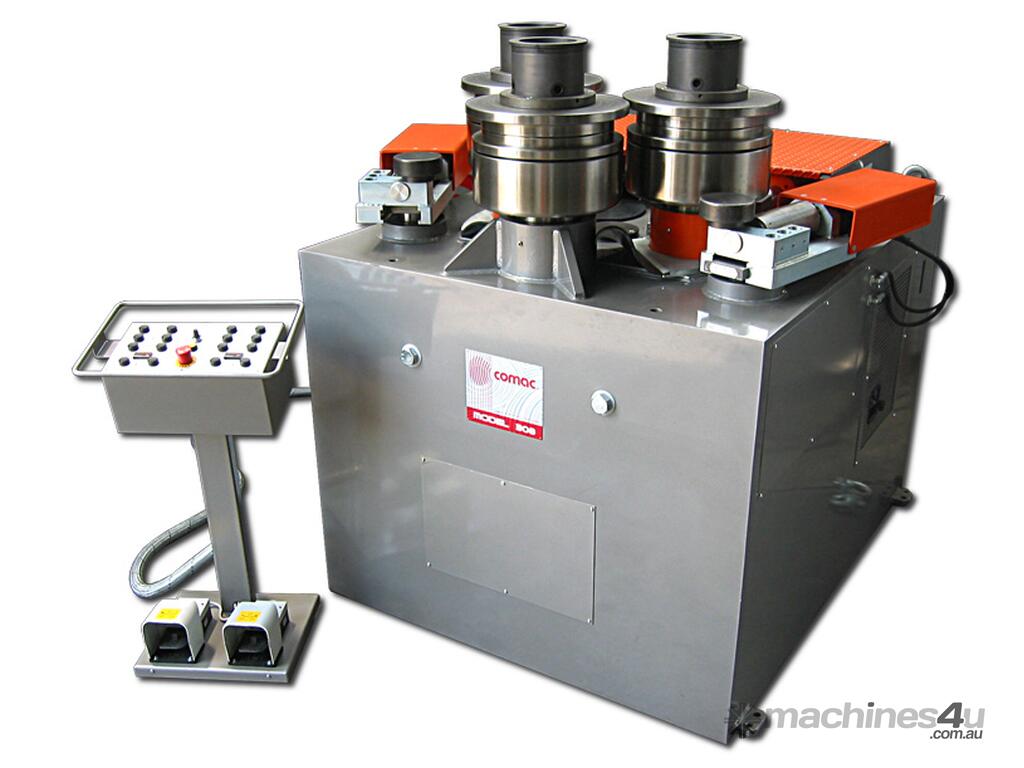

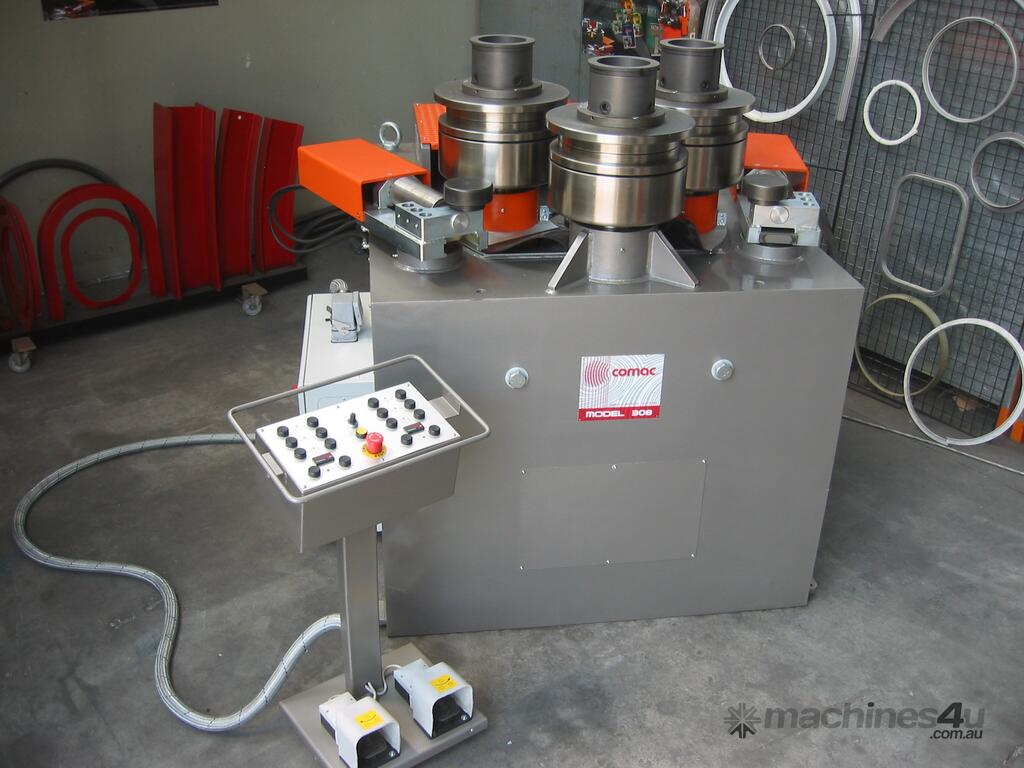

COMAC - MODEL 308 - Section and Profile Rolling Machine [made in Italy]

- Machines compliant to 2006/42/CE standard
- 3 driving rolls to guarantee maximum drive on the profile
- Bending rolls independently adjustable, for double pre-bending capability on the leading and trailing end of symmetrical profiles
- Lateral guide rolls with three-dimensional adjustment
- Modular rolls that allow the bending of most profiles
- Standard bending rolls of alloy steel, heat treated to surface hardness 60 HRC
- Free standing remote control station to control the machine in safety
- Possibility to install the machine both in vertical and horizontal position
- One-piece fabricated steel frame
- Torque limiter installed on top roll shaft
- Shaft and pinions installed on high dynamic load roller bearings
- Gears coupled on splined shaft
- Water based environmental friendly paint

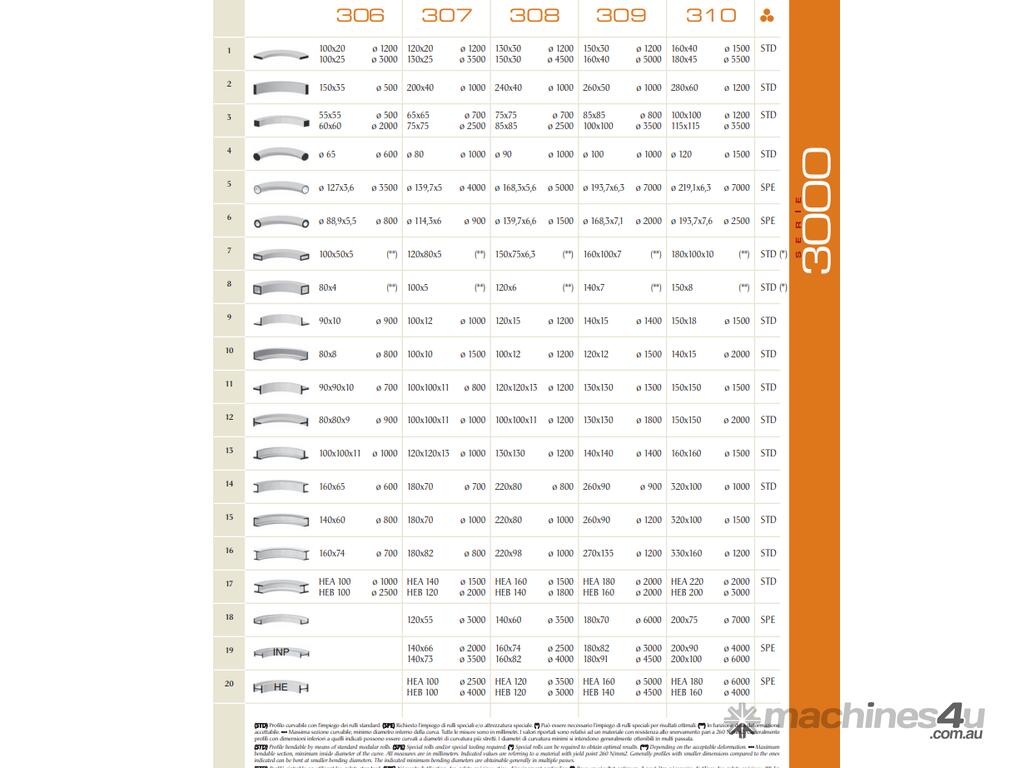

Section modulus [cm³] 70 - 120
Diameter of shafts (Upper/Lower) [mm] 135 / 120
Diameter of rolls [mm] 390
Power output [kW] 15
Rolling speed [m/min] 0 ÷ 7
Weight [kg] 4450
