IN-STOCK -

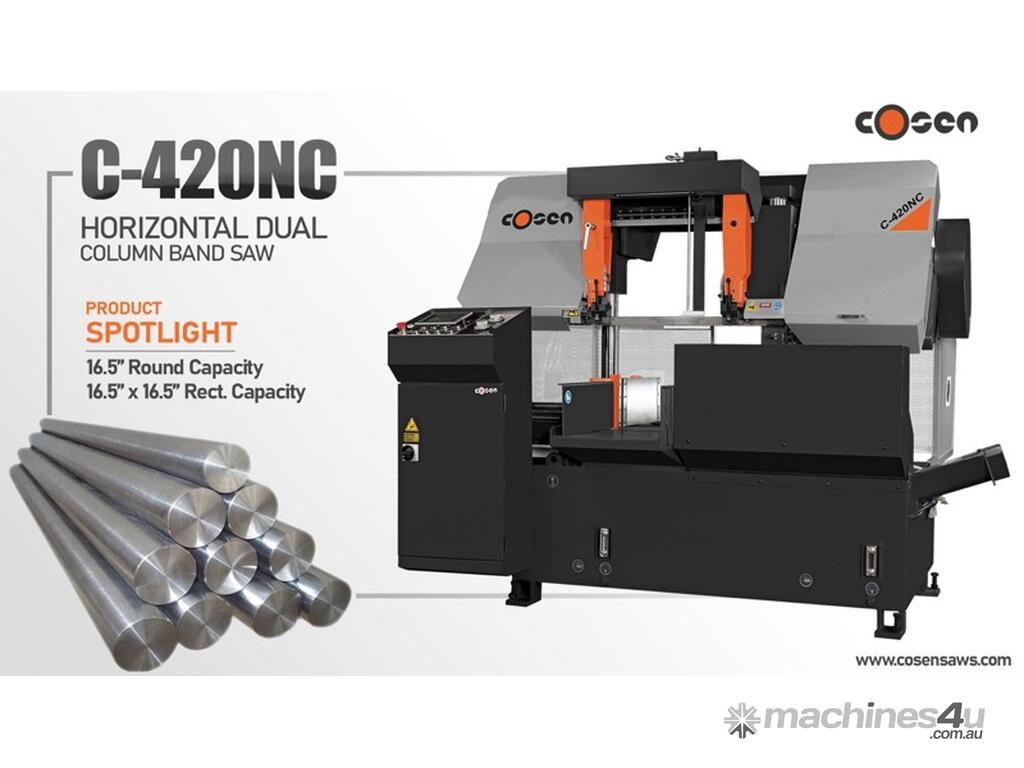

Cosen C-420NC Twin Column NC Automatic Bandsaw
The Cosen C-420NC is a high-performance, fully automated bandsaw designed for maximum precision, durability, and efficiency. Ideal for demanding production environments, this machine delivers exceptional cutting power with its advanced structural design and cutting-edge automation.
Key Features:
Structure:
Oversized, precision-ground dual columns for added stability and accuracy
Crosslink connecting columns for enhanced structural strength and reliability
Massive cast iron band wheels for superior performance and durability
Hydraulic shuttle vice assembly for secure and efficient material clamping
Blade Drive:
Specially designed gearbox capable of handling high lateral pressures
Inverter blade drive system with LED speed indicator for easy operation and monitoring
Blade Guidance & Lubrication System:
Hydraulically actuated carbide blade guides with bearing guides for enhanced stability
Two additional top guides to provide extra blade support
Automatic hydraulic blade tensioning device ensures optimal tension for consistent cuts
Heavy-duty cast guide arms for long-lasting performance
Integral coolant system for efficient blade cooling
Synchronized power-driven blade brush for clean and smooth cuts

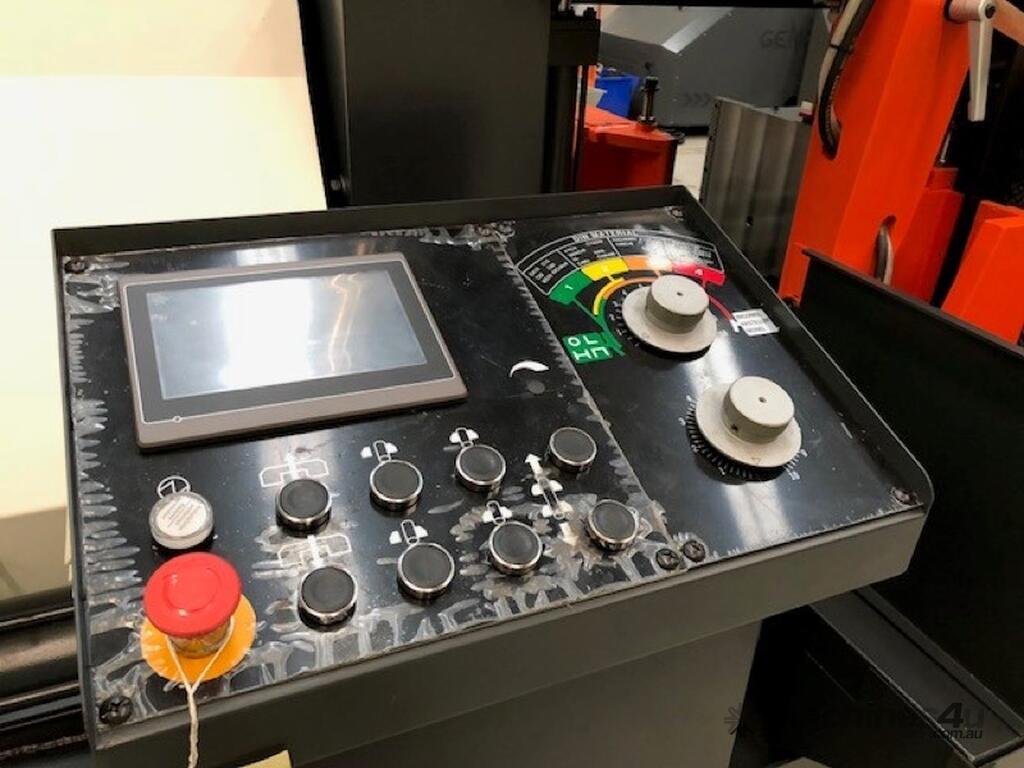

Control & Automation:
Smart NC-100 (SNC-100) programmable controller allows for up to 100 jobs
Automatic kerf compensation and multiple indexing for precise and efficient cutting
“Save-a-Blade” design to prevent tooth deformities and extend blade life
Error code display for simplified diagnostics and maintenance
LCD screen with film-type keypad shows blade speed/life, feed vice position, and more
Bundle/single cutting mode switch for flexibility
Precision dual valve system optimizes feed pressure and rate
Automatic work height selector and air gap eliminator for optimal material handling
Ergonomically located independent control station for easy operation
Material Feeding & Clamping:
Multiple indexing capabilities for improved efficiency
Hydraulically controlled feed vice ensures stable material feeding
Double retracting vice and split vice jaws for easy clamping
Full stroke hydraulic front and rear vices for versatile material sizes
Ductile cast iron vices with replaceable hardened wear plates for durability
Horizontal take-in rollers for smooth material feeding
Safety:
Proximity switch detects blade slippage or breakage for added safety
Interlock design in electrical and hydraulic systems to prevent accidents
Conduits protection measure to ensure the longevity of components
“Alert Orange” safety design enhances visibility for safety awareness
Standard Accessories:
Blade "clip" device for quick and easy blade changes
Adjustable front plate for precise cut-off stock positioning
Additional flushing hose for improved blade cooling
Bi-metal saw blade for longer cutting life
Built-in work light for optimal workspace visibility
Toolbox, leveling pads, and extra wire brush for convenient maintenance
Operation & parts manual for easy reference
Specifications:
Model: C-420NC
Capacity (Round): Ø420mm
Capacity (Rectangle): 420 x 420mm
Speeds: 20 ~ 100 m/min
Main Motor: 7.5 HP
Blade Tension: Hydraulic
Blade Size: 4770 x 41mm
Indexing Stroke: 503mm
Weight: 3300kg
The Cosen C-420NC bandsaw is built to tackle the toughest jobs with precision, ease, and unmatched reliability. Call Industrial Machinery Sales now for full details and the best deal!
