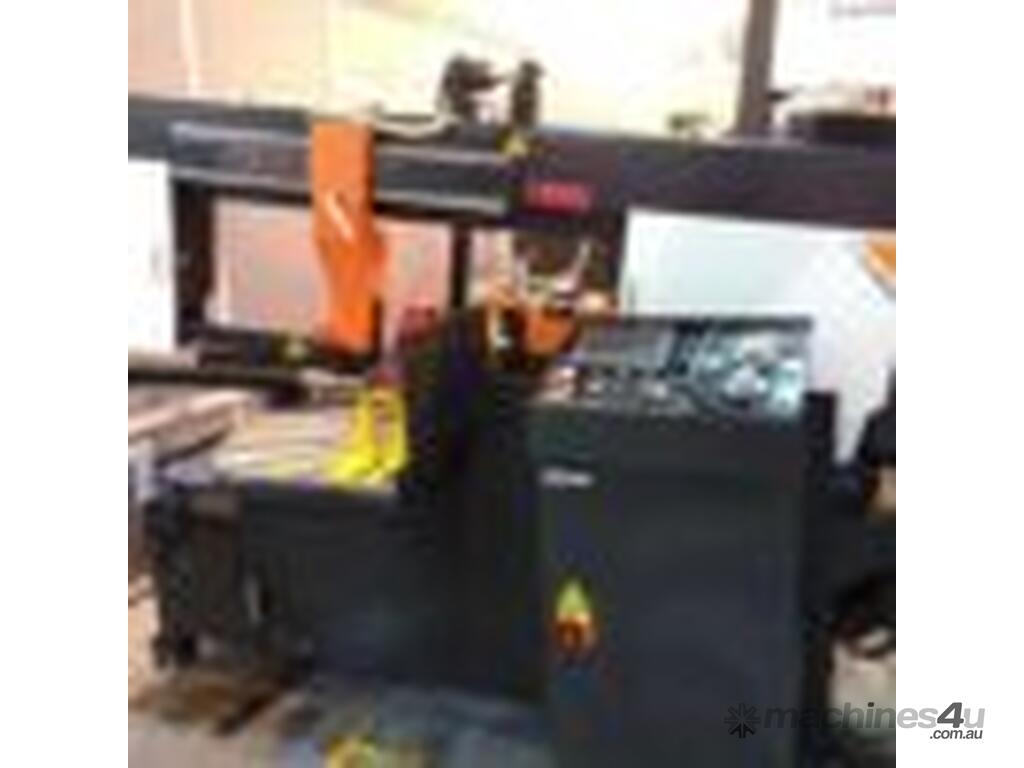

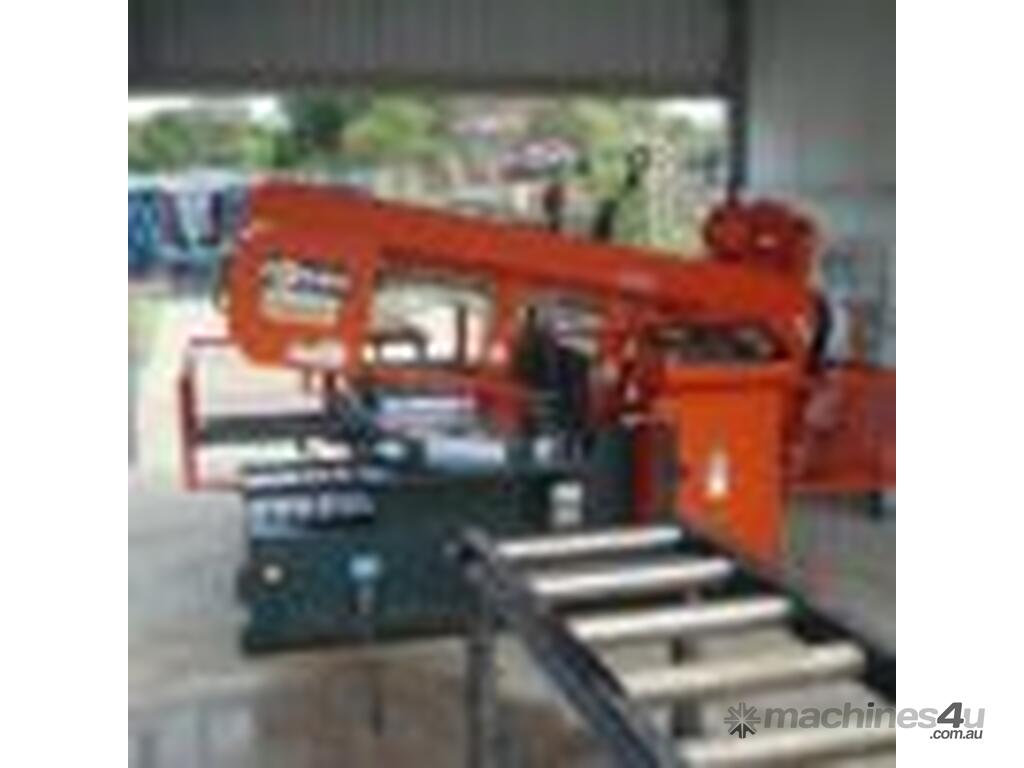

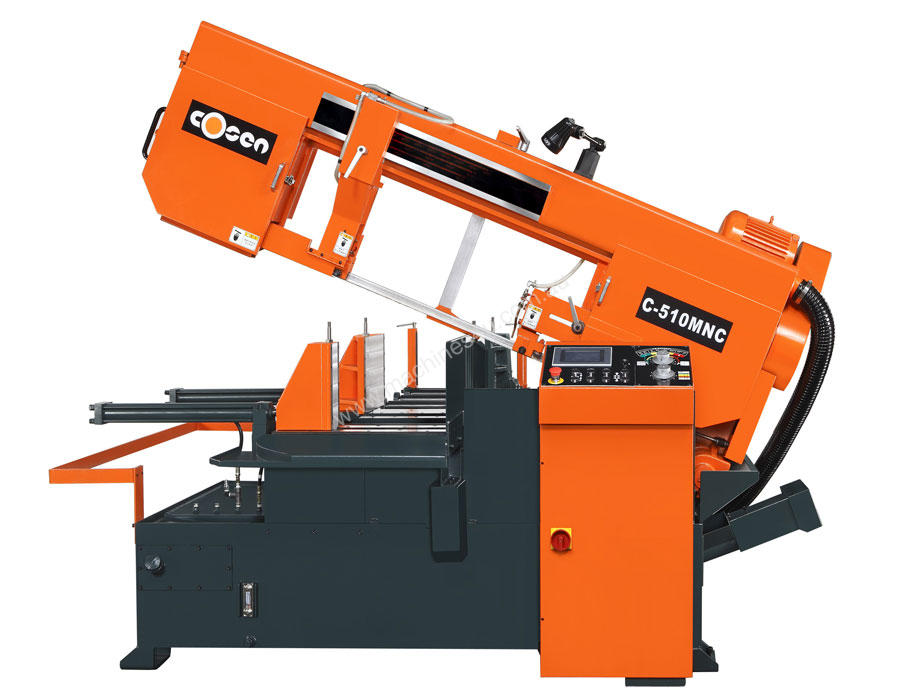

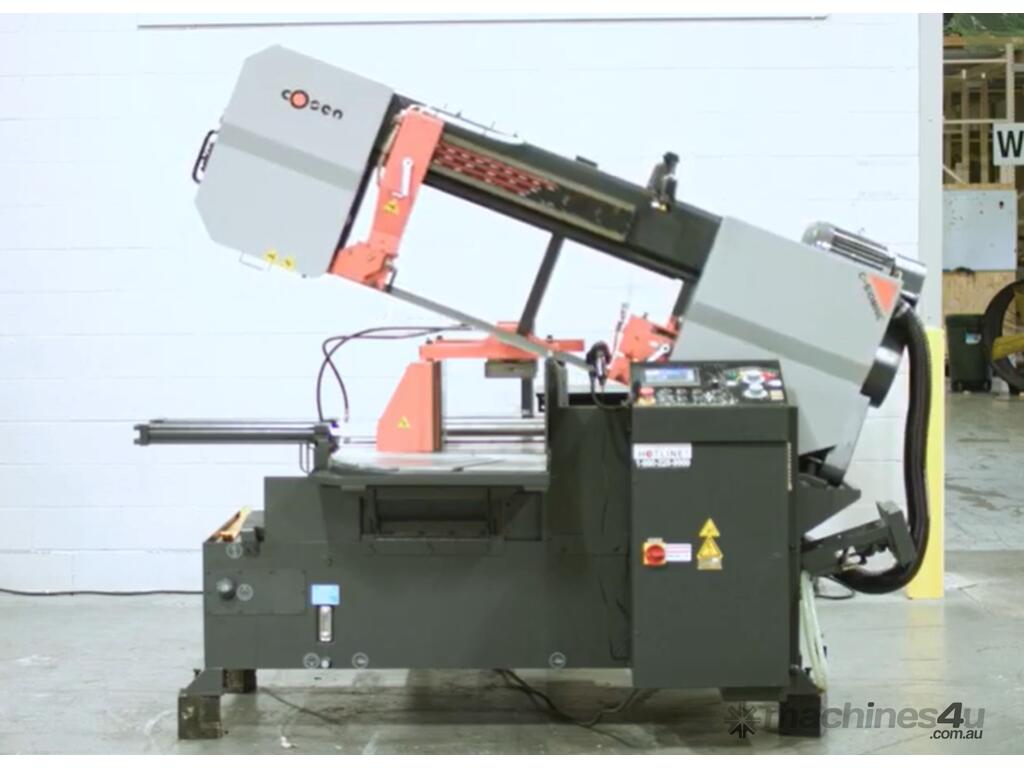

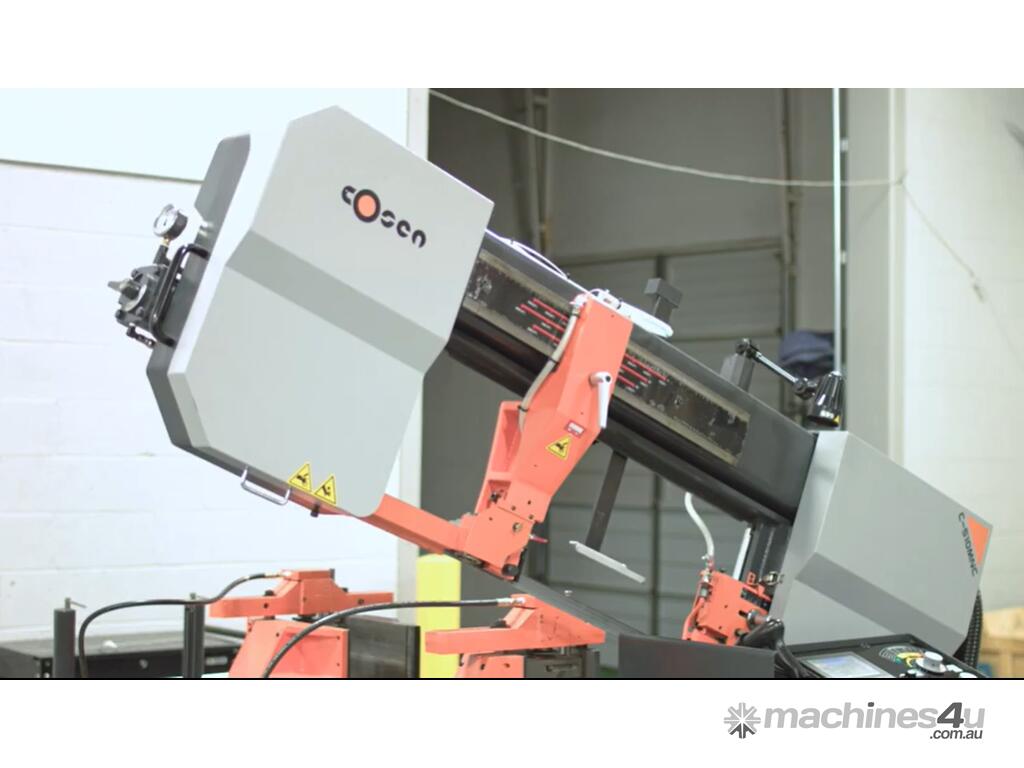

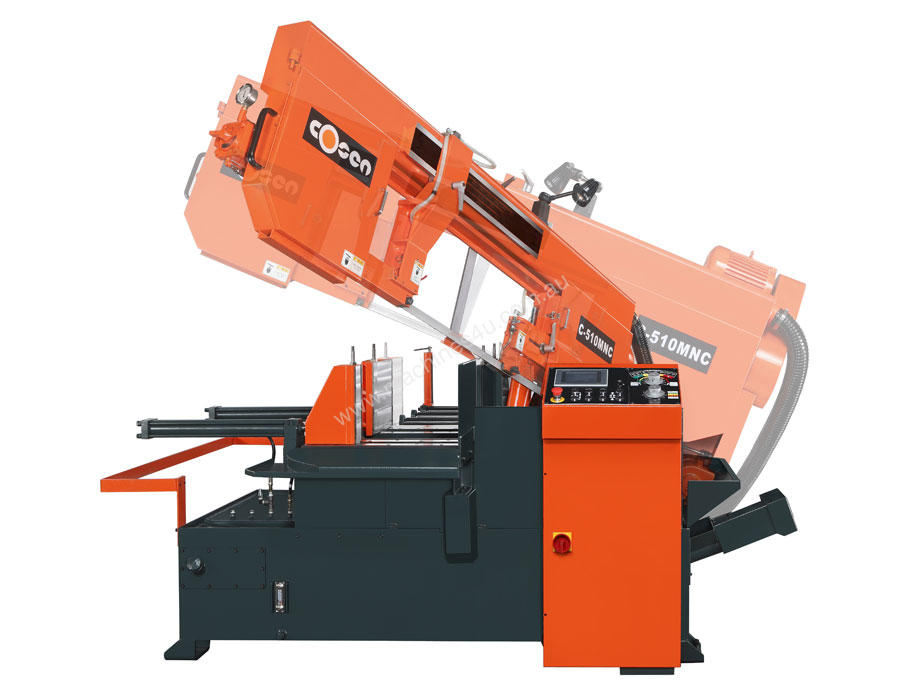

COSEN C-510MNC Automatic Bandsaw

Fully Programmable Automatic Miter Cutting Bandsaw

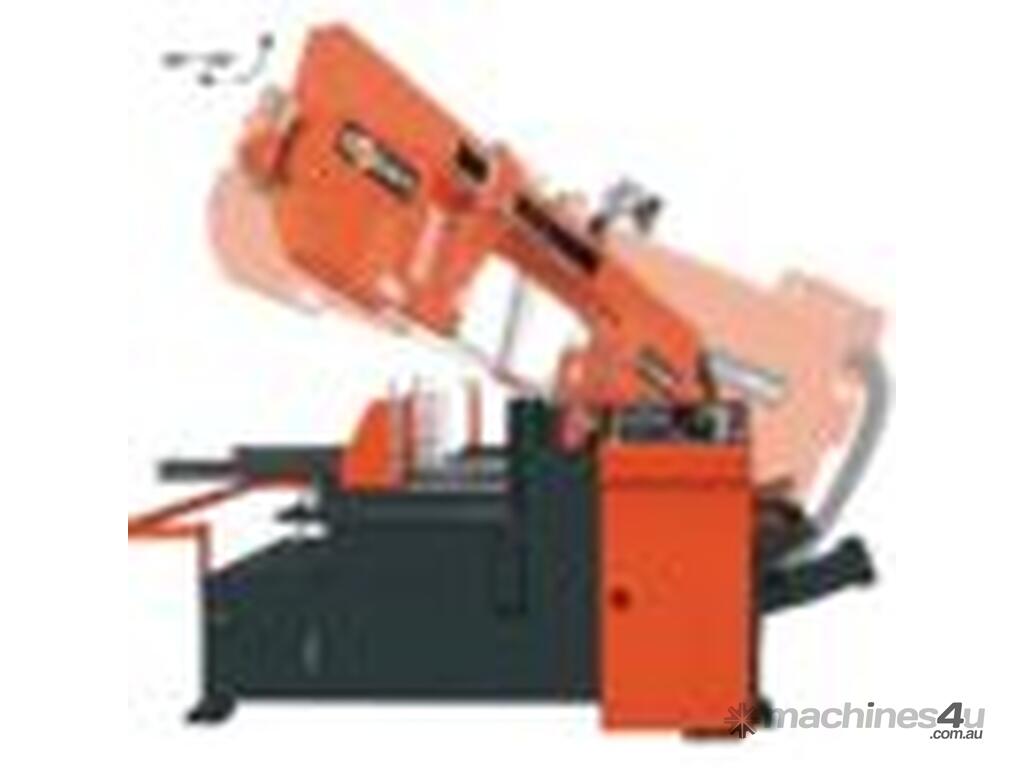

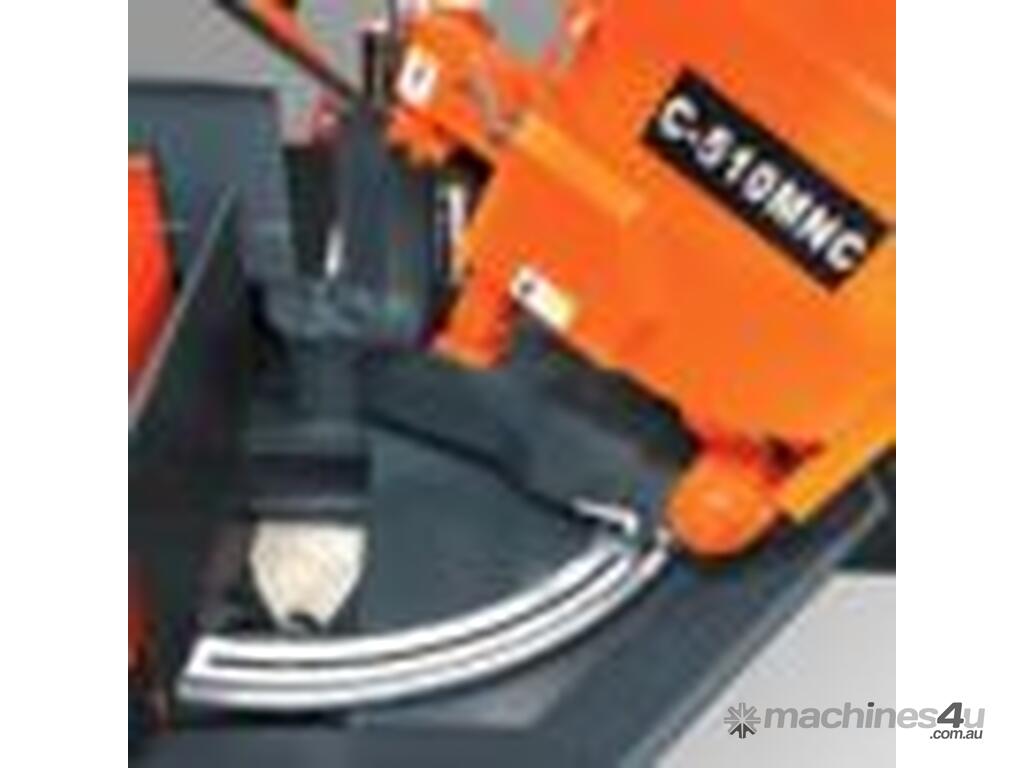

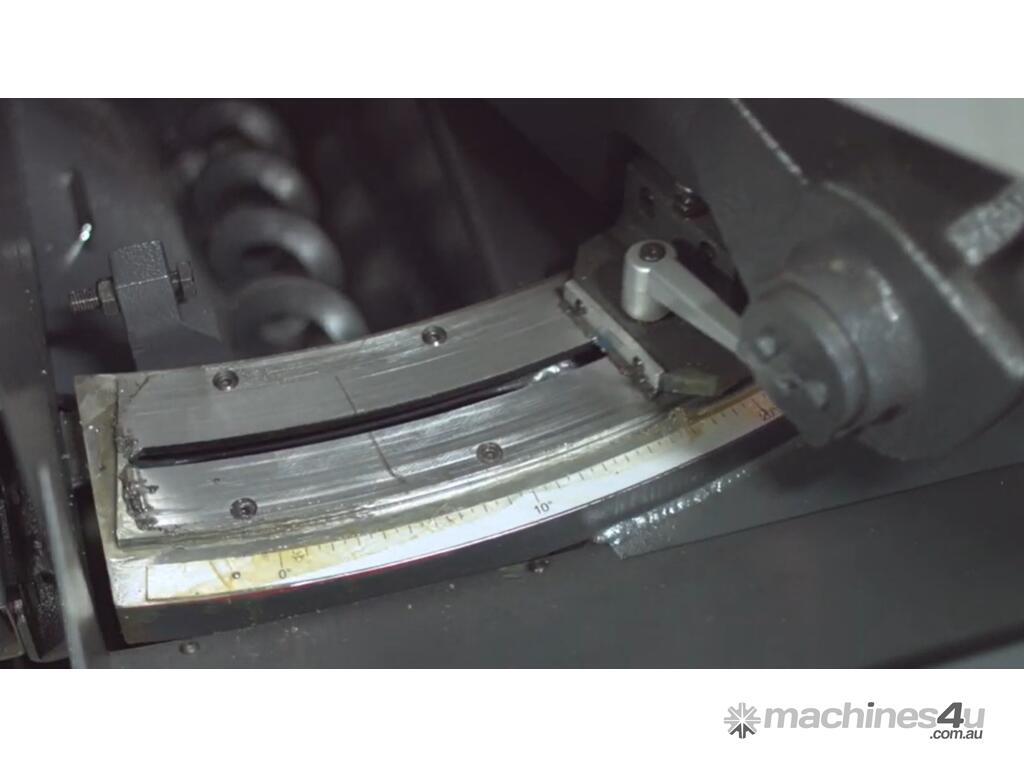

Cosen's C-510MNC is a high production fully programmable automatic miter-cutting bandsaw, which incorporates a massive base, sturdy saw frame, a 5HP drive motor, 34 mm wide blade and a user-friendly control station. The SNC-100 technology is programmable up to 100 different jobs including quantity and length of cut with Automatic Multiple Indexing & Automatic Kerf Compensation. Cutting information such as blade speed, blade life and error message is clearly displayed for ease of use.

Capacity Round:
0° - 360 mm (14``)
+45° - 360 mm (14``)
+60° - 230 mm (9``)

Capacity Rectangle(HxW)
0° - 330x510mm (13``x20``)
+45° - 330x330mm (13``x13``)
+60° - 230x230mm (9``x9``)

Blade Speed - 20-100 m/min (66-330 fpm)
Blade Size (LxWxT) - 4900 x 34 x 1.1 mm (192.9``x 1.3``x 0.04``)
Blade Motor - 5 HP (3.75 kW)
Hydraulic Motor - 1 HP (0.75 kW)
Coolant Motor - 1/8 HP (0.09 kW)
Automatic Indexing Length - 503 mm (19.8), Max. 6500 mm (256``)
Workbed Height - 783 mm (30.8)
Gross Weight - 2135 kgs (4707 lbs)
Floor Space (LxWxH) - 3300 x 2750 x 2200(130`` x 109`` x 87``)
