In Stock

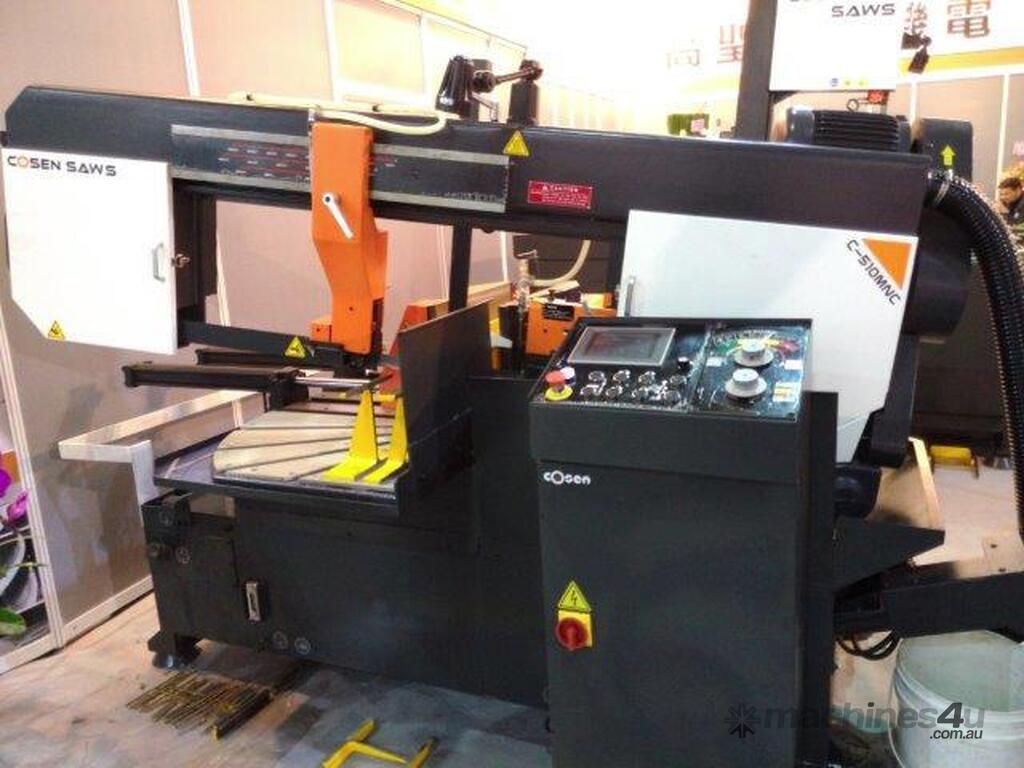

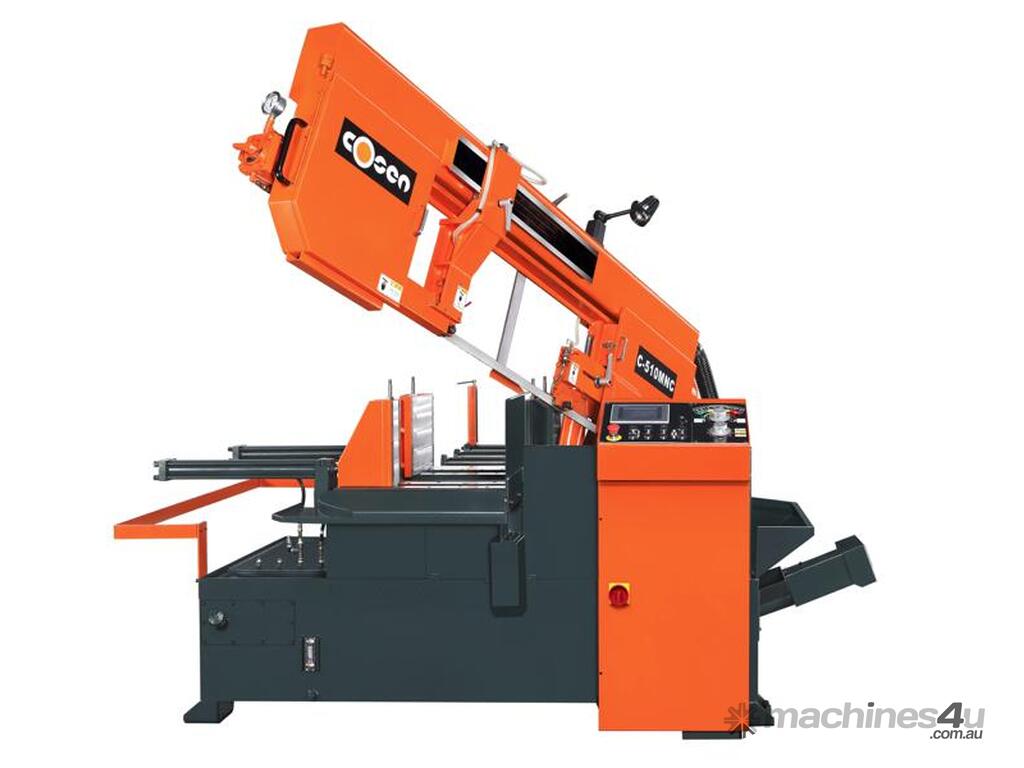

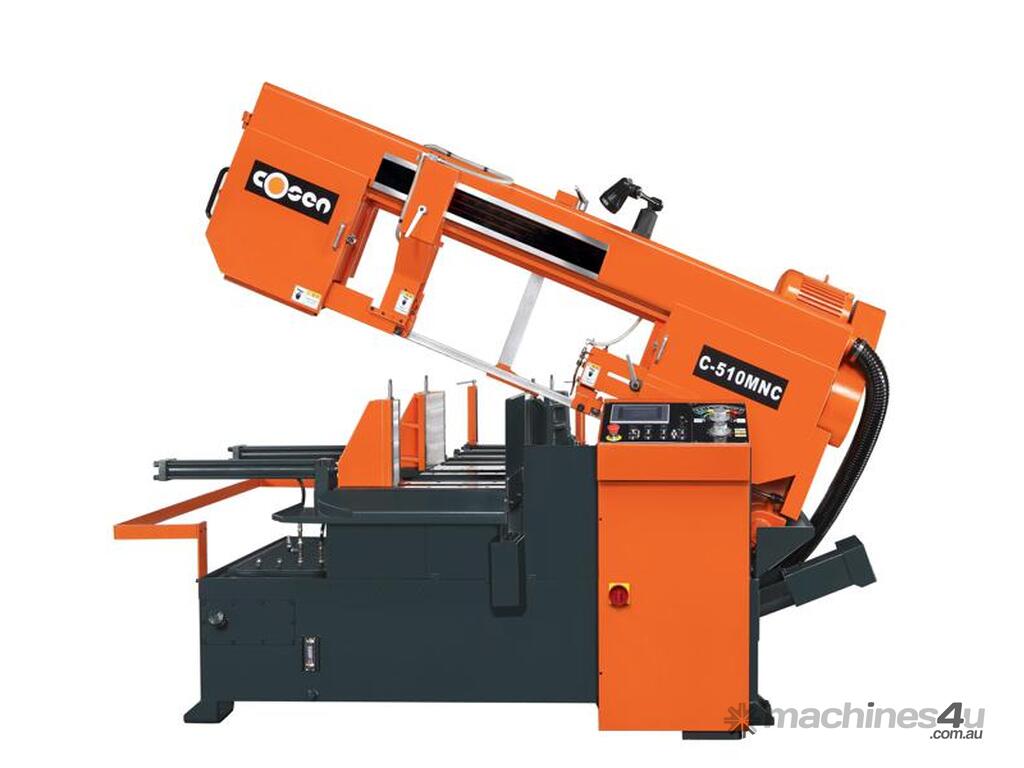

Fully Automatic NC Feeding with swivel free for mitre cutting
Features
* Heavy duty saw frame
* NC programmable control
* Automatic feeding
* Rapid approach
* Hydraulic blade tension
* Coolant system with cleaning and flushing hose
* Heavy duty blade drive motor

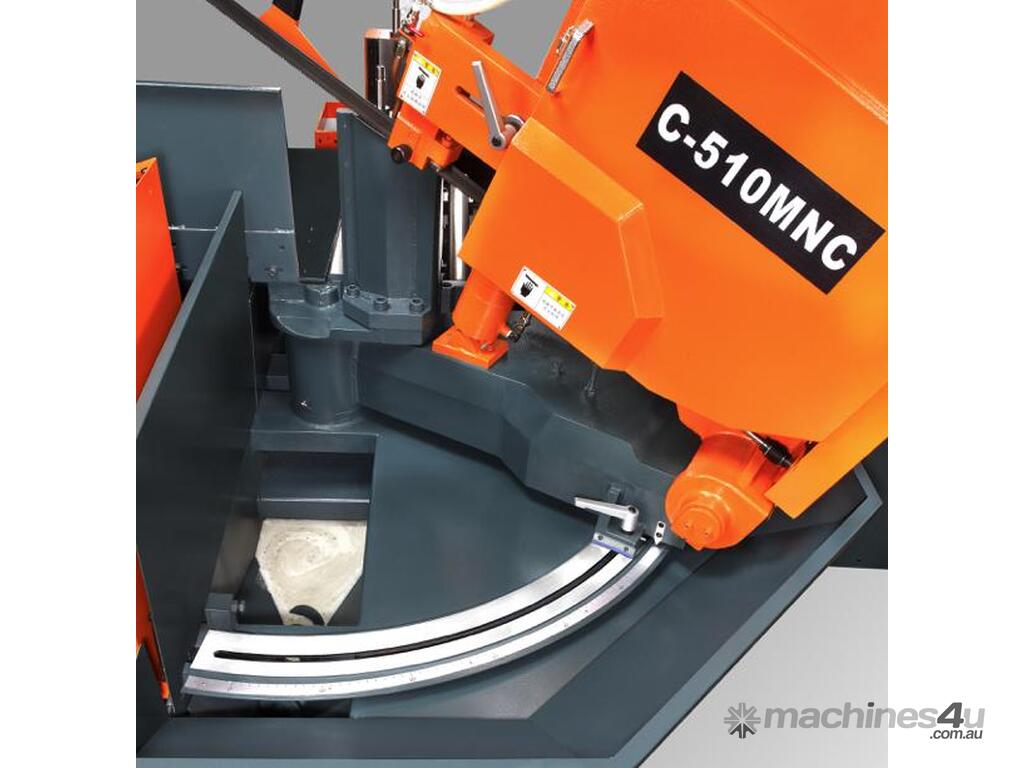

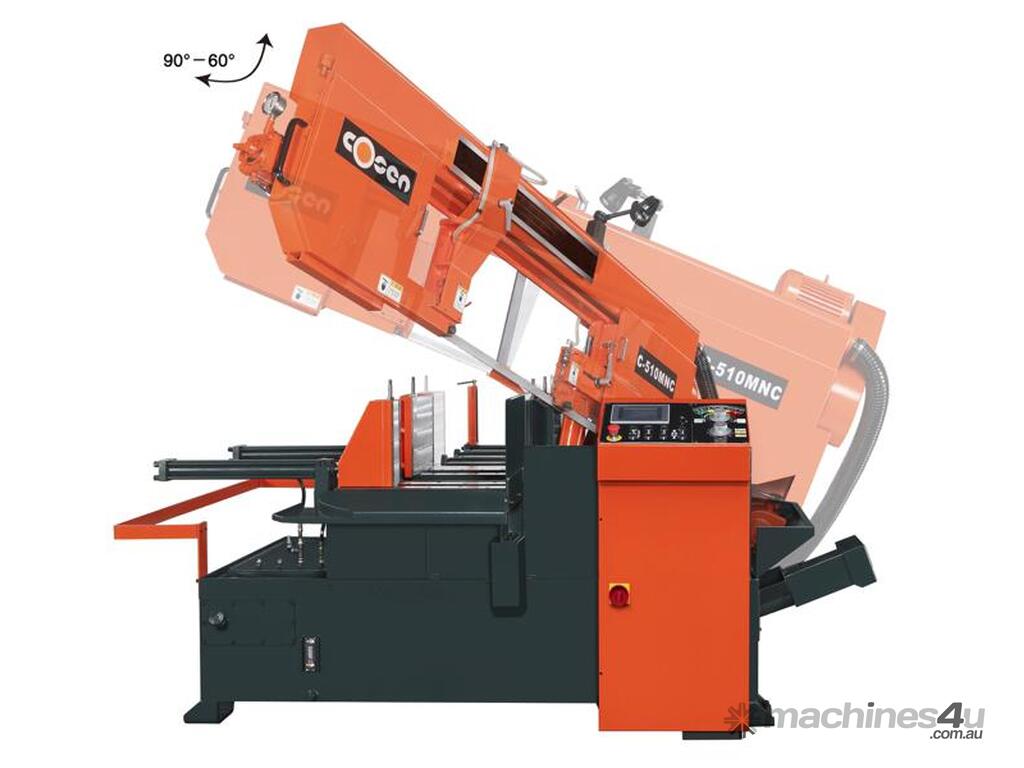

* Swivel saw head mitering from 90 to 45 degrees
* Hydraulic shuttle vice assembly
* Smart NC-100 (SNC-100) technology
* Programmable up to 100 individual cutting jobs via HMI touch screen
* NC controlled material feeding
* Full stroke machine vices
COSEN C-510MNC Specification
Angle 0° +45° +60°
Capacity Round 360 mm (14") 360 mm (14") 230 mm (9")
Capacity Rectangle(HxW) 330x510mm 330x330mm 230x230mm
Blade Speed 15-80 m/min (49-262 fpm)
Blade Size (LxWxT) 4900 x 34 x 1.1 mm (192.9"x 1.3"x 0.04")
Blade Motor 5 HP (3.75 kW)
Hydraulic Motor 1 HP (0.75 kW)
Coolant Motor 1/8 HP (0.09 kW)
Automatic Indexing Length 503 mm (19.8), Max. 6500 mm (256")
Workbed Height 795 mm (31.3)
Gross Weight 2135 kgs (4707 lbs)
Floor Space (LxWxH) 2561 x 3263 x 2170(100.8" x 128.5" x 85.4")
?Design and specifications are subject to change without notice & obligation.
?Machines may be shown with some options.
