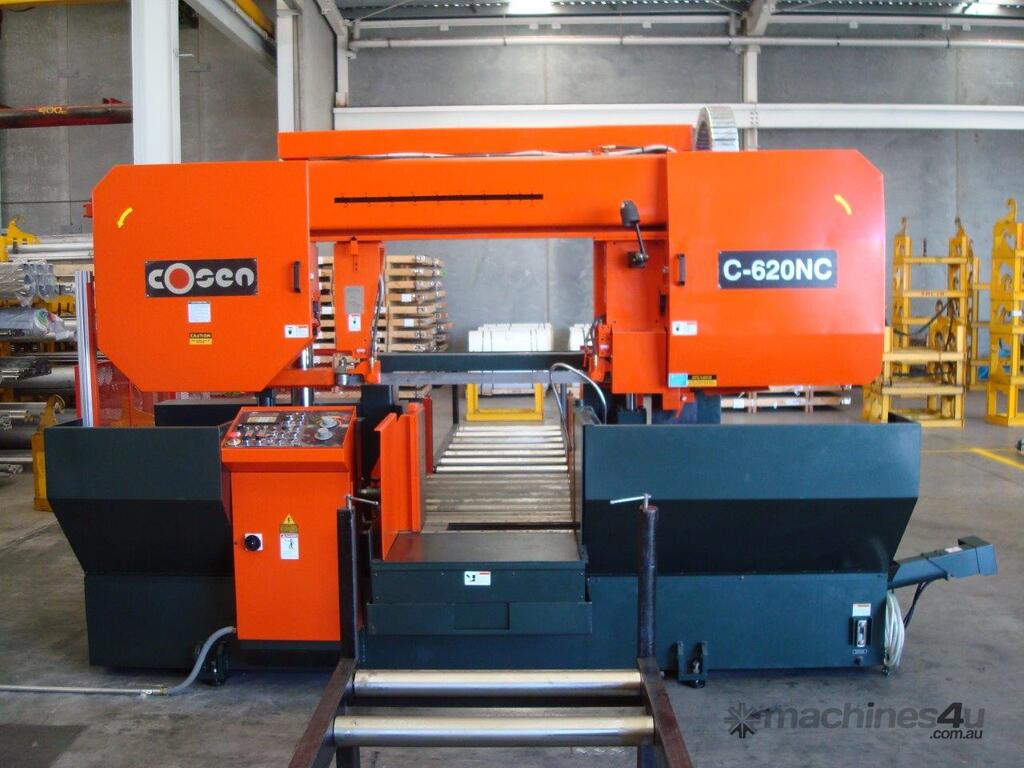

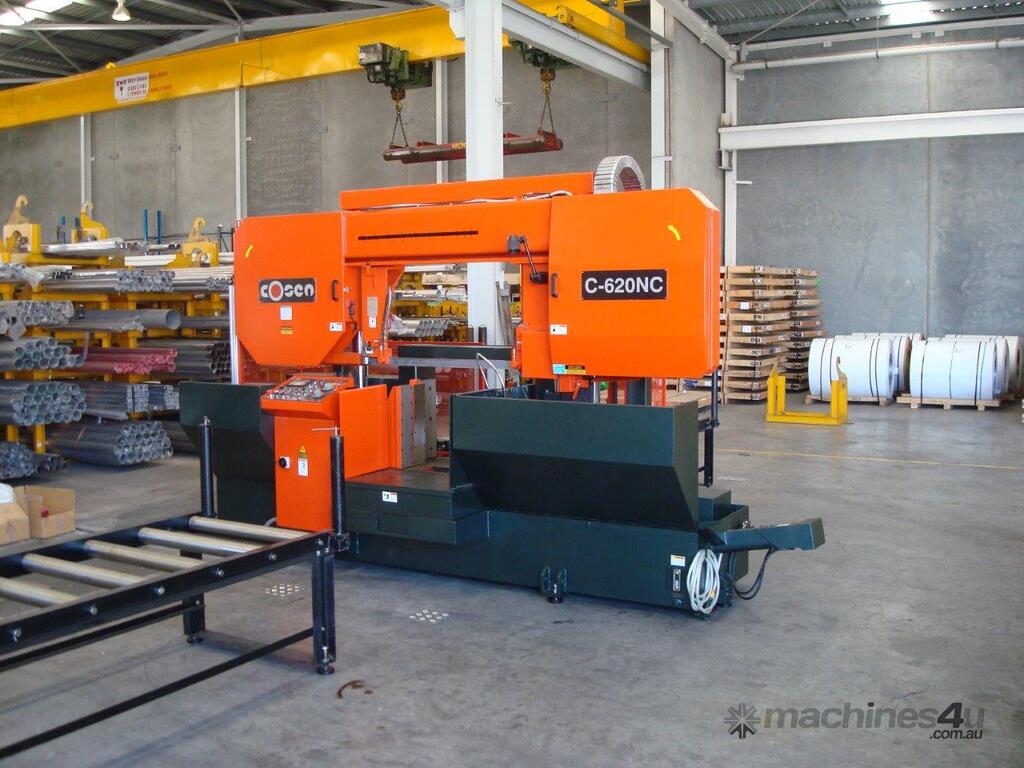

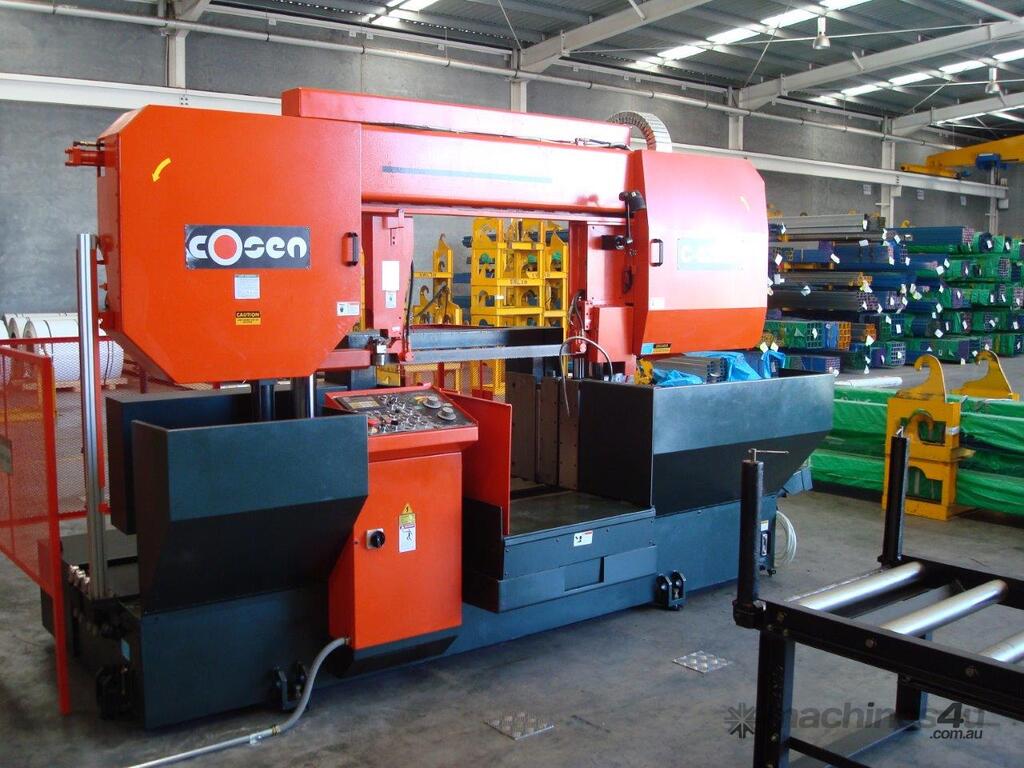

COSEN C-620NC Automatic Bandsaw (Huge 620mm Dia.)

THE BEST LARGE BILLET SAW IN AUSTRALIA

Cosen C-620NC Specifications

Round - 620 mm
Square - 620 mm
Rectangular (H x W)- 760 x 620 mm
Saw Blade Speed - 20-100 m/min
Size (LxWxT) - 7200L x 54W x 1.6Tmm
Blade Tension - Hydraulic (Automatic blade breakage detection)
Saw blade motor - 10 HP
Vise Control - Hydraulic Full Stroke Cylinder
Automatic Indexing Length - Single 600 mm (Multiple 99M)
Height of Work Bed - 600mm
Net/Gross Weight - 4800/5400 kgs
Floor Space - 2200 x 3700 x 2450 mm

Machine Features

Structure
• Oversized precision ground, large dual columns
• Cross link connecting two columns for enhanced structural strength
• Massive cast iron band wheels
• Hydraulic shuttle vise assembly

Blade Drive
• Specially designed gearbox for high lateral pressure
• Inverter blade drive system
• LED speed indicator

Blade Guidance & Lubrication System
• Hydraulically actuated carbide blade guides with bearing guides
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning device
• Hydraulically actuated heavy duty cast guide arms
• Integral coolant system
• Synchronized power driven blade brush

Control & Automation
• Smart NC-100 (SNC-100) technology programmable up to 100 different jobs
• Automatic kerf compensation & automatic multiple indexing
• "Save-a-Blade" design to prevent tooth deformities
• Error code display for simplified self-diagnostics

• LCD screen with film type key pad, blade speed/life, feed vise position display
• Bundle/single cutting mode switch
• Precision feed pressure & feed rate dual valve system
• Automatic work height selector & air gap eliminator
• Ergonomically located independent control station

Material Feeding & Clamping
• Multiple indexing
• Hydraulically controlled feed vise
• Double retracting vise
• Split vise jaws
• Full stroke hydraulic front and rear vises
• Ductile cast iron vises with replaceable hardened wear plates
• Horizontal take-in rollers

Safety
• Proximity switch for sensing blade slippage or breakage
• Interlock design in electrical and hydraulic system
• Conduits protection measure
• "Alert Orange" safety measure

Standard Accessories
• Blade "clip" device for easy blade change
• Adjustable front plate for cut-off stock
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads, and an additional wire brush
• Operation & parts manual

Design & Specification are subject to change without notice and obligation.
