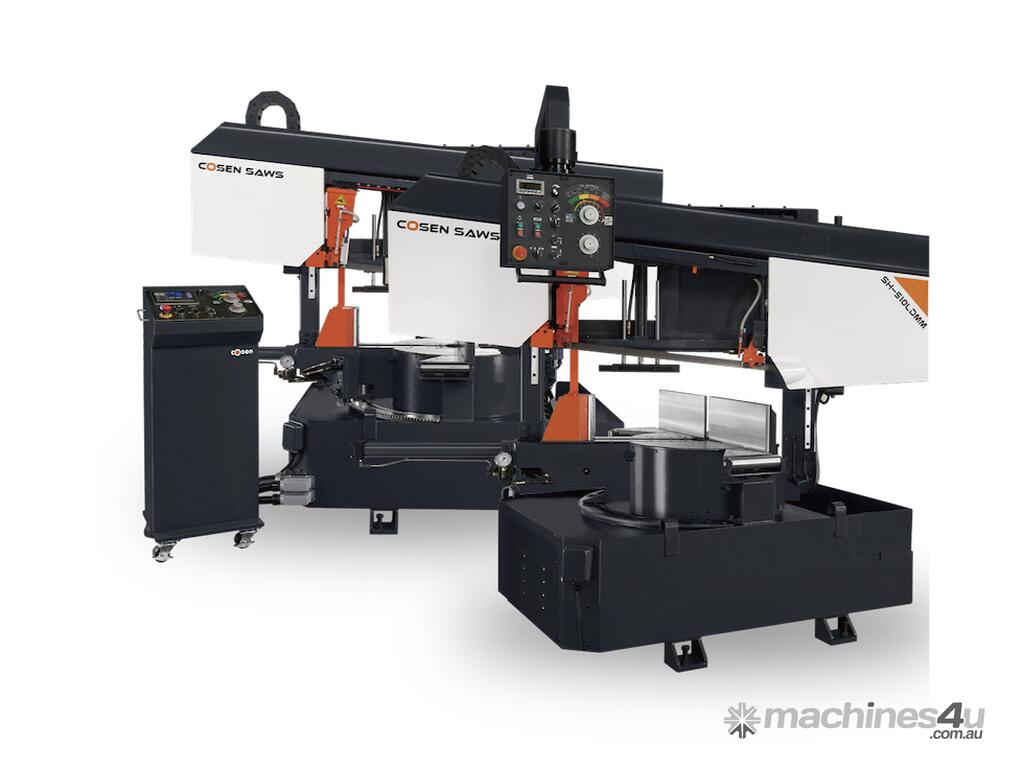

COSEN SH-510LDM (510mm capacity) Dual Mitre Bandsaw

Semi-Automatic Linear Guided / Double Miter-Cutting Horizontal Bandsaw

- Cosen SH-510LDMB

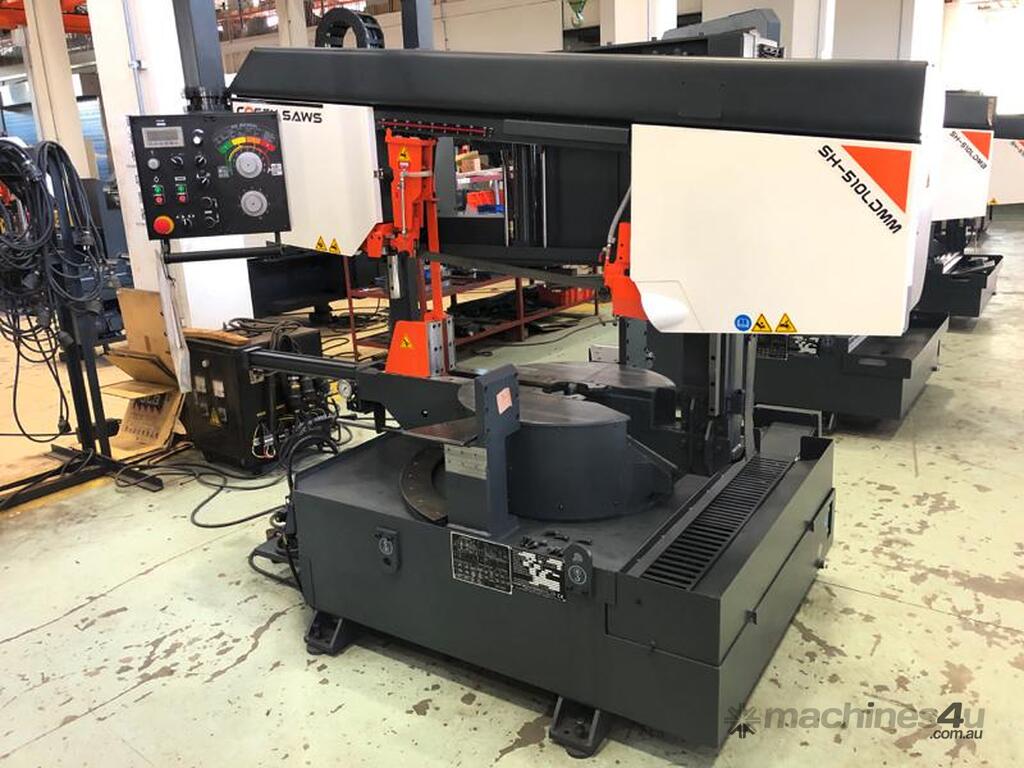

- Cosen SH-510LDMM / Angle Disp / Speed Disp / PLC / Invertor

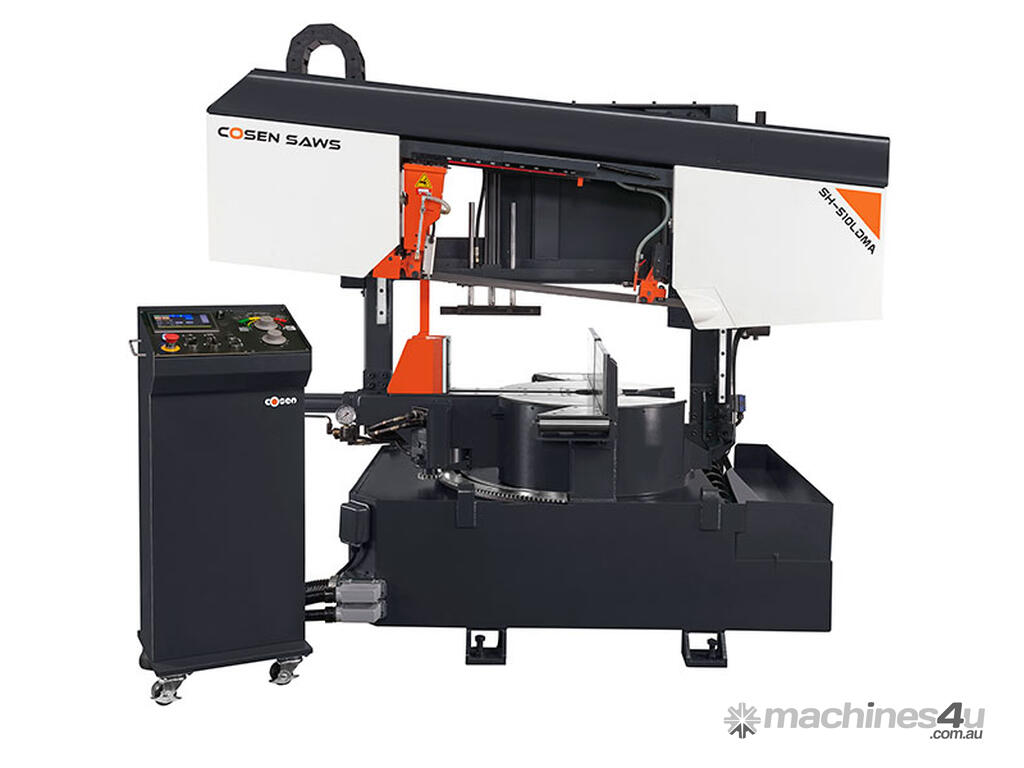

- Cosen SH-510LDMA / Chip Conveyor / Angle Disp / Speed Disp / Auto Angle / PLC / Invertor / 7"HMI

Cosen SH-510LDM, this large capacity and compact sized machine needs relatively small space when compared to machines with the same capacity 320mm(12.6”). The SH-510LDM features hydraulic lifting of the saw frame and full stroke hydraulic vice. These features enable the semi-automatic operation to securely hold the workpiece, cut, and return the saw frame to preset work height. The large, heavy-duty trunnion and swivel ‘n’ lock mechanism allows for up to 60 degrees of mitering capability. Both models are an excellent choice for diverse job shop needs.

Standard Features
- Linear guided saw frame
- Synchronized wire brush
- Solid guide arm-mounted under saw frame and traverses in sync with the vice via dual linear guides
- Split vice
- Removable chip bin or optional screw-type chip conveyor
- The idle roller at the front and back end of the sawing table
- Full stroke cylinder vice
- Easy to read angle scale
- Manual saw frame swivel and quick-angel-lock with a long lever (SH-510LDMM)
- Hydraulic swivel and angle locking & automatic angle positioning upon entry of angle (SH-510LDMA)
- Hanging control panel swivel-able between front and back of the saw frame for ease of operation (SH-510LDMM)

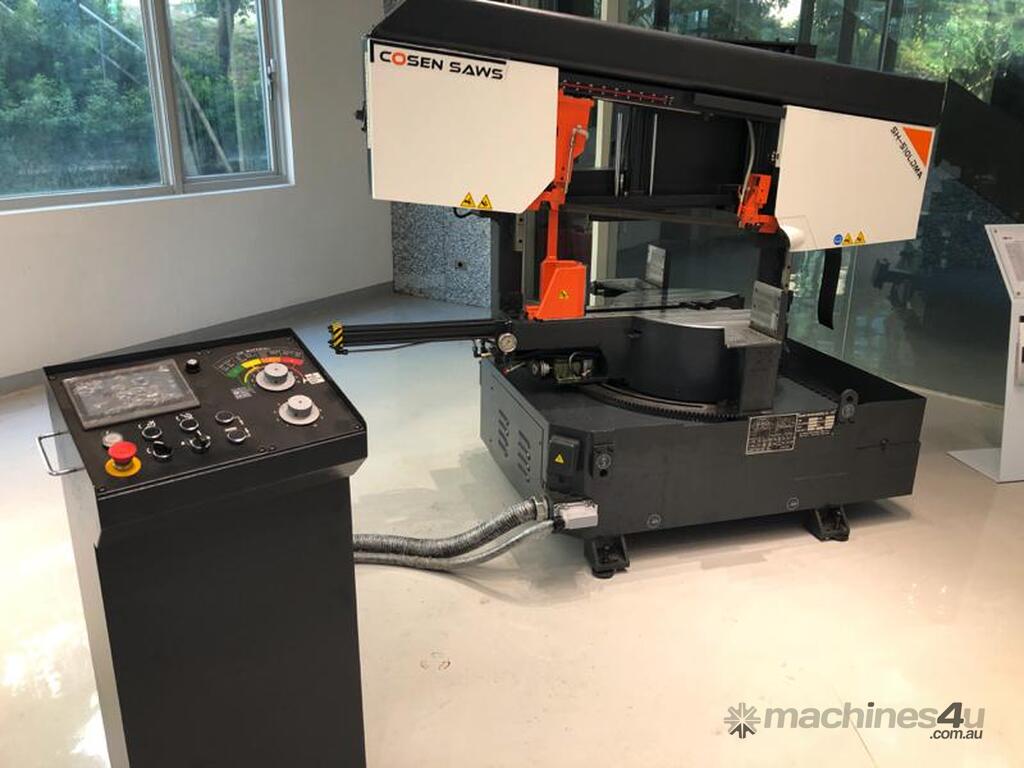

- Independent control station with wheels & quick connector for ease of installation and transportation (SH-510LDMA) - Dual valve controlling cutting speed and pressure
- 7" HMI Touch Screen for operation and cutting information display (SH-510LDMA)

Optional Accessories
- Mist Spray Unit
- Angle display on the saw frame (for SH-510LDMM)
- Integration with the positioning system (for SH-510LDMM and SH-510LDMA)
- Chip Conveyor
- Hydraulic top clamp
