CS-8 Vertex Super Indexing Head 155mm Centre Height Ø63mm Bore

VERTEX CS-8 Vertex Super Indexing Head 155mm Centre Height Ø63mm Bore
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: R004

Manufactured in Taiwan

Features:
The Vertex Super Spacer is designed to be used on milling drilling or any machine where an indexing facility is required
Combines the advantages of super indexing with the flexibility of worm gear movement
The 3-jaw chucks on both the 6" and 8" models have large through-bores
Can be used in either vertical or horizontal plane
Master indexing plate has 24 divisions and is permanently fixed inside the indexer. Divisions of 6 8 & 12 can also be achieved by using sub plates. These can be installed quickly in the bottom of the indexer
When the chuck is removed the unit can be used as a horizontal or vertical rotary table
The worm gear has a ratio of 90:1. It can be dis-engaged for quick indexing work
Worm is hardened and precision ground to minimise wear
The operating collar is graduated in one minute increments and readings down to ten seconds can be set on the vernier scale
The unit can be fitted with dividing plates

Includes:

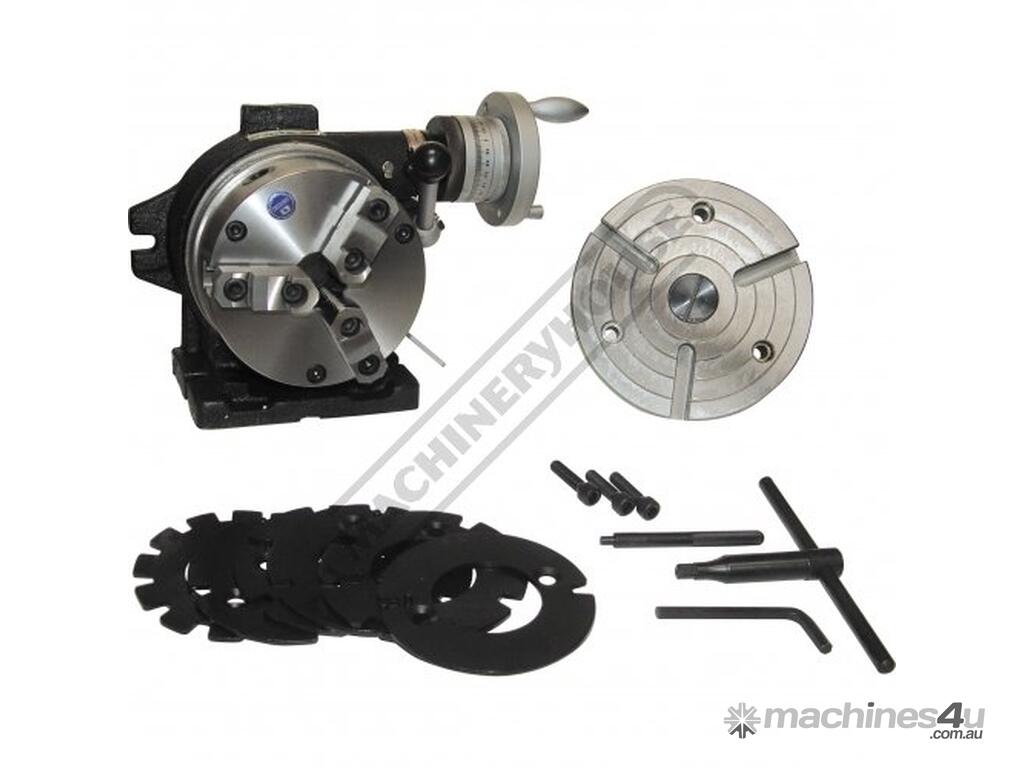

- 200mm 3-Jaw Self-Centring Chuck
- Face Plate
- 6 indexing plates



Specifications:
ORDER CODE: R004
MODEL: CS-8
3 Jaw Chuck Size (mm): Ø203
Bore (mm): Ø63
A (mm): 310
B (mm): 285
C (mm): 243
a (mm): 225
b (mm): 160
c (mm): 201
d (mm): 82
e (mm): 125
f (mm): 75
g (mm): 16
h (mm): 155
i (mm): 232
j (mm): 90
K (mm): 18
Nett Weight (kg): 76
