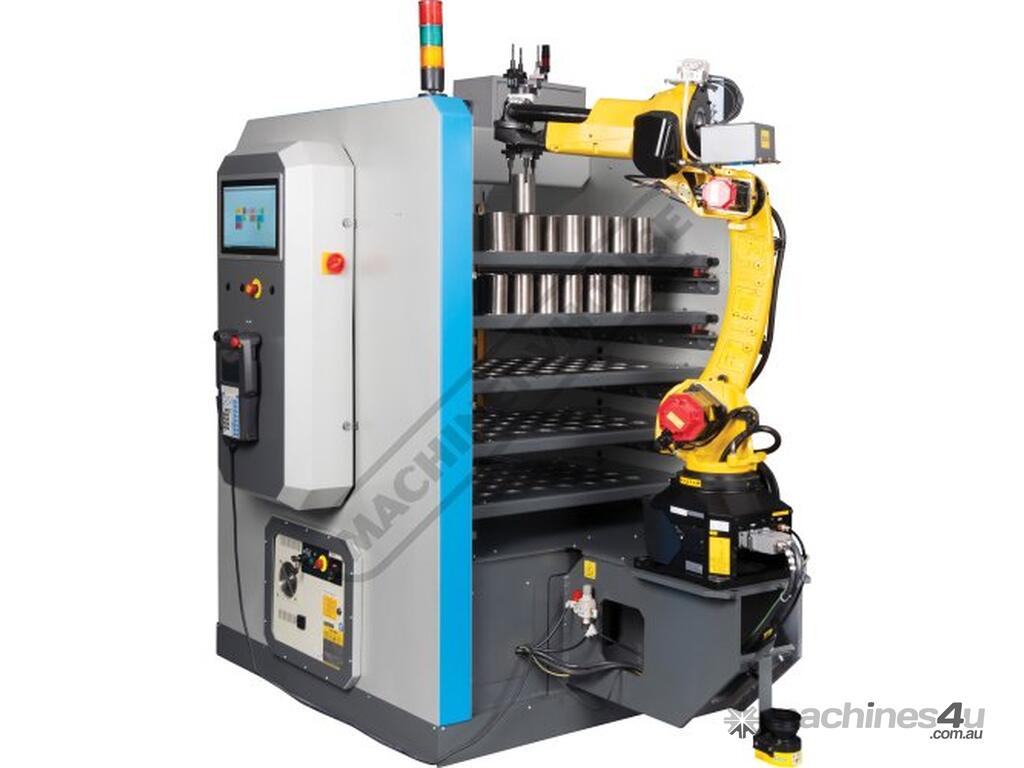

CUBEBOX Multi Pallet Robotic CNC Machine Tending 5 Draw Pallet system with customisable draw inlays

CUBEBOX CUBEBOX Multi Pallet Robotic CNC Machine Tending 5 Draw Pallet system with customisable draw inlays for workpiece part management 6 axis FANUC Industrial Robot with 12kg Payload
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: R100

CubeBOX CNC automation system by Tezmaksan Robot Technologies is a revolutionary robotic automation solution designed to enhance manufacturing processes and reduce operator involvement in machine tending.

With its ability to work non-stop, cost-effectiveness, and flexibility, the CubeBOX system empowers manufacturers to increase productivity, reduce downtime, and stay competitive in the ever-evolving industrial automated landscape.

Let's explore the benefits of CubeBOX in more detail:

1. Continuous operation and efficiency
The core advantage of the CubeBOX system lies in its ability to work non-stop. Ensuring uninterrupted production even during night shifts, this continuous operation leads to a remarkable 50 per cent increase in night shift efficiency compared to traditional setups that rely heavily on manual labour for CNC machine tending. Manufacturers can now maximize their production output, resulting in higher productivity and reduced lead times

2. Easy Setup
Traditionally, the setup of robot peripherals in a system required expert knowledge of robot programming, prolonged changeover times and dependency on skilled personnel. The CubeBOX system changes this paradigm with its user-friendly interface that allows operators to exchange parts effortlessly without any prior knowledge of robot programming. Fast loading and unloading of the workpieces, enhances flexibility and agility in the production process, enabling quick adaptation to changing production requirements.

3. Hassle free robot programming with RoboCAM
The foundation of all CubeBOX systems is RoboCAM, the intelligent automation software also developed by Tezmaksan. By simply uploading product layout drawings, RoboCAM translates them into a robot-friendly language, enabling seamless communication and execution of tasks eliminating the need for prior robot programming expertise.

4. Flexible structure and mobility
The CubeBOX system boasts a flexible structure that enables easy transportation between different machines within the factory. This mobility ensures optimal utilisation of the system across various workstations, eliminating the need for separate robotic setups for each machine. (additional interface required for each machine)

Features:
Cubebox Blues DR (Draw System)

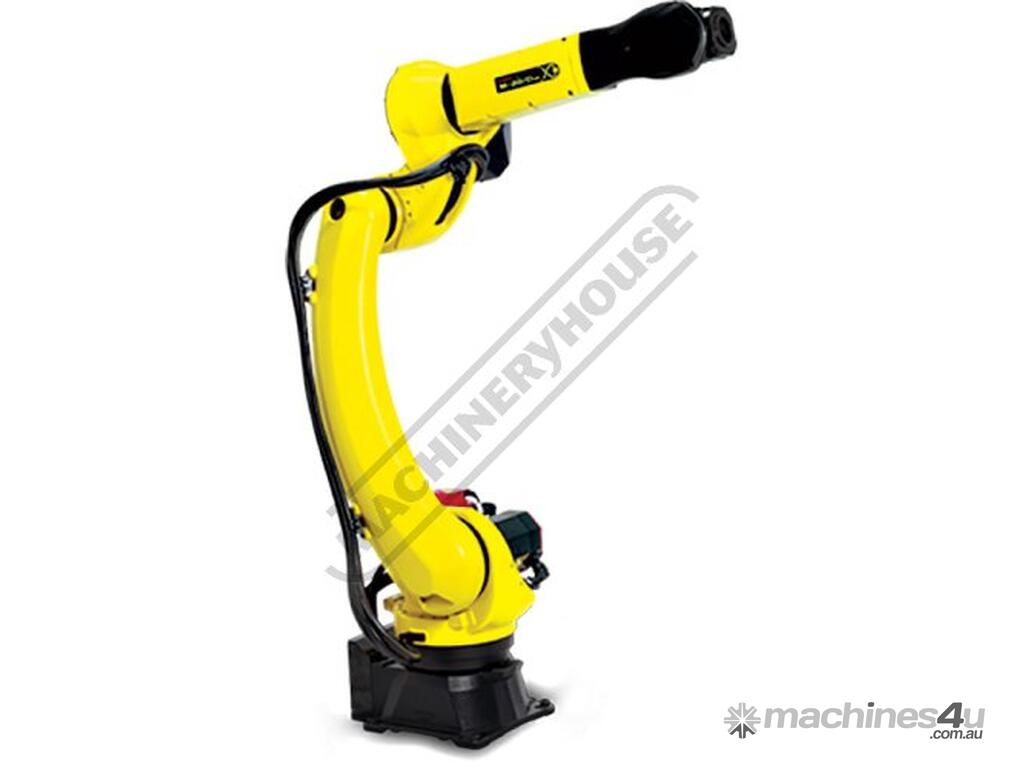

6 axis FANUC industrial robot with 12kg payload
Portable cell can be moved between machines (fork lift or slinging required)

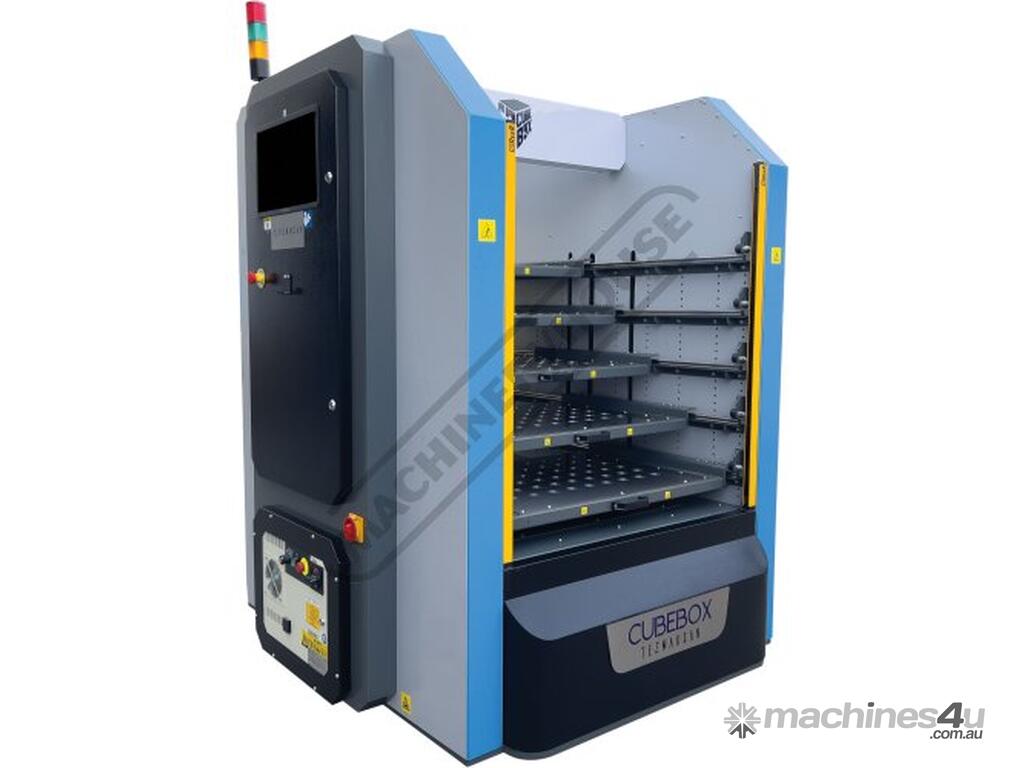

5 Drawer stacker for workpiece layout (Draws 600 x 800mm)
Safety light curtains on operator load side.

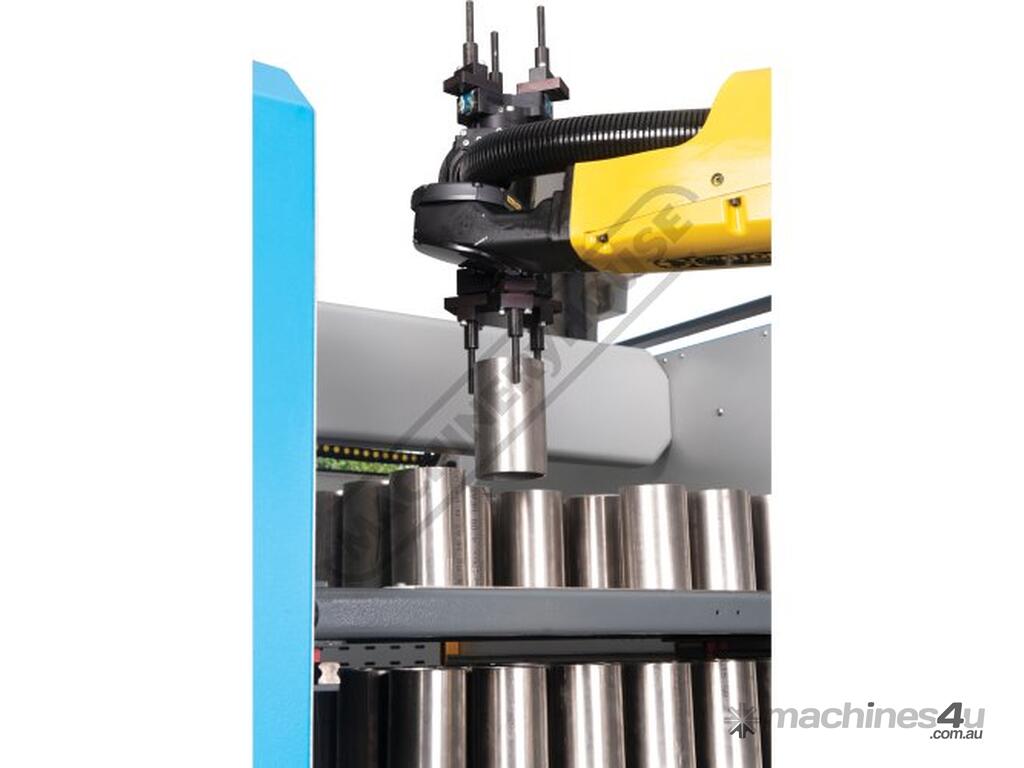

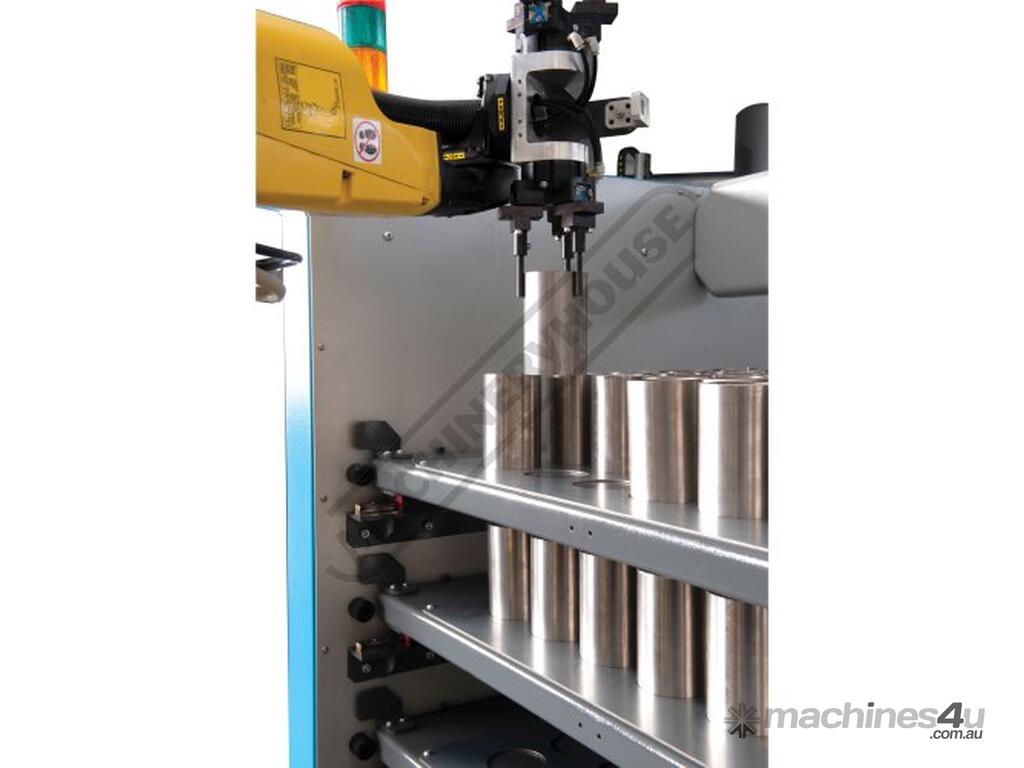

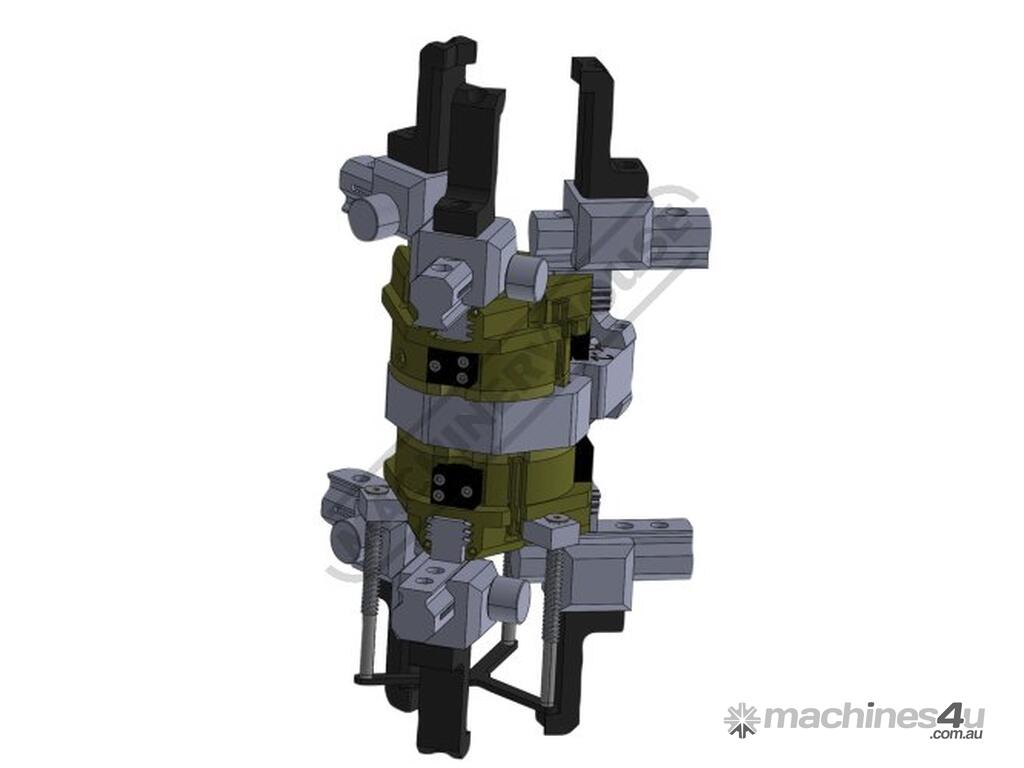

Schunk dual gripper system (1 piece for loading & 1 piece for unloading)
Suitable for round hexagonal cast or pressed workpieces
Clamping surface cleaning with air blow nozzle
SICK 2D Laser safety scanner
3-Colour industrial signal tower
RoboCAM Smart automation software
Easy and quick set-up

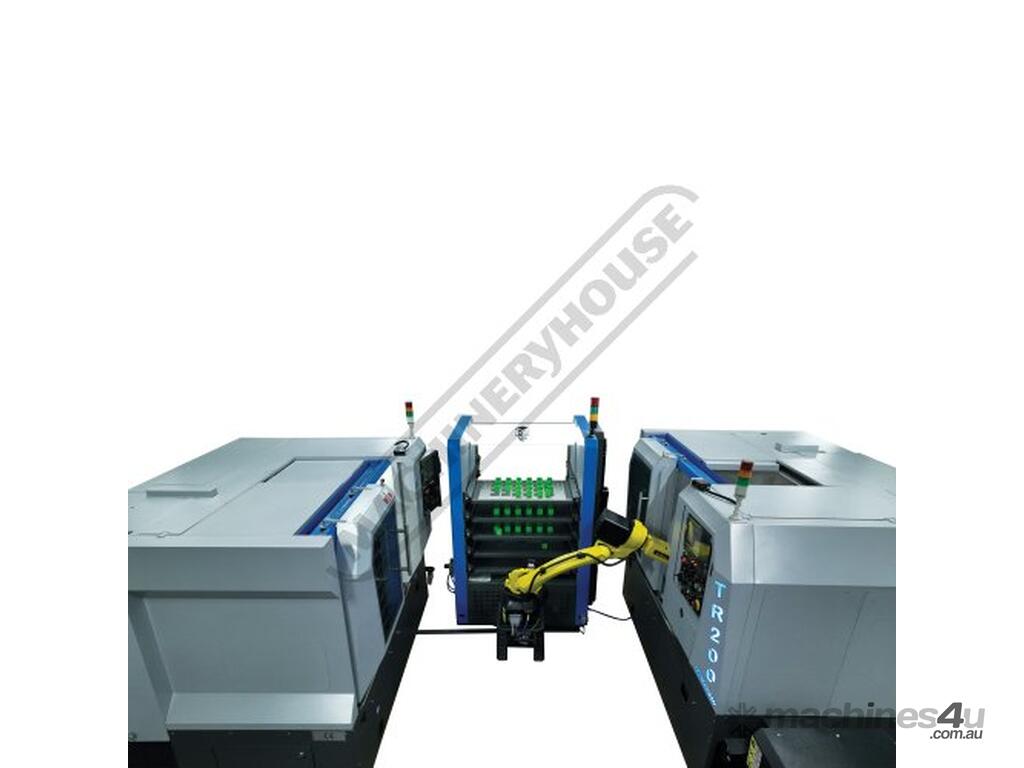

Suitable for tending up to 2 CNC machines (additional interface required)
CE Regulation
Suitable for CNC Lathes or Machining centers

Includes:
- Share your work piece details with us and we will design and customise the systems draw inlays and grippers to minimise any additional setup between multiple work piece changes.
- Robot software options: Soft-Float Singularity Avoidance Collision Guard Remote I-pendant Integrated PMC



Specifications:
Robot Model: FANUC M10iD12
Robot Controlled Axes: 6
Robot Capacity (Kgs): 12
Robot Reach (Max) (mm): 1441
Workpiece Draw Size (mm): 800 x 600
Workpiece Draw QTY: 5
Air Consumption (L/Min): >80
Voltage (V): 415
Electrical Power (kW): 4
Max Current (Amps): 10
Weight (Total) (Kgs): 1395
Robot Cell Dimensions (mm): 2272 x 1495
