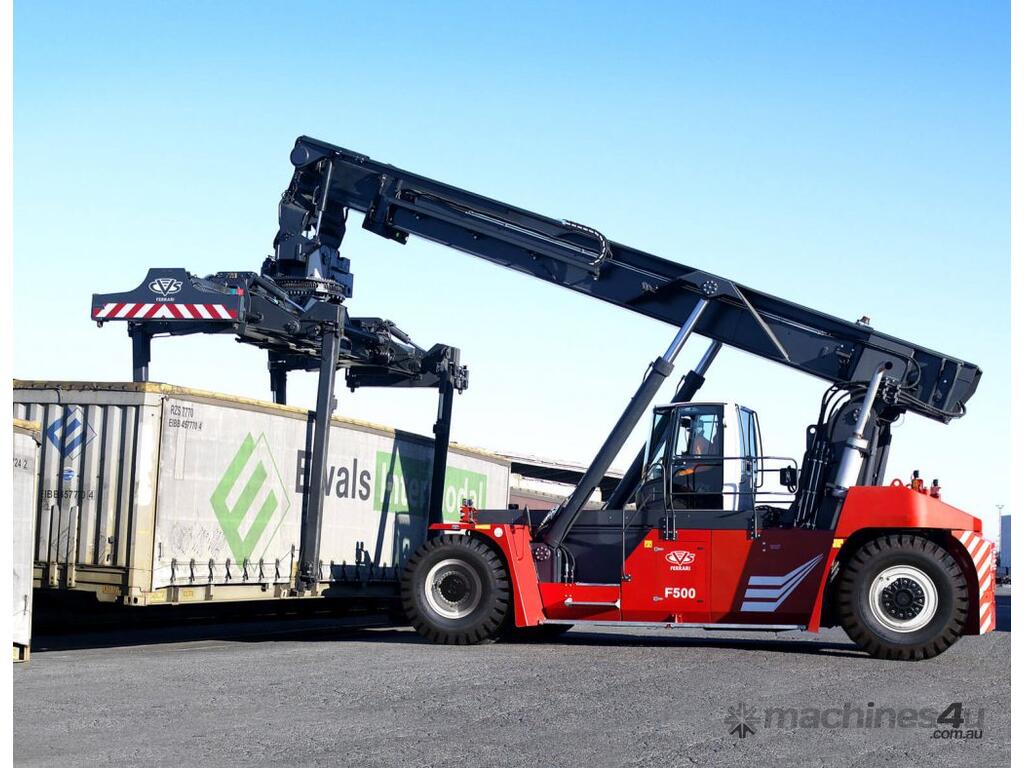

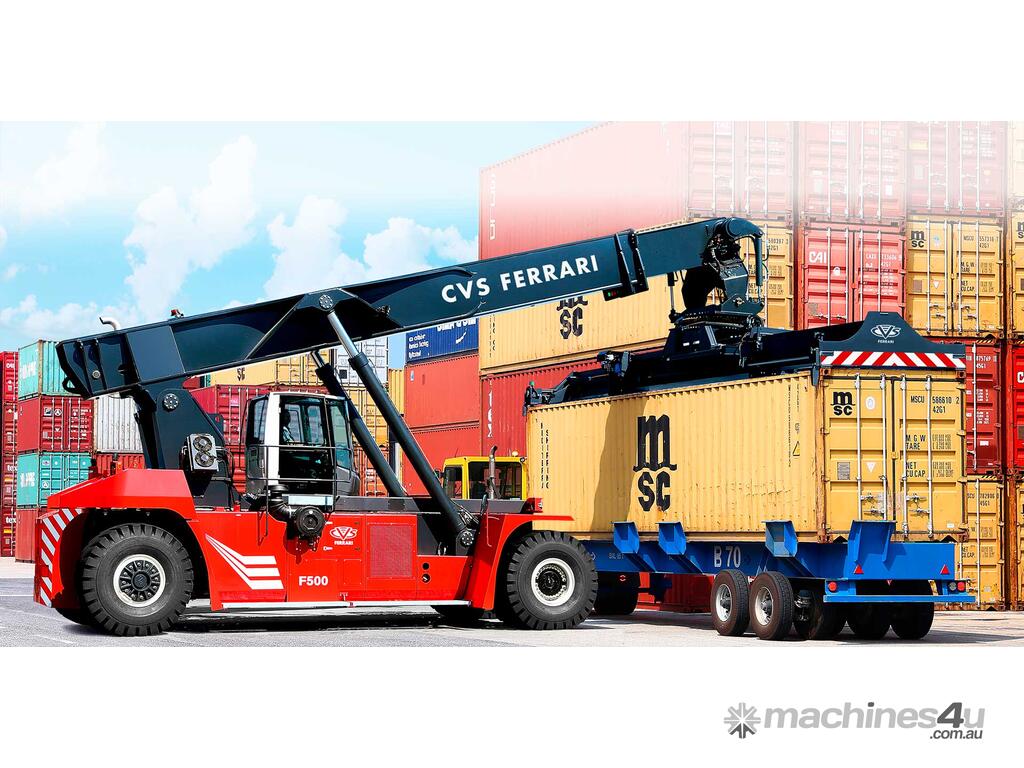

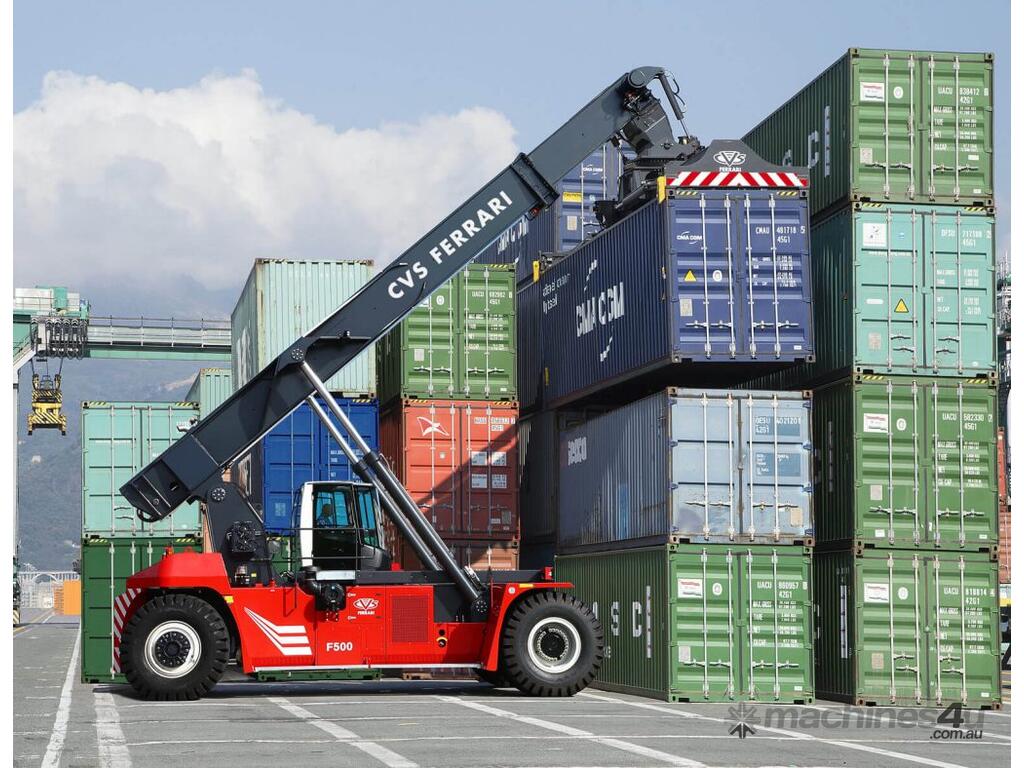

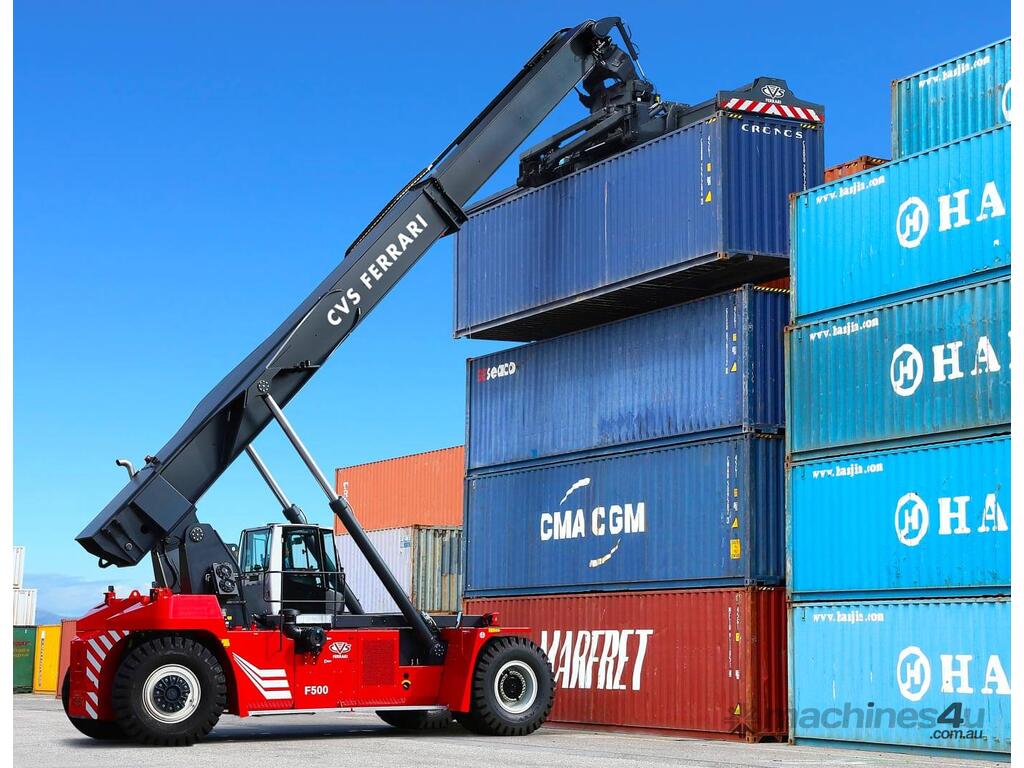

LIFT EQUIPT- CVS Ferrari F500.RS5 Reach Stacker

LADEN CONTAINER AND INTERMODAL HANDLING REACH STACKERS

Model: F500.RS5
Attachment Type: 20’/40’ Top Pick Spreader

Performance and Dimensions:

Load Capacity on Tires at 1st/2nd/3rd Row (No Stabilizers):
1st Row: 46,000 kg
2nd Row: 36,000 kg
3rd Row: 19,000 kg
Load Centre Distance at 1st/2nd/3rd Row:
1st Row: 1,780 mm
2nd Row: 3,850 mm
3rd Row: 6,400 mm
Load Capacity on Stabilizers at 1st/2nd/3rd Row:
1st Row: 46,000 kg
2nd Row: 43,000 kg
3rd Row: 27,000 kg
Load Centre to Front Face of the Truck: 930 mm
Lifting Height under Twist-Lock: 16,200 mm
Stacking Ability (Containers): 1 over 5 = 6 x 8’6”
Wheelbase: 6,500 mm
Overall Width (Excluding Spreader): 4,185 mm
Overall Length (Including Spreader): 12,000 mm
Overall Height: 4,800 mm
Seat Height: 2,780 mm

Weight:
Service Weight (Unladen): 77,700 kg

Engine Specifications:
EU Stage 3a Engine Make & Model (Rated Power): Cummins QSM11 (250 kW)
EU Stage 4 Engine Make & Model (Rated Power): Scania DC13 (257 kW)

Transmission:
Make & Model: Dana TE32

Brakes:
Service Brakes: Wet Disc on Front Wheels

Tires:
Tire Size: 18.00-33
Spreader and Boom Specifications:

Spreader Rotation (Clockwise/Anticlockwise): -105° / +195°
Spreader Side-Shift (Left/Right): +800 mm / -800 mm
Boom Angle (Min/Max): 0° / 60°

* CLICK ON THE PDF SPEC SHEET FOR MORE INFORMATION *
